How Can an EC Motor Fan Reach 92% Efficiency?
Motor design, controller loss and real fan-system efficiency
High EC efficiency comes from permanent-magnet motor design, electronic commutation, low-loss control and correct impeller loading. Buyers should distinguish motor efficiency from complete fan efficiency.
Key Takeaways
- Motor efficiency, controller efficiency and wire-to-air efficiency are different values.
- A fan can only deliver high efficiency when the operating point is near the efficient part of the curve.
- The best data package shows speed, power, airflow, pressure and sound together.
Engineering Notes

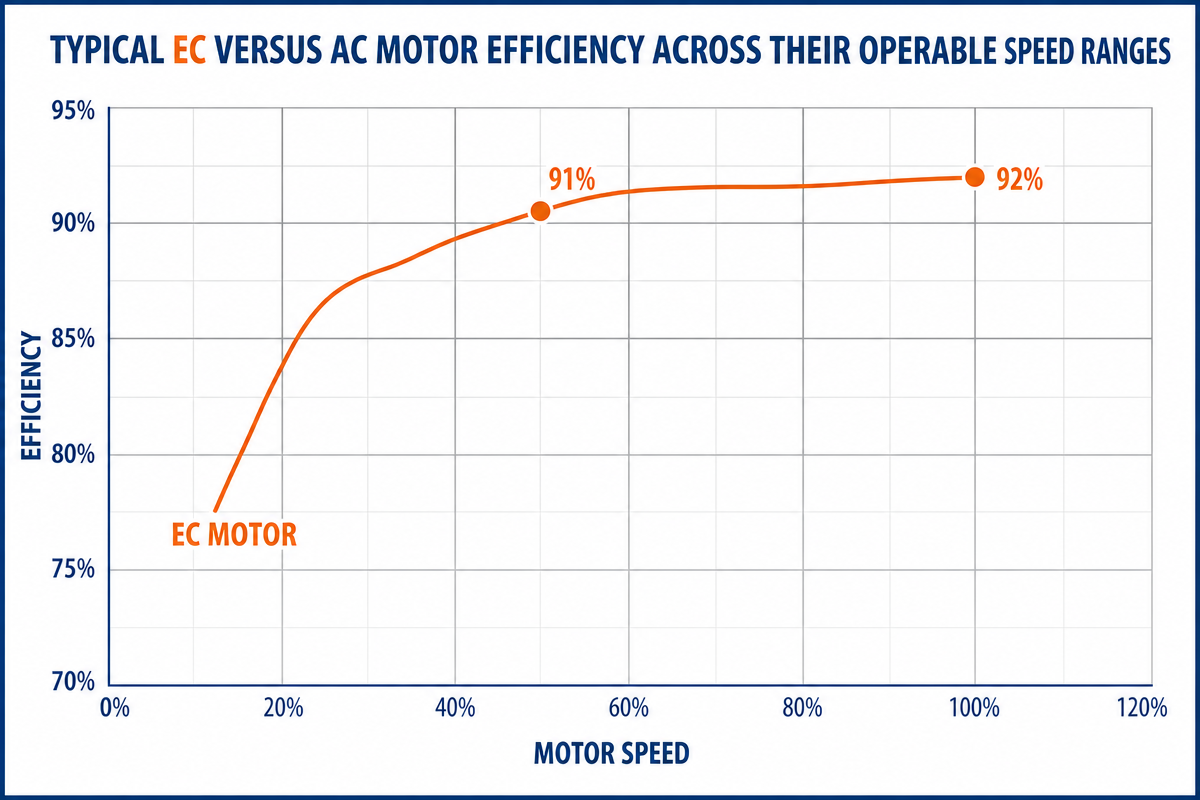

A 92% value is meaningful only when the supplier states what is being measured. Motor efficiency can be higher than complete fan wire-to-air efficiency because the impeller and controller also introduce losses.
EC technology reduces losses through permanent magnets and electronic commutation. Good aerodynamic design then turns that motor advantage into useful airflow rather than heat and noise.
For LONGWELL replacement work, the most practical comparison is the measured power at the same airflow and static pressure as the original fan.

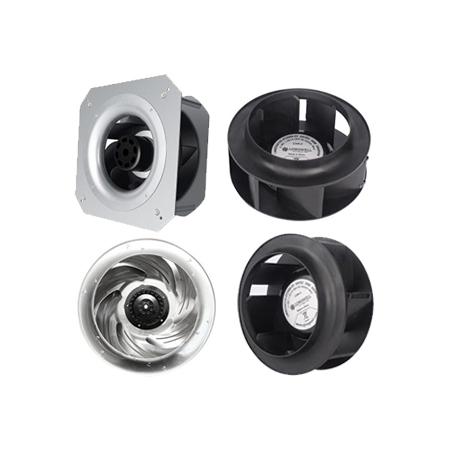

Product and Application Images
Selection Table
| Item | Market / legacy condition | Engineering recommendation |
|---|---|---|
| Efficiency term | What it measures | How buyers should use it |
| Motor efficiency | Electrical-to-shaft conversion | Useful but incomplete |
| Controller loss | Loss in drive electronics | Important at part-load |
| Wire-to-air efficiency | Electrical input to useful airflow power | Best for fan energy comparison |
| Seasonal efficiency | Weighted operation across load profile | Best for annual cost comparison |
Related LONGWELL Product Categories
Related Resources
FAQ
Can every EC fan reach 92% wire-to-air efficiency?
Why does operating point matter?
What data should be requested?
Need a replacement model or OEM validation?
Send the existing model, airflow, static pressure, voltage, control signal, mounting dimensions and annual quantity. LONGWELL can check the closest platform for your project.
