Description
Technical Description
| Material | Plastic |
| Protection Class | IP44 |
| Insulation Class | F |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | AC |
| Diameter of Inlet | 150mm |
| Nominal Voltage | 115V |
| Frequency | 60Hz |
| Current | 0.36A |
| Power Input | 44W |
| Speed | 2050RPM |
| Static Pressure(Max) | 302Pa |
| Air Flow(Max) | 535m3/h |
| Noise | 30dB(A) |
| Min.ambient Temp | -30¡æ |
| Max.ambient Temp | 60¡æ |

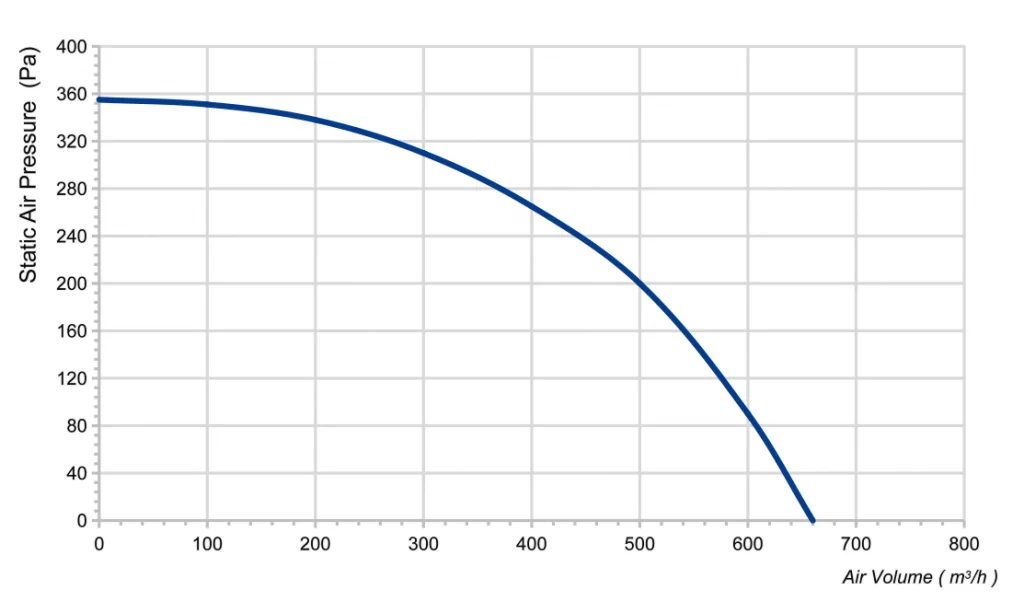

Curves

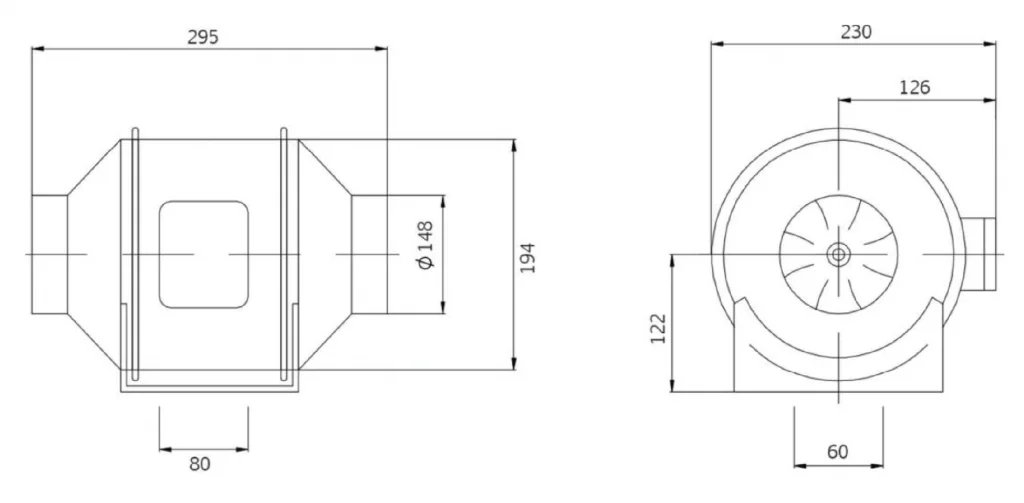

Drawing
Download
