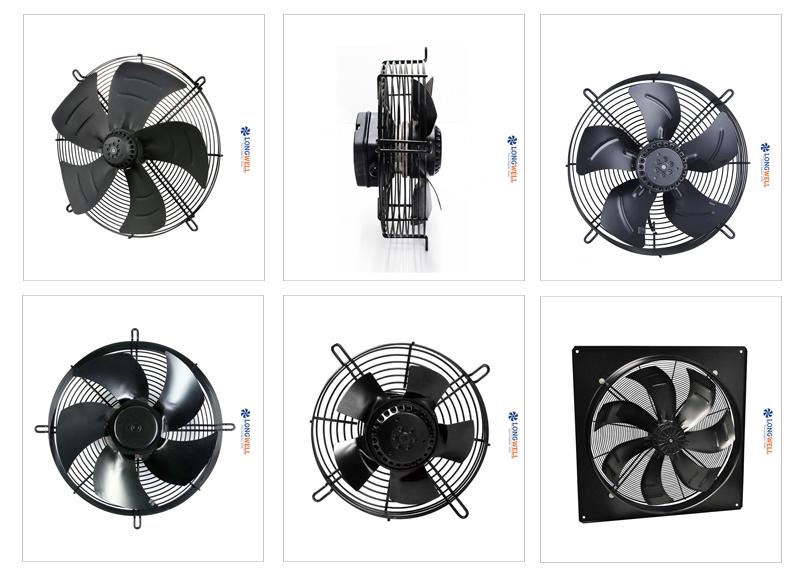

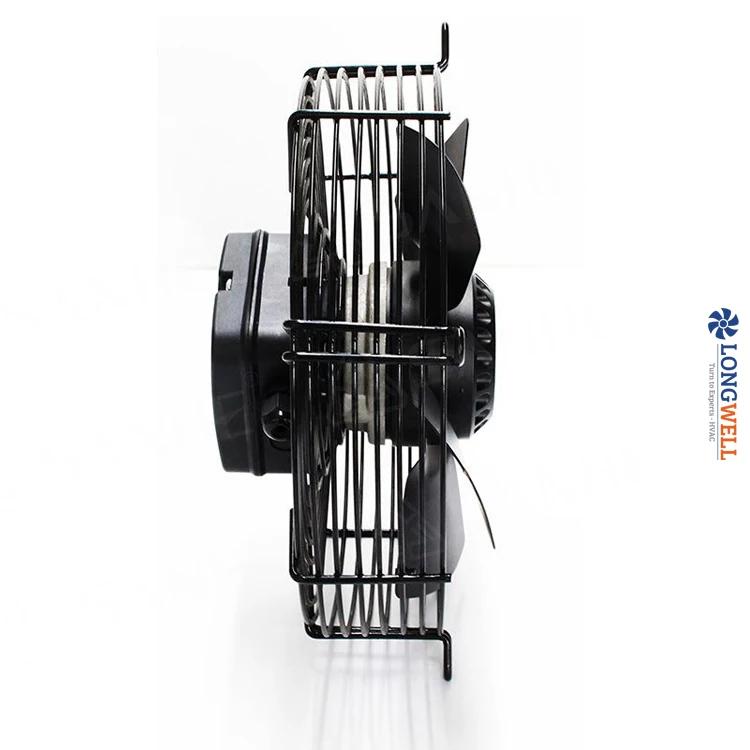

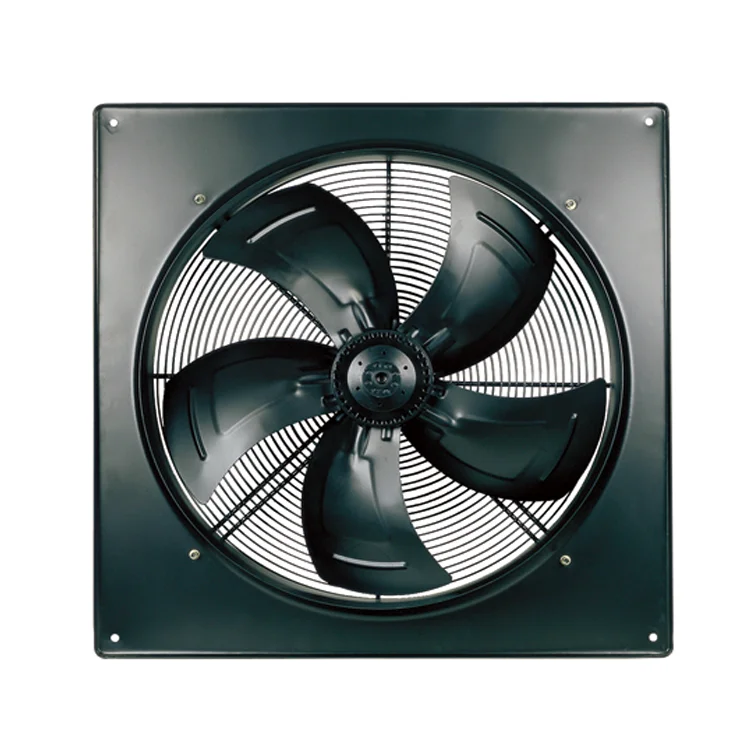

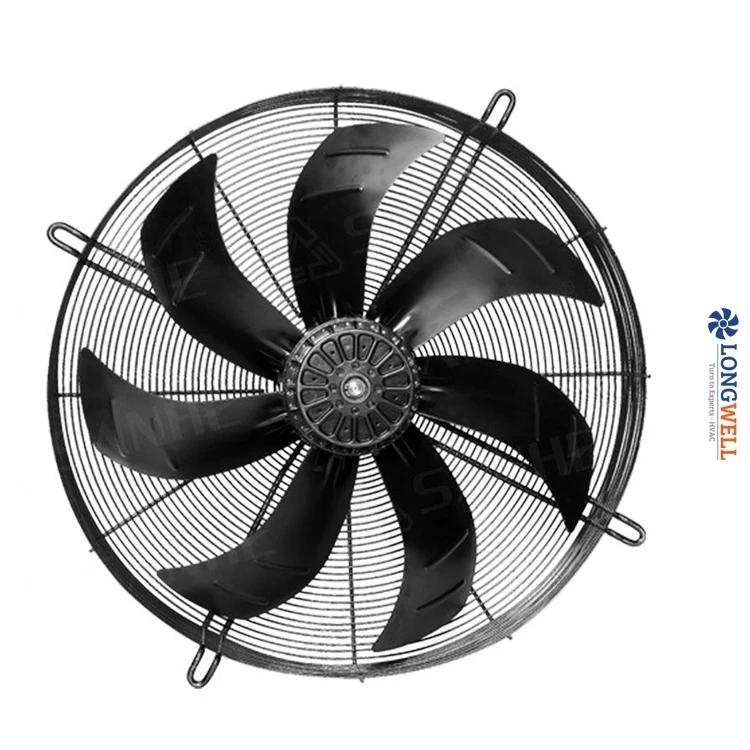

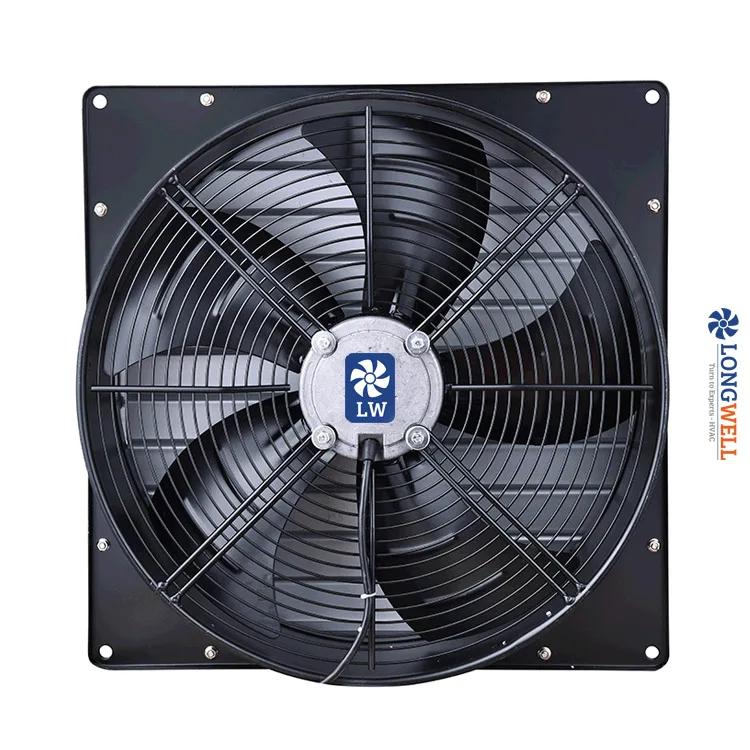

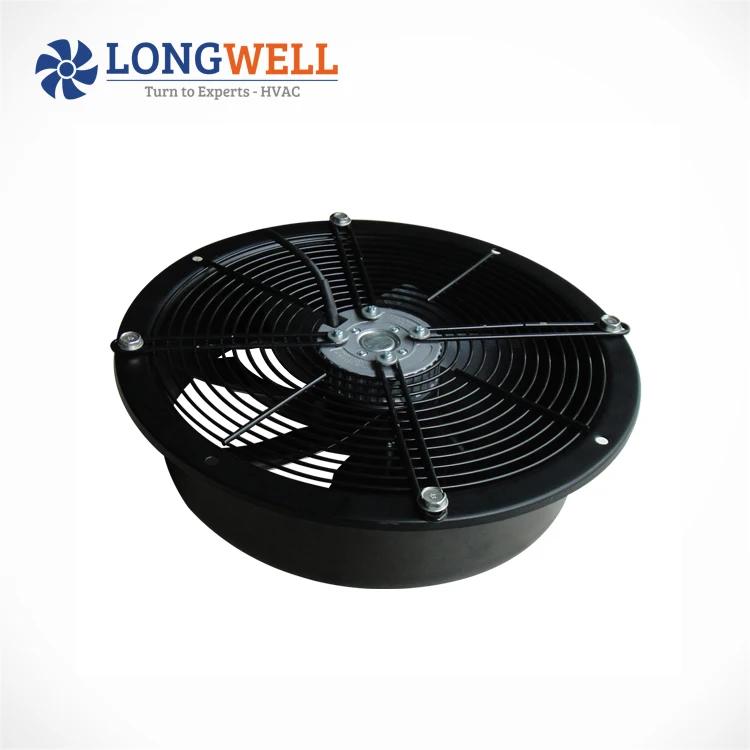

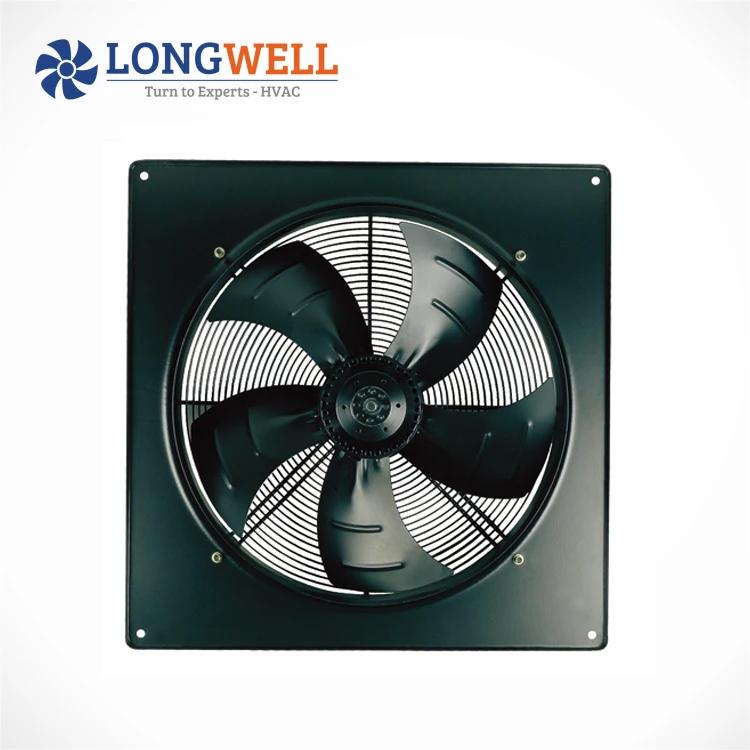

High speed industrial ventilation roof vent extractor custom size high quality roof mounted exhaust fan axial flow fan

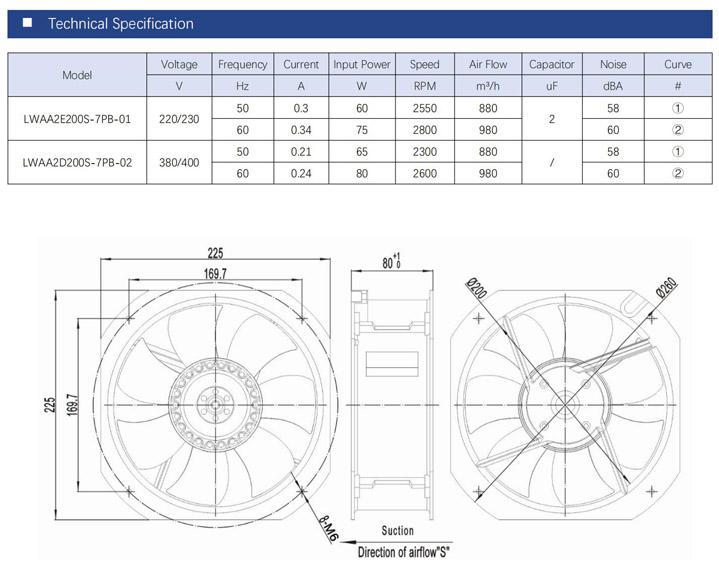

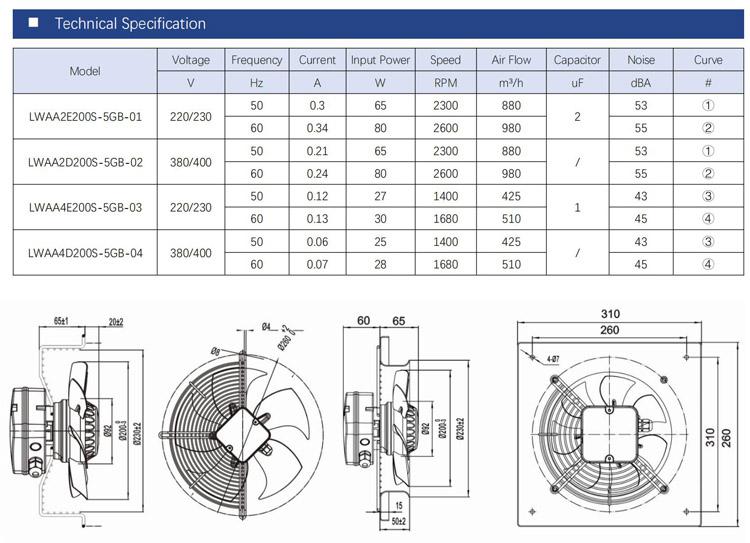

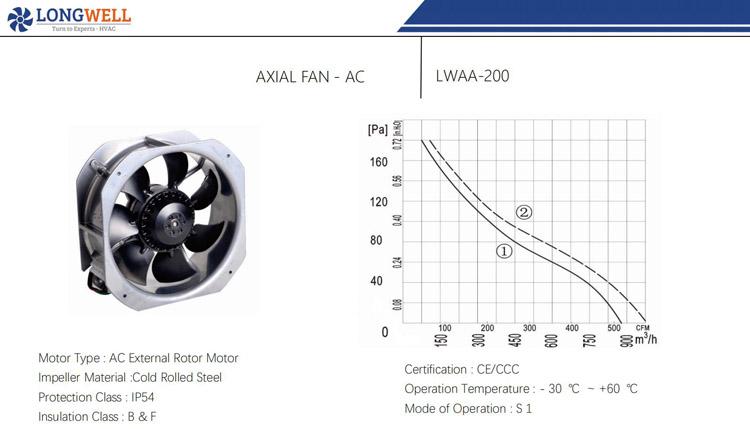

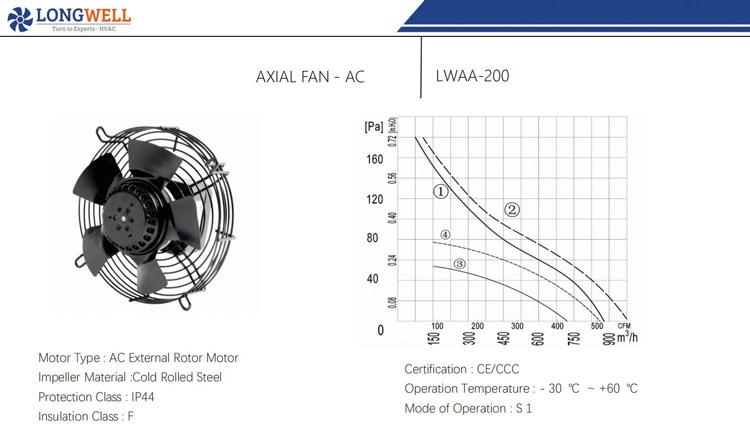

| Model Number : | LWAA2E200mm Axial Flow Fans | ||
| Motor Type : | AC External rotor motor | Blade Material : | Steel |
| Operation Model : | S1 | Insulation Class : | IP 44 |
| Speed control: | / | Insulation Class: | F |
| Operation Temperature : | -30 ℃ ~ +60 ℃ | ||
- Casings :
Casing are made of high quality steel plate or galvanized steel sheet with high strength and good regidity ; the surface is treated by plastic spraying process
- Screening :
The safety screenings are made of steel wire ,the welding is firm ,the surface is treated by plastic spraying process .
there are different types of screenings ,or can be customized .
- Operating Environment :
Temperature : -20 ℃ ~ +55 ℃
Humidity : ≤ 96%
Evevation : ≤1000m
- Customized Part :
Voltage : 110V / 120V / 230V / 380V /400V;
Frequency : 50 / 60Hz ;
Terminal Box : Single phrase with ternimal box ,three phrase can be chosed with or without terminal box ;

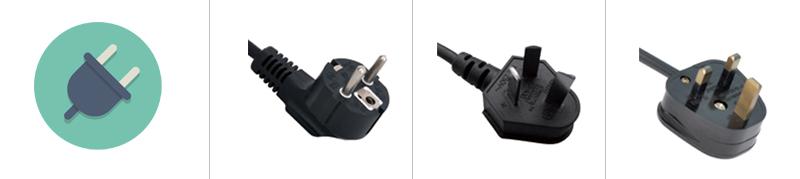

Plug : As below picture shows :
