Types :	160 mm Large air volume EC Forward Centrifugal Fans impeller for Electronic cabinet cooling
Voltage Ranges :	230V
Frequency :	50/60 Hz
Diamter :	160mm ( impeller diameters )
Motor Types :	BLEC External Rotor Motor ( EC )

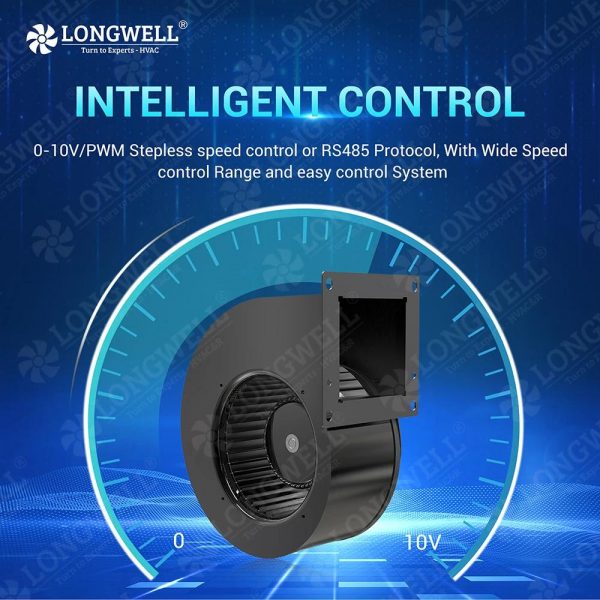

Speed Control :	0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:	-25℃～ +60℃
Certificating :	All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:	IP44 ,IP54,IP55
Electronic Protection:	Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage	Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m
Balancing	According to JB/T 9101-1999 requirements G6.3
Product Standards :	LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

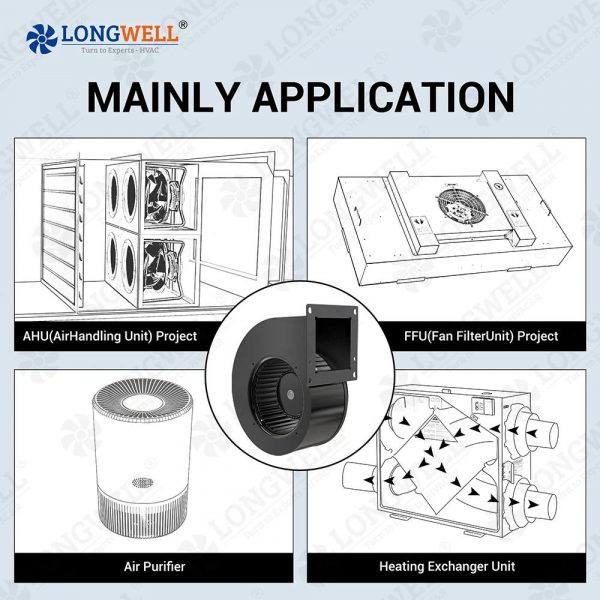

Mainly Applications	AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling / Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Voltage	230V
Blade Material	aluminum alloy
customized support	OEM, ODM, OBM
mounting	Other
place of origin	Zhejiang, China
brand name	LONGWELL
model number	LW
warranty	1 Year
After-sales Service Provided	Free spare parts
Type	centrifugal fan

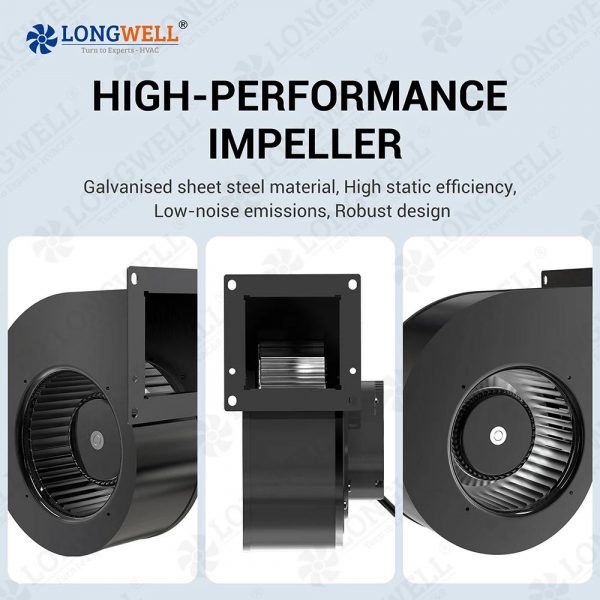

Impeller material	Propylene with glass fiber reinforced
Direction	Clockwise
Bearing	Ball Bearing
Motor type	AC external rotor motor
Amb,Temp	-25 to +60℃
Insulation	B/F
Product name	Blower Fan
Application	Exhaust Ventilation
Motor	Copper Motor
Selling units	Single item
Single package size	50X50X20 cm
Single gross weight	6.000 kg

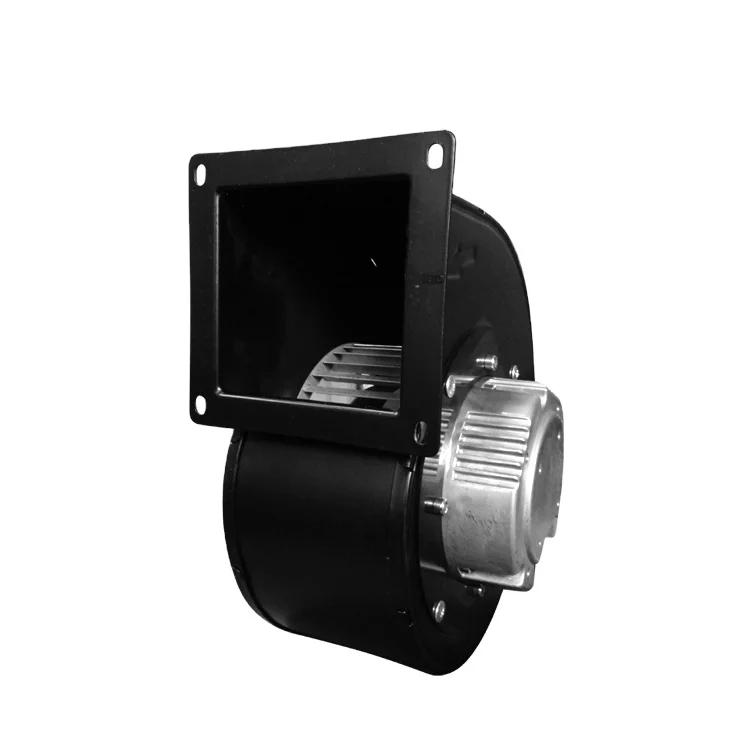

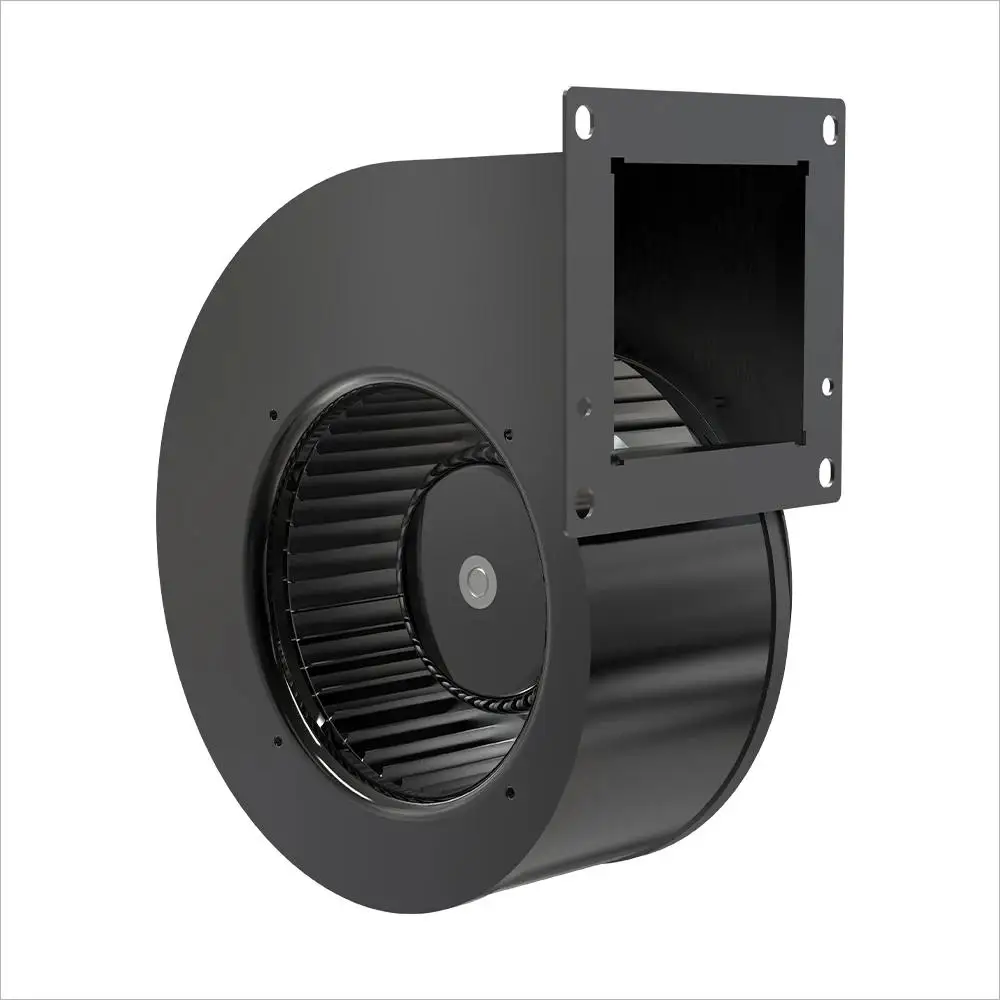

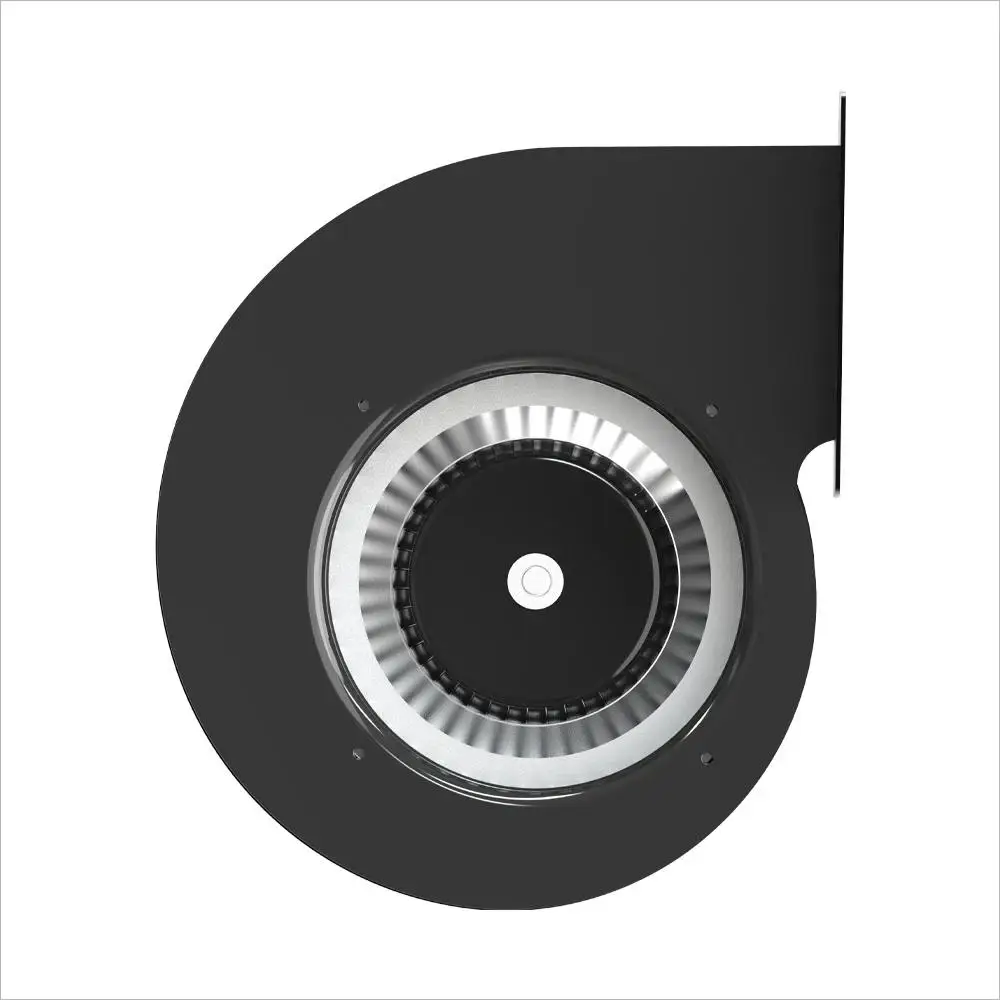

LONGWELL 160mm Diameter Wholesale Custom EC Centrifugal Fan Blower Centrifugal Exhaust Blower

Description
