Understanding Cross Flow Fans: Technology and Longwell’s Solutions
Introduction
Cross flow fans, also known as tangential fans, are specialized air movement devices renowned for their ability to deliver uniform airflow in compact spaces. Widely used in heating, ventilation, air conditioning (HVAC) systems, electronics cooling, and various industrial applications, these fans offer unique advantages due to their design and operational efficiency. This article explores the working principle of cross flow fans, their benefits, applications, and how Ningbo Longwell Electric Technology Co., Ltd. (Longwell Fans) provides innovative solutions tailored to diverse industry needs.
What is a Cross Flow Fan?
A cross flow fan is a type of fan that generates airflow perpendicular to its axis of rotation, distinguishing it from axial fans (which move air parallel to the axis) and centrifugal fans (which expel air radially). Characterized by a long, cylindrical impeller, cross flow fans produce a wide, even stream of air, making them ideal for applications requiring consistent airflow in constrained spaces. Their unique design allows for horizontal or vertical mounting, enhancing their versatility in various settings.
Working Principle of Cross Flow Fans
The operation of a cross flow fan relies on a few key components working together to create a steady, uniform airflow:

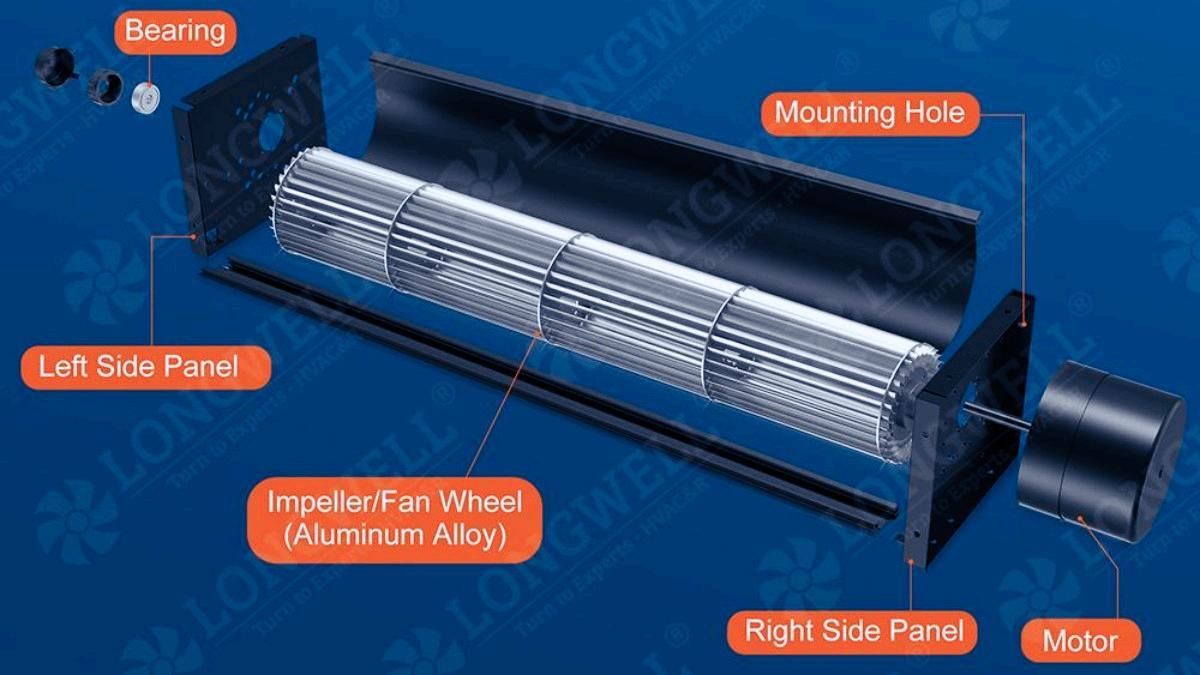

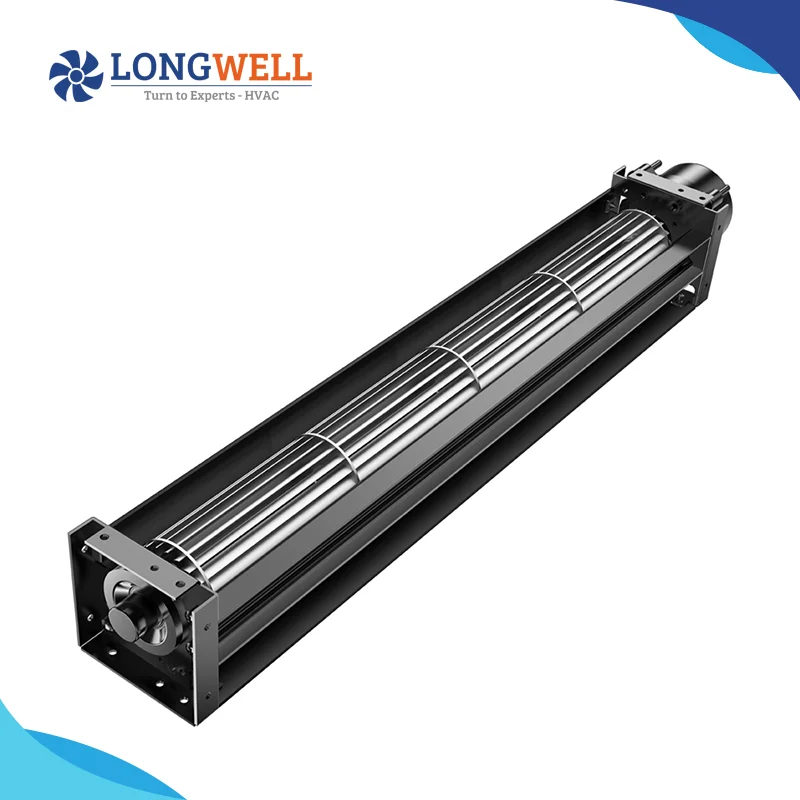

- Impeller: A long, cylindrical structure with multiple forward-curved blades, typically made of aluminum alloy or plastic. The impeller’s design allows it to draw in and expel air efficiently.
- Housing: A rectangular or scroll-shaped enclosure that guides air into and out of the impeller, ensuring a controlled airflow path.
- Motor: Powers the impeller’s rotation, available in AC, DC, or energy-efficient EC (electronically commutated) variants, depending on the application.
- Bearings: High-quality bearings, such as NMB or NSK ball bearings, ensure smooth and reliable impeller rotation.
When the impeller rotates, air enters through an opening on one side of the housing, passes through the impeller’s blades, and is discharged from the opposite side. Inside the impeller, a vortex forms near the volute tongue, stabilizing the airflow and enhancing efficiency. The airflow follows an arc-shaped path, resulting in a laminar, two-dimensional flow that is uniform across the fan’s length. This complex flow pattern, while intricate, allows cross flow fans to deliver consistent performance in low-to-medium pressure environments.
Advantages of Cross Flow Fans
Cross flow fans offer several benefits that make them a preferred choice in various applications:
- Uniform Airflow: They produce a wide, even stream of air, ideal for cooling large surfaces or ensuring consistent ventilation.
- Compact Design: Their elongated, rectangular shape allows installation in tight spaces, making them suitable for space-constrained environments.
- Low Noise: The design minimizes turbulence, resulting in quiet operation, with some models achieving noise levels as low as 19 dBA.
- Energy Efficiency: Particularly with DC and EC motors, cross flow fans consume less power compared to traditional fans, with Longwell’s DC models offering up to 70% energy savings over AC counterparts.
- Versatility: They can be mounted horizontally or vertically and are adaptable to various applications due to customizable impeller lengths and motor types.
These advantages make cross flow fans a reliable solution for industries requiring efficient and quiet air movement.
Applications of Cross Flow Fans
Cross flow fans are employed in a wide range of applications due to their ability to deliver consistent airflow in compact designs:
- HVAC Systems: Used in air conditioners, heaters, and ventilation units to circulate air evenly.
- Electronics Cooling: Prevents overheating in devices such as computers, servers, and telecommunications equipment.
- Automotive: Incorporated in vehicle ventilation systems for cabin comfort.
- Home Appliances: Found in air curtains, fan heaters, and wood-burning stoves for efficient air distribution.
- Industrial Applications: Utilized in drying technologies, process engineering, and other systems requiring precise airflow control.
Their ability to provide high airflow rates with low noise and a long air throw makes them indispensable in these sectors.

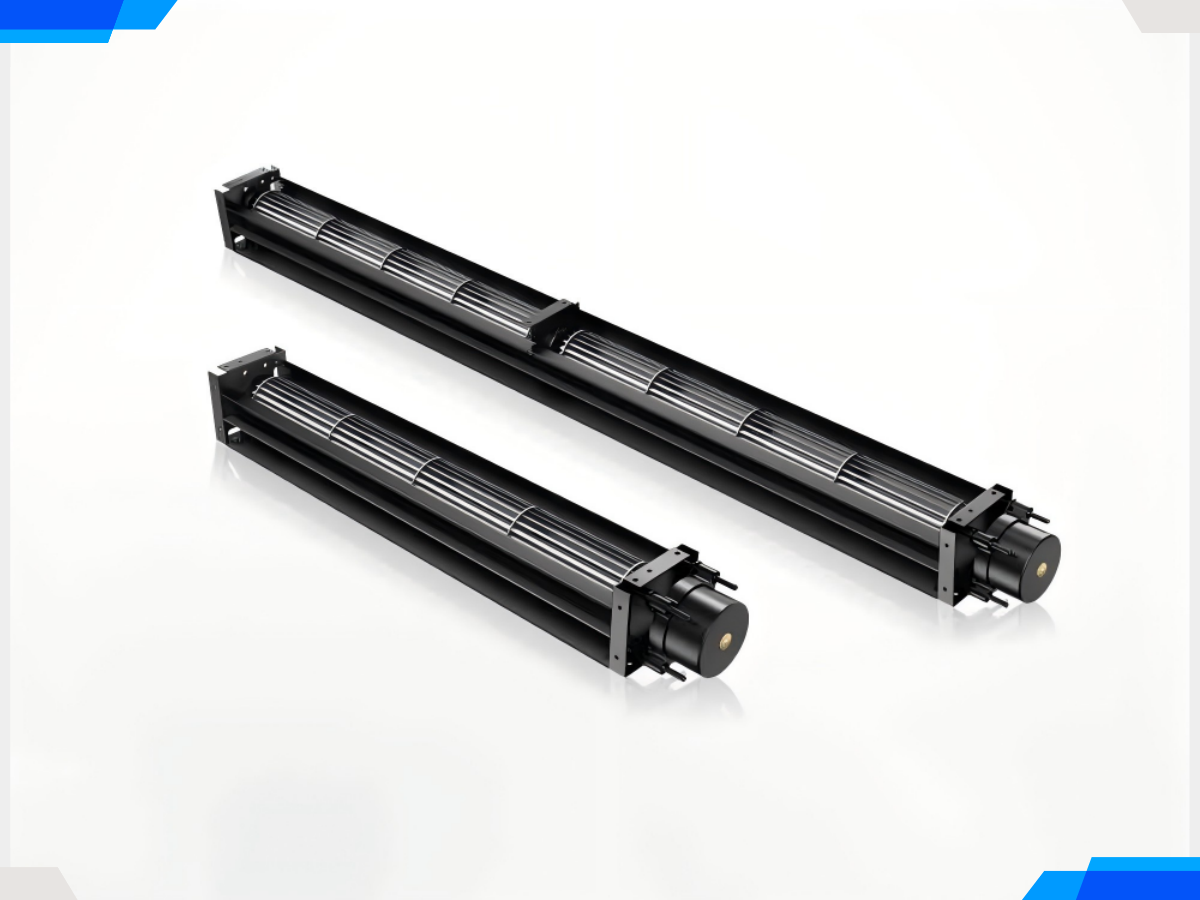

Longwell’s Cross Flow Fan Solutions
Ningbo Longwell Electric Technology Co., Ltd. is a leading manufacturer of cross flow fans, offering a comprehensive range of DC, AC, and EC models designed to meet diverse industry requirements. With over 28 years of manufacturing experience, Longwell combines advanced technology with high-quality materials to deliver reliable and efficient products.

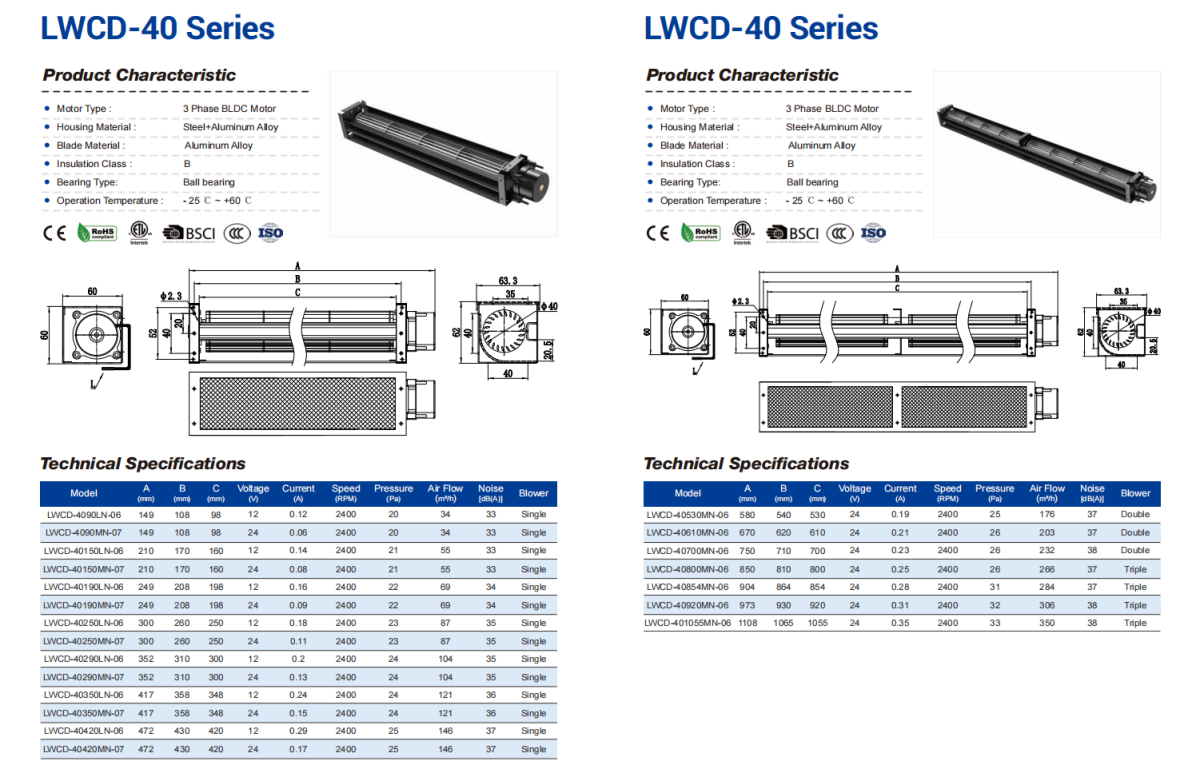

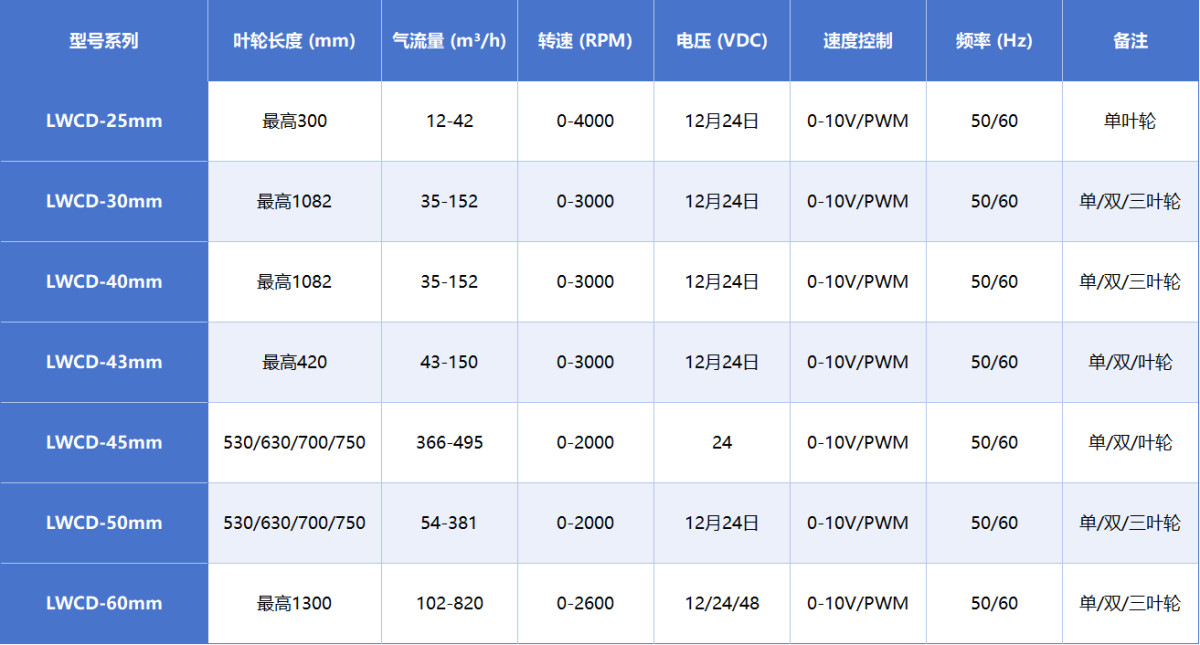

DC Cross Flow Fans
Longwell’s DC cross flow fans are powered by brushless DC motors, offering superior energy efficiency and low noise levels. Key specifications include:
- Efficiency: Up to 70% less energy consumption compared to AC fans.
- Noise: As low as 19 dBA, ideal for noise-sensitive environments.
- Bearings: Equipped with NMB or NSK ball bearings for durability.
- Housing: Constructed from metal, primarily aluminum, with an IP21 rating.
- Customization: Options include special IP ratings and left/right motor configurations.
AC Cross Flow Fans
Longwell’s AC cross flow fans are designed for robust performance in various applications:
- Voltage: 110V–120V and 220V–240V.
- Impeller Length: 60mm to 1200mm, with wheel diameters from 30mm to 150mm.
- Motor Types: AC capacitor or shaded pole motors.
- Construction: Metal frame with galvanized sheet steel housing and aluminum alloy rotor.
- Operating Temperature: -25°C to +60°C.
- Safety: RoHS compliant, impedance protected.
EC Cross Flow Fans

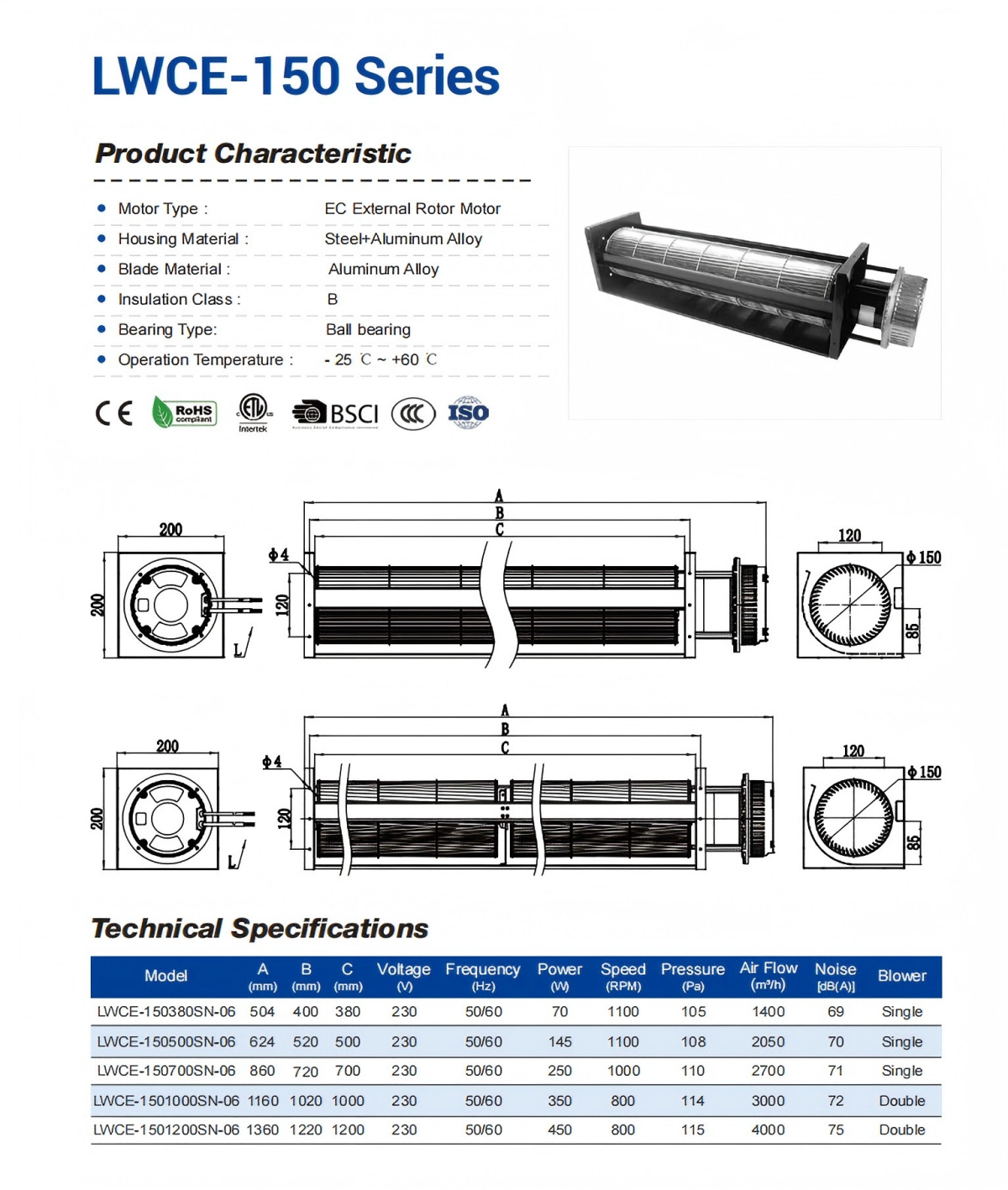

Longwell’s EC cross flow fans feature integrated commutation electronics for precise control and high efficiency. A notable example is the LWCE-1501000SN-06 model:
- Motor Type: EC external rotor motor.
- Housing and Impeller: Steel and aluminum alloy.
- Features: Maintenance-free ball bearings, suitable for high-performance applications.
LONGWELL Cross Flow Fan Unique Features
- High Reliability: Use of NMB or NSK ball bearings ensures long-term durability.
- Customization: Options for special IP ratings, motor configurations, and signal rotation detection.
- Environmental Adaptability: Operates in extreme temperatures from -25°C to +60°C.
- Compliance: All products are RoHS certified, emphasizing environmental responsibility.
Application Examples
Longwell’s cross flow fans are widely used in:
- Stove Jacket Cooling: Ensuring efficient heat dissipation in wood-burning stoves.
- Air Conditioners and Heaters: Providing consistent airflow for optimal performance.
- Electronics: Cooling servers and other sensitive equipment.
- Ventilation Systems: Supporting underfloor convectors and air doors.
Conclusion
Cross flow fans are a cornerstone of modern air movement technology, offering efficient, quiet, and uniform airflow in compact designs. Ningbo Longwell Electric Technology Co., Ltd. excels in providing high-quality DC, AC, and EC cross flow fans, tailored to meet the demands of various industries. With their focus on energy efficiency, low noise, and customization, Longwell’s solutions are ideal for applications ranging from HVAC to electronics cooling. For more details on their product offerings, visit Longwell Fans.
