The Cornerstone of Silence in Modern Commercial Architecture
—Integration and High-Efficiency Maintenance Strategies for In-Line Duct Fans in Concealed Ventilation Systems
In contemporary high-end commercial building design, the balance between efficiency and aesthetics is a core requirement. LONGWELL in-line duct fans are the heart of concealed ventilation systems, directly determining a building’s air quality, operating costs, and commercial value.
Commercial environments such as office buildings, premium retail spaces, healthcare facilities, and hotels demand extremely high indoor environmental standards. The ventilation system must address the following challenges:
· Ultimate Aesthetics and Space Optimization: Preventing equipment from occupying usable indoor space and preserving the architectural design’s purity.
· Quiet Working and Commercial Environments: Eliminating mechanical operational noise interference with commercial activities (e.g., meetings, shopping).
· Stringent Energy Efficiency Standards: Minimizing energy consumption to achieve green building objectives.
II. Core Considerations for In-Line Duct Fans in Concealed Installations
Accurate evaluation of the following three critical dimensions from the design’s initial stage is key to system success:
1. Spatial Adaptability and Installation Flexibility
· Compact Design: Ensuring easy positioning within tight ceiling voids and wall cavities.
· Standardized Compatibility: Interfaces adhere to industry standards, allowing for quick and reliable compatibility with various duct systems.
2. Noise Control and Silent Operation
· Low-Noise Technology: Utilizing precision-balanced, low-vibration designs and sound-insulating casing materials.
· Acoustic Isolation: Combining professional anti-vibration pads and flexible connections to create a superior acoustic environment.
3. High Energy Efficiency and Smart Control Integration
· EC Motor Technology: Employing EC (Electronically Commutated) brushless DC motors for higher efficiency and significant electricity cost savings.
· Intelligent BMS Integration: Supporting PWM or 0-10V signal control for seamless integration with Building Management Systems (BMS), enabling on-demand ventilation.
LONGWELL Core Advantages
LONGWELL in-line duct fans achieve a perfect blend of airflow design and motor technology within constrained physical spaces, making them the ideal choice for high-standard integration needs.
· UL, CE, ETL International Certifications
· EC/DC Energy-Saving High-Efficiency Drive
· Modular Installation and Maintenance Design

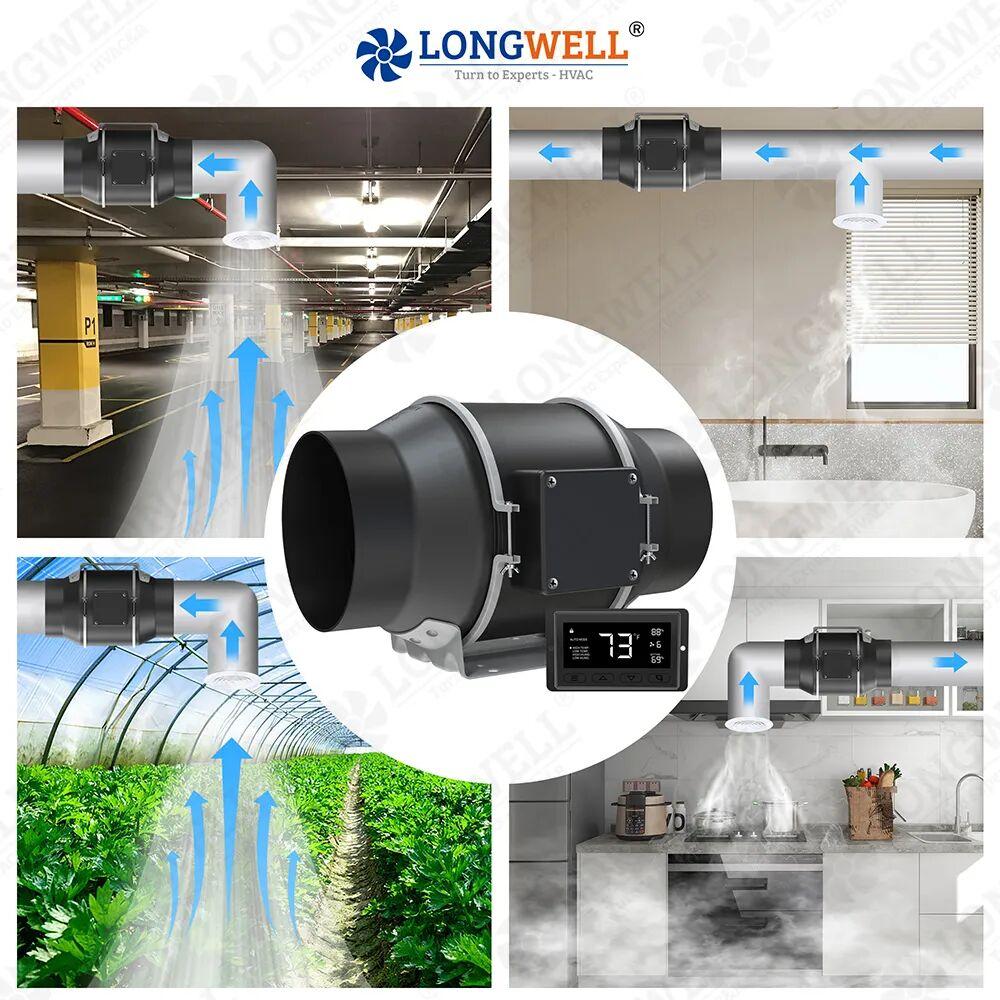

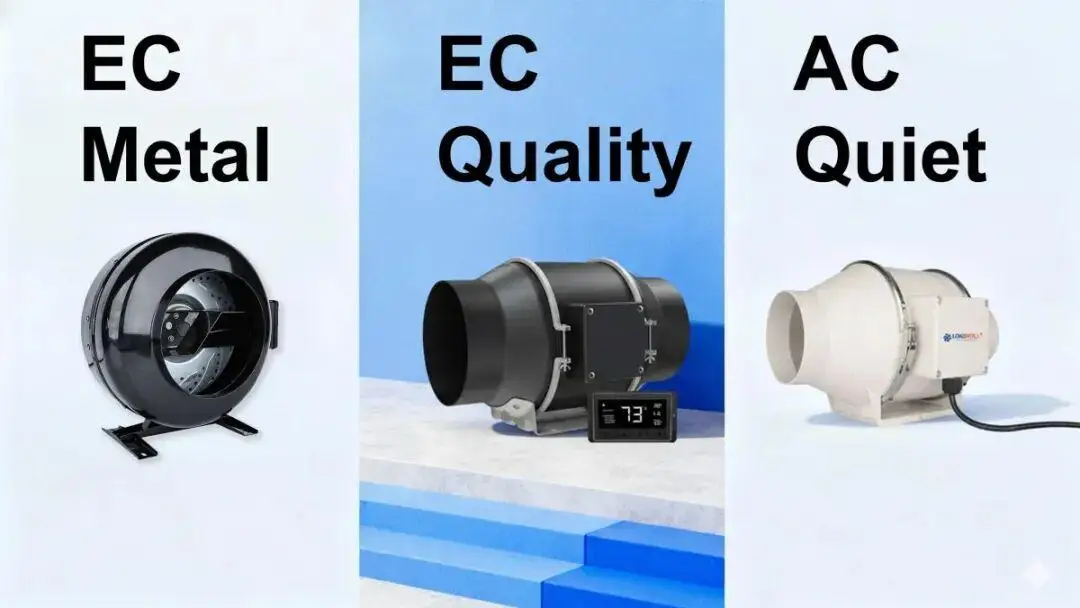

III. LONGWELL Duct Fan Product Series and Application Scenarios
|
Product Series |
Core Technical Advantage |
Applicable Scenarios & Characteristics |
|---|---|---|
|

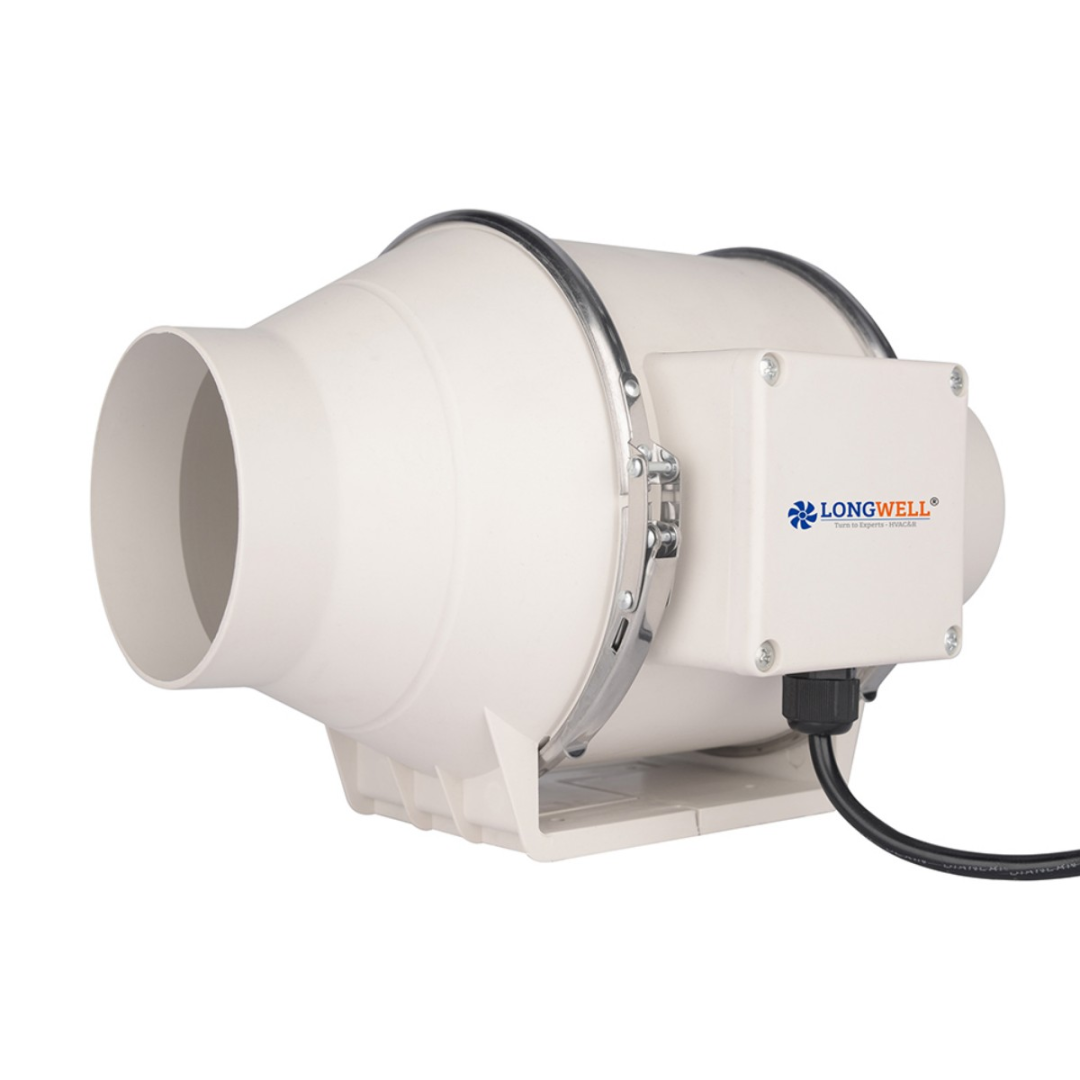

AC Plastic Ultra-Quiet Series |
AC external rotor motor, ultra-low operating noise, compact and lightweight. |
Office areas, small conference rooms, and boutique retail stores with the highest noise requirements. |
|

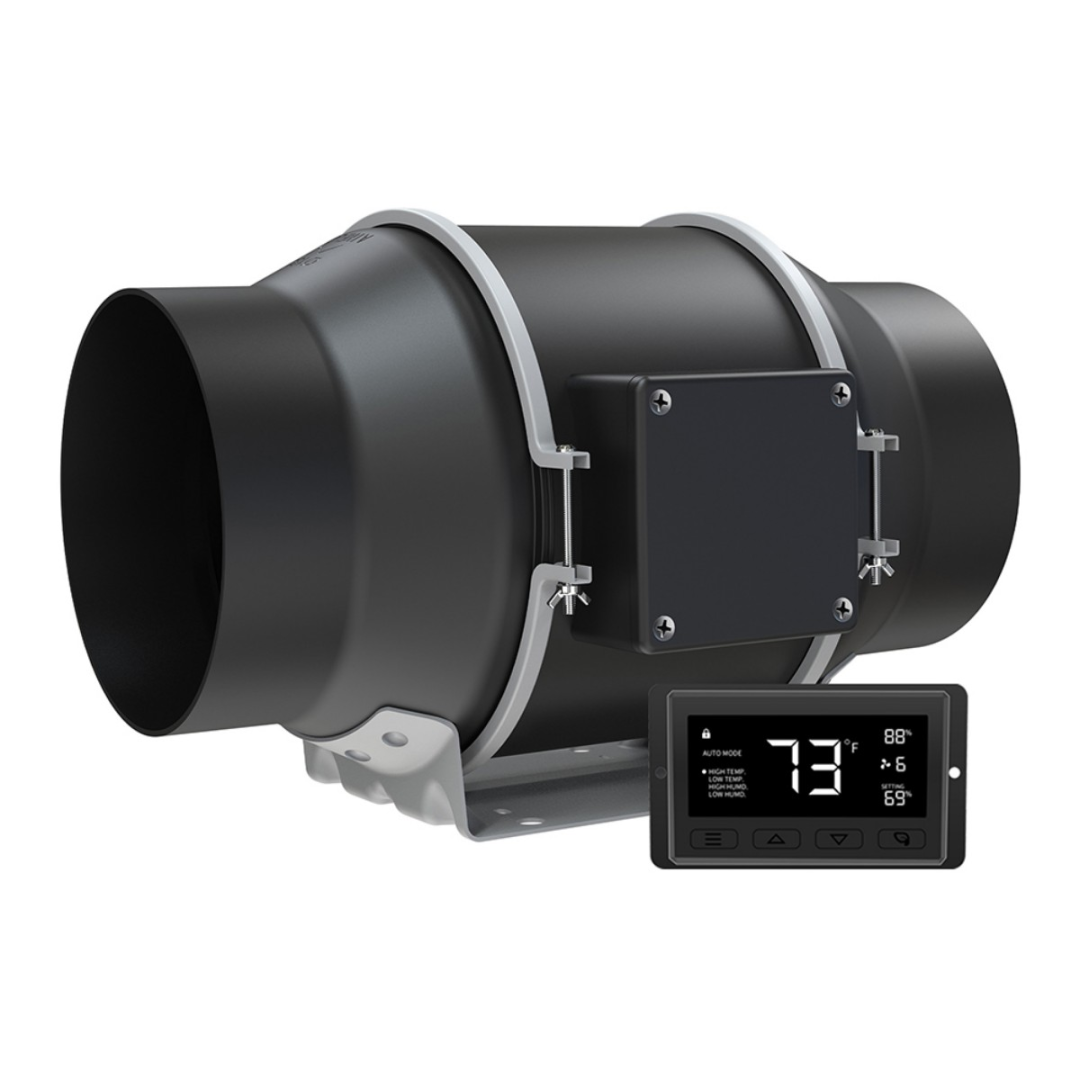

EC High-Quality Duct Fan Series |
EC brushless motor, combines axial and centrifugal advantages, high airflow, low power consumption. |
Mid-to-large commercial complexes emphasizing energy saving and requiring Variable Air Volume (VAV) control. |
|
EC Metal Ultra-Quiet Series |
Top-tier EC technology, IP54 protection, maximum operating temperature of $60^\circ\text{C}$. |
Healthcare facilities and data center cooling assistance, where environmental requirements are strict and long-term, high-reliability operation is needed. |
|

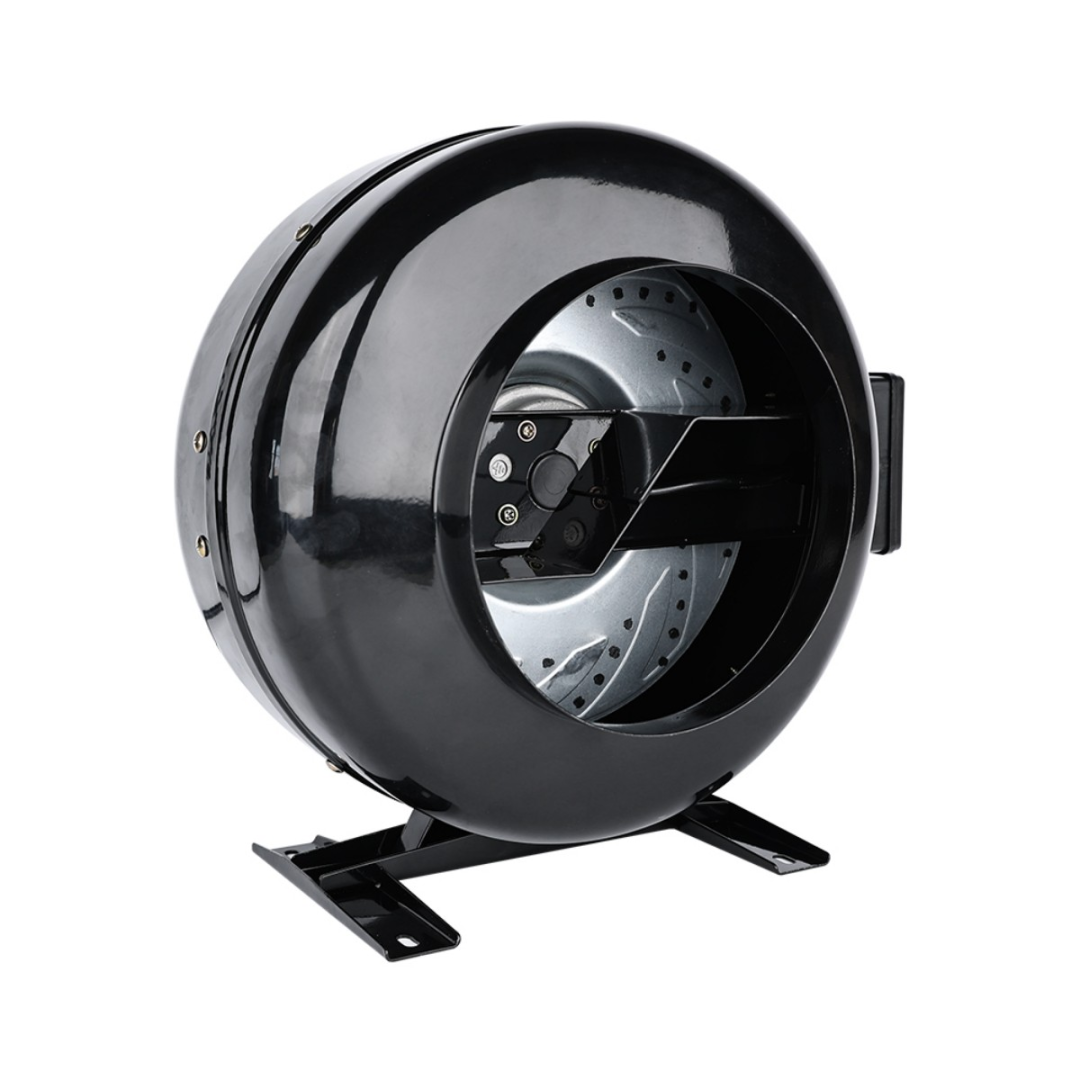

AC/EC/DC Metal Series |
Metal casing, high static pressure, excellent durability. |
Industrial/large commercial exhaust systems requiring high static pressure to overcome long-distance duct resistance. |
|
PVC Anti-Corrosion Series |
PVC material, resistant to moisture and corrosion. |
Corrosive environments like kitchen exhaust, high-humidity restrooms, and chemical laboratories. |
IV. Strategic Maintenance and Efficiency Assurance for Concealed Systems
1. Key Installation Principles (Preventive Design)
· Reserve Access Panels: Ensuring easy-to-open access panels are available for the fan, silencer, and filter locations is a prerequisite for high-efficiency maintenance.
· Anti-Vibration Treatment: Using vibration-damping hangers and flexible duct connections to isolate the spread of fan operating vibration.
· Interface Sealing: Ensuring all duct interfaces are well-sealed to prevent air leaks, which cause efficiency loss and noise.
2. High-Efficiency Maintenance Procedures
· Regular Cleaning (3-6 months): Primarily targeting the intake filter and outlet. LONGWELL fan design facilitates basic cleaning via the access panel.
· Connection Inspection: Regularly checking duct interfaces and mounting hardware to ensure no looseness or abnormal air leakage.
· Electrical and Operational Check (Professional Personnel): Monitoring current, voltage, and operating temperature, and inspecting bearings and impeller.
· Alert: If system noise suddenly increases or abnormal vibration is detected, the unit should be immediately shut down, and a professional technical team should be contacted.
V. Cost-Benefit Analysis and Future Trend Outlook
· Enhanced Asset Value: Optimizing the indoor design elevates the premium positioning of commercial real estate.
· Reduced Operating Costs: Utilizing EC high-efficiency fans can significantly save long-term electricity expenses.
· Future Trend: Smart Integration: LONGWELL is committed to integrating with BMS to achieve Predictive Maintenance and Adaptive Ventilation.
About LONGWELL
LONGWELL (Ningbo Longwell Electric Technology Co., Ltd.) specializes in the R&D and manufacturing of high-quality ventilation equipment. Through advanced technology and a rigorous quality control system, it provides reliable and efficient products and services for commercial buildings worldwide.
