Description
Technical Description
| Impeller Material | Plastic |
| Housing Material | Aluminum |
| Protection Class | / |
| Insulation Class | F |
| Connection Port | / |
| Bearings | Maintenance-free ball bearings |
| Way to Install | / |
| Flue Temperature | / |
| Technical Feature | PWM for speed control,motor anti-vibration mounted |
Nominal data
| Dimensions | / |
| Nominal Voltage | 12V |
| Frequency | / |
| Power Input | 48W |
| Current | 4A |
| Speed | 8200RPM |
| Static Pressure(Max) | 2060Pa |
| Air Flow(Max) | 124m³/h |
| Noise | / |
| Net Weight | / |

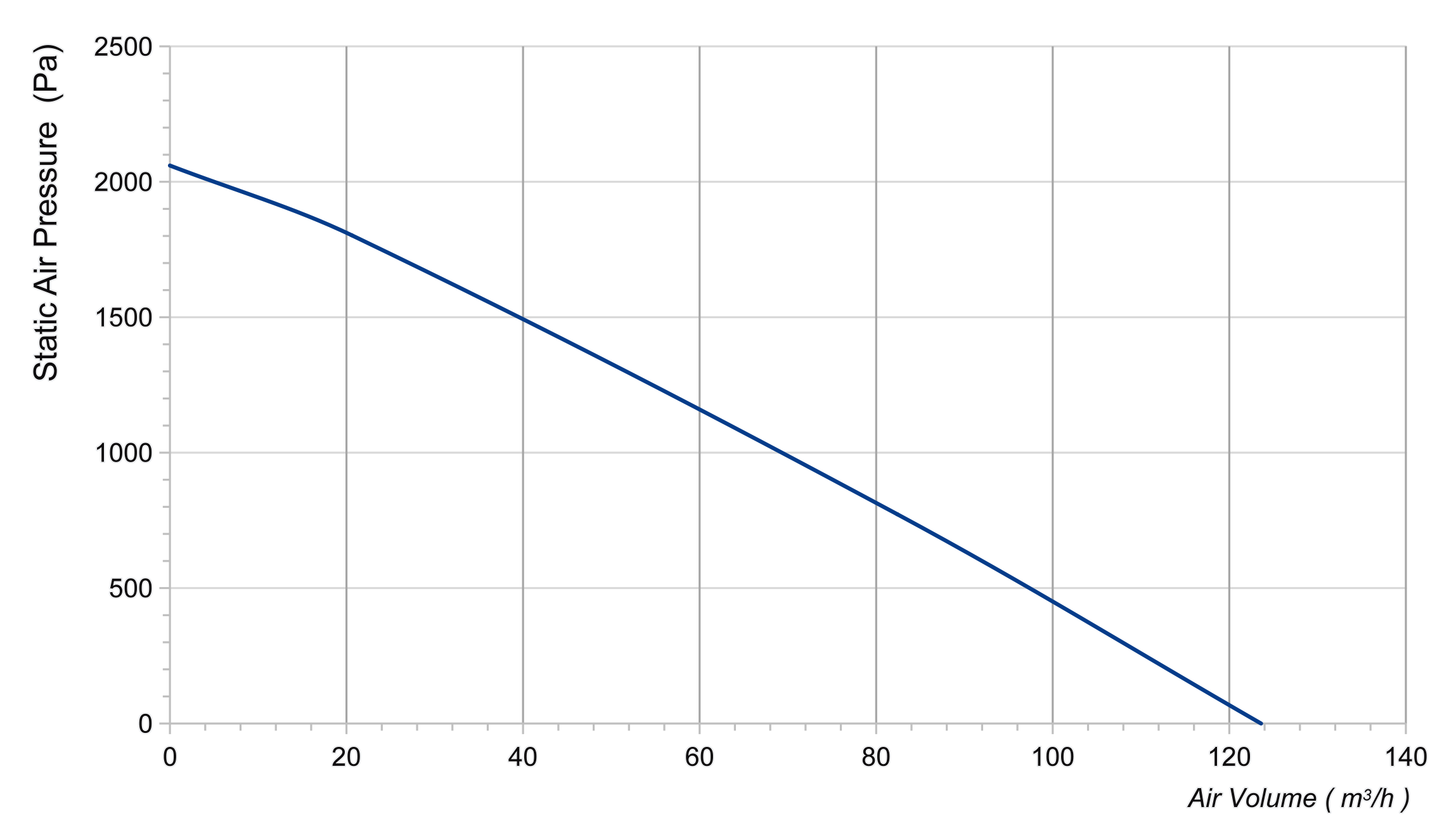

Curves

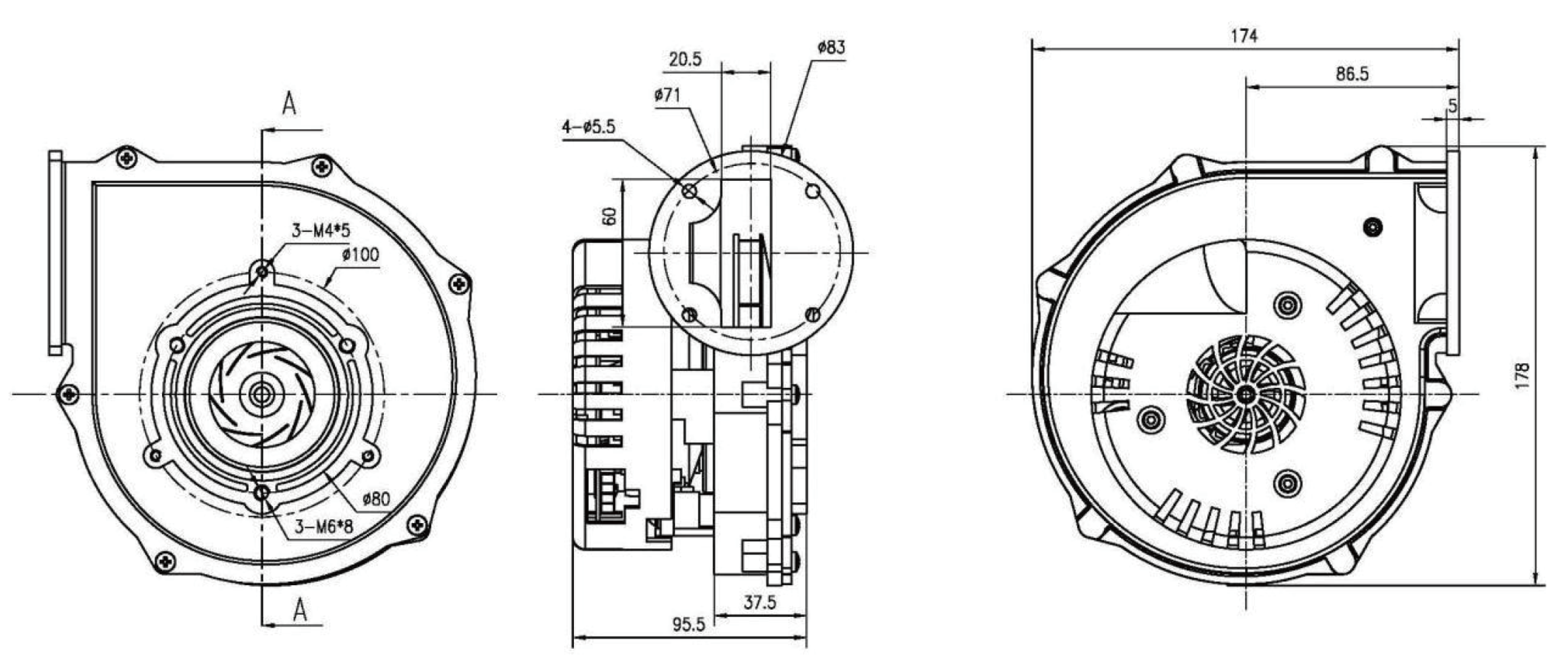

Drawing
