Description
Technical Description
| Material | Iron |
| Number of Blades | 7 |
| Application | Bathroom,Kitchen,Warehouse,Internet bar |
Nominal data
| Type of Voltage | AC |
| Diameter of Inlet | 180mm |
| Nominal Voltage | 220V |
| Frequency | 50Hz |
| Power Input | 60W |
| Speed | 2800RPM |
| Static Pressure(Max) | 90Pa |
| Air Flow(Max) | 1000m³/h |
| Noise | 58dB(A) |
Curves

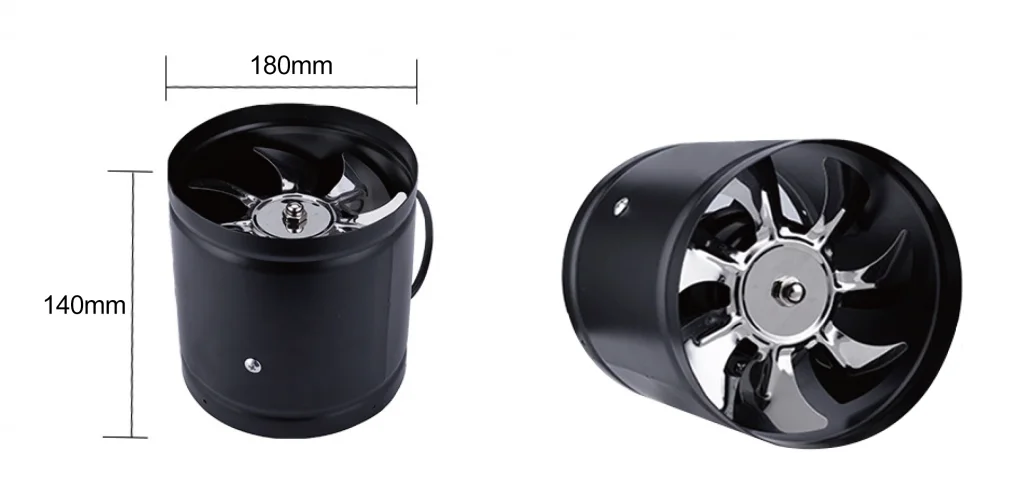

Drawing
![](https://www.longwellfans.com/Duct Fans/Duct Fan Booster/drawing/LWDA-180(7")S-MWN-01-drawing.png)
Download
