Description
Technical Description
| Material | Iron |
| Number of Blades | 7 |
| Application | Bathroom,Kitchen,Warehouse,Internet bar |
Nominal data
| Type of Voltage | AC |
| Diameter of Inlet | 100mm |
| Nominal Voltage | 220V |
| Frequency | 50Hz |
| Power Input | 20W |
| Speed | 2800RPM |
| Static Pressure(Max) | 58Pa |
| Air Flow(Max) | 140m³/h |
| Noise | 48dB(A) |
Curves

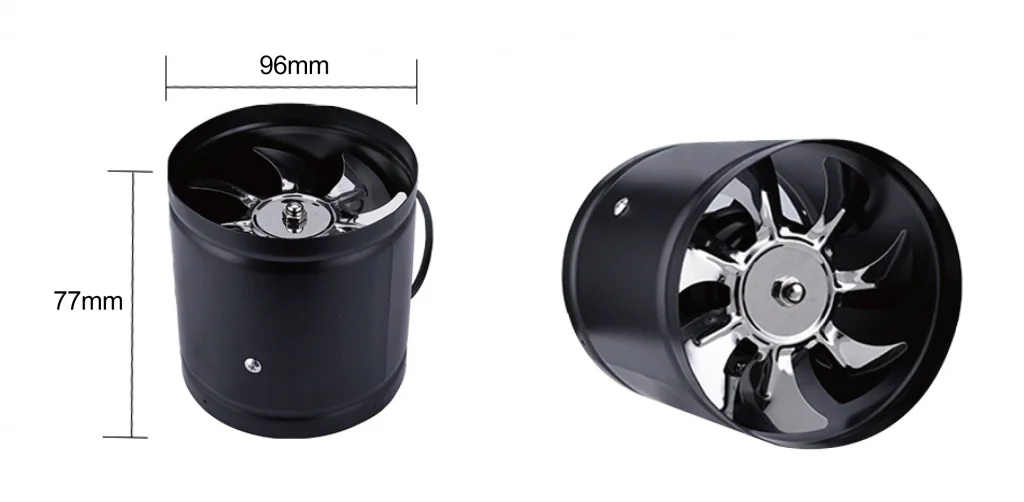

Drawing
![](https://www.longwellfans.com/Duct Fans/Duct Fan Booster/drawing/LWDA-100(4")S-MWN-08-drawing.png)
Download
