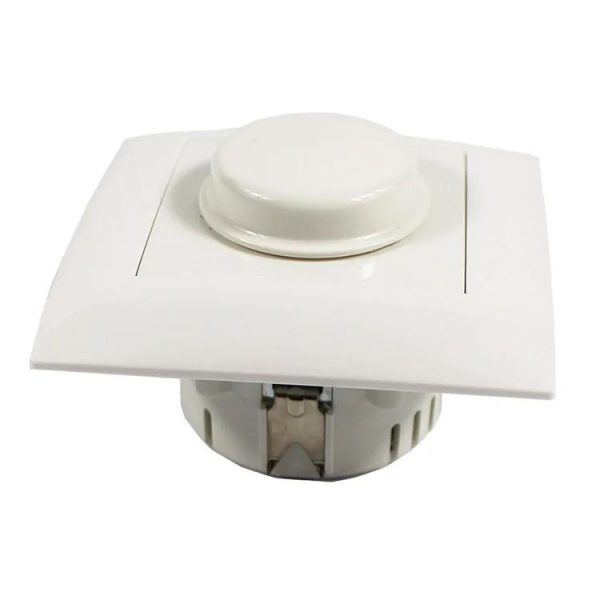

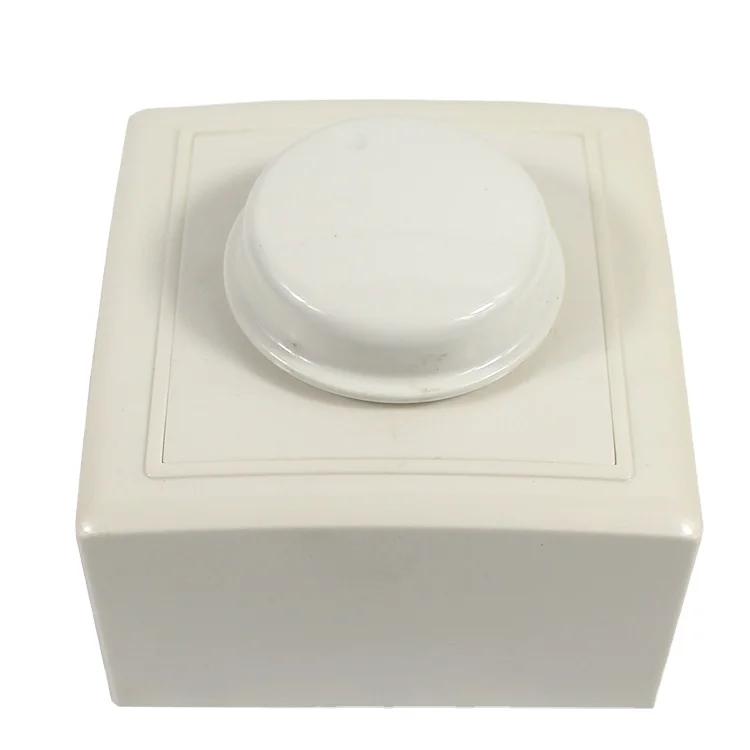

- Features :

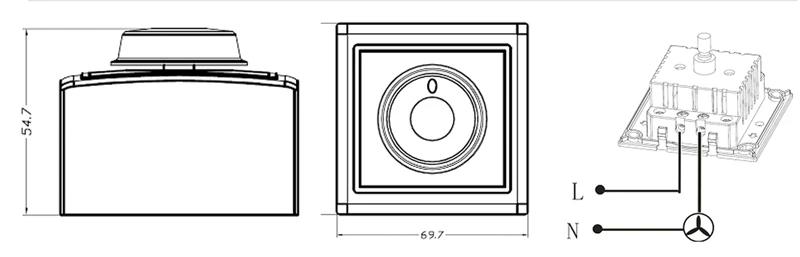

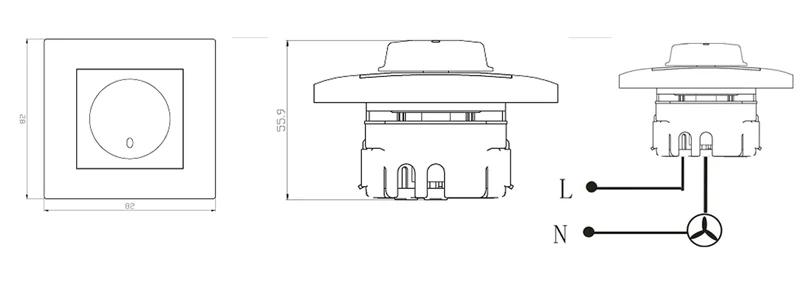

1. Easy-mounting ,just need to connect two terminal blocks with loading together into the power supply. ( according to the wiring drawing ) .
2. With power-off switch inside of the speed controller ,user can cut off the power supply by rotating the knob .
3. All the important components are imported from abroad , with Stable working condition and reliable quality.
- Technical Specifications :
1. Operating voltage : AC230V (50Hz/60Hz);
2. Adjust voltage range : AC60V~AC220V(± 10V)
3. Loading type : AC Capacitor single – phrase motor , such as ceiling fans, exhaust fans ,etc.
4. Power with loading : 50W~200W;
5. Operating Temperature : -10℃~ +60℃;
6. Material : PC(Flame retardant)
- Functions Description :
1. Adjust the knob slowly from CCW direction after getting power supply .
Knob rank : Close — Max Speed – Min Speed
2. Adjust the knob slowly from CW direction after getting power supply .
Knob rank : Min Speed — Max Speed – Close
continuously variable Speed control design ,users can adjust the speed according to operating condition .
- Note :
1. Please read instruction book carefully before using . Product must stay away from Damp, corrosive gas, high temperature operating environment ;
2. Please cut off the power supply before mounting ;
3. Please separate the knob and casing before wiring .( see attached wiring diagram );
Please choose the suitable loading according to instruction book requirements . It will influence the life and reliability of product seriously
