Description
Product descriptions from the supplier

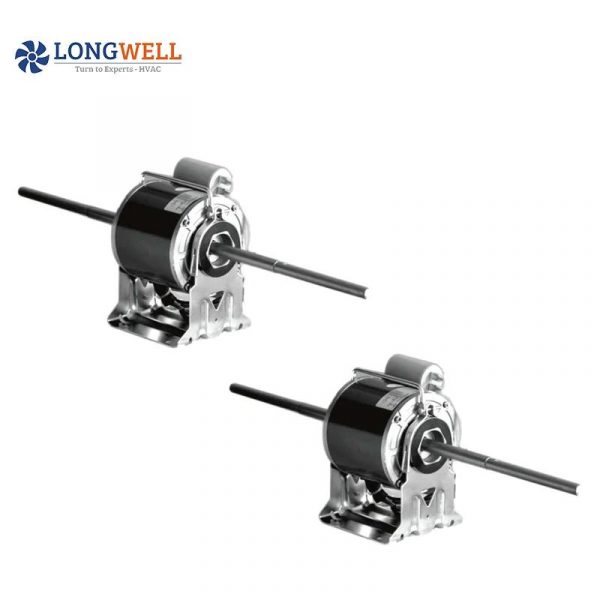

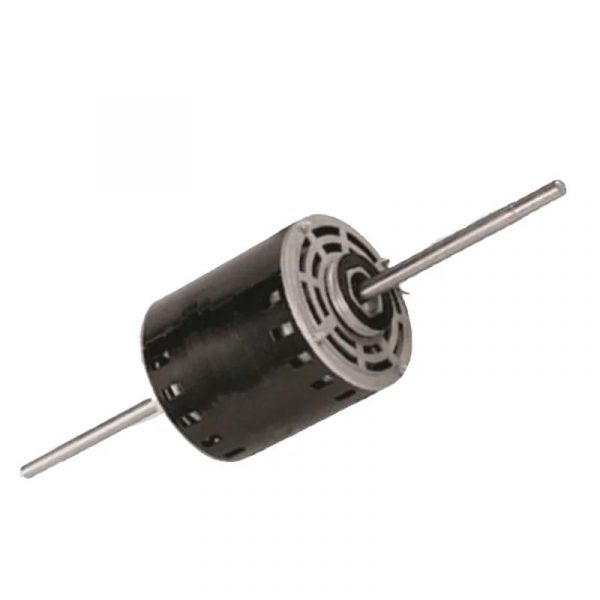

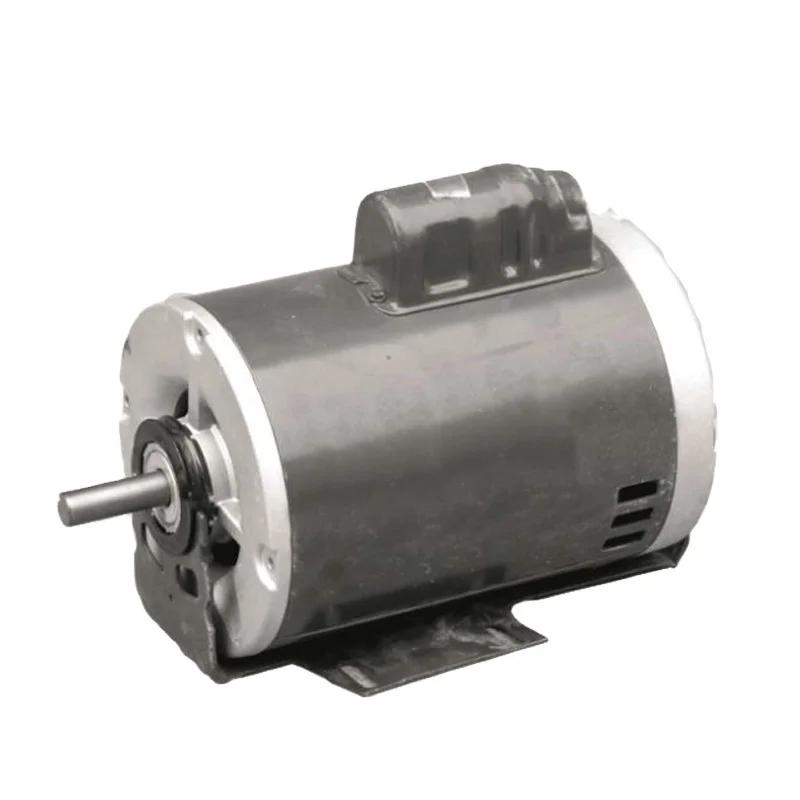

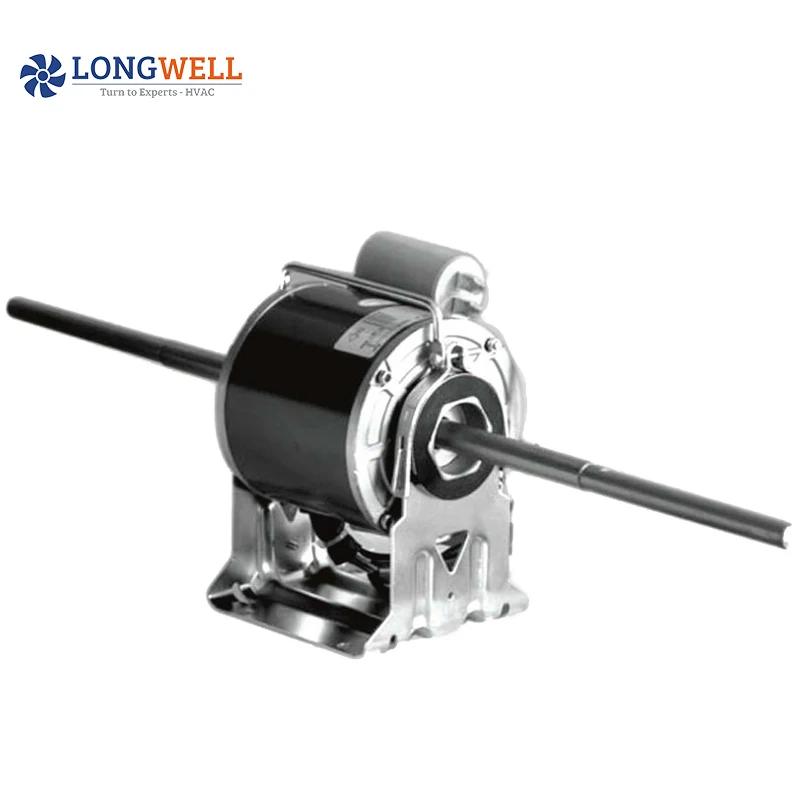

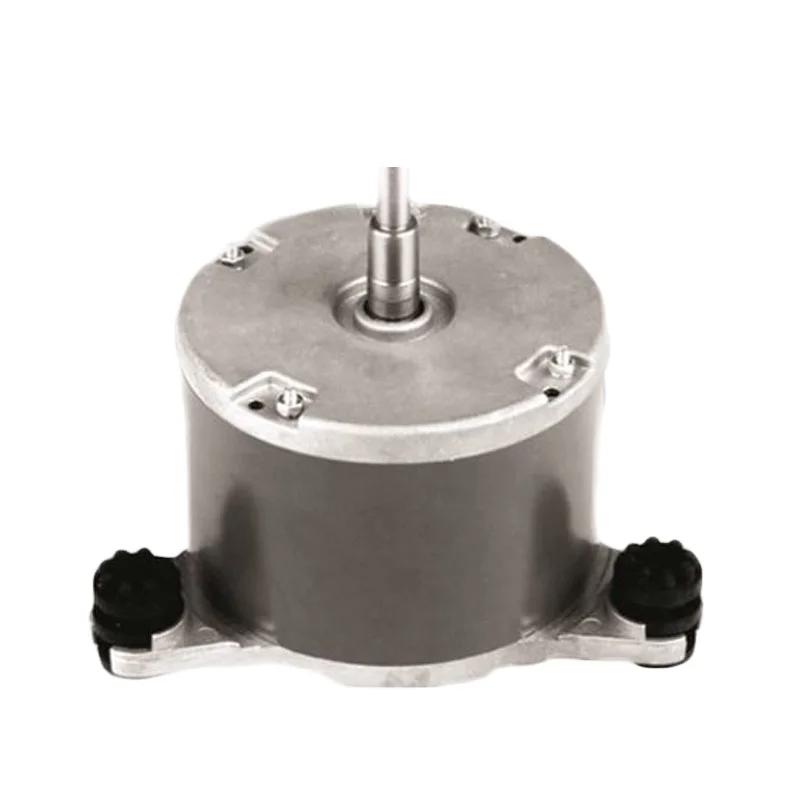

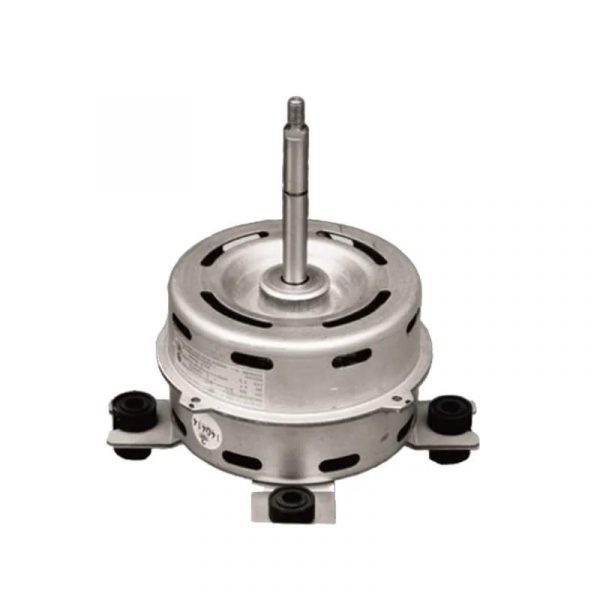

FAN SPEED CONTROLLER motor ac 230v muti speed motor series can be used in fan coil units air supply system
- YZF series motors are shaded pole gear motors with single phase,4 shaded poles and running at rated voltage of 220~240V,50/60Hz or 110~120V,60Hz .They are widely used in the radiator,evaporator and other refrigeration equipment.
- All material conform to RoHS.
- The output power is from 2W to34W,which is relative to the stack length and coil parameters.
- The insulation class of motors is B,and the protection class of that is IP42.On request IP44 is avaliable
- The motor,which output power less than 10W are impedance protection and the motors,which output is bigger than 10W,are thermal protection.The thermal protetor’s is 125℃±5℃,135℃±5℃ or 150℃±5℃.
- The applicable ambient temperatuer is from -30℃~50℃.
- The average service life of motoer is over 20000 hours.
- Most of shaded pole gear motors passed CE CDE UL and CCC approval.
Custom Service
Product Application
Certifications

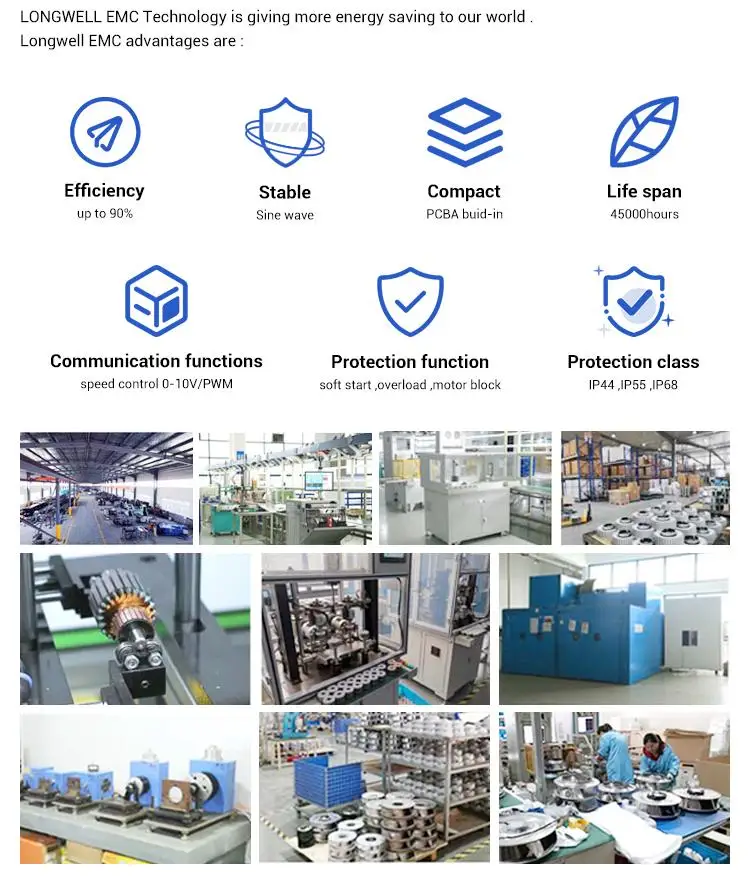

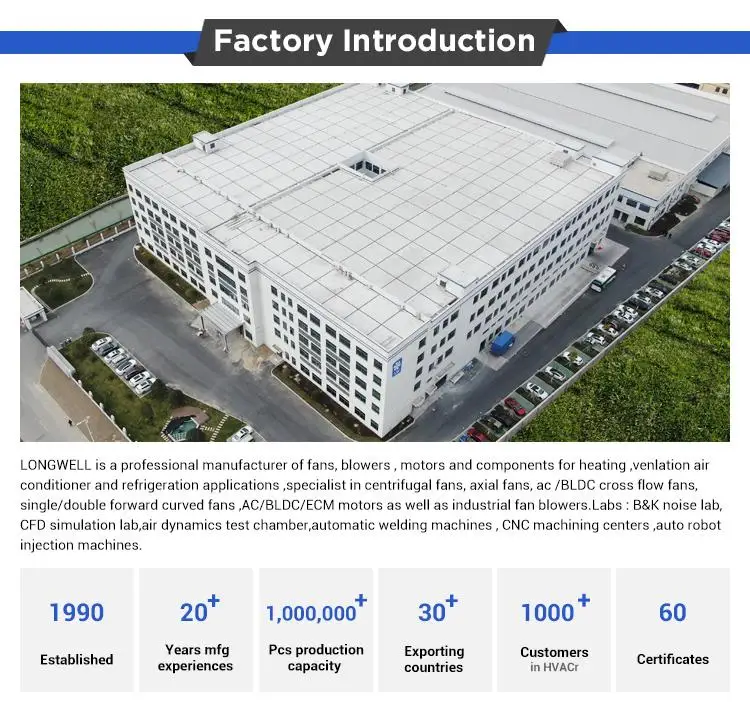

Company Information
Contact information
Buying Guides

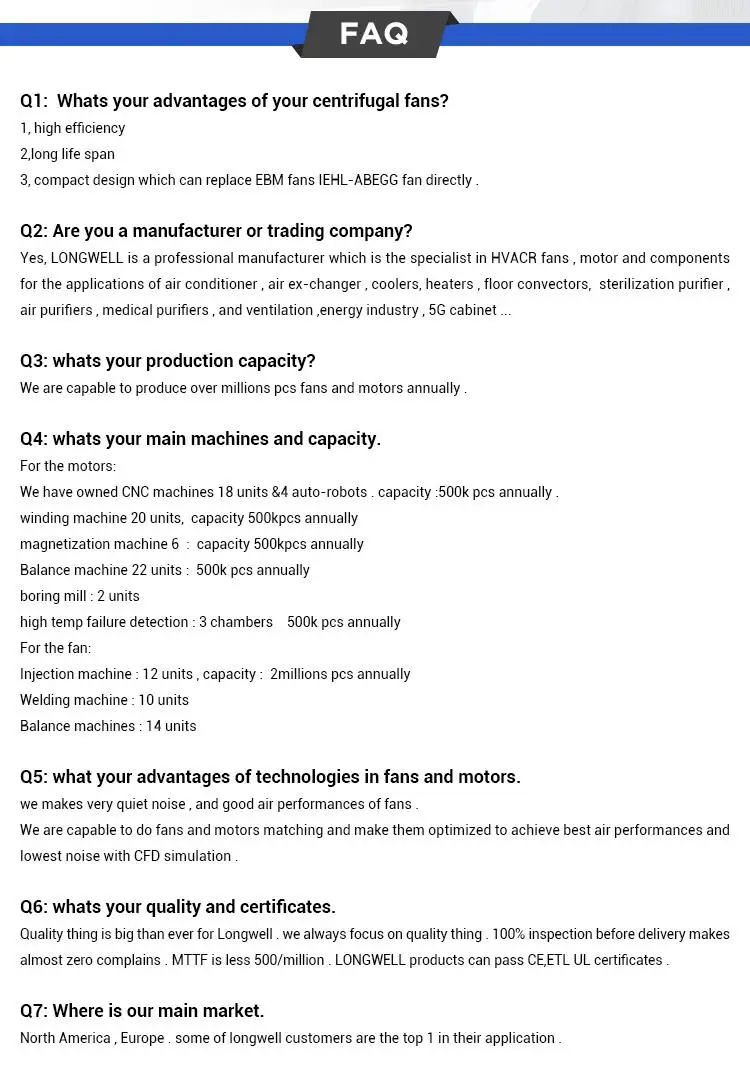

FAQ
