Cross Flow Fans for Display Cases and Refrigeration
Engineering Guide & High-Performance Solutions by LONGWELL
Cross flow fans for display cases and refrigeration systems are no longer optional components—they are essential for achieving uniform cooling, energy efficiency, and superior product presentation. In modern commercial refrigeration, airflow design directly impacts temperature stability, product shelf life, and overall system performance.

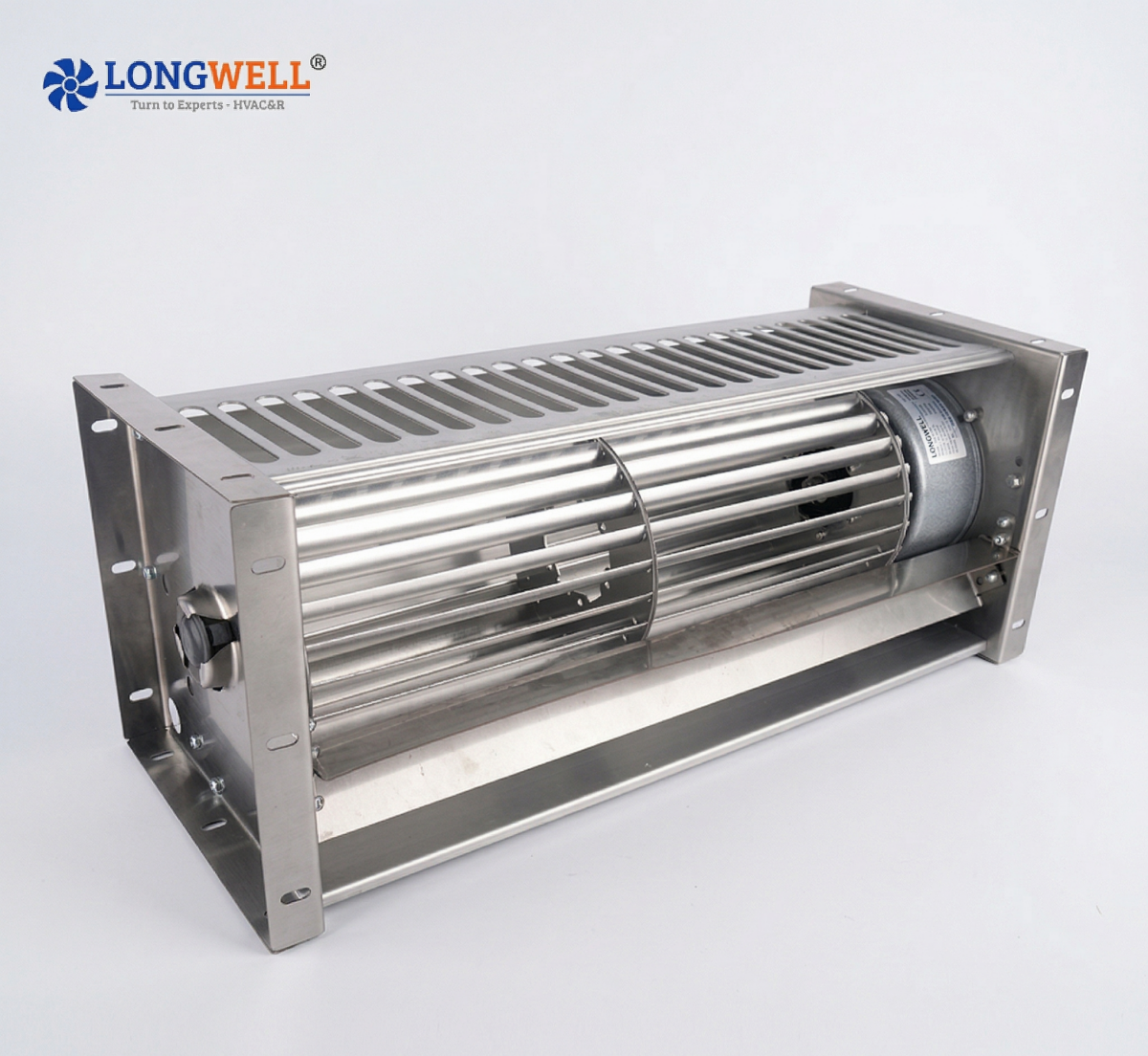

At LONGWELL, we specialize in designing and manufacturing high-performance cross flow fans (tangential fans) specifically optimized for display cases, refrigeration units, and cold chain applications. This guide explains how they work, why they are critical, and how to select the right solution for your system.
1. Understanding Cross Flow Fans in Refrigeration Systems

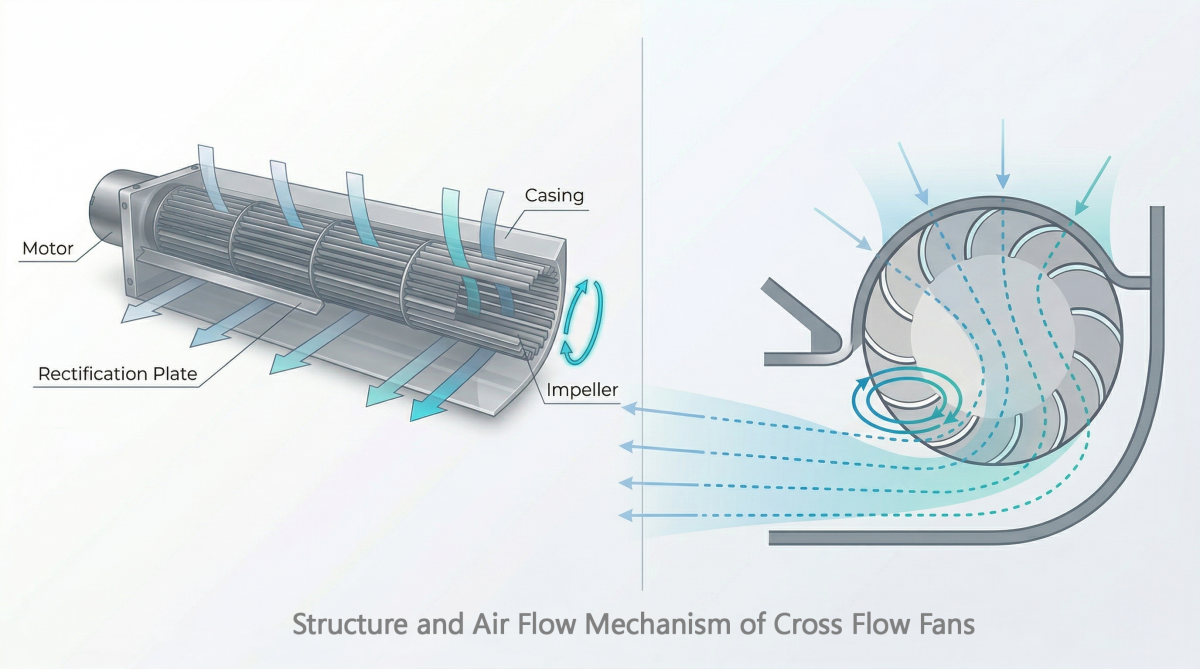

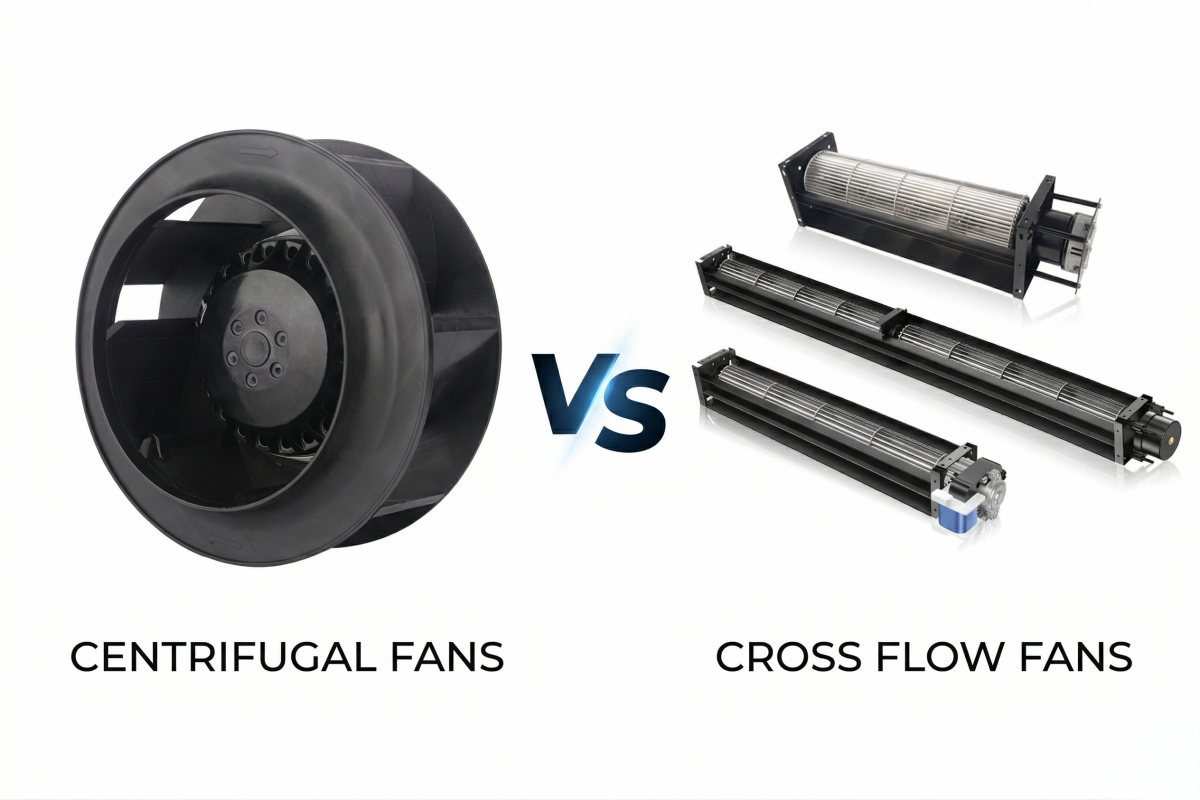

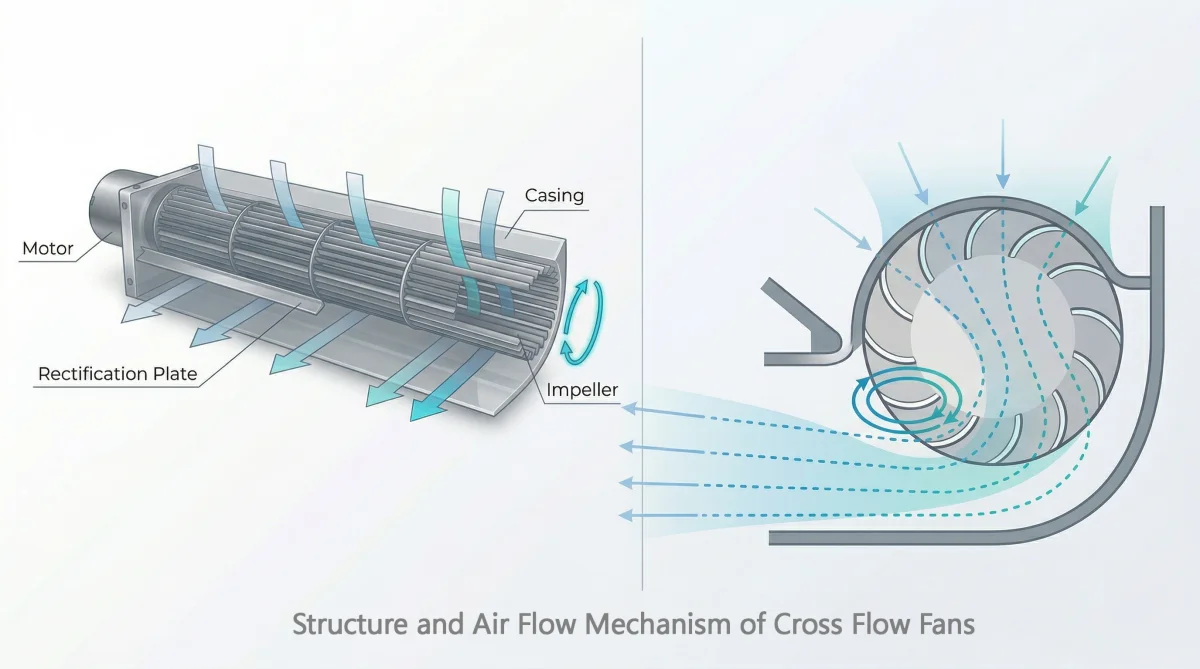

A cross flow fan operates with a long cylindrical impeller that generates airflow across its entire length. Unlike axial fans that push air in a narrow direction, or centrifugal fans that focus on pressure, cross flow fans produce a wide, uniform airflow curtain.
This airflow pattern is particularly important in refrigeration systems because it ensures that cold air is distributed evenly across the entire display area. Instead of creating isolated cold zones, the system maintains consistent temperature coverage, which is critical for both food safety and visual merchandising.

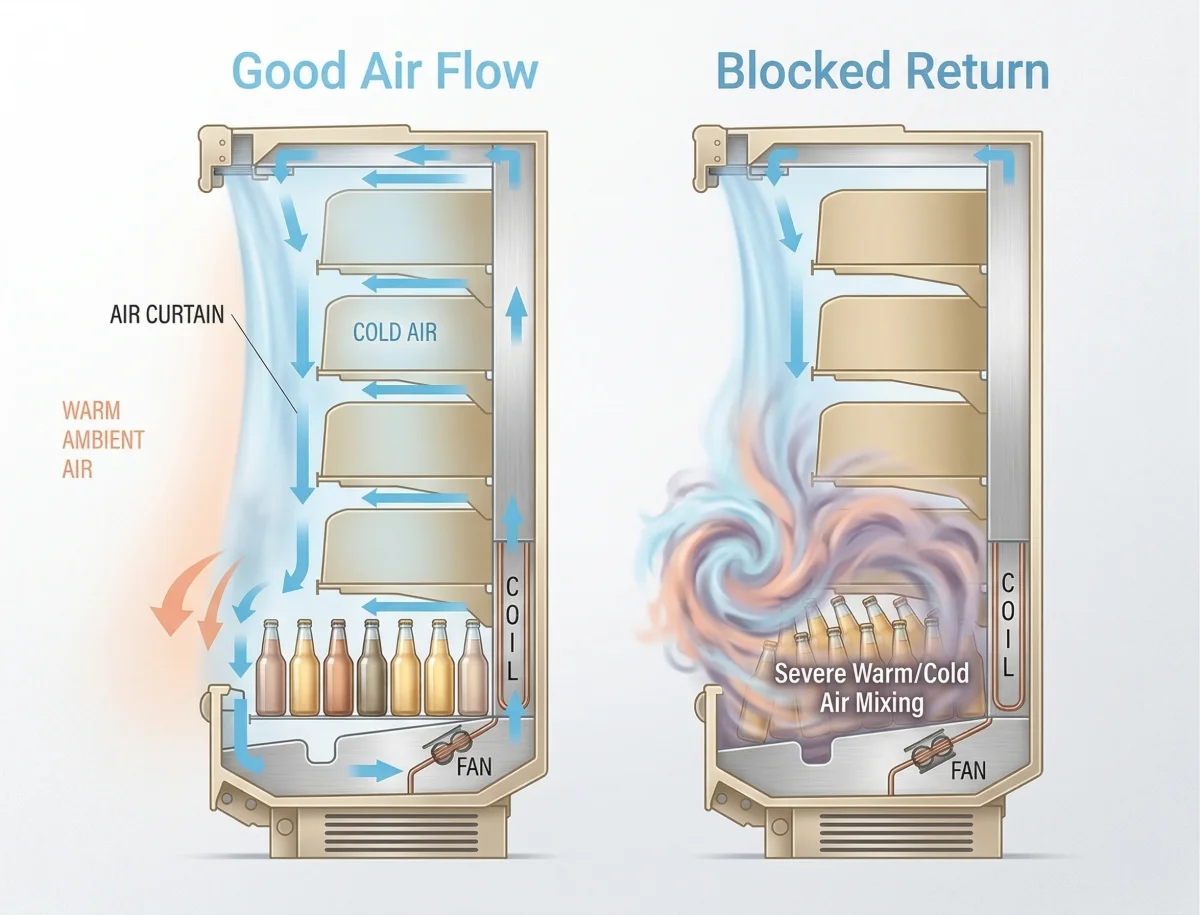

In open display cases, the fan also creates a stable air barrier that minimizes cold air loss, improving system efficiency and reducing energy consumption.
2. Why Cross Flow Fans Are Critical for Display Cases
2.1 Uniform Cooling and Product Protection
Temperature inconsistency is one of the most common problems in refrigeration equipment. Without proper airflow control, products placed in different areas of a display case may experience different temperatures, leading to uneven preservation and potential spoilage.
Cross flow fans address this issue by generating a continuous air curtain that covers the entire display opening or internal airflow channel. This results in highly consistent temperature distribution, typically within a narrow deviation range of ±1–2°C.
For supermarket operators and food retailers, this consistency translates into longer shelf life, reduced waste, and improved product quality.
—
2.2 Energy Efficiency and System Optimization
Efficient airflow design reduces the workload on refrigeration compressors. By ensuring that cold air is effectively distributed and retained within the system, cross flow fans help minimize energy loss.
In practical applications, optimized airflow can reduce total energy consumption by 10% to 25%, depending on system design. This is particularly significant for large retail chains, where energy savings scale across multiple locations.
When paired with EC motors, cross flow fans further enhance efficiency by enabling variable speed control and reducing unnecessary power usage.
—
2.3 Low Noise for Retail Environments
Noise plays an important role in customer experience. High noise levels in retail environments can negatively impact shopping comfort and brand perception.
Cross flow fans operate at lower speeds while maintaining effective airflow, resulting in smoother air movement and reduced turbulence. This allows systems to maintain noise levels below 45 dB, making them suitable for premium commercial applications.
—
2.4 Compact Structure and Flexible Integration
Modern refrigeration equipment often requires compact and space-efficient designs. Cross flow fans, with their slim and elongated structure, can be easily integrated into narrow airflow channels, top-mounted ducts, or rear ventilation systems.
This flexibility allows engineers to optimize internal layouts without compromising performance, making cross flow fans ideal for next-generation refrigeration designs.
3. Applications of Cross Flow Fans in Refrigeration
Cross flow fans are widely used across various refrigeration and cooling applications due to their ability to deliver uniform airflow.

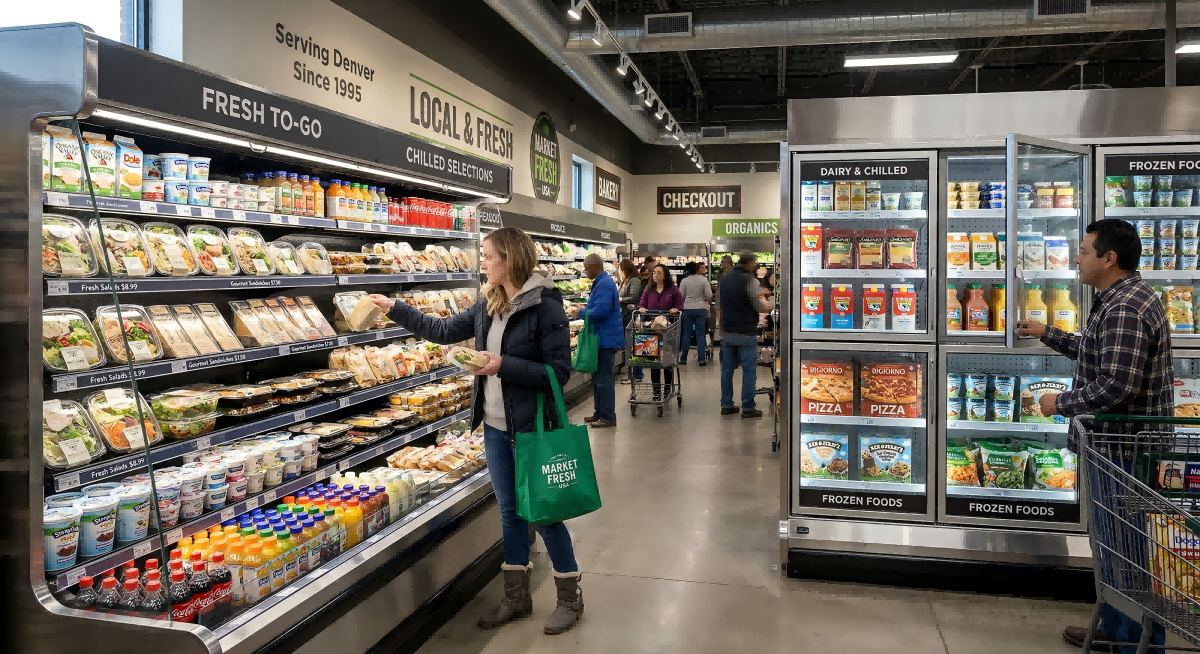

- Supermarket Display Cases: Maintain stable air curtains and prevent cold air leakage
- Beverage Coolers: Ensure consistent cooling for bottled and canned drinks
- Bakery Display Cabinets: Prevent uneven drying while maintaining temperature
- Medical Refrigeration: Provide precise and reliable temperature control
- Industrial Cooling Systems: Enable controlled airflow distribution for equipment
These applications all share a common requirement: precise airflow control combined with energy efficiency.
4. LONGWELL Cross Flow Fan Solutions
4.1 Full In-House Manufacturing
LONGWELL manufactures motors, impellers, and structural components entirely in-house. This vertical integration ensures consistent quality, shorter lead times, and better cost control compared to suppliers relying on outsourced components.
—
4.2 Custom Engineering Capability
Every refrigeration system has unique airflow requirements. LONGWELL provides customized solutions, including airflow optimization, noise reduction, and structural design adjustments based on specific project needs.
Through engineering tools such as CFD simulation, we help clients achieve optimal airflow performance and system efficiency.
—
4.3 High Reliability and Durability
Designed for demanding environments, LONGWELL cross flow fans offer a service life exceeding 30,000 hours. They are built to withstand low temperatures, high humidity, and continuous operation in refrigeration systems.
—
4.4 Energy-Efficient EC Technology
EC motors provide superior efficiency and precise control. LONGWELL EC cross flow fans support PWM and 0–10V control, enabling intelligent system integration and further energy savings.
5. How to Choose the Right Cross Flow Fan
Selecting the correct fan requires careful evaluation of airflow requirements, static pressure, noise levels, available space, and motor type.
Working with an experienced manufacturer like LONGWELL ensures that the selected solution is optimized for both performance and efficiency, rather than relying on generic off-the-shelf products.
6. Product Solutions
Standard Cross Flow Fans
Cost-effective solutions for general refrigeration systems.

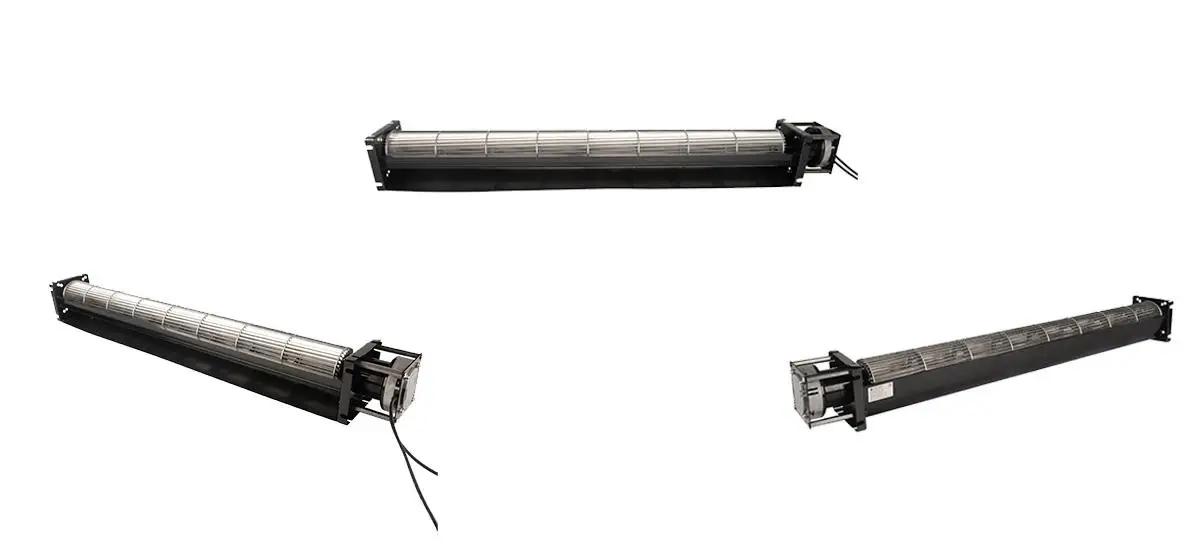

EC Cross Flow Fans
High-efficiency solutions with intelligent speed control.
Custom Cross Flow Fans
Tailored solutions for OEM and specialized applications.
7. FAQ
What are cross flow fans used for in refrigeration?
They are used to create uniform airflow and maintain consistent temperature in display cases and cooling systems.
Why are cross flow fans better for display cases?
They provide even airflow distribution, improving cooling consistency and product preservation.
Do EC cross flow fans save energy?
Yes, they improve efficiency by up to 30% and allow precise control.
Can LONGWELL provide customized solutions?
Yes, LONGWELL offers full customization based on application requirements.
