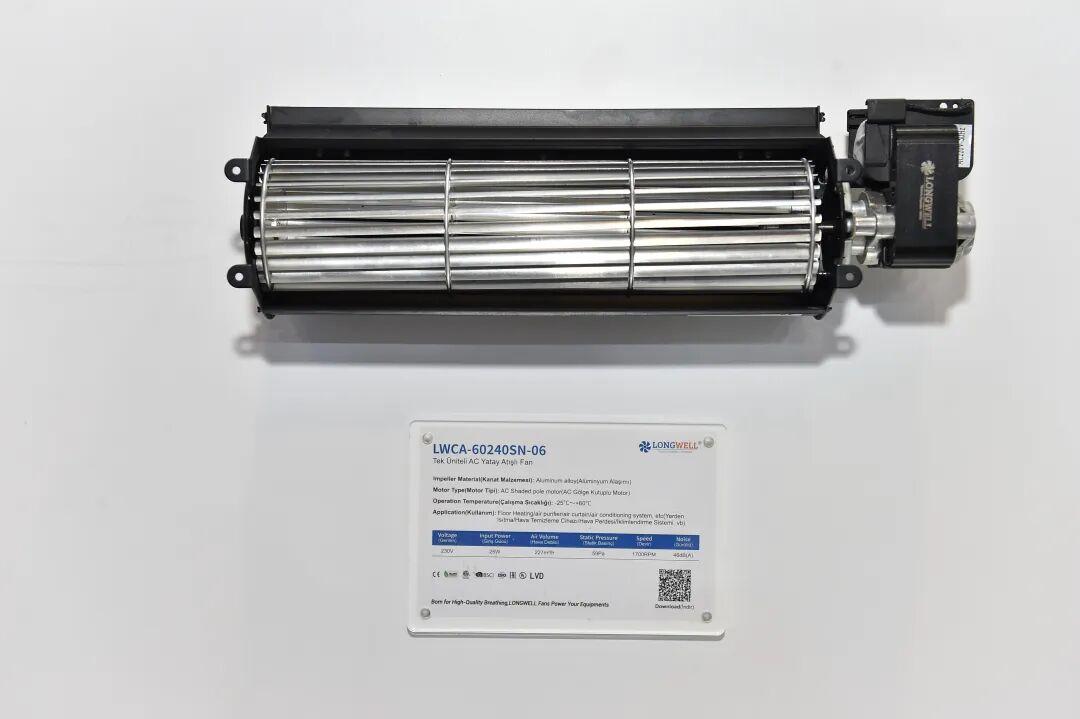

🚀 Ningbo Longwell LWCA-60 Series AC Cross-Flow Fan
—— Redefining Long-Life Industrial Cooling Systems

In demanding industrial, IT, and HVAC sectors, the reliability of cooling components directly determines the equipment’s Mean Time Between Failures (MTBF) and Total Cost of Ownership (TCO).

The Longwell LWCA-60 Series Cross-Flow Fan, built with industrial-grade standards and an ultra-long lifespan, provides “install-and-forget” reliability assurance.

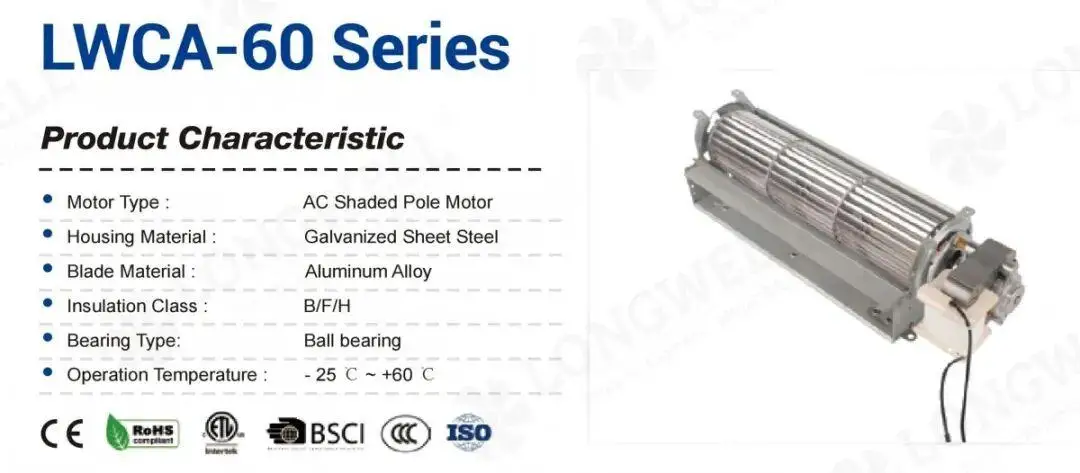

✅ Core Technology: Ball Bearing — The Secret to 60%+ Extended Lifespan

In fan applications, the bearing is the critical factor determining service life. Traditional Sleeve Bearings, due to sliding friction and lubricant loss, typically have an L10 expected life of around 10,000 to 20,000 hours.[1] Failure can severely impact high-value electronic equipment.

Longwell LWCA-60 Series Commitment:

• Standard equipped with high-quality Ball Bearings, effectively changing friction from sliding to rolling.
• Lifespan Breakthrough: Expected service life is boosted to an impressive 25,000 to 35,000 hours! [1]
• This means your equipment’s service life can be extended by over 60% compared to traditional sleeve bearing solutions, drastically reducing maintenance frequency and TCO.

🔥 Performance Metrics: Quiet, Powerful, and High Temperature Resistance

1. Ultra-Low Noise Advantage: Ideal for Precision Equipment

Thanks to precise aluminum alloy impeller dynamic balancing and the stable Ball Bearing system, the LWCA-60 Series excels in acoustic performance.

The minimum model, LWCA-60120SN-06, operates with a noise level as low as 44 dB(A), making it perfect for noise-sensitive applications like medical devices, communication rooms, and high-end laboratories.

2. Superior Operating Resilience

• Wide Operating Temperature: Stable operation in a range from -25°C to +60°C, easily handling high thermal load conditions.
• High Insulation Class: Supports B / F / H insulation classes. High-grade insulation ensures electrical safety and sustained thermal life even under extreme heat.
• Powerful Output: High-load model LWCA-60480SN-06 delivers a robust 454 m³/h airflow and 64 Pa static pressure, effectively overcoming duct resistance.

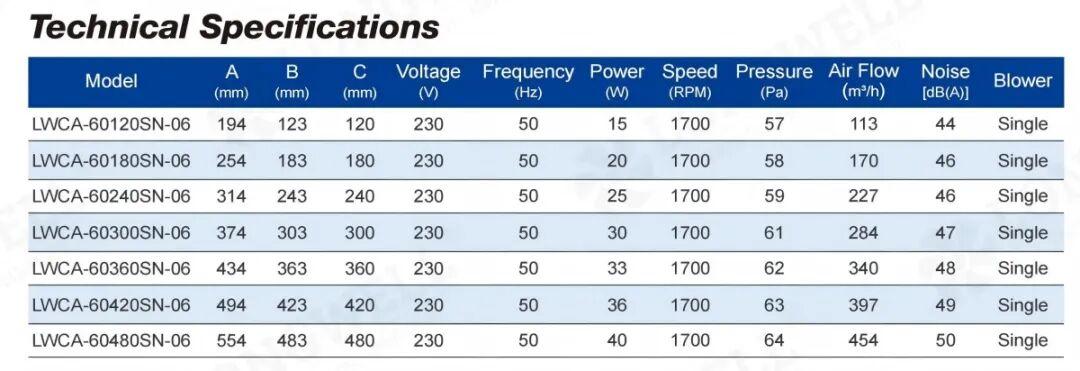

📏 Quick Specs: Efficient Model Selection

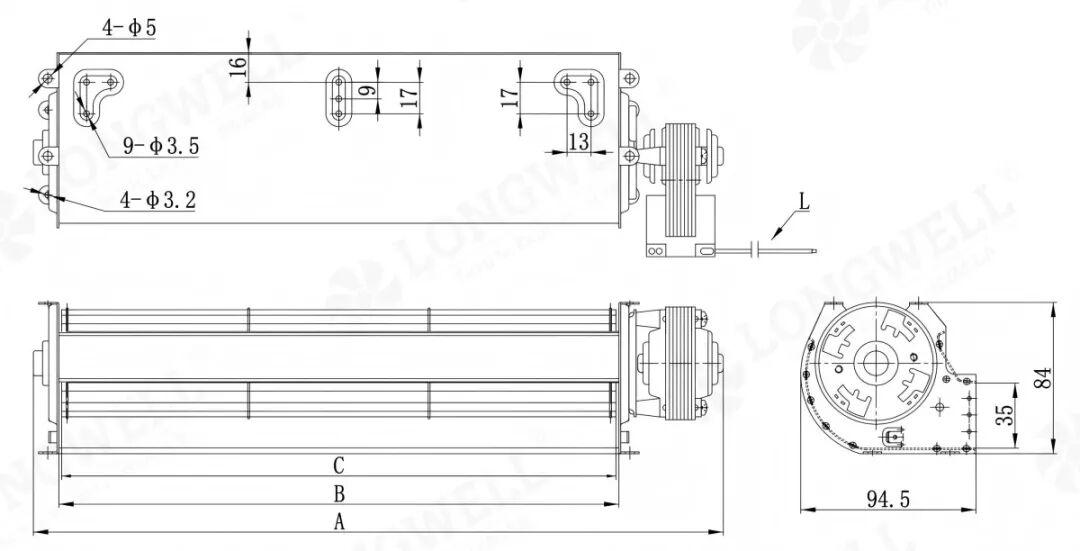

The LWCA-60 Series offers various mounting length specifications (C dimension) to meet your precise installation needs.

🌍 Global Compatibility and Compliance

The LWCA-60 Series holds multiple international certifications, including CE, RoHS, ISO, and BSCI. By ensuring strict compliance upfront, Longwell eliminates certification hurdles for our clients looking to export products to high-standard markets like Europe and North America.

Typical Applications:

• Data Centers & Communication Cabinets: Rely on ultra-long life to ensure 24/7 continuous cooling and minimize downtime risk.
• Industrial Ovens & Thermal Systems: Stable operation in high-heat environments, leveraging +60°C capability and high insulation class.
• Medical Imaging & Laboratory Equipment: Utilizes 44 dB(A) low noise performance to enhance operating environment and device precision.

Act Now: Choose Longwell, Choose the Long-Life Standard!

We sincerely invite engineers and procurement managers to contact our technical sales team to receive full technical documentation and arrange for sample testing.

Email: sales@zjlongwell.com | Phone: +86 18358274663

Website: www.longwellfans.com

Ningbo Longwell Electric Technology Co., Ltd
