Tight Space & Strict Noise Limits? You Might Need a “Considerate” Forward-Curved Centrifugal Fan
If you are an HVAC or electromechanical design engineer, you’ve probably experienced this “breakdown moment”: the industrial design team has aggressively shrunk the equipment’s outer dimensions, leaving pitifully little room for the internal ventilation system. Or worse, the equipment is finally delivered, only for the client to constantly complain that the operating noise sounds like a helicopter taking off.
Actually, solving these pain points rarely requires tearing up your entire design blueprint. Often, all you’re missing is a “considerate” fan. Today, let’s skip the dry specification sheets and talk about something practical. Let’s discuss the “space management master” inside ventilation equipment: the Forward-curved Centrifugal Fan.
Why Does It Look Like a “Hamster Wheel”? (H – Happiness & Visual Interest)

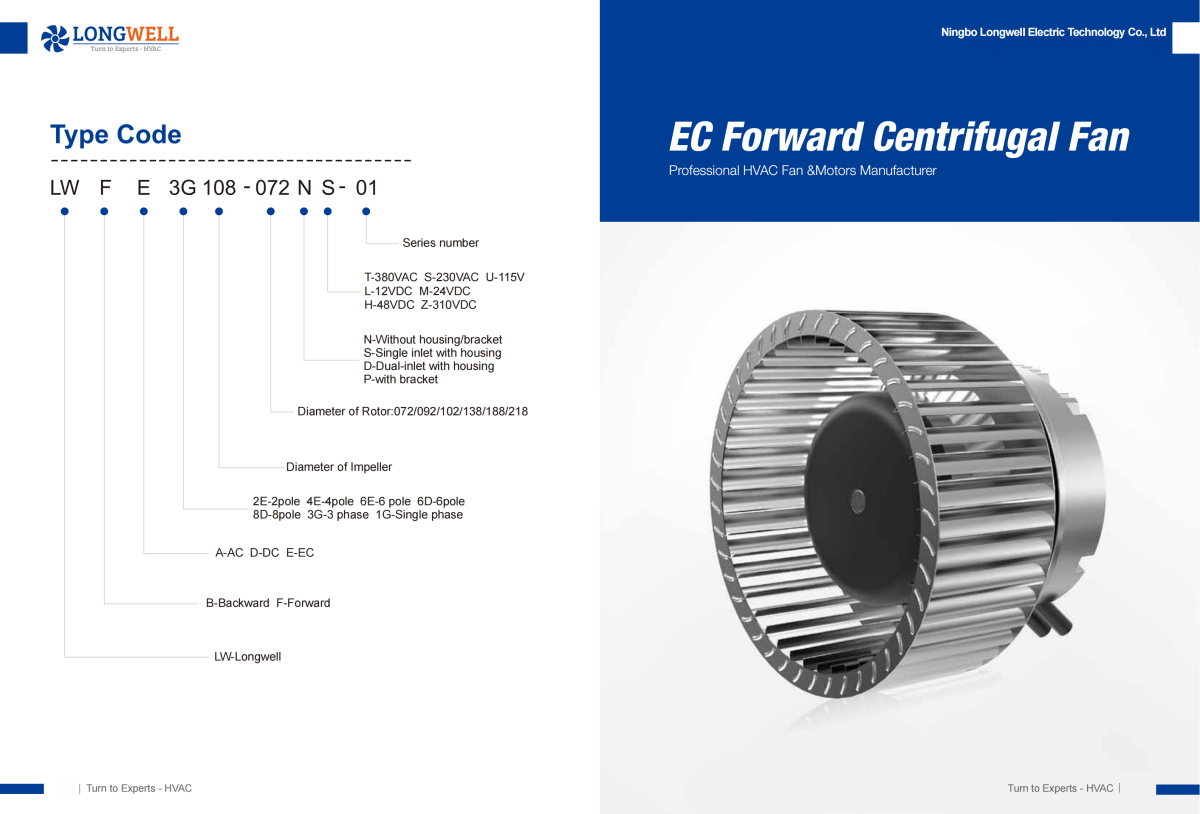

If you take apart the scroll housing of a forward-curved centrifugal fan for the first time, you’ll notice its impeller looks quite unique—densely packed, short blades that curve forward in the direction of rotation. Many engineers privately joke that it looks just like an oversized hamster wheel (often called a “squirrel cage” fan).
This seemingly quirky design actually conceals profound fluid dynamics wisdom. These forward-leaning blades possess a magical ability: they act like scoops, capturing and delivering a massive volume of air in a single breath, even at relatively low rotational speeds.
The Engineer’s Guide to Avoiding Pitfalls (K – Knowledge Density)
When it comes to practical selection, people often go back and forth between “forward-curved” and “backward-curved” options. To put it simply, the reason forward-curved centrifugal fans are irreplaceable in specific fields comes down to doing two things to the extreme:
1. The Ultimate Volume-to-Size Ratio (Saving Your Space) This is the most unbeatable advantage of the forward-curved fan. To output the exact same air volume, the impeller diameter and overall dimensions of a forward-curved centrifugal fan can be made significantly smaller than its backward-curved counterpart. For equipment where internal space is at a premium—such as compact Air Handling Units (AHUs), Fan Filter Units (FFUs) for cleanrooms, or cooling systems for precision instruments—the forward-curved fan is simply a lifesaver.
2. The “Invisibility” Brought by Low Speeds (Reducing Your Noise) Because forward-curved blades can achieve high air volumes at low speeds, the motor doesn’t need to spin frantically. When the RPM drops, the most immediate benefit is a drastic reduction in mechanical vibration and aerodynamic noise. This is exactly why forward-curved centrifugal fans are practically the industry standard in indoor air conditioning systems and commercial air purifiers, where acoustic requirements are exceptionally strict.
Buying a Fan is Actually Buying “Peace of Mind” (R – Resonance)
We deeply understand the immense pressure behind sourcing or specifying a core component. Once a fan fails at a client’s site (whether it’s abnormal vibration, strange noises, or failing to meet energy efficiency standards), the cost of after-sales maintenance is often several times higher than the price of the fan itself.

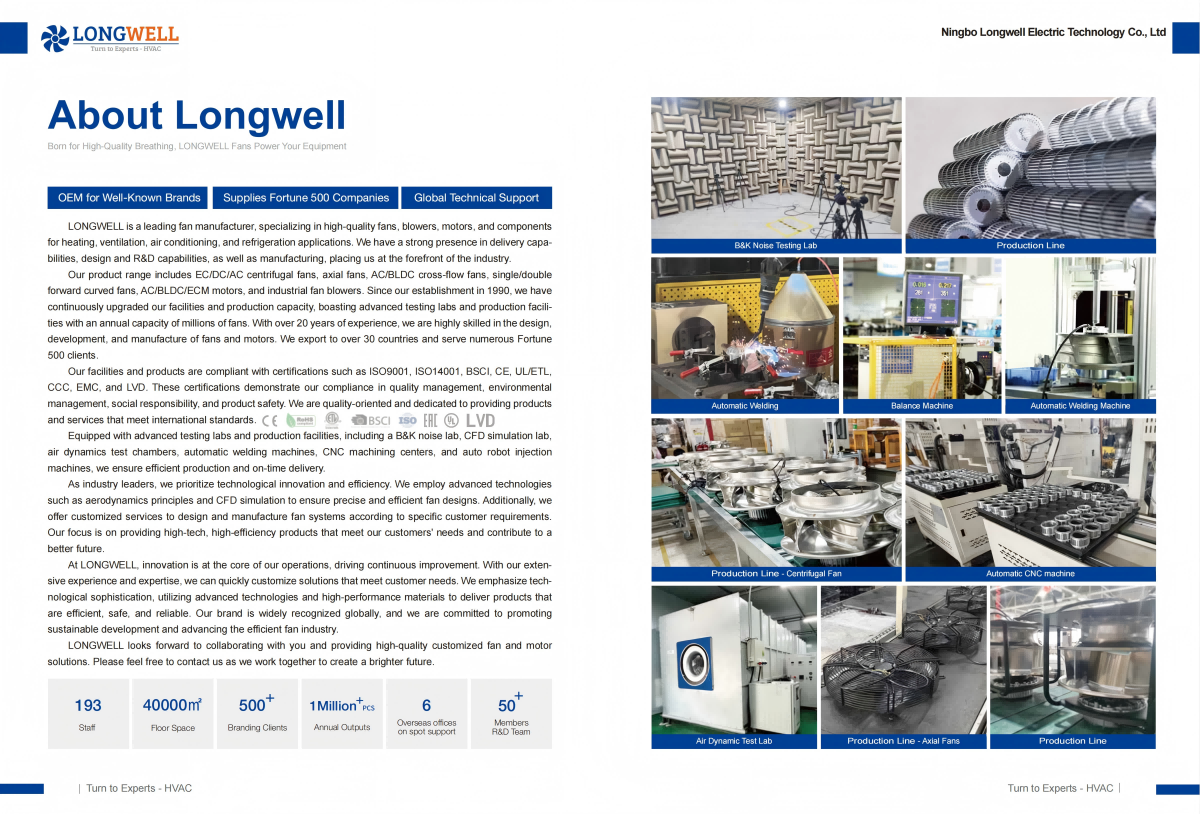

As a manufacturer deeply rooted in the fan industry for years, LONGWELL (Ningbo Longwell Electric Technology Co., Ltd.) has always firmly believed in one philosophy: the best fan is the one you don’t notice. Once installed, its presence should be as low as possible—you shouldn’t even feel it’s there, just the continuous flow of fresh air.
To achieve this state of “invisibility,” we obsess over every detail when producing our forward-curved centrifugal fans. From high-precision dynamic balancing calibration (ensuring absolutely no shaking when running) to matching with high-efficiency EC / DC / AC motors (meeting increasingly strict global energy consumption standards), our goal is singular: To give your project fewer after-sales headaches and more confidence upon delivery.
Engineering R&D is exhausting enough; don’t add to your stress during fan selection. If you currently have a project with demanding space and noise requirements, or if you simply want to upgrade your existing ventilation and cooling solutions, you are always welcome to visit our official website: www.longwellfans.com.
Leave the complex aerodynamics to us; you just focus on making your product perfect.
Download LONGWELL Forward Centrifugal Fan Catalog ↓
