The Balancing Act of Silence and Efficiency: Why the LONGWELL LWDE3G100-IS-01 is the Ultimate Ventilation Upgrade

In the field of HVAC engineering, contractors and end-users often face a difficult trade-off: high airflow usually brings unwanted noise, while energy efficiency often comes at the cost of performance. However, with the maturation of EC (Electronically Commutated) technology, this compromise is now a thing of the past.

As the flagship EC duct fan from LONGWELL, the LWDE3G100-IS-01 is not merely a replacement for traditional AC fans; it represents a complete overhaul of indoor air management systems. This article analyzes why this unit has become a market benchmark from three critical dimensions: energy efficiency, acoustic engineering, and industrial durability.

1. EC Technology: Redefining Efficiency Standards

Many users underestimate the impact of fan operation costs on total building energy consumption. Traditional AC motors are notoriously inefficient at lower speeds, converting a significant portion of energy into waste heat rather than kinetic energy.

The intelligent EC motor driving the LWDE3G100-IS-01 breaks this bottleneck. It combines the convenience of AC mains power (110-240V) with the high efficiency of DC brushless technology.

· Demand-Based Output: The motor precisely regulates power based on the actual load, eliminating the energy waste associated with “oversized” motors running at full capacity.

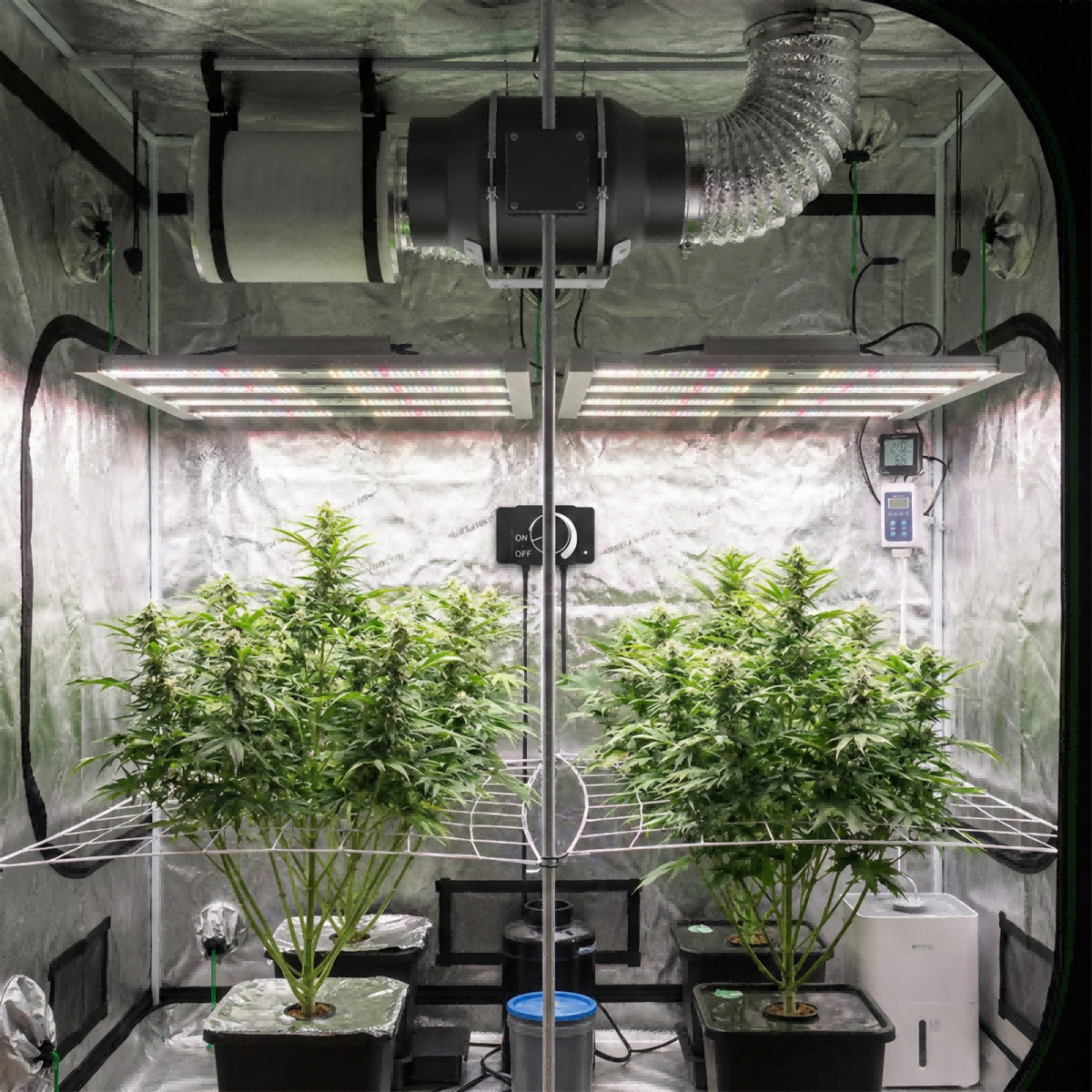

· Significant ROI: Compared to equivalent AC fans, the LWDE3G100-IS-01 delivers energy savings of 35% to 50%. For 24/7 commercial applications or grow rooms, a single unit can save $300 to $500 annually in electricity costs, meaning the device often pays for itself within the first year of operation.

2. Acoustic Engineering: 28 dB(A) “Invisible” Operation

Noise control is a critical pain point for high-end ventilation projects. Whether for home theaters, recording studios, or concentration-heavy office spaces, low-frequency fan hum is an unacceptable distraction.

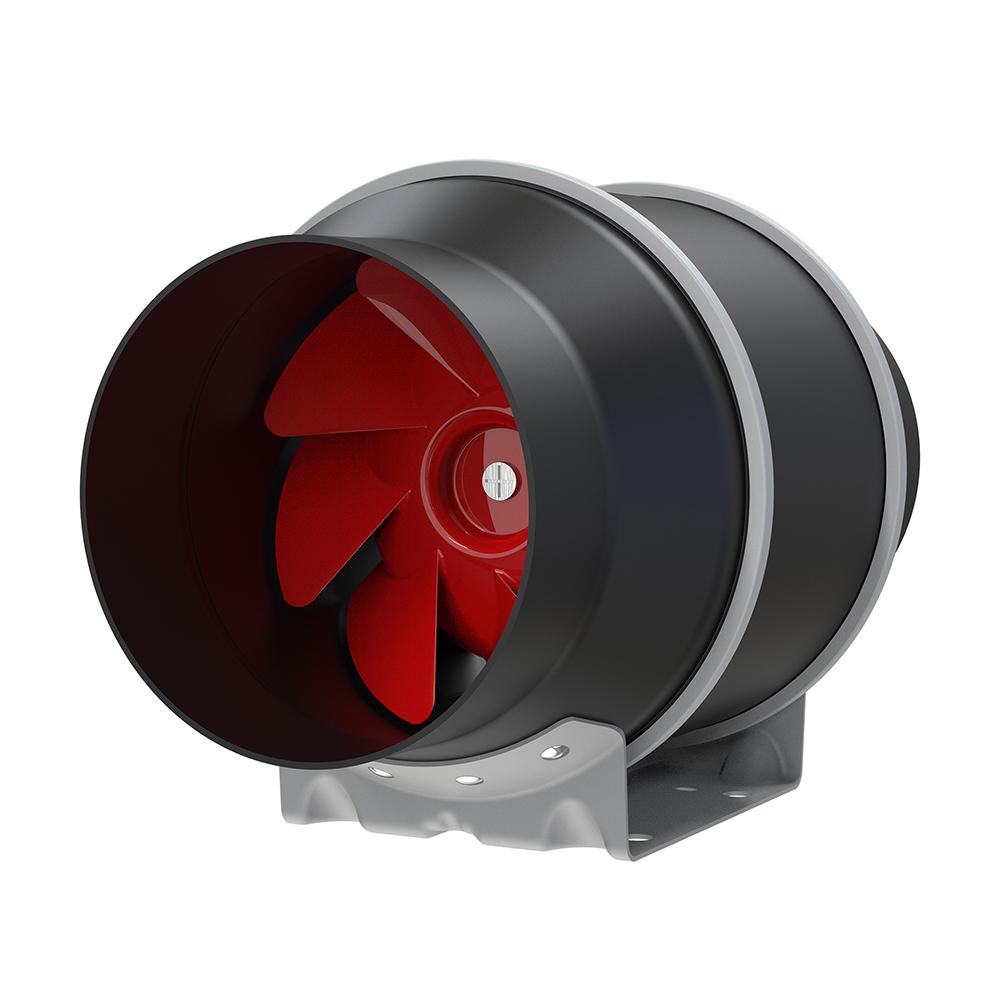

LONGWELL engineers have optimized the impeller aerodynamics and the acoustic structure of the housing to suppress the operating noise of this 4-inch fan to an impressive 28 dB(A).

Auditory Comparison:

· 50-60 dB: Standard AC Duct Fan (Normal conversation volume)

· 40 dB: Refrigerator humming

· 28 dB (LONGWELL): Library background noise or a soft whisper

This level of silence allows the unit to be installed in drop ceilings or wall cavities without being noticed, truly achieving airflow that is felt but not heard.

3. Industrial Design: Built for Harsh Environments

Unlike cheap consumer-grade plastic fans, the LWDE3G100-IS-01 is engineered to meet industrial durability standards.

1. Material Innovation: The housing abandons standard ABS in favor of PP+GF30% (Polypropylene + 30% Glass Fiber). This composite material offers superior mechanical strength and corrosion resistance, ensuring structural stability even in humid or chemically aggressive environments.

2. Maintenance-Free System: The core bearing system is sealed and lubricated for life, eliminating the need for periodic oiling.

3. Wide Temperature Range: Capable of operating stably in temperatures ranging from -10°C to +60°C, making it suitable for everything from freezing server rooms to hot industrial workshops.

4. Technical Datasheet

For engineers, procurement managers, and professional installers, the following hard specifications demonstrate the actual performance limits and compliance of the LWDE3G100-IS-01.

1. Performance Specs

Parameter	Specification	Engineering Relevance
Model	LWDE3G100-IS-01	Standard 4-inch interface, compatible with mainstream ducting.
Voltage Range	110V – 240V (50/60Hz)	Wide voltage design for global compatibility without transformers.
Rated Power	35 W	Ultra-low power consumption reduces OPEX.
Max Airflow	385 m³/h (~226 CFM)	High volume to size ratio for rapid air exchange.
Max Static Pressure	Optimized Curve	Ensures suction remains strong even with long duct runs or filters.
Noise Level	28 dB(A)	Suitable for spaces with strict acoustic requirements.
Net Weight	1.7 kg	Lightweight design allows for single-person installation without heavy bracing.

2. Safety & Compliance (UL Certifications)

This product strictly adheres to international safety standards. Core components have passed multiple UL certifications, ensuring hassle-free engineering acceptance:

· UL 507: Electric Fans Safety Standard

· UL 1004-1 / 1004-7: Rotating Electrical Machines & Electronically Protected Motors

· UL 1004-2 / 1004-3: Impedance Protected & Thermally Protected Motors (Fire prevention)

· UL 94V-0: Flame Retardant Rating (applicable components)

5. Intelligent Control & Installation Simplicity

Installation Made Simple:

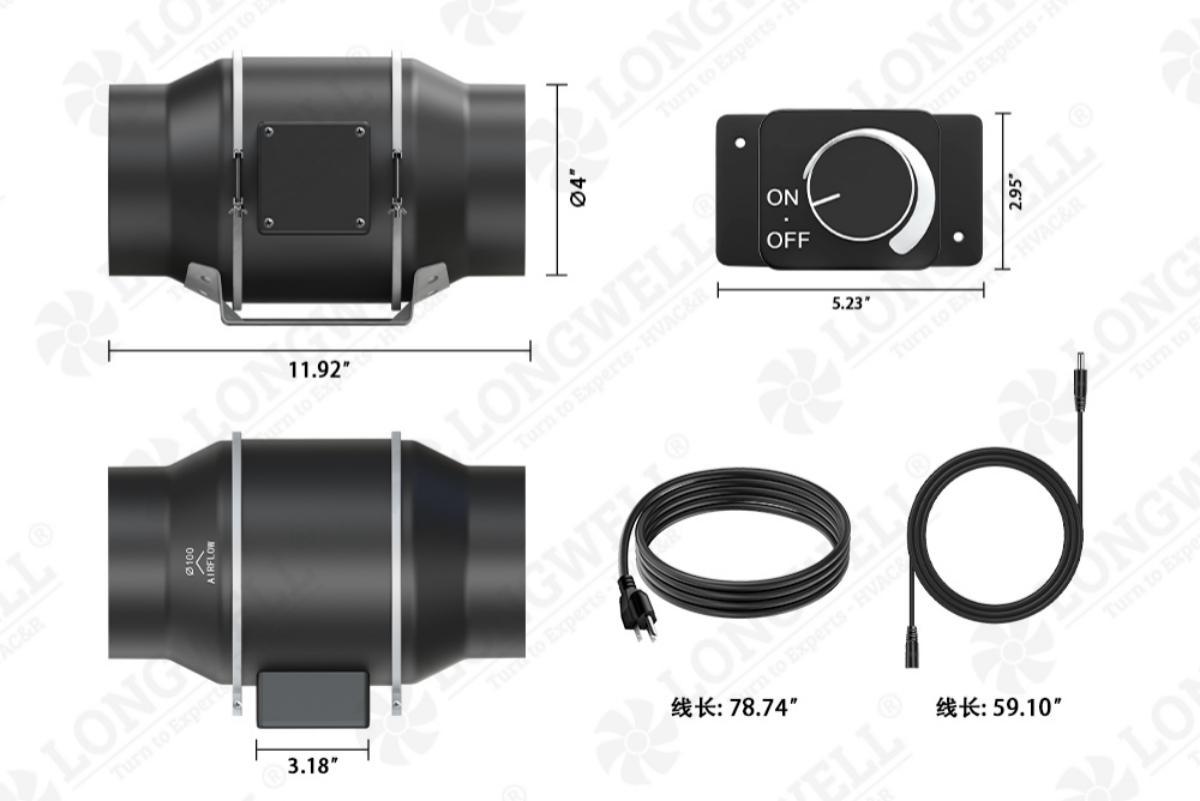

Thanks to the modular design and lightweight 1.7kg body, installers can deploy the unit in tight ceiling spaces without additional hands. The detachable base design makes cleaning or maintenance incredibly easy, removing the need to dismantle the entire duct line.

Mastering the Airflow:

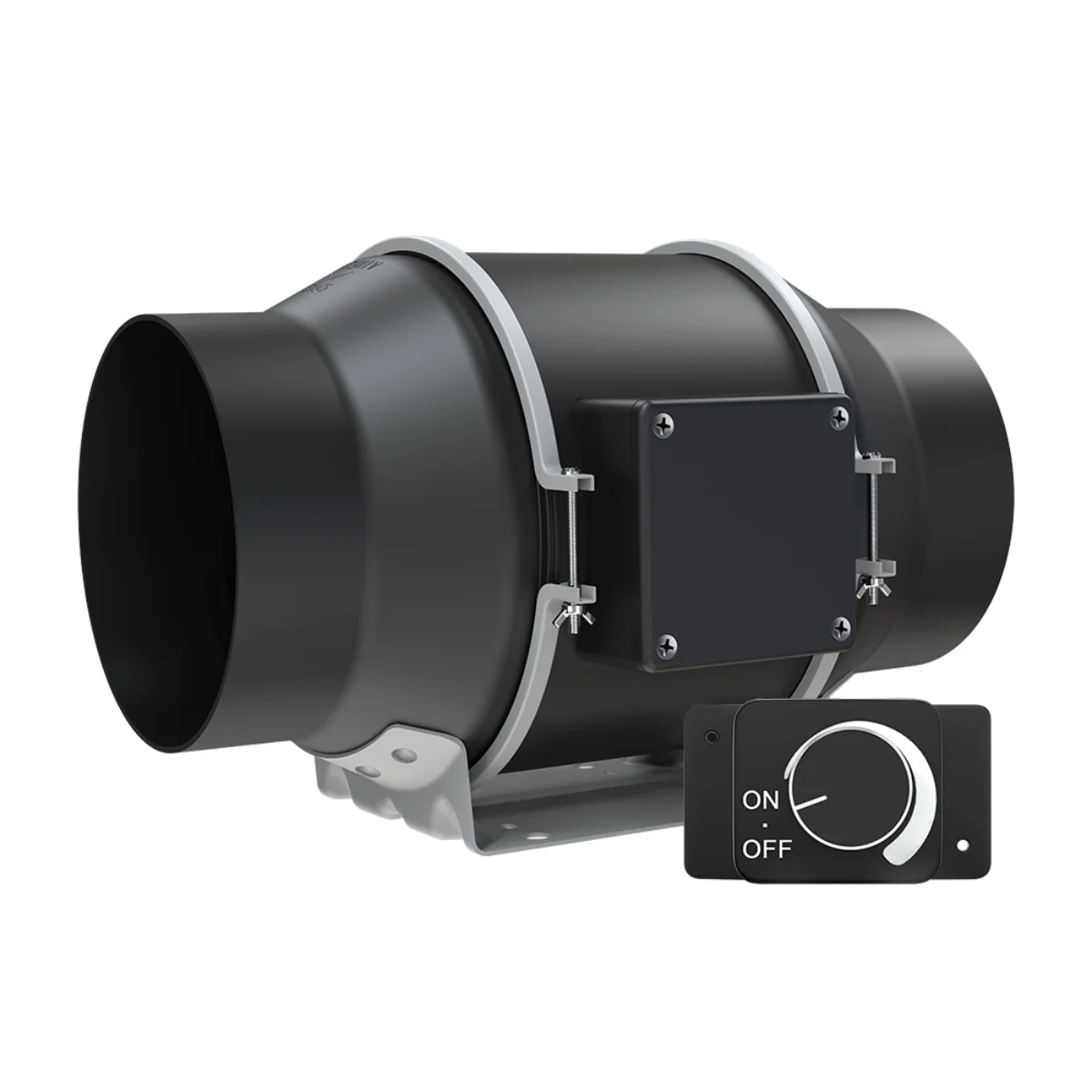

Move beyond the primitive “On/Off” experience of traditional fans. The LWDE3G100-IS-01 comes standard with an external intelligent controller:

· Stepless Speed Control: Precisely adjust airflow via knob or button, switching seamlessly from a gentle circulation breeze to powerful exhaust.

· Smart Integration: Easily integrates with smart home or environmental control systems (such as temperature/humidity triggers).

Conclusion

If you are looking for a ventilation solution that balances commercial-grade durability with residential-grade silence, the LONGWELL LWDE3G100-IS-01 is the definitive answer. It uses robust materials and advanced EC algorithms to solve every pain point associated with traditional ventilation systems.

Upgrade your air experience today.

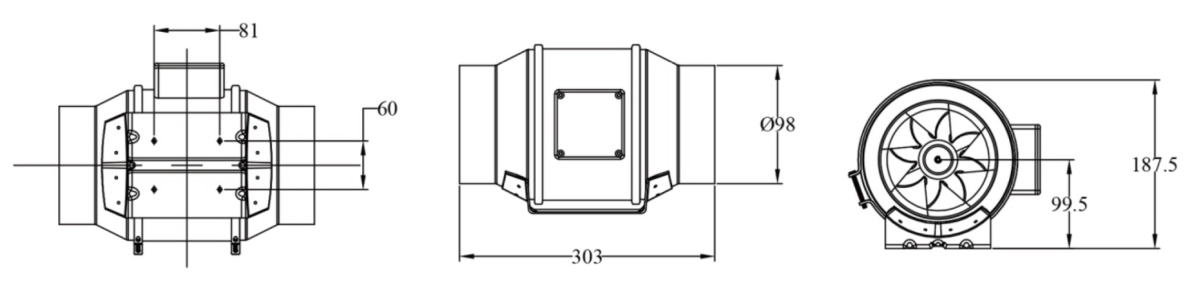

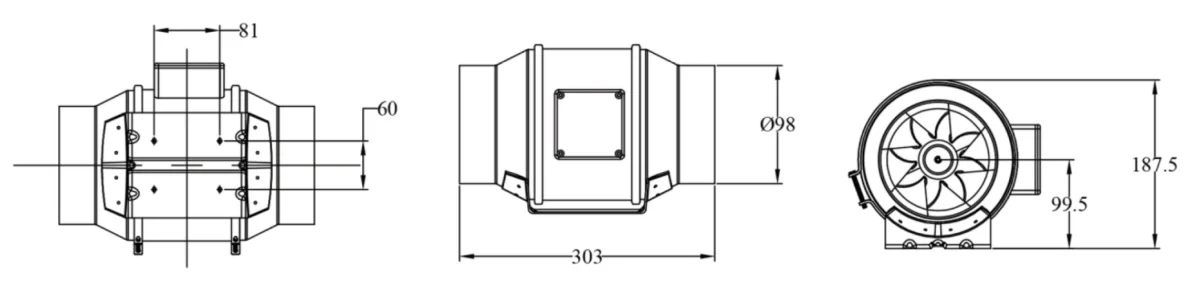

👉 Click here to visit the official LONGWELL page for detailed drawings and quotes

Frequently Asked Questions (FAQ)

Q: Is this fan suitable for use with a carbon filter?

A: Absolutely. The high static pressure characteristic of the EC motor ensures that the fan maintains strong exhaust capability even when resistance is added by a carbon filter, unlike standard fans which suffer significant airflow loss.

Q: What is the practical benefit of the GF30% material?

A: Glass fiber-reinforced PP is significantly harder and more heat-resistant than standard plastic. This means the fan housing will not deform, vibrate, or generate resonance noise over long-term operation, greatly extending the equipment’s lifespan.

Q: Does the product include a speed controller?

A: Yes, the LWDE3G100-IS-01 comes standard with an external controller, allowing you to use the speed adjustment features right out of the box without buying extra accessories or wiring.
