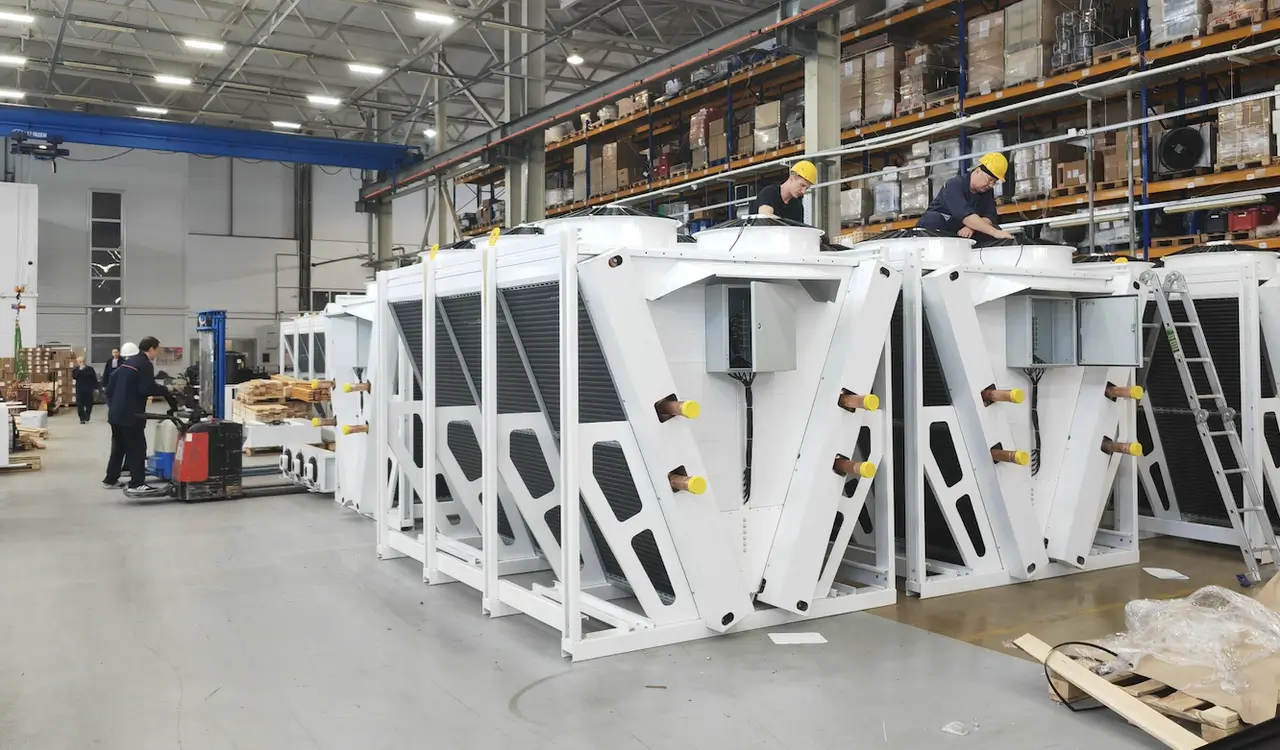

Heating pump ventilation & cooling Project
Project Overview:
Energy**** HVAC.LLC, a key player in the HVAC industry, approached us to enhance the performance of their heating pump systems. The objective was to integrate a highly efficient and durable axial fan motor that could operate reliably under extreme environmental conditions while meeting their specific technical and operational requirements.
Challenges:
The primary challenge was to develop a fan motor solution that could withstand harsh operating conditions, including wide temperature and humidity ranges, while maintaining high efficiency and reliability. The specific requirements for the fan motor included:
- ● Voltage: 400V (Operating voltage range: 304-456V)
- ● Current: 4.96A
- ● Power Consumption: 1694W (Maximum input power: 2400W)
- ● Airflow: 29373 m³/h (17278 CFM)
- ● Speed: 1075 RPM
- ● Insulation Class: F
- ● Protection Type: IP54
- ● Lifespan: 40,000 hours (at 40°C, 15-65% RH)
- ● Speed Control: 0-10VDC input, with an option for RS485 external control box connection
- ● Electrical Protections: Current limiting, over-temperature, over-current, and locked-rotor protection
- ● Operating Conditions: Temperature range: -30 to 60°C, Humidity: 30 to 95% RH, Altitude: <1000m
Information
- Client: Energy**** HVAC.LLC
- Application: Heating Equipment / Heating Pump
- Date: 2023.8
- Using product: BLEC Brushless External Rotor Motor with EC Technology
- Model No: LWBE3G450-188PT-09
- Annual Usage : 8000 units per year
Given these stringent requirements, the motor needed to ensure long-term reliability, energy efficiency, and adaptability to both horizontal and vertical installation configurations.
Solution:

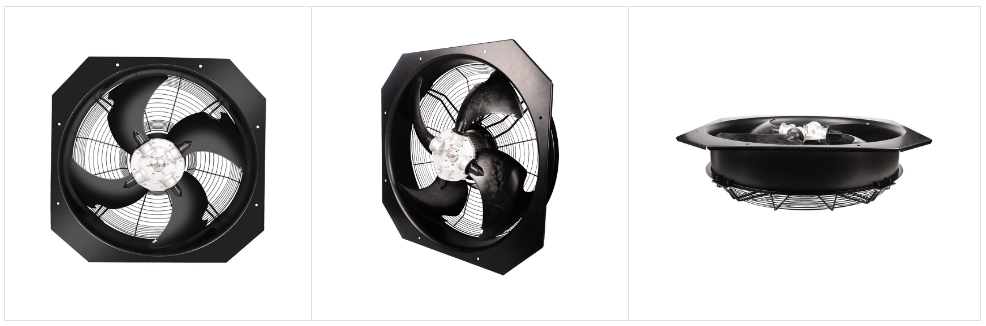

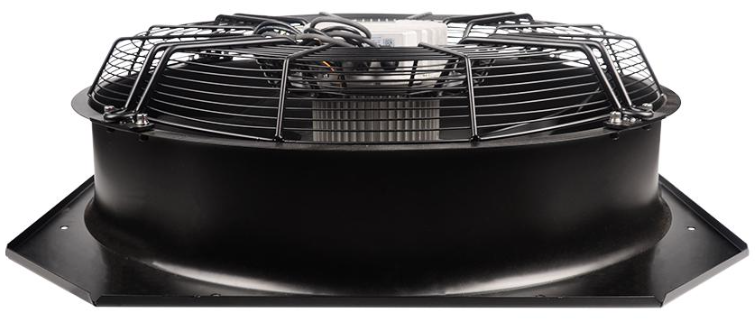

We recommended the EC MOTOR Inline Duct Fan with Intelligent Control, which is specifically designed for ventilation in grow tent applications. This product comes in two models—6-inch and 8-inch duct sizes—each tailored to meet different airflow requirements while ensuring minimal noise impact.

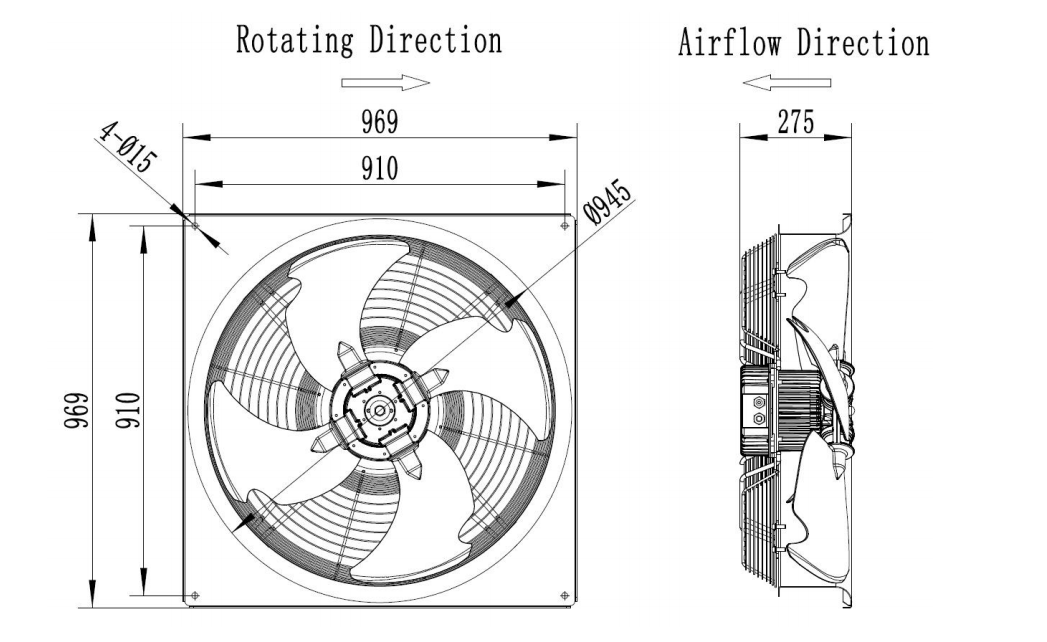

Product drawing :

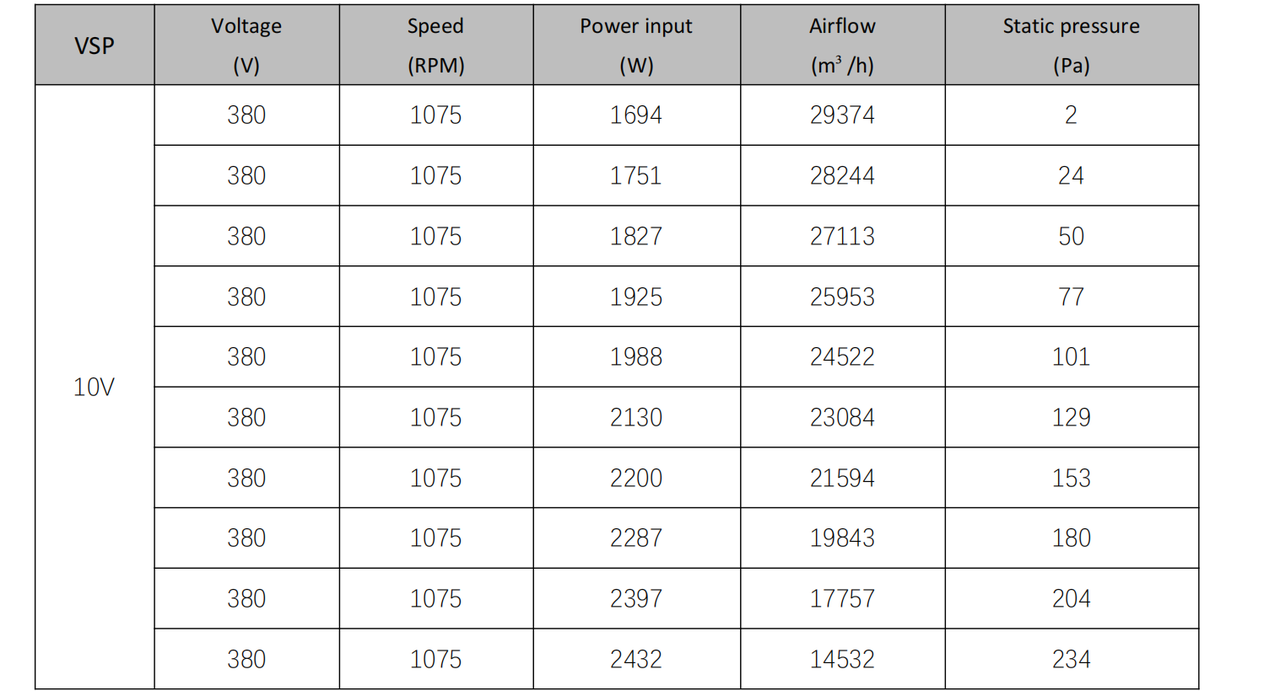

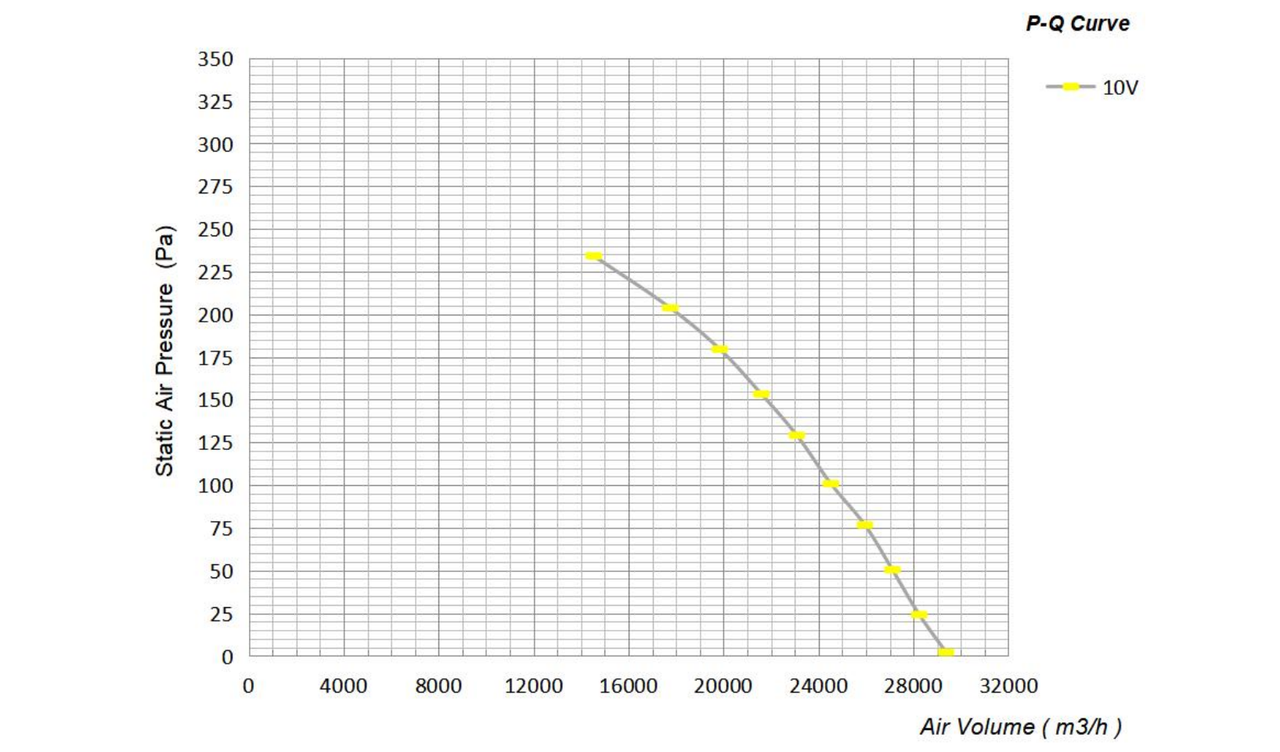

P-Q cruve for this EC Motor Axial fan ( OEM DESIGN for this customer_):
Key attributes of the solution included:
- ● High Efficiency and Energy Savings: The EC technology in the motor allows for precise speed control, reducing energy consumption and enhancing overall system efficiency. The motor’s power consumption of 1694W, with a maximum input power of 2400W, ensures optimal performance without unnecessary energy waste.
- ● Robust and Durable Design: With an insulation class of F and IP54 protection, the motor is built to withstand harsh environments, ensuring reliable operation even under extreme conditions.
- ● Extended Lifespan: The motor is engineered to last, with a lifespan of 40,000 hours at 40°C, reducing the need for frequent replacements and lowering maintenance costs.
- ● Advanced Protection Features: The motor includes multiple layers of electrical protection, such as current limiting, over-temperature, and locked-rotor protection, safeguarding the system from potential operational failures.
Results:
The integration of the BLEC Brushless External Rotor Motor into Energy**** HVAC.LLC’s heating pump systems has resulted in:
- ● Enhanced System Reliability: The motor’s robust design and comprehensive protection features have significantly reduced system downtime, improving overall reliability.
- ● Energy Efficiency Gains: The precise speed control provided by EC technology has led to substantial energy savings, aligning with Energy**** HVAC.LLC’s commitment to sustainability.
- ● Adaptability to Harsh Conditions: The motor’s ability to operate within a wide range of temperatures and humidity levels has ensured consistent performance across various environmental conditions.
Energy**** HVAC.LLC has expressed high satisfaction with the motor’s performance and has committed to continuing its use in future heating pump systems, reinforcing our strong partnership.
