Project Overview:
In March 2024, Vectx*****.Pty Ltd, a leader in the agricultural industry, sought to enhance the efficiency and effectiveness of their growing tent ventilation systems. The goal was to provide a ventilation solution that could maintain optimal air quality and temperature control within the grow tents, crucial for ensuring healthy plant growth and maximizing yields. Challenges:
The primary challenge was to design a fan system that could provide consistent and adjustable airflow while minimizing noise levels—a, a critical factor in indoor grow environments. The solution needed to include intelligent control capabilities, allowing users to fine-tune the fan speed based on the specific needs of their grow tents.
Model #1:
- ● Duct Size: 6 inches
- ● Dimensions: 315 x 225 x 210 mm
- ● Airflow: 415 CFM
- ● Noise Level: 34 dBA (Max)
Model #2:
- ● Duct Size: 8 inches
- ● Dimensions: 330 x 252 x 211 mm
- ● Airflow: 855 CFM
- ● Noise Level: 51 dBA (Max)
Information
- Client: Vectx*****.Pty Ltd
- Application: Ventilation and Exhausting project
- Date: 2024.3
- Using product: EC MOTOR inline duct fan with intelligent control
- Annual Usage : 1500 units per year
With an annual usage requirement of 8000 units, the solution needed to be scalable, reliable, and adaptable to different grow tent sizes.
Solution:

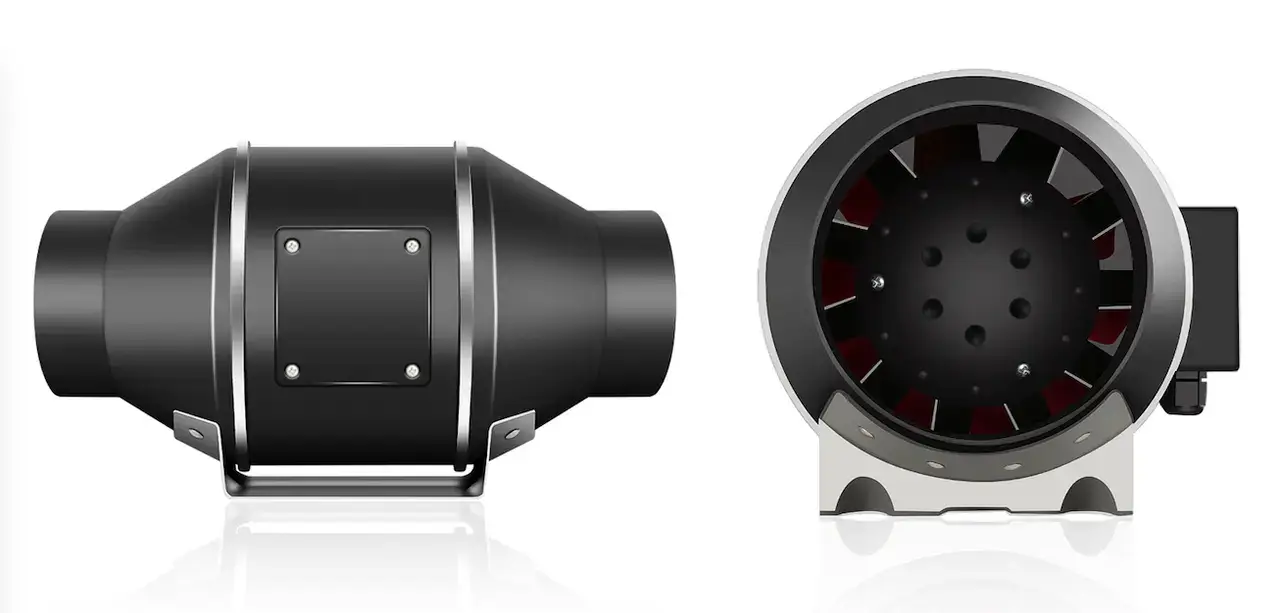

We recommended the EC MOTOR Inline Duct Fan with Intelligent Control, which is specifically designed for ventilation in grow tent applications. This product comes in two models—6-inch and 8-inch duct sizes—each tailored to meet different airflow requirements while ensuring minimal noise impact.
Key attributes of the solution included:
High Efficiency and Energy Savings: The EC technology in the motor allows for precise speed control, reducing energy consumption and enhancing overall system efficiency. The motor’s power consumption of 1694W, with a maximum input power of 2400W, ensures optimal performance without unnecessary energy waste.

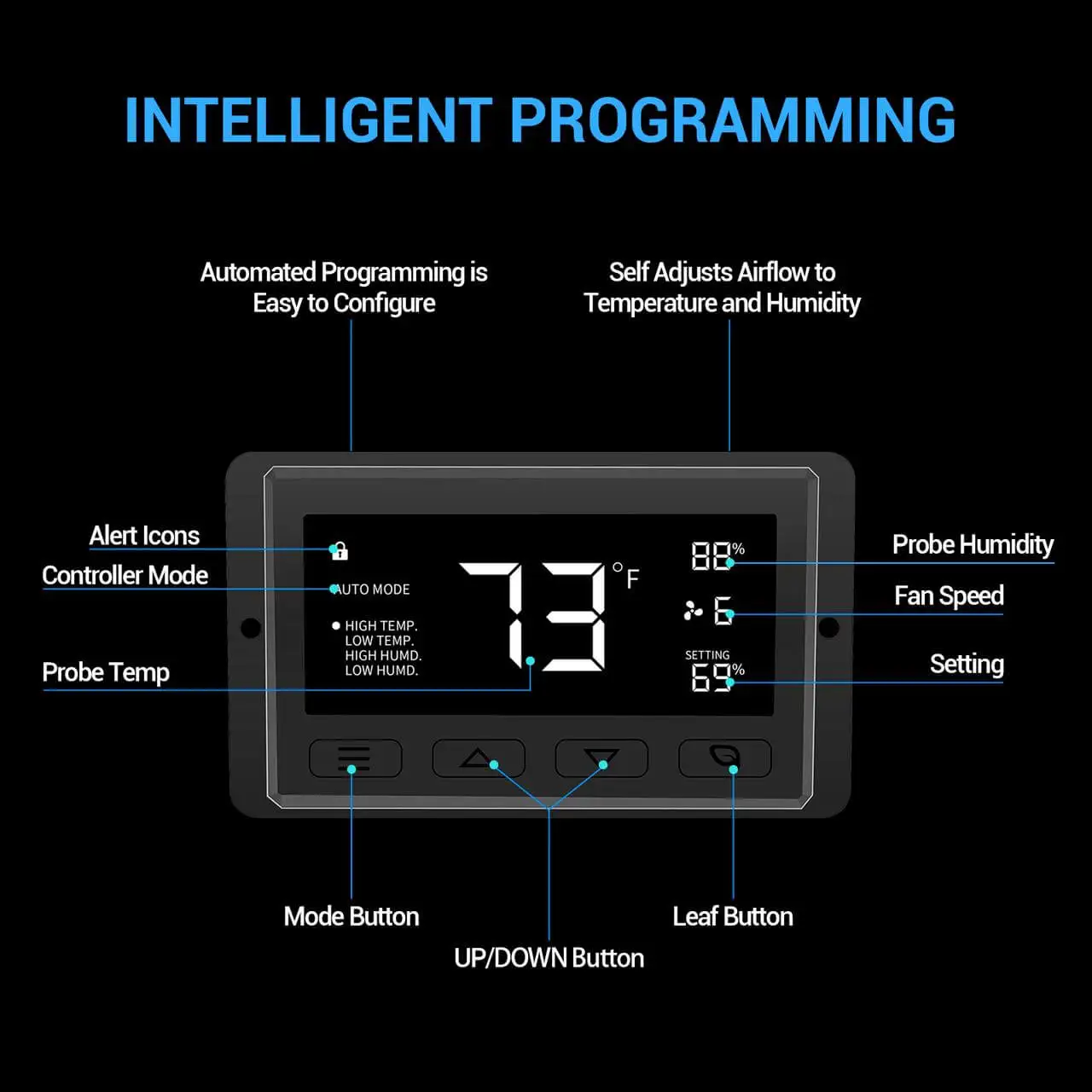

- ●Intelligent Speed Control: The EC motor technology allows users to easily adjust fan speed to match the specific ventilation needs of their grow tents. This ensures optimal air circulation and temperature control, which are essential for healthy plant growth.
- ●High Performance with Low Noise: Both models deliver powerful airflow (415 CFM for the 6-inch model and 855 CFM for the 8-inch model) while keeping noise levels low (34 dBA and 51 dBA, respectively). This makes the fans ideal for indoor environments where quiet operation is crucial.
- ●High Performance with Low Noise: The compact dimensions of the fans allow for easy installation in various grow tent setups. Additionally, robust construction ensures long-lasting performance even in demanding conditions.

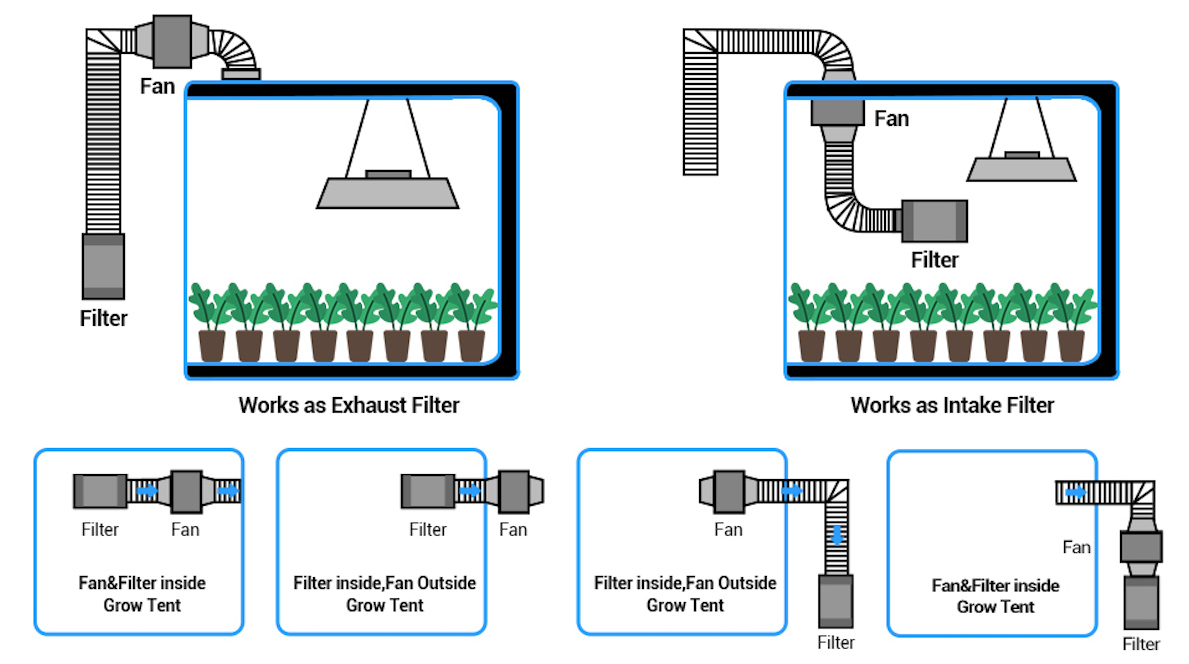

- ●High Performance with Low Noise: ventilate hydroponic grow rooms, transfer heating/cooling, in-line duct boost, and exhaust odors.

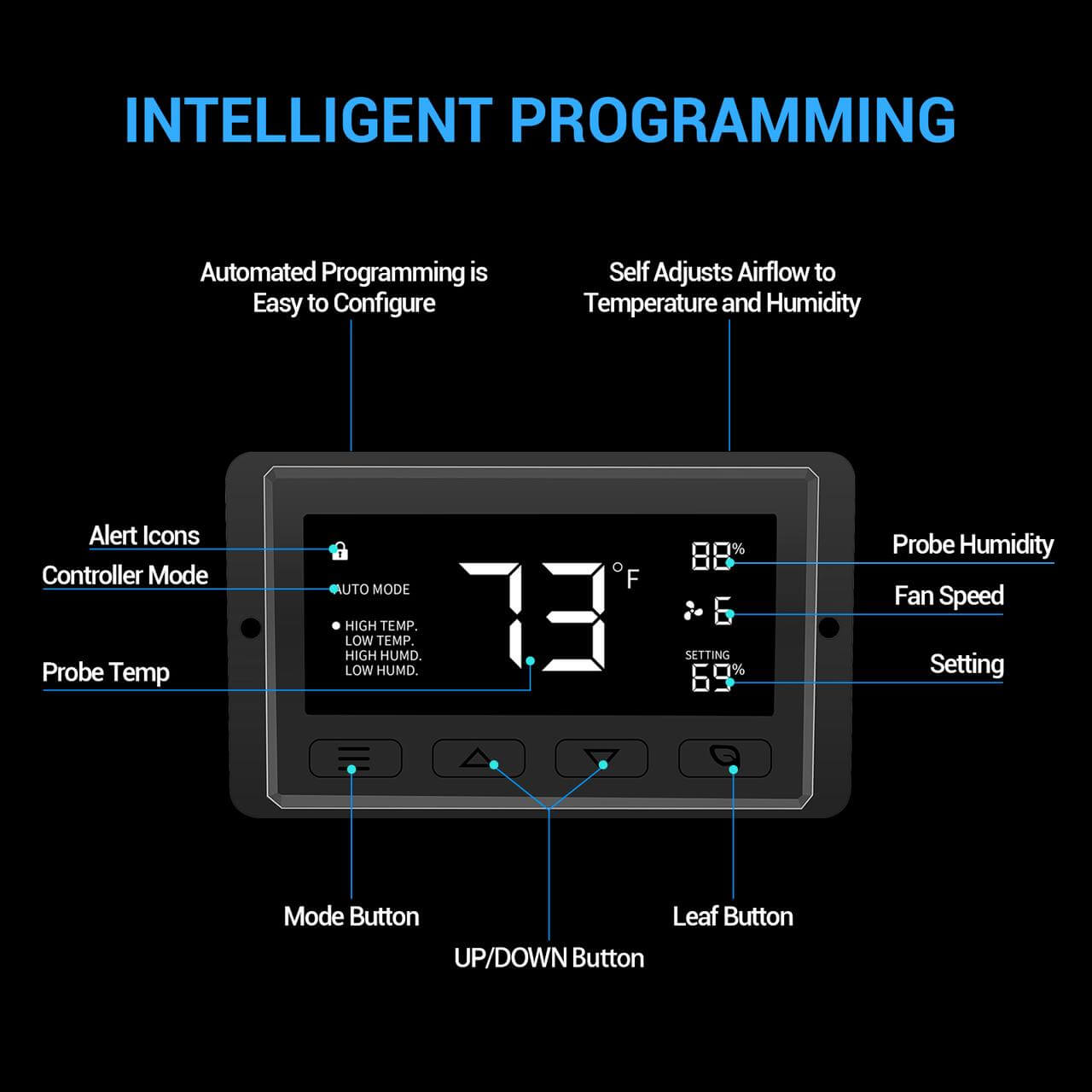

- ● Dynamic Temperature and Humidity Programming: Features timers, grow cycles, and scheduling for optimal climate control.
- ● Remote Connectivity: Connect to WiFi app to access advanced programs, view climate data, and set automation.
- ● Mixed Flow Design: Combined with a PWM-controlled EC-motor for truly quiet and energy-efficient performance.
- ● MODEL#1: Duct Size: 6” | Dimensions: 315 x 225 x 210 mm | Airflow: 415 CFM | Noise: 34dBA (Max)
- ● MODEL#2: Duct Size: 8” | Dimensions: 330 x 252 x 211 mm | Airflow: 855 CFM | Noise: 51dBA (Max)
Quiet and Energy Efficient Design:

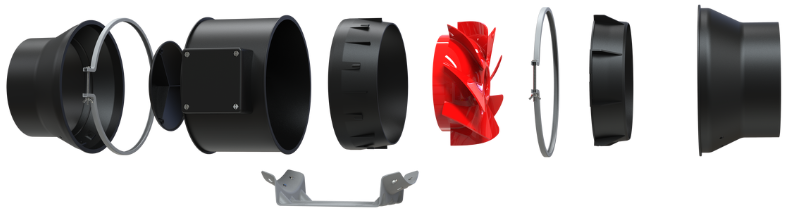

Unlike common duct fans that use an AC motor which is loud and unmanageable, this duct fan features an EC motor that is controlled using PWM (Pulse Width Modulation). This technology enables motors to be able to run smoothly at extremely low RPM speeds without generating additional heat or noise. In addition, the duct fan uses a mixed flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is restricted. The motor houses dual ball bearings rated at 40,000 hours, which allows the duct fan unit to be mounted in any direction.
Production specifications :

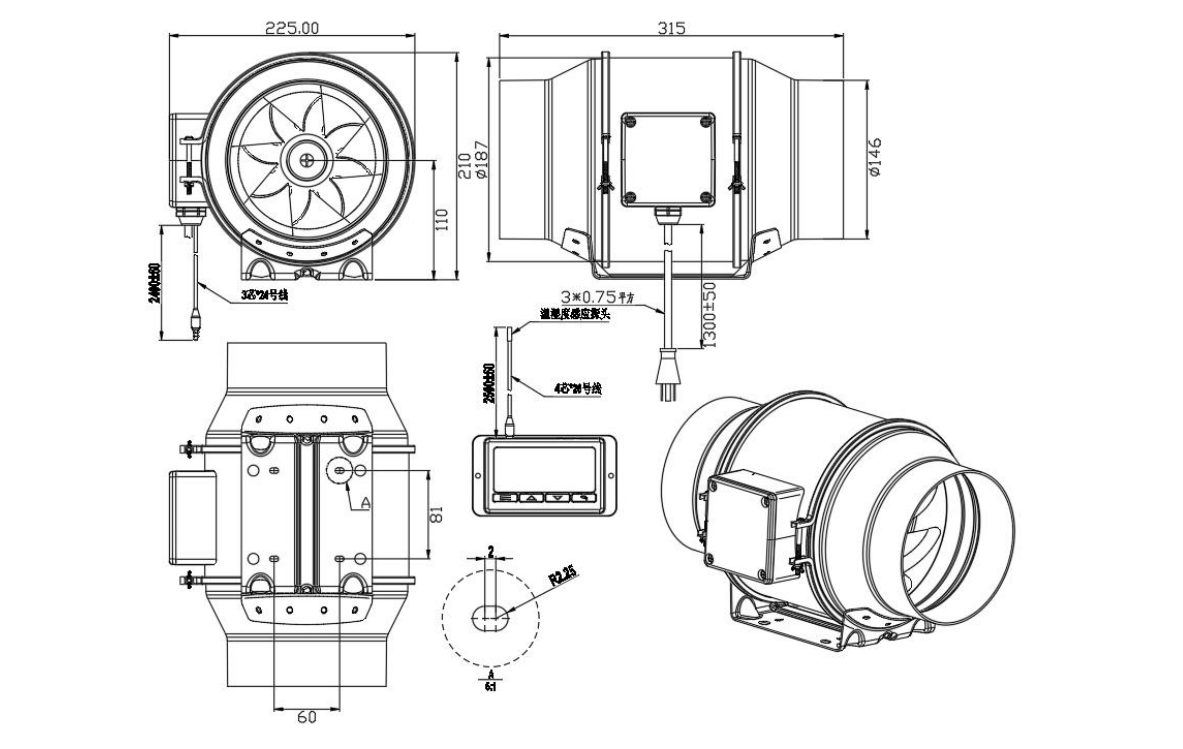

Product drawing (6 INCH DUCT FAN) :

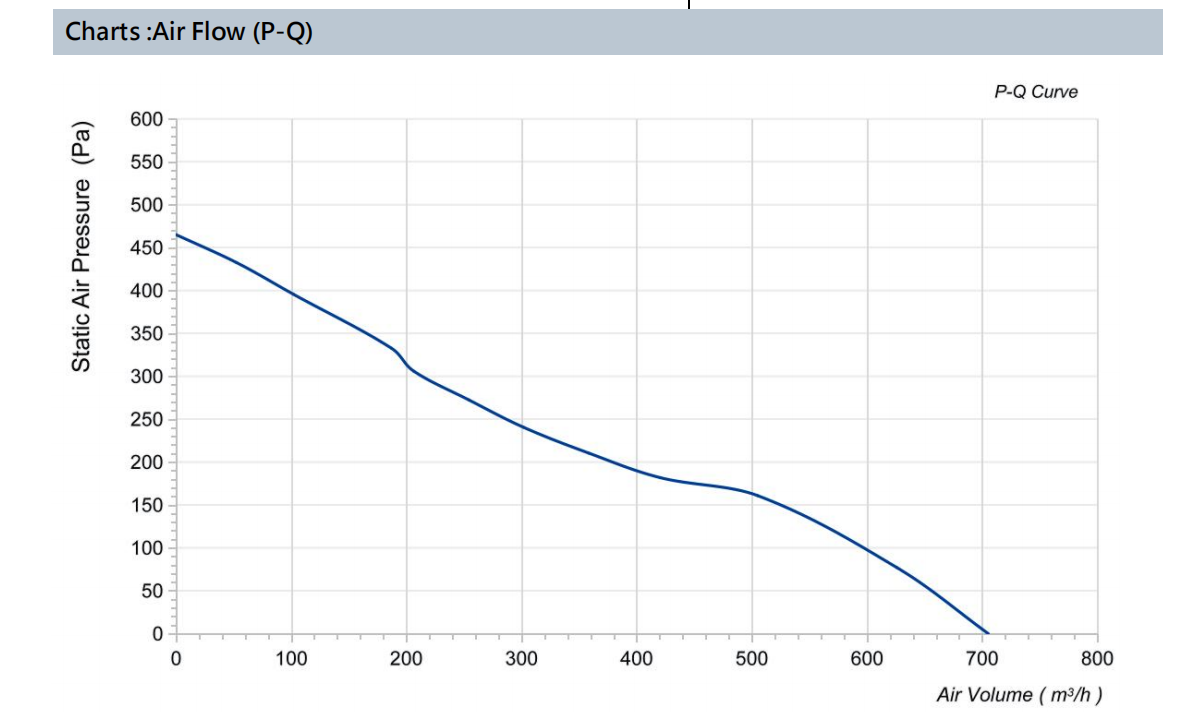

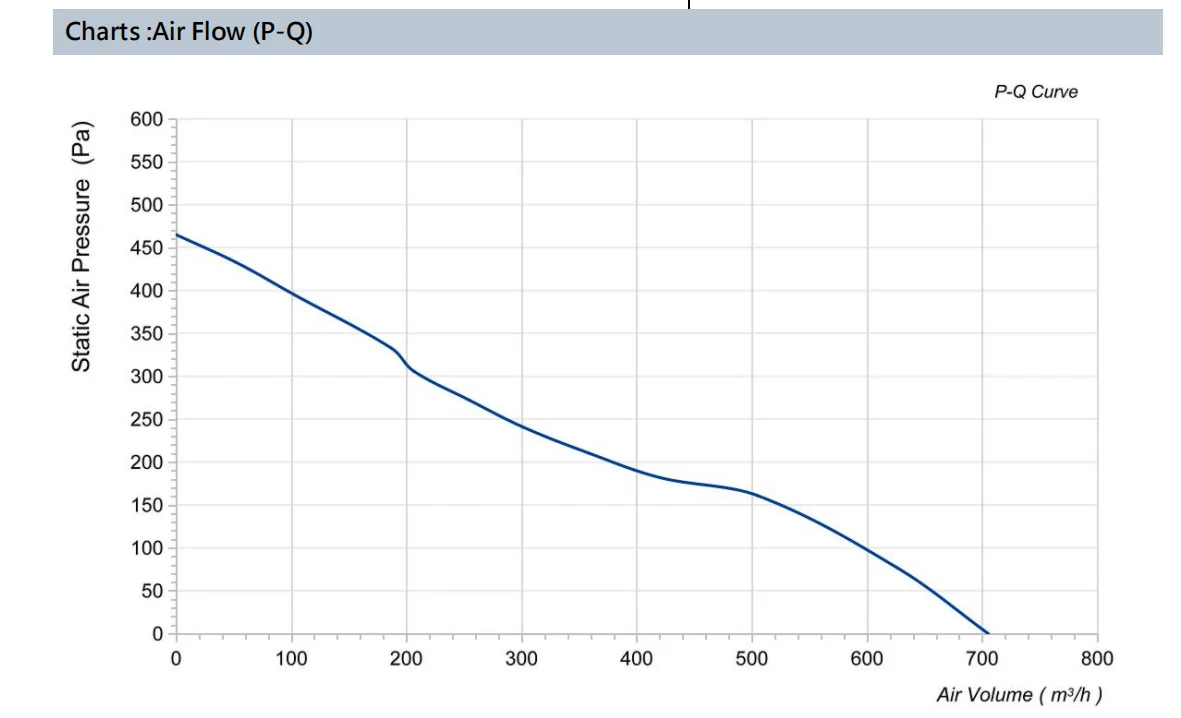

P-Q cruve ( 6 INCH duct fan_):
P-Q cruve ( 6 INCH duct fan_):

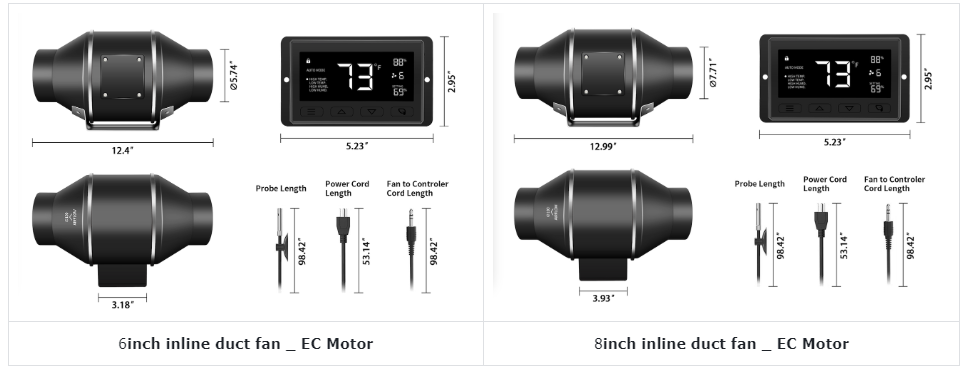

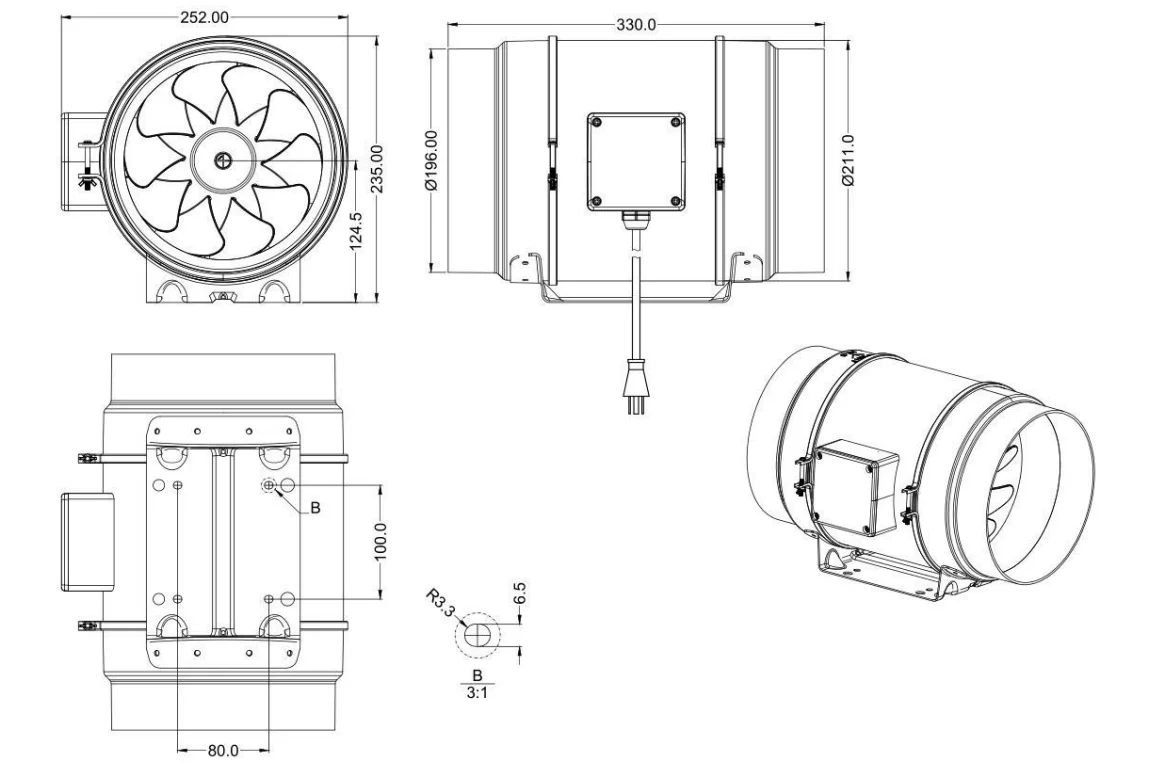

Product drawing (8 INCH DUCT FAN) :
Vectx*****.Pty Ltd has expressed satisfaction with the performance of the inline duct fans and plans to continue using our products as they expand their operations.
