Description
Technical Description
| Frame Material | Plastic(UL94-VO) |
| Impeller Material | Plastic(UL94-VO) |
| Voltage | 12VDC(6~13.8VDC),24VDC(12~27.6VDC),48VDC(24~56VDC) |
| Operation Temperature | -10~70°C(Non-condensing) |
| Specials | AS,RD,FG,PWM,Temperature Control,IP56 |
Nominal data
| Type of Voltage | DC |
| Dimensions | 70x25mm |
| Nominal Voltage | 24V |
| Current | 0.25A |
| Speed | 4500RPM |
| Air Flow(Max) | 1.3m³/h |
| Static Pressure(Max) | 65Pa |
| Noise | 43.2dB(A) |
| Curve | ④ |

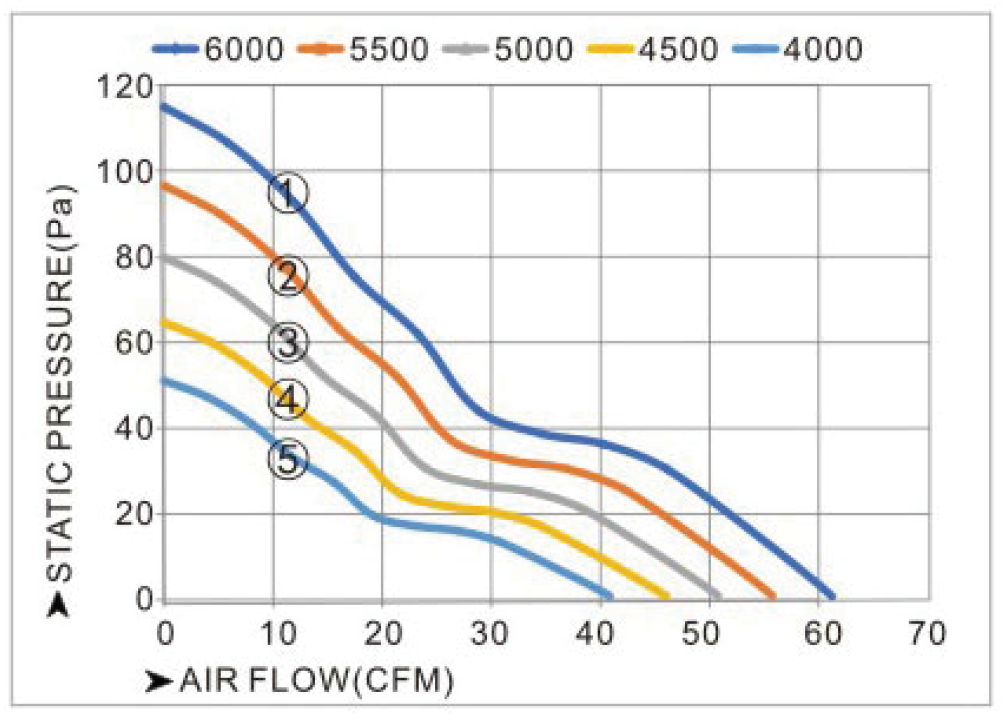

Curves

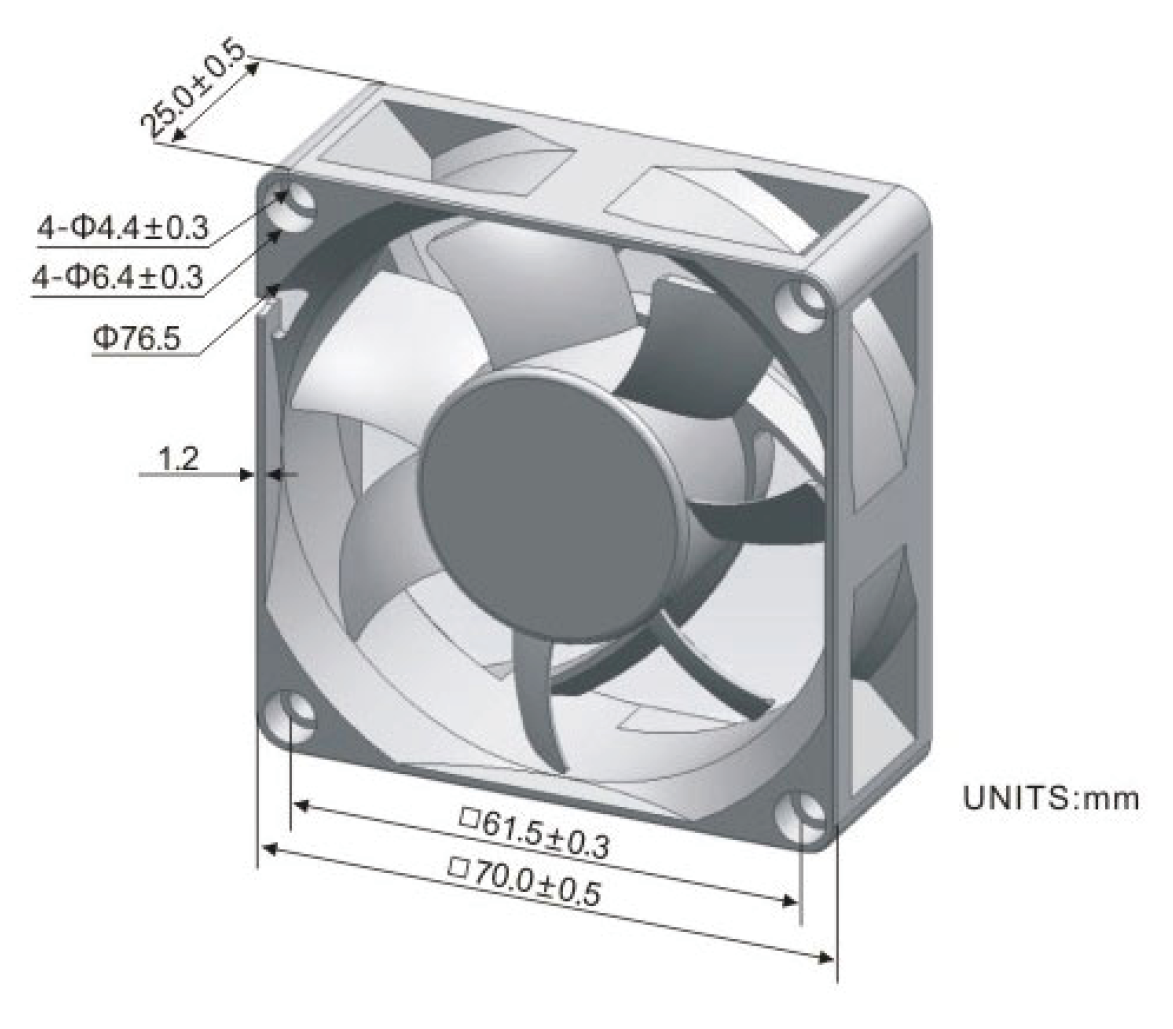

Drawing
Download
