Description
Technical Description
| Material | Metal |
| Protection Class | IP55 |

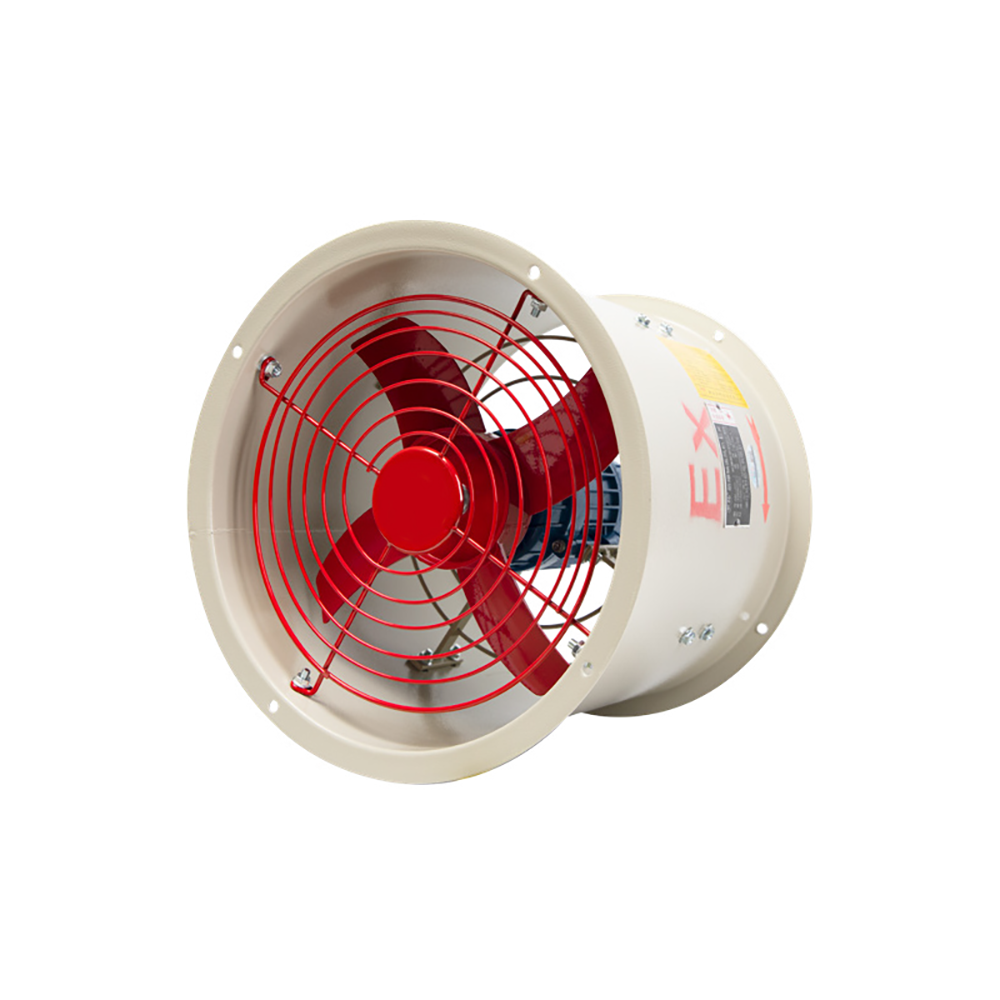

| Technical Feature | This series of products consists of explosion-proof motors,impellers,wind tubes,etc.The impellers are casted with aluminum alloy,and the wind tubes are welded with steel plates and profiles,then surface treated with high-voltage electrostatic spraying.Steel pipe wiring or cable wiring can be used for power supply leads,with grounding screws outside the housing.It has the characteristics of low noise,low energy consumption,and excellent performance. |
Nominal data
| Dimensions | 700mm |
| Voltage | 380V |
| Frequency | / |
| Power | 1.1KW |
| Speed | 1450RPM |
| Air Flow | 10200m³/h |
| Noise | / |
Curves

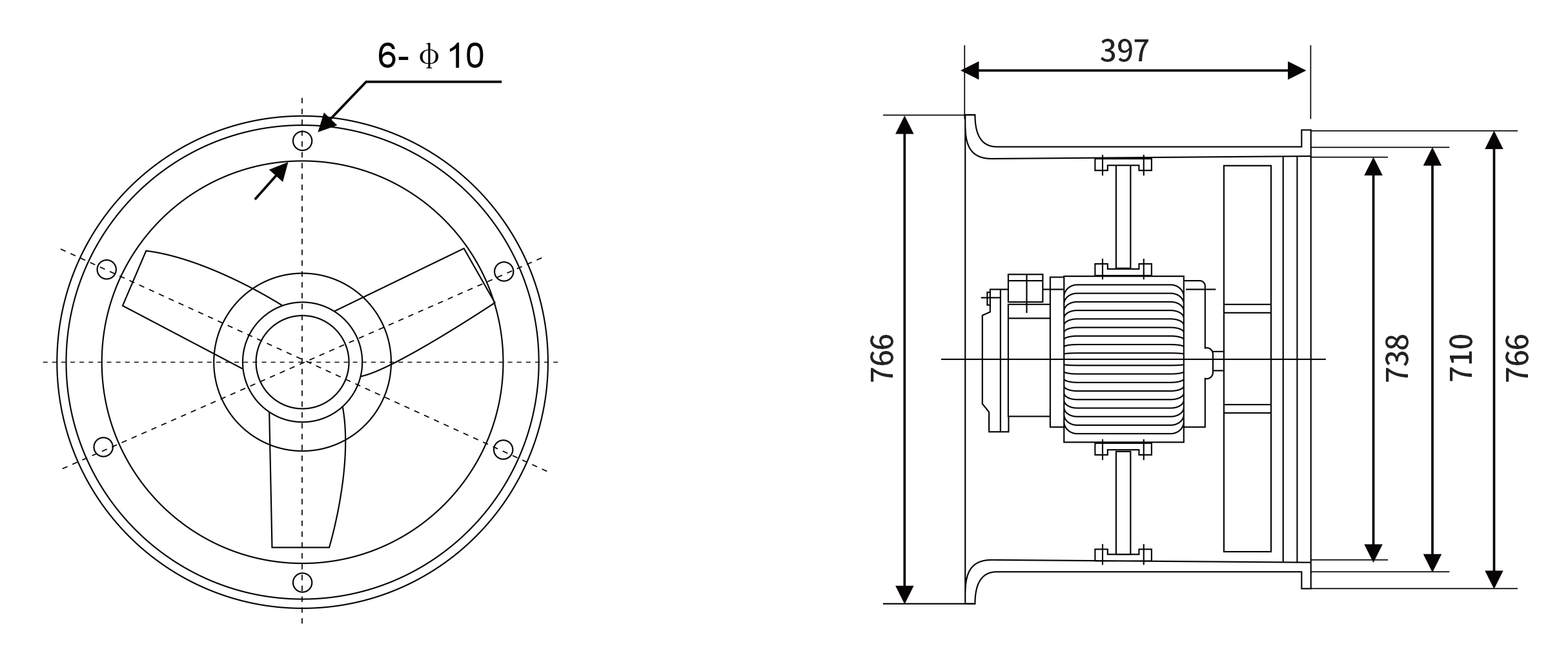

Drawing
Download
