Description
Technical Description
| Specification | US Standard |
| Feature | 1. Double-sided fan blade design,larger air volume and wind pressure,strong heat dissipation,ensuring long-term continuous and stable work. 2. Energy-efficient motor,energy-saving,high efficiency,durable,strong core brings continuous and stable wind pressure operation. 3. Rain-proof,flame-retardant and cold-resistant shell,can handle various unexpected situations with peace of mind,and can be used safely in any weather. 11. Application: Inflatable Water Slide,InflatableTrampoline,Inflatable Castl,Inflatable Model,Inflatable Arch,Tent,etc. |
Nominal data
| Dimensions | 37×18×37cm |
| Nominal Voltage | 120V |
| Frequency | 60Hz |
| Power Input | 480W |
| Speed | / |
| Static Pressure(Max) | 1800Pa |
| Air Flow(Max) | 800m³/h |
| Noise | / |
| Net Weight | 4.3kg |
| Gross Weight | 5.3kg |
| Caliber | 110mm |
Curves

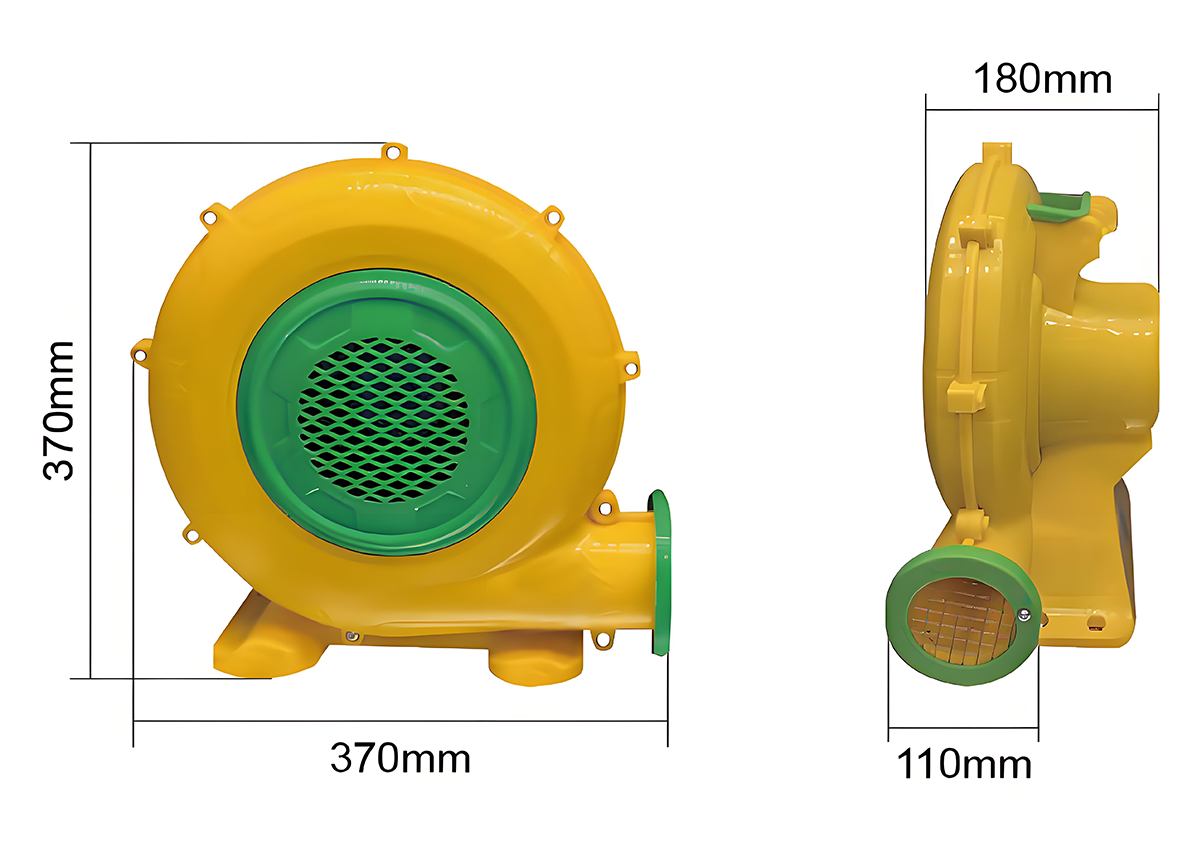

Drawing
Download
