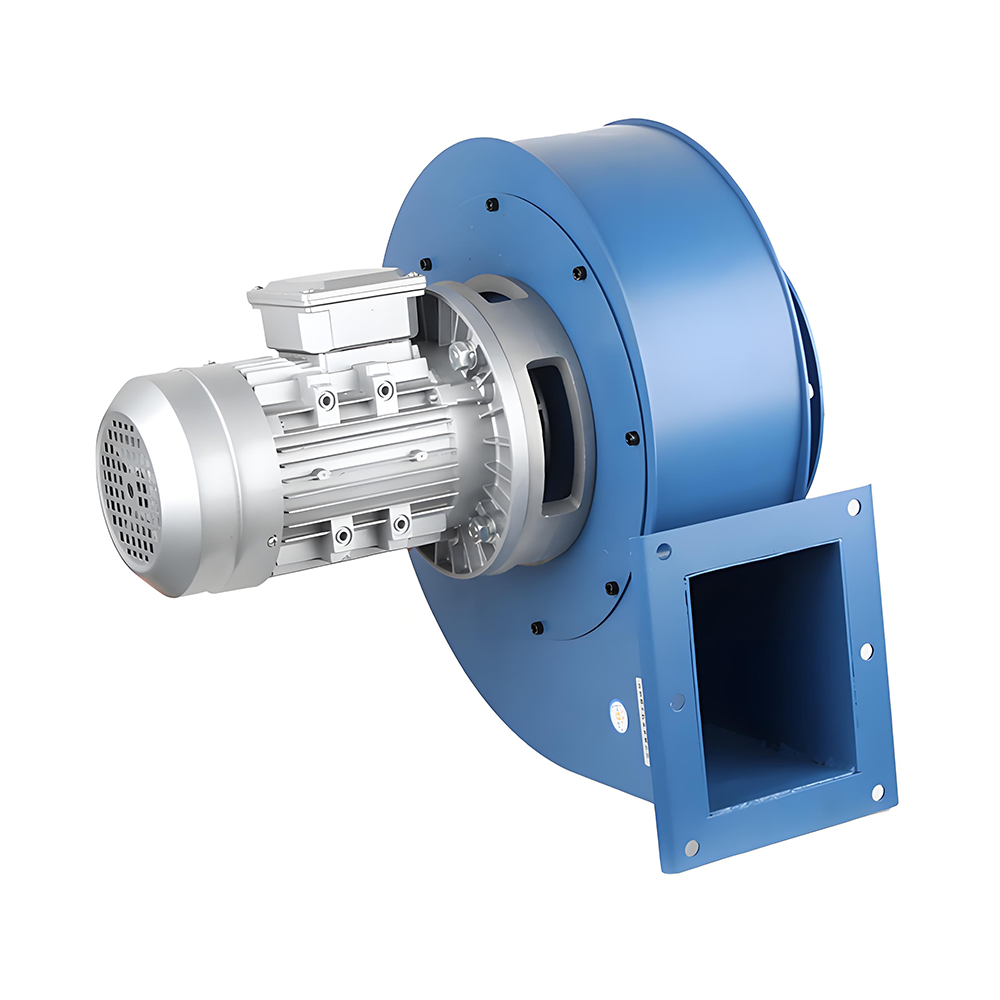

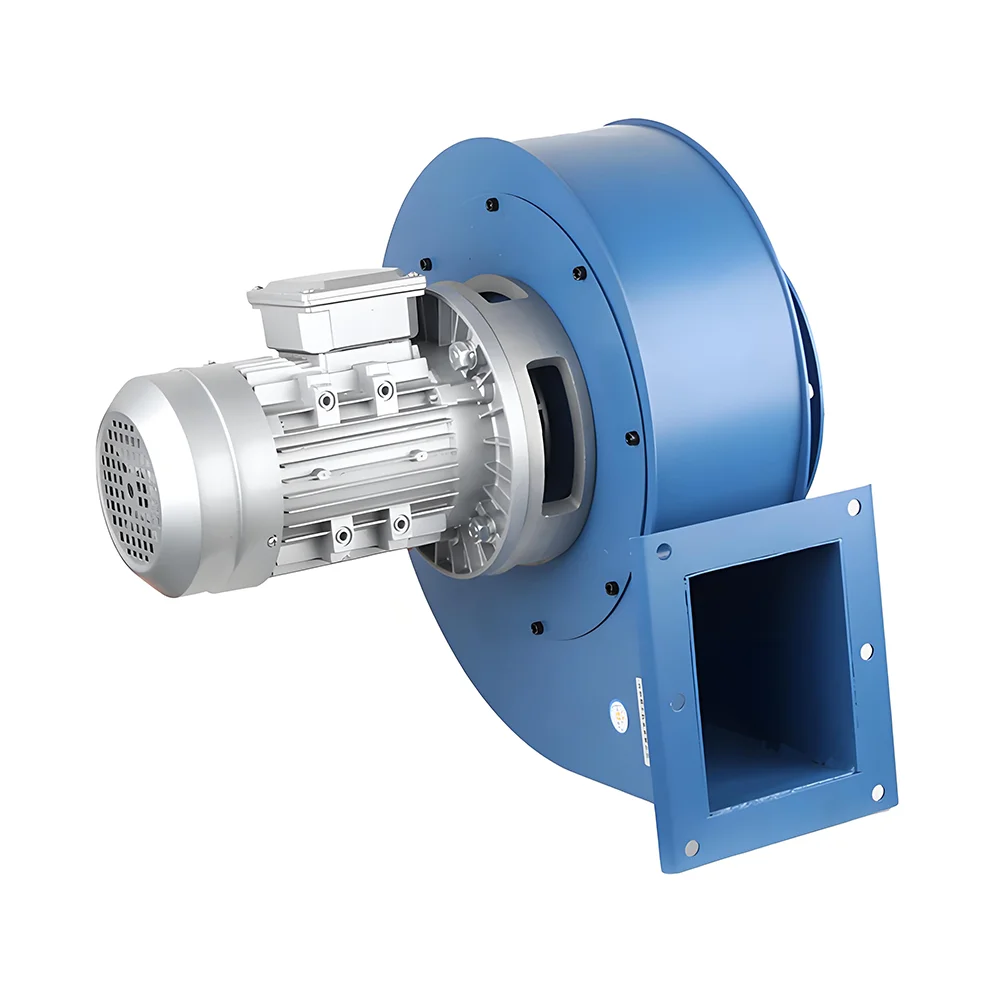

Name: LONGWELL LW5-47 Exhaust Blowers
SKU: 70479
Availability: InStock

Description

Technical Description

Technical Feature

1.Draw lessons from foreign advanced prototype,according to the boiler industry professional research and development,design of new boiler fan.
2.High temperature resistance,high efficiency,high air volume,low vibration,low noise,laser cutting of wind shells,beautiful shape.
3.Y2 aluminium alloy die-casting material is used in the motor,which greatly reduces weight,achieves lightweight,convenient installation and novel shape.
4.The main components of the motor are high temperature resistant materials (high temperature bearings,high temperature grease,high temperature insulation materials,etc.).
5.The motor is cooled by connecting the heat insulating connecting seat (with internal cooling vanes) with the wind housing to ensure the normal operation of the motor at high temperature.
6.Widely used in heating furnace,hot air stove,numerical control boiler,steam boiler,drying,chemical industry,food,grain machinery and other related industries.
7.Normal operating temperature of fan:180℃-200℃

Nominal data

Dimensions	/
Voltage	220V/380V
Frequency	50Hz
Power	1.5KW
Speed	2800r/min
Total Head	1140Pa
Air Flow	2800m³/h
Noise	/

Curves

Drawing

Download
