Description
Product descriptions from the supplier

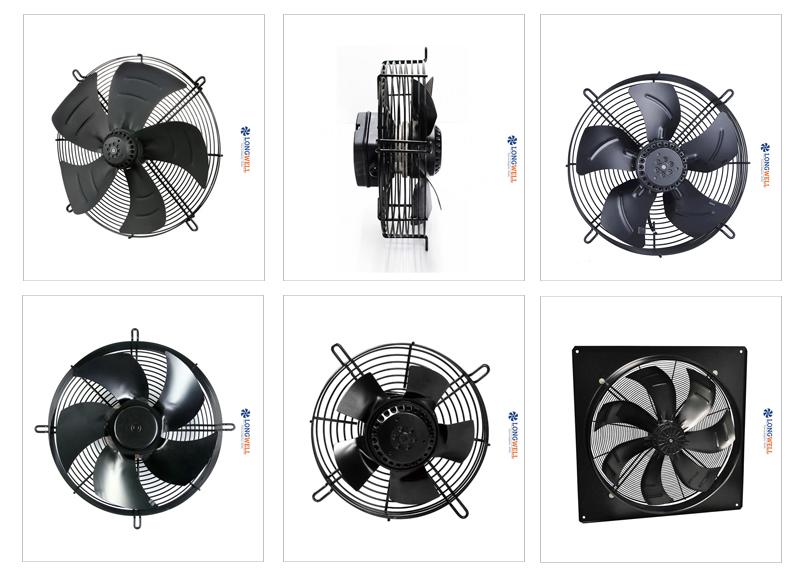

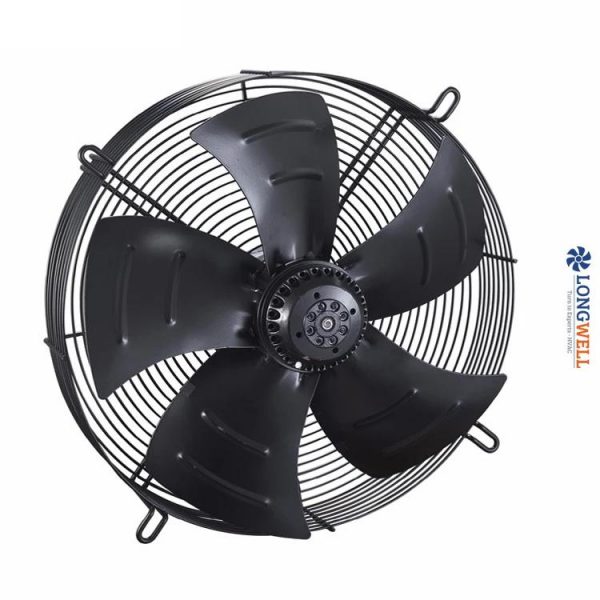

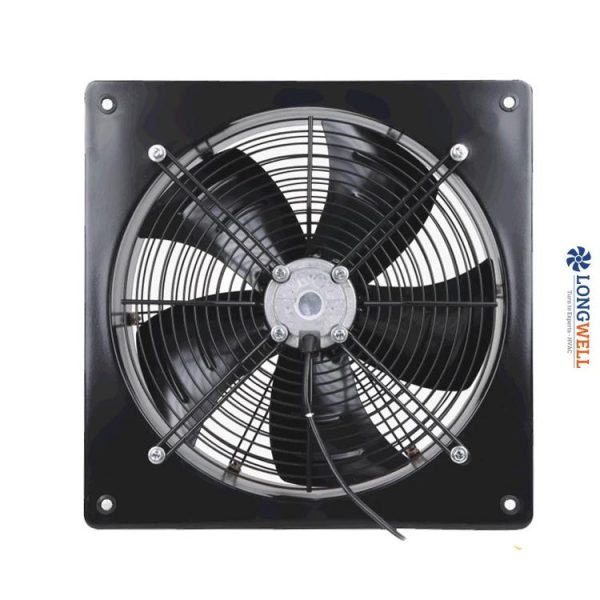

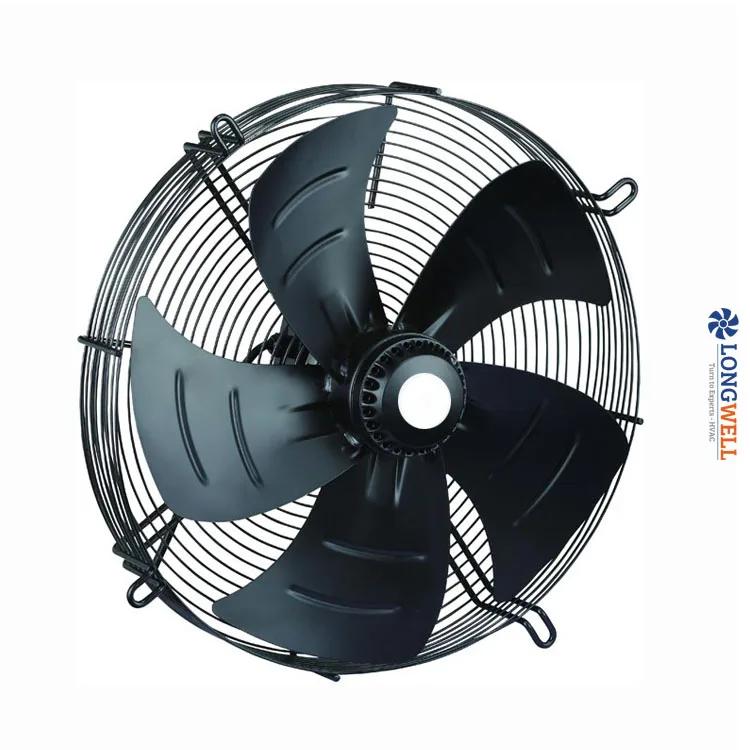

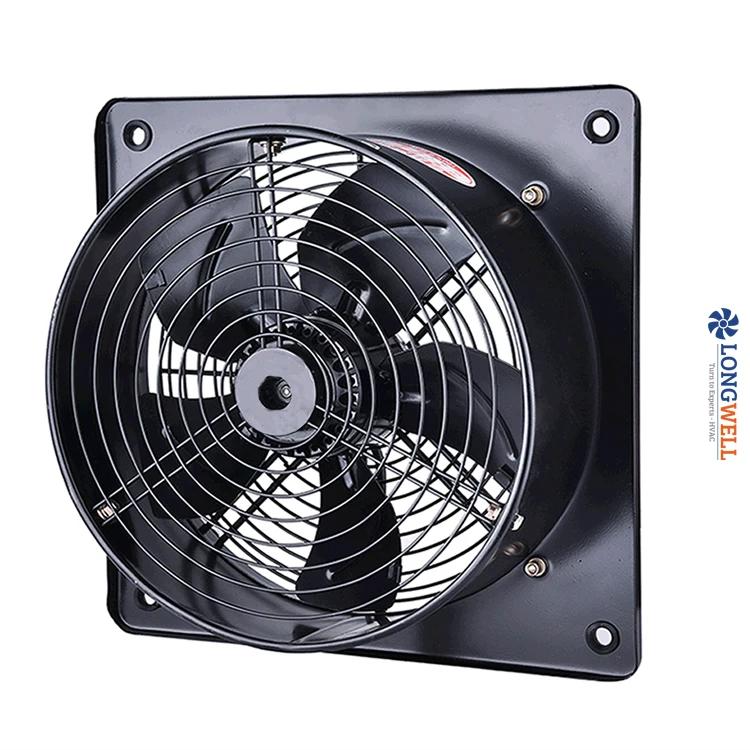

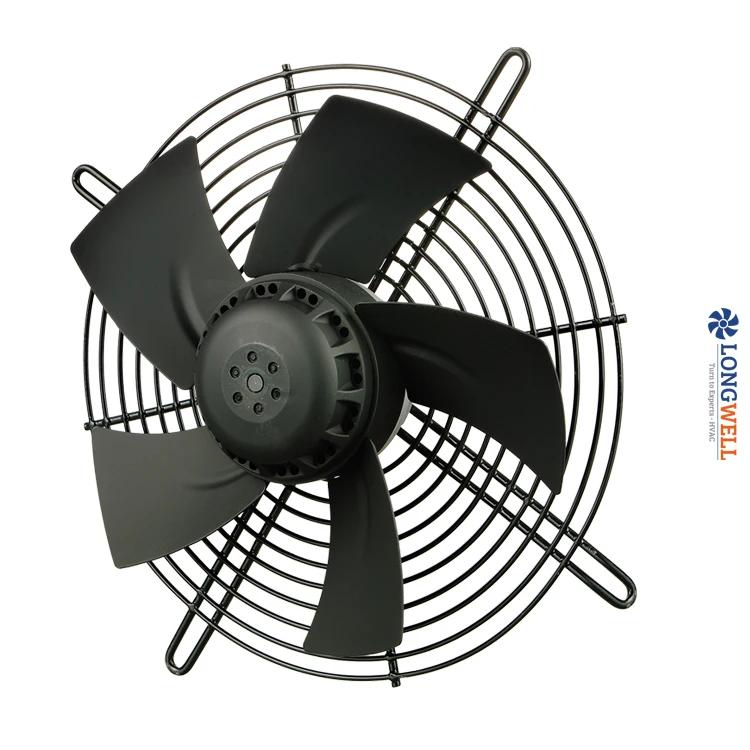

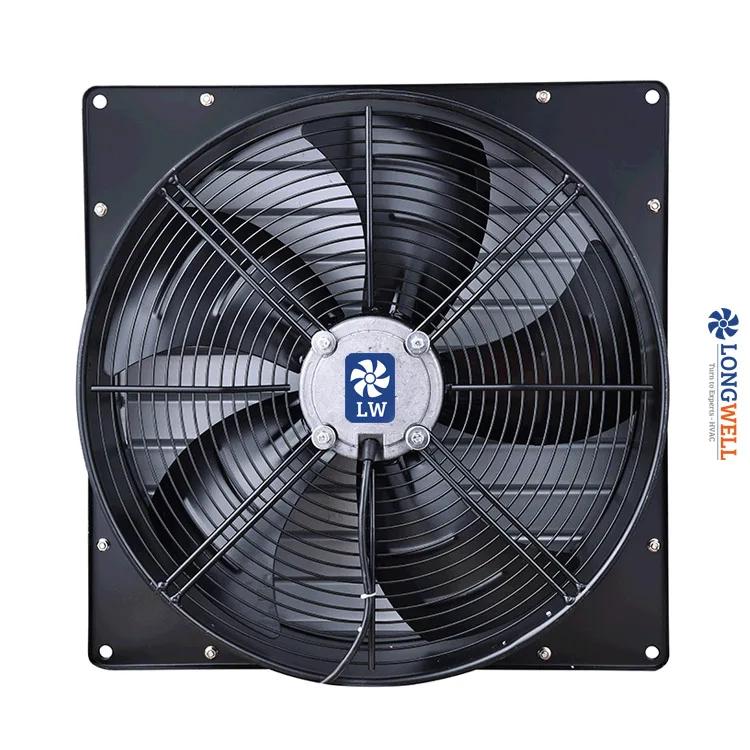

China Factory Axial Cooling fan refrigerator axial motor Fan compressor axial flow fan

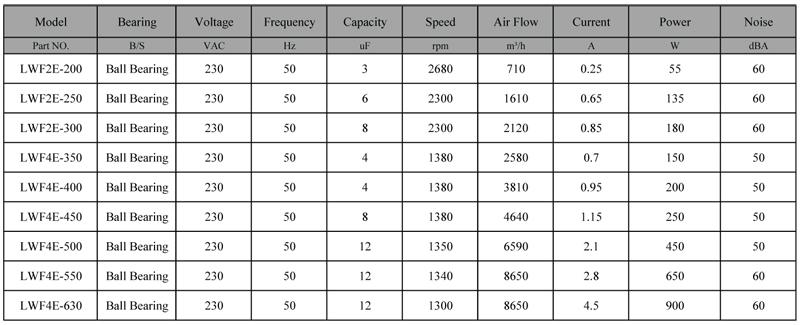

- Specification :
Diameter : 200~800 mm
Voltage :110V / 120V / 230V / 380V /400V;
Frequency : 50 / 60Hz ;
Input Power :55~1500 W
Air flow : 15000 m³/h Max
Speed : 2680 RPM Max
Impeller Material : Stainless Steel
Motor Protection Type : IP 54
Motor Type : AC External Rotor Motor
Insulation Class : F
Approvals : CCC,CE
Operating Temp : -30℃ ~ +60℃
Terminal Box : Single phrase with ternimal box ,three phrase can be chosed with or without terminal box ;

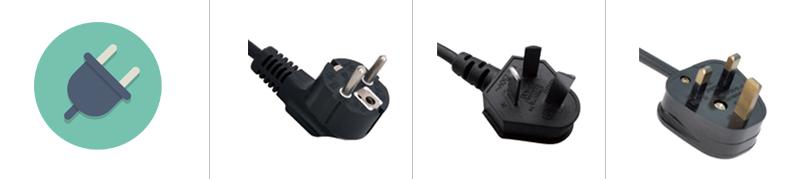

Plug : As below picture shows :
- Casings :

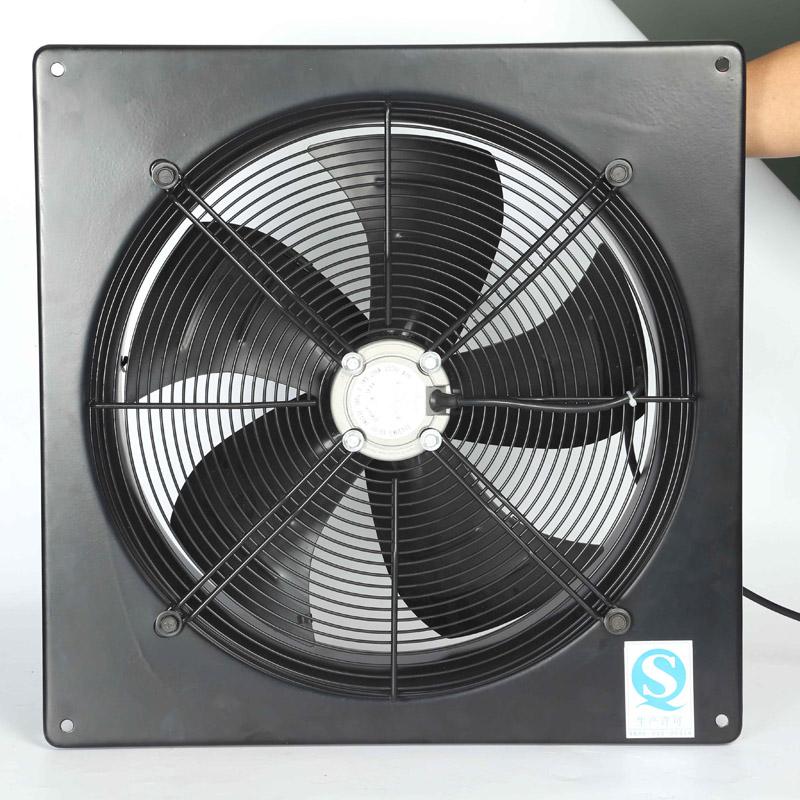

Casing are made of high quality steel plate or galvanized steel sheet with high strength and good regidity ; the surface is treated by plastic spraying process
- Screening :

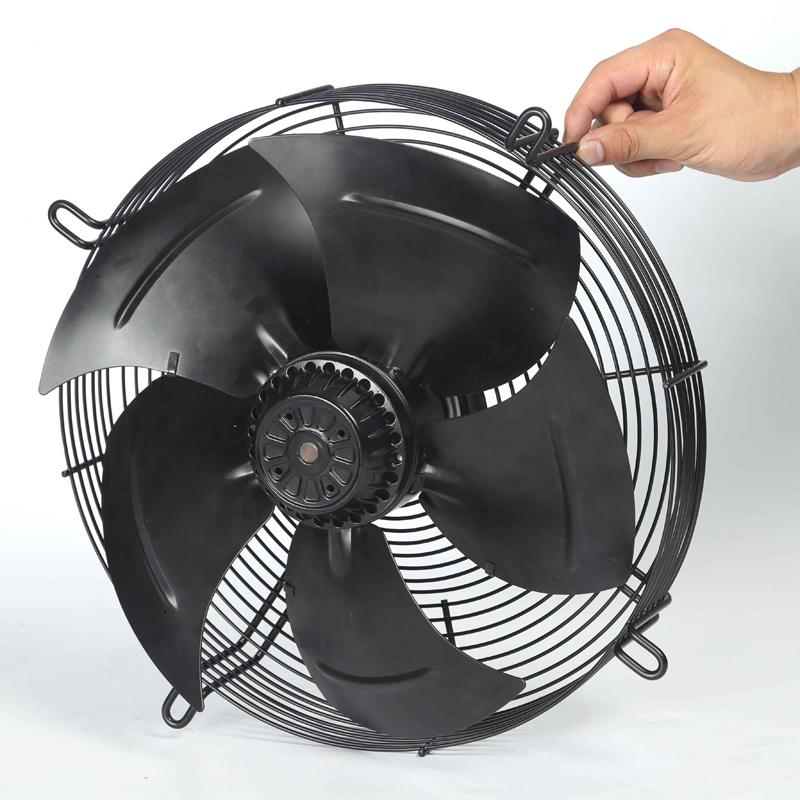

The safety screenings are made of steel wire ,the welding is firm ,the surface is treated by plastic spraying process .
there are different types of screenings ,or can be customized .
- Operating Environment :
Temperature : -20 ℃ ~ +55 ℃
Humidity : ≤ 96%
Evevation : ≤1000m

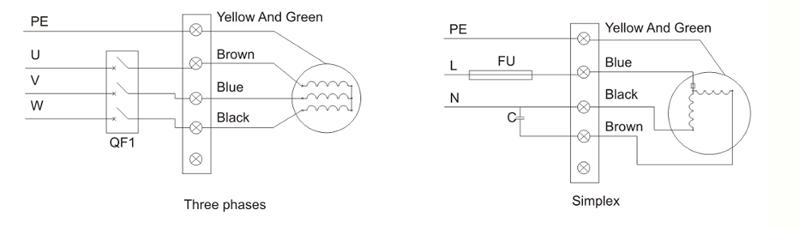

- Wiring Diagram
- Factory Introduction :

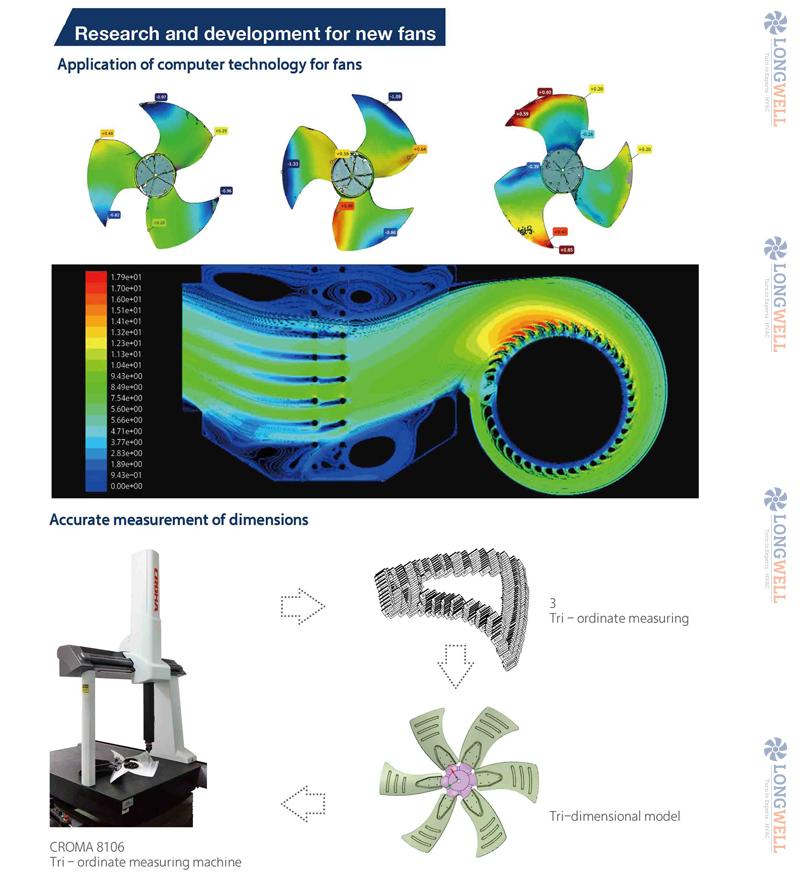

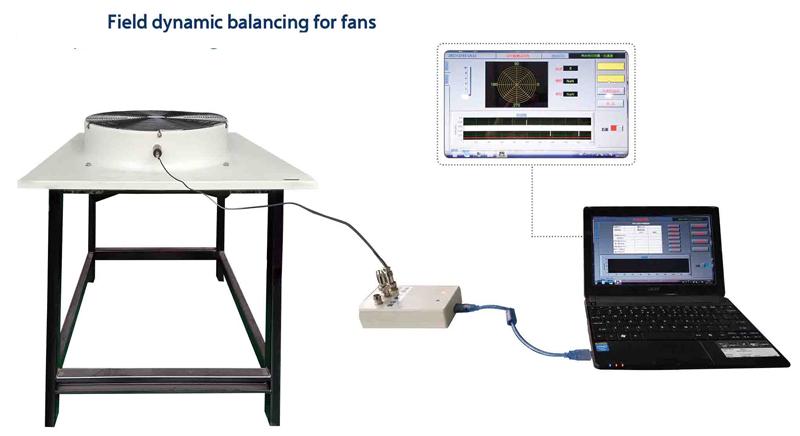

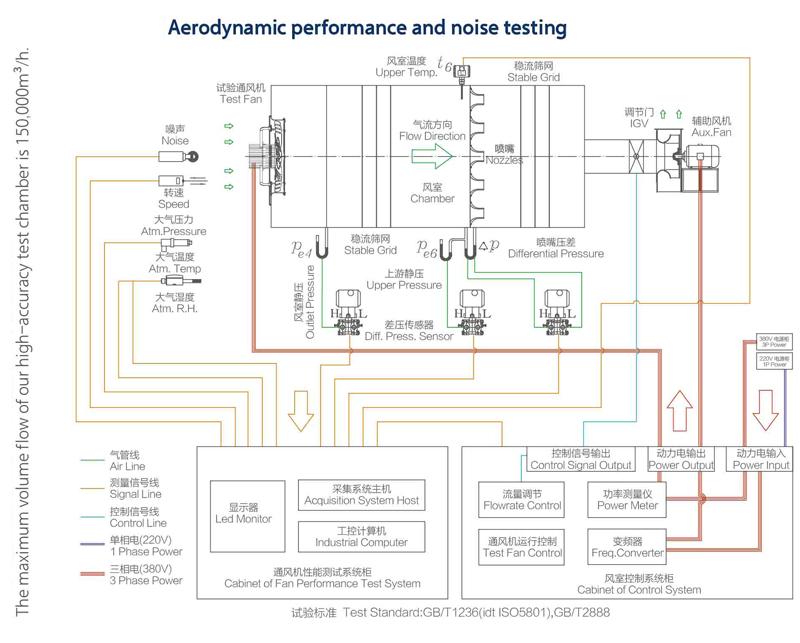

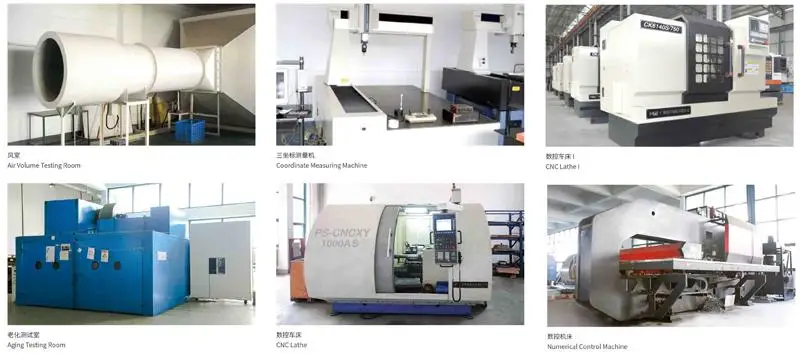

- Research & Development :
- FAQ :
1. MOQ : 1 Piece ;
2. Delivery time : 7~10 days for sample ; 18~20 days for bulk order ;
3.Payment Item : FOB with 40% T/T in advance , 60% T/T paid against the copy of B/L ; Long-term cuusomers can be negotiated ;
4. How to get a sample : 5 days sample producing and 4~5 days express shipping . You can place the on-line order through alibaba paid with your Cradit Card or Payple .
5. OEM : We can provide OEM label , OEM carton design , OEM length of wire , OEM color of frame or blades .( with MOQ 100 pieces ) .
6. Longwell is a manufacturer in Ningbo ,Zhejiang ,with over 15 years producing experiences ,handling axial flow fans ,centrifugal fans ,cross flow fans , inline duct fans ,etc .
