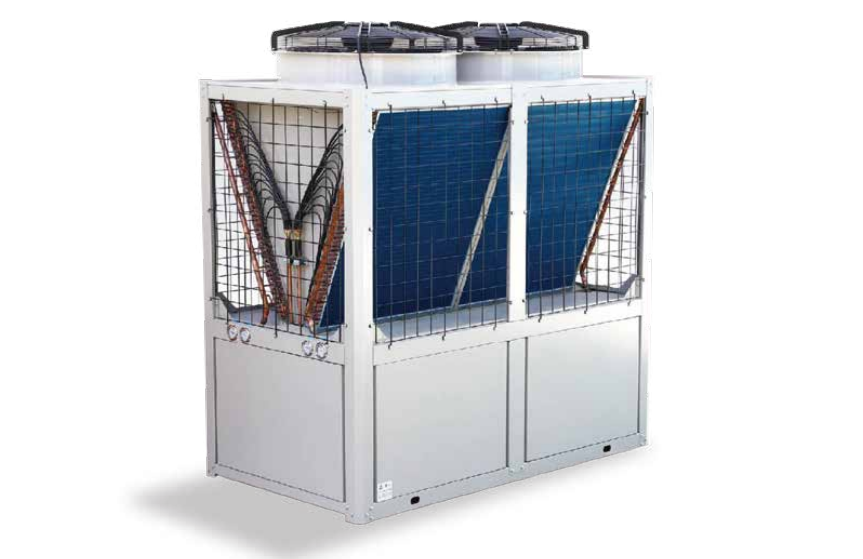

Air-cooled scroll chiller(heat pump)

• Compressor Type: Scroll
• Refrigerant: R-410A
• Capacity Range (Tons): 3 – 150
• Capacity Range (kW): 10 – 520

Key Features:

• STRUCTURE: Panels and base frames are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
• HERMETIC COMPRESSOR: The units use high efficiency, hermetically sealed, compressors, oil return lubrication and rubber vibration damper. The thermal overload cut-out, phase sequence relay and crankcase heater are integrated as the security protection to enhance reliability and performance.
• AXIAL FAN: External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.
• EVAPORATOR: Evaporator built with high efficiency plate type/shell and tube type heat exchanger, factory insulated with flexible close cell material.
• CONDENSER: Condenser built with seamless internal screw thread copper tubes mechanically expanded into blue wave hydrophilic aluminum fins,or micro-channel type coil.

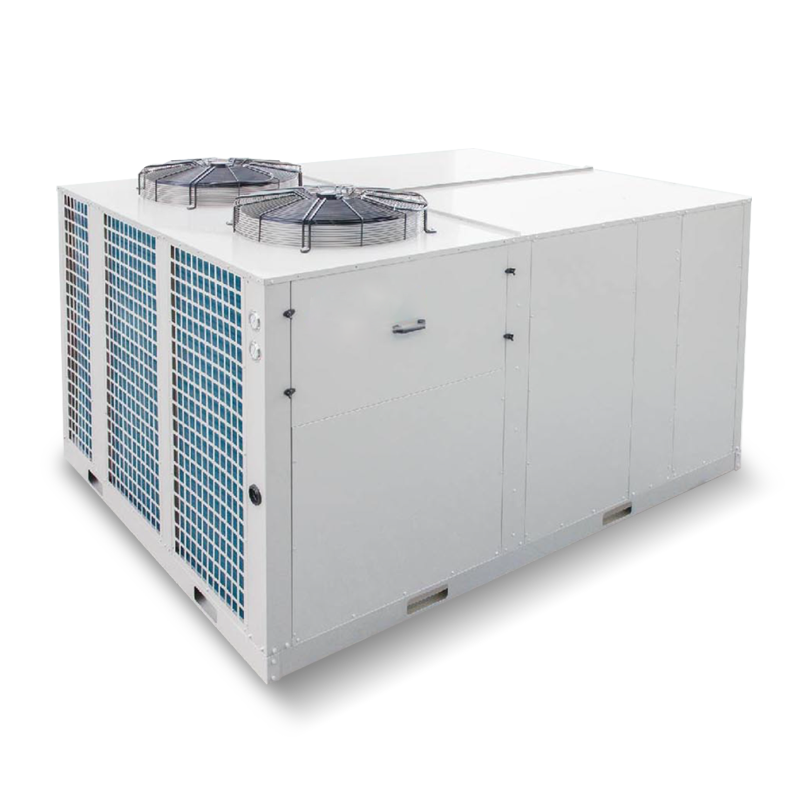

Packaged rooftop unit

Rooftop Air Conditioning Unit is centralized air conditioning products that integrate cooling (heating) sources and air treatment.

Typically of the air-cooled type, these units combine refrigeration systems, control systems, and various air treatment functions to achieve cooling, heating, dehumidification, humidification, noise reduction, air purification, and fresh air delivery. By utilizing heat exchangers within the refrigeration system, these units enable direct heat and moisture exchange between the refrigerant and air,eliminating energy loss from secondary exchanges with intermediate heat transfer media. They do not require cooling towers, chilled (frozen) water pipes, circulating water pumps, or dedicated machine rooms.

These units can be installed as a whole on rooftops, outdoor courtyards, or with separate installations for the compression-condensation and air treatment sections. Roof-mounted air conditioning units are highly suitable for comfort air conditioning systems in venues such as sports arenas, exhibition centers, theaters, conference rooms, malls, airport lounges, and train station waiting areas. They are also widely used in processed air conditioning systems in industries including pharmaceuticals, electronics, food, machinery, and textiles.

• Refrigerant: R-410A
• Capacity Range (Tons): 03 – 95
• Capacity Range (kW): 10 – 320

Key Features:

INTEGRAL DESIGN AND EASY INSTALLATION

The package rooftop has a integral design. It is supplied as a complete package ready for operation, with no extra controls or other items to be installed. The units have a single power point entry with simple connections.

HIGHLY QUALITY COMPONENTS AND RELIABLE PERFORMANCE

All series rooftop packaged units use high-efficiency scroll compressor and high quality world known brand cooling parts, which ensures units’ reliable performance.

STANDARD FEATURES

• Easily accessible system components
• Factory micro-programmed LED controller
• Heavy duty mounting chassis for the whole unit with lifting holes
• BMS
• Anti-vibration mounting compressor and centrifugal fan
• Weather-proof, polyester epoxy powder electrostatic paint oven-baked finish for sheet metal and base frame
• Compressor, fan motor inner protect
• Treated anti-corrosion protection for coils (blue fins) for copper/aluminum coils condensor and evaporator

Applications:

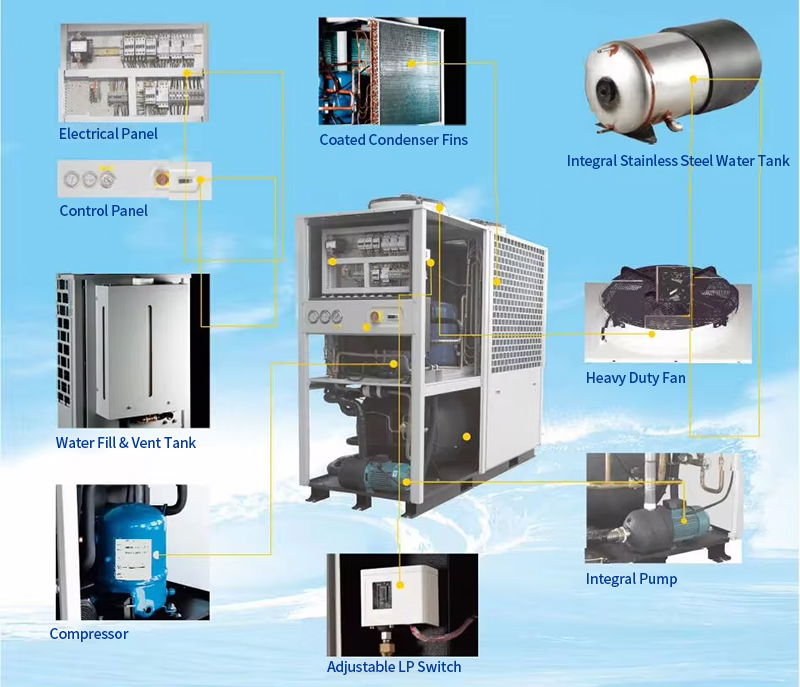

LONGWELL industrial chillers use process cooling to draw heat away from your equipment during production. They are ideal for a variety of industries and applications.

LONGWELL-Ventilation is the leading global provider of innovative HVAC products and building air quality solution to the commercial and industrial markets. Our commitment is to provide our customers with the best products and services at affordable price and create better living environment.

As the brand of project team, LONGWELLteam focuses on building air quality solutions and cleanroom solutions. Airwoods gathers more than 50 experienced technicians who are professional in the hvac and cleanroom design for different industry application. Each year, Longwell completed more than 100 projects and serviced for more than 50 countries.

One-Stop Solutions:

System Consult & Implementation

Provide consulting services and suggestions, product selection and design drawings according to the projects.

Oversea Installation & Commissioning

Airwoods installation team has extensive on-site construction, installation and commissioning experience.

System Solution & Equipment

Provide optimized solutions with design, procurement, transportation, installation, training and commissioning services

Operation Training & After Sales Service

Provide professional training to help customers better managing their system, reduce fault and prolong the machine service time.
