Airfoil Centrifugal Fan

Overview

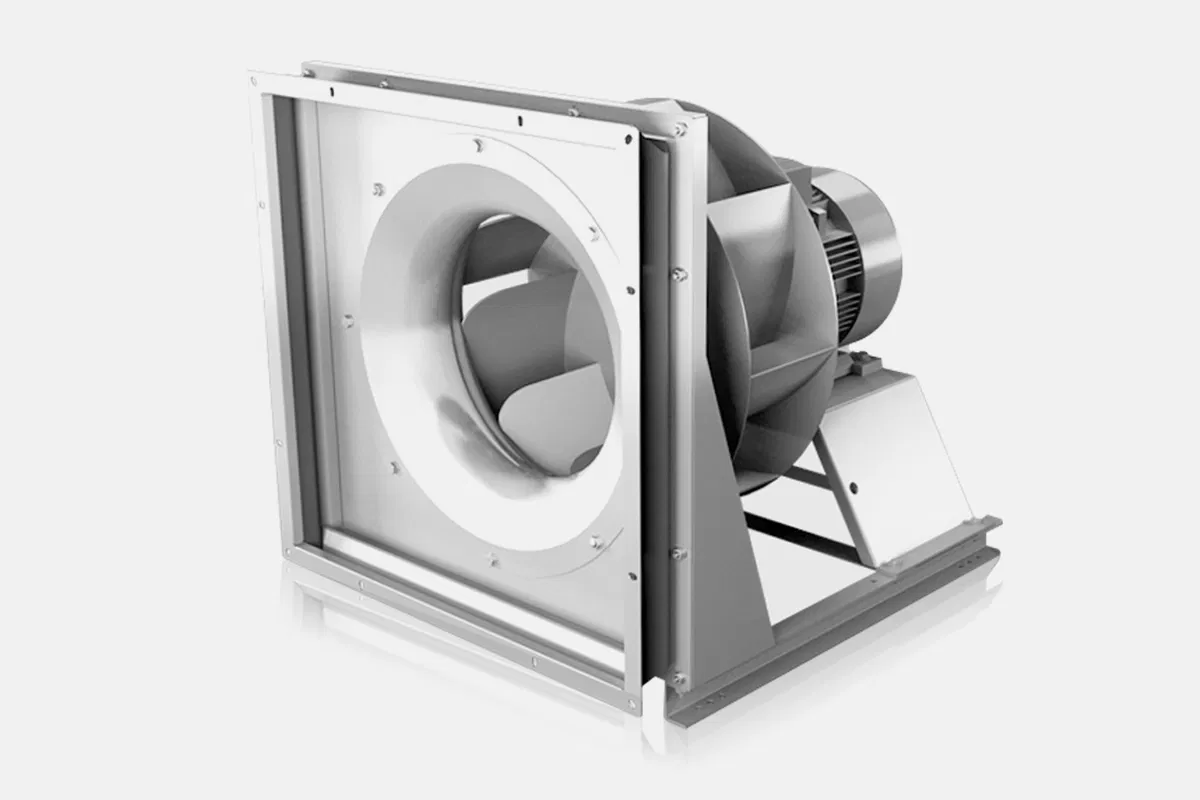

The RLM series, a range of backward curved plenum fans from Longwell, is designed for efficient air handling applications. These fans are certified by AMCA for Air, Sound, and Fan Efficiency Grade (FEG), ensuring top-notch performance and reliability.

Standard Features of LONGWELL air-foil plug fans :

Norminal Size Range: 200mm-1000 mm (diameter of impeller)

Norminal Voltage: AC Motor

• AC Input: 115v, 220v, 230v, 380v, 400v
• ECM Motor: AC Input: 210v, 220v, 230v, 380V

Motor Power Options: From 0.1KW to 4.0 kW

Air Flow Ranges: Up to 6000m³/h (or Customized)

The RLM series is available in three distinct types to meet various application needs:

• RLM: Regular type
• RLMs: Air foil blades design type

The Advantages of LONGWELL PLUG FANS （BACKWARD CURVED BLADES)

• Very Low Maintenance Required: Engineered for minimal maintenance, reducing long-term upkeep and operational demands.
• Compact Solution: Designed for easy installation and maintenance, providing a space-saving solution ideal for tight spaces.
• High System Efficiency: Delivers very high efficiency, especially in the medium pressure range, optimizing energy use.
• Low Noise Level: Operates quietly, making it suitable for environments with strict noise requirements.
• Control Electronics: Available with either internal or external control electronics to fit varied installation needs.
• Low Space Requirement: Compact design minimizes space requirements, allowing flexible placement within constrained areas.

Benefits of LONGWELL PLUG FANS

Space-Saving and Versatile Design

lenum fans are uniquely designed to operate without a traditional housing, functioning within a plenum chamber. This innovative design saves the space typically occupied by the fan housing, transitions, and diffusers. The fan wheel pressurizes the entire plenum, allowing air ducts to connect directly from any direction. The compact size of the plenum fan makes it an excellent choice for retrofit and replacement applications, as well as for variable air volume systems.

Operating Limits and Configurations

The operating limits of the RLM series adhere to the Class 1, II, and III standards as defined in AMCA standard 99-16. These fans are available in both Direct Driven and Belt Driven configurations, offering flexibility to suit different system requirements.

Mounting Units

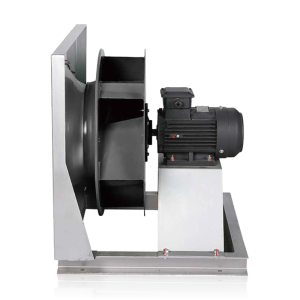

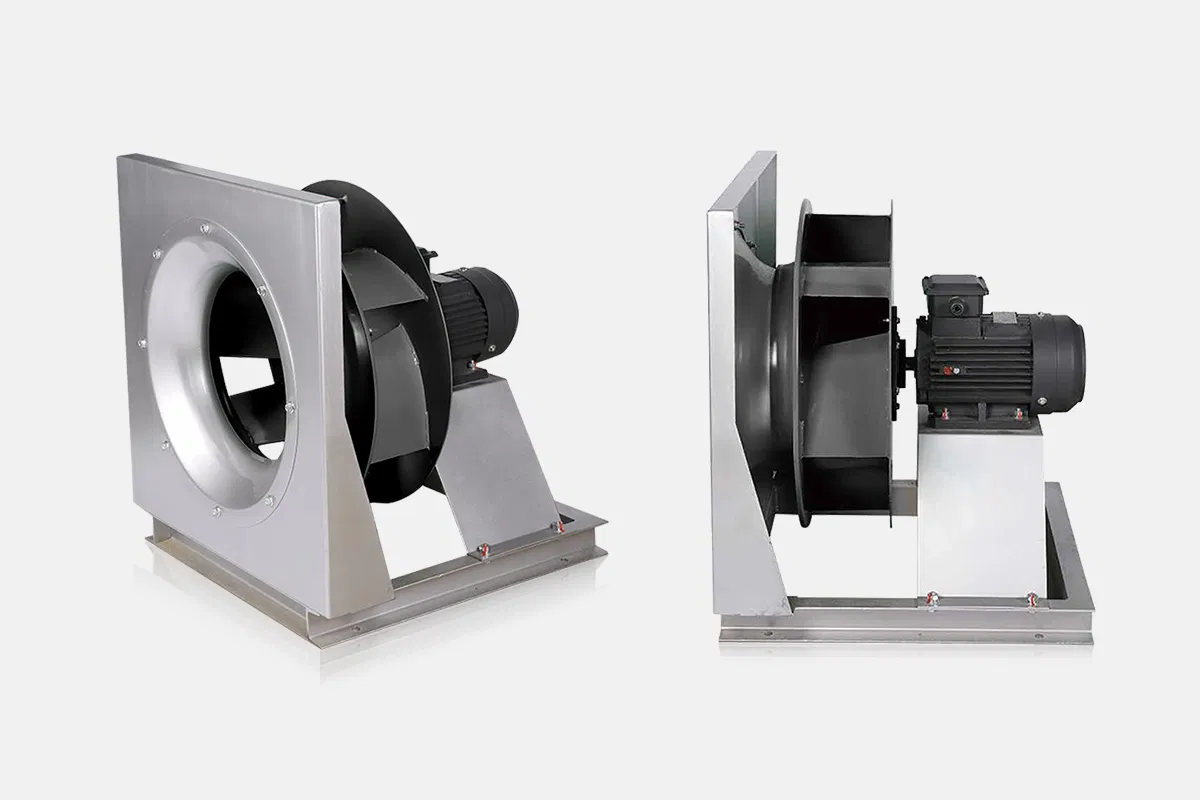

Impeller, inlet cone and Motor are fit together with mounting units which is made of Galvanized Metal Plate.

Impellers:

These Impellers are made of Aluminium with backward blade, according aerodynamics designthe impeller have high efficiency and low power. Maximum tip speed of the impeller is 70m/s. Outstanding characteristic is with stable performanceand low noise, and the impeller is balanced according toG2.5 to DIN ISO 1940/1. Inside of impeller, the GG-hub is fixed with locked bush.The blade is made of stainless steel or steel.

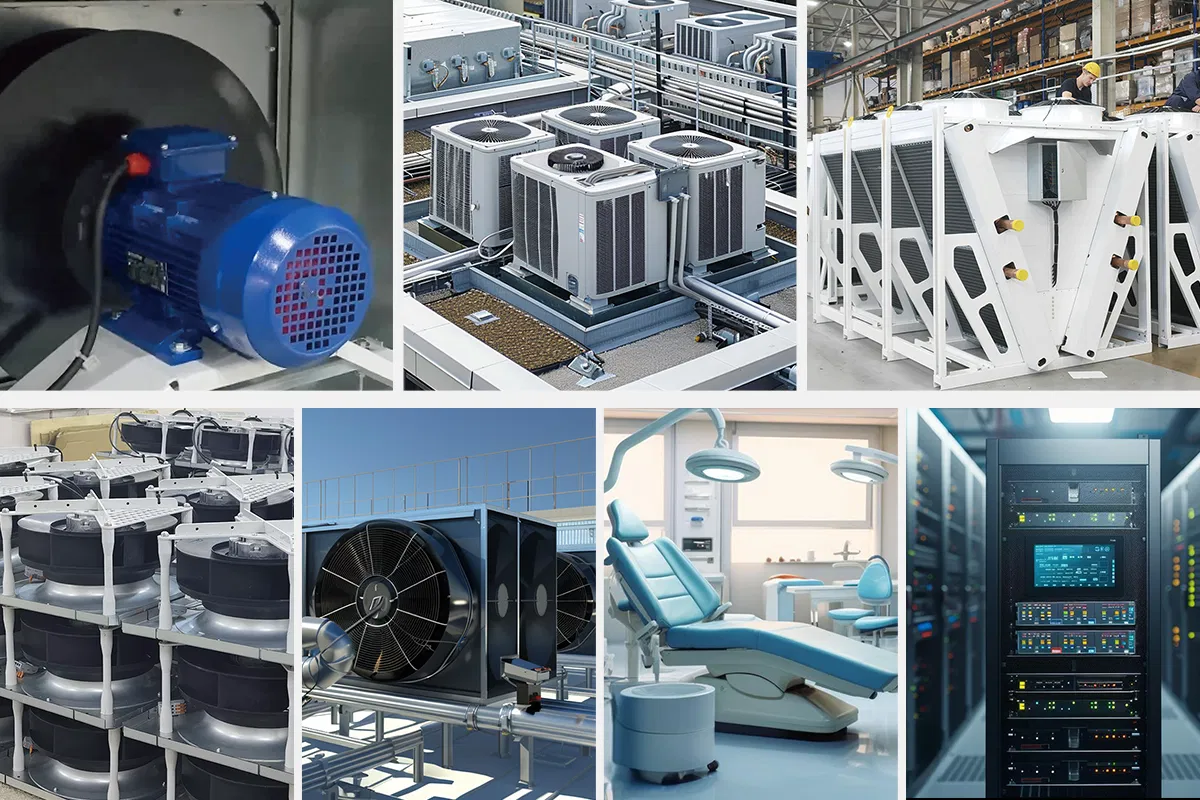

ainly Applications of LONGWELL Backward centrifugal fans:

• AHU（Air-handling units）
• Central air conditioning system
• Heating and ventilation air conditioning systems
• Air filtration systems
• Military HRAC
• Pharmaceutical/biological control systems
• Computer room air conditioning (CRAC) systems

With the RLM series, Longwell continues to provide innovative and efficient solutions for modern air handling needs, ensuring reliability, space efficiency, and versatility for a wide range of applications.
