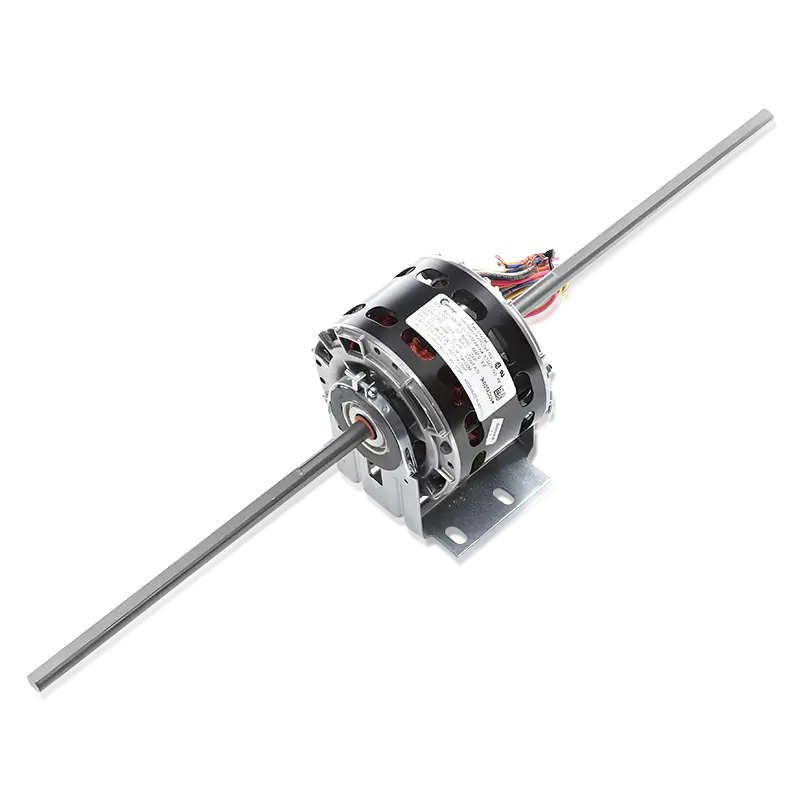

AC Capacitor motor

AC Motors > AC Capacitor motor

Types of Induction Motors

HVAC AC motors are essential components in equipment such as fans, blowers, pumps, air conditioning units, heaters, and compressors. In HVAC systems, direct drive blower and belt drive AC motors are responsible for circulating air in roof ventilators and air circulators. Room air conditioning AC motors facilitate the movement of cool air produced by room air conditioning units, while water circulator AC motors deliver the necessary power to hot water circulation pumps. Unit heater AC motors drive the fans that distribute warm air from the heater into space. Draft inducer AC motors are utilized to remove any residual combustion gases in gas furnace systems, while transformer cooling fan AC motors operate fans that cool electrical transformers.

Motor type: 1/4HP,1/2HP,1/6HP,1/3HP, 1/8HP,1/HP,1HP,2HP
Voltage: 208-230V, 110V,DC310V
RPM: 300-1700rpm

Features

Capacitor Mounting Holes In Frame Band
Continuous Duty, Air Over
Automatic Reset Thermal Overload Protector
Bearings have an All Angle Thrust System
Class B Insulation
Double Flats On Shaft

Brushless Dc Motor. Resin Packed Series

Motor Introduction

Brushless DC Motor is an important product and industry of “Made in China 2025″strategy,which is in line with energy conversation, environmental protection and other industrial requirements.greatly reduce the energy conversation, environment protection and other industrial requirements,greatly reduce the energy consumption ofrelated products. With high efficiency, long service life, efficient conversion is more than 70%.

Brushless Dc Motor. Resin Packed Series

1.Voltage can be 100-415V,50/60Hz.Output power is 4-150W.lt can be provided according to customers’ requirements.
2.Adopt international famous brand low-noise rollingbearing.
3.The motor applies to FP34-FP238 fan coil units.Staticpress can be provided according to the requirements of cus.tomers.
4.The shafts are treated with hardening and tempering,andplated with ni-coating,and motor housing with plastic.
5.Motor Insulation class: E/B/F, Protection grade of motorenclosure:IP00-lP54.lt can be provided according to customers’ requirements.

Motor For Air curtains

MODEL: YDK-30-2,YSK-60-2,YSK-60-4,YSK-80-4,YSK-100-4,YSK-120-4,YSK-180-4,YSK-250-4,YSK-280-4,YSK-370-4,YSK-370-4,YSK-550-4
Voltage: 220V -50Hz
Output power of the AC MOTOR: 30W,60W,80W,100W,120W,180W,250W,280W,370W,400W,550W
Pole: 2 – 4 pole motor
Capacitor: 4.0-6.0-8.0-10.0-12.0-16.0 uF

SHAFT diameter of the AC MOTOR : 8mm,12mm,14mm,16mm

Single-Phase Capacitor-Running MotorFor Air-Conditioners

1.Voltage can be 208-240V,50/60Hz,Output power is 10-100W.lt can be provided according to customers’ requirements.
2.Adopt international famous brand low-noise rolling bearing.
3.The shafts are treated with hardening and tempering,andplated with ni-coating,and motor housing with plastic.
4.Motor Insulation class: E/B/F, Protection grade of motorenclosure:lP00-lP54.lt can be provided according to customers’ requirements.
5.The motor has low noise,low vibration, high efficiency and different kinds of installation.

Model No.: YDK-10-8P,YDK-12-8P,YDK-15-6P,YDK-25-6P,YDK-30-8P,YDK-40-8P,YDK-50-6P,YDK-85-6P,YDK-120-6P
Output power: 37W-228W
Motor Speed: 550,630,780,650,640,740,680,775,835R/min
Air conditioner type: 34/51/68/85/102/136/170/204/238

Motor For Household Air-Conditioning Indoor Machine

Motor For Household Air-Conditioning Outdoor Machine

YDK120 Series Single Phase capacitor Operating Asynchronous Motor

EV Aporative Cooler Motors

Fan-Coil Unit Works Brushless Dc Motor SeriesInfinitely Adjustable Speed

INTRODUCTION:

1.Voltage can be 310-360V, output power is 20-120W, the motor power applies to all fan coil units series and all staticpress.
2.Low-noise and high-quality rolling bearing.
3.The motors have high efficiency, low power consumpti.on, stepless speed regulation.
4.The shafts are treated with hardening and tempering,andplated with ni-coating,and motor housing with plastic.5.Optimum application for varieties of fan coil pipes in order tomake consumers’ products best.

Current catalog for AC Capacitor motor

Efficient cooling for demanding electromobility.

When electricity is processed, stored and used, heat is generated that has to be dissipated. LONGWELL’s range of fans offers compact solutions for this with complete power density – and in a way that ensures powerful protection against environmental influences together with unbeatable quietness.
