LONGWELL DC Fans: Empowering Industrial Efficiency with Advanced Ventilation Solutions

Introduction: The Invisible Force – Why DC Fans are Crucial for Modern Industry

In the realm of modern industrial automation, DC fans are indispensable core components, playing a critical role in equipment heat dissipation and maintaining stable operating environments. These fans efficiently drive airflow, ensuring the reliability and longevity of critical systems. The function of DC fans extends far beyond simple cooling; they are vital for ensuring the efficiency and safety of complex industrial processes.

Ningbo Longwell Electric Technology Co., Ltd. (LONGWELL), since its establishment in 1998, has become a leading innovator in the ventilation and energy sectors. LONGWELL specializes in providing high-performance industrial fan solutions, including a range of powerful DC fans specifically designed to meet the demands of stringent applications. This article will delve into LONGWELL’s advanced DC Cross Flow Fans, DC Centrifugal Fans, and DC Axial Fans, showcasing their exceptional technical prowess, unique advantages, and wide-ranging industrial applications.

LONGWELL’s Core Strengths: Innovation, Quality, and Global Influence

Company Background and Technical Commitment

Since its founding in 1998, LONGWELL has accumulated decades of rich experience in the ventilation field, consistently dedicating itself to technological innovation. The company’s investment in R&D aims to integrate three core areas of expertise—motor technology, electronic technology, and aerodynamics—to deliver the most efficient airflow solutions. This focus on technological integration enables LONGWELL to continuously launch products that surpass industry standards and meet the growing demands for performance and efficiency.

Key Certifications and Quality Assurance

LONGWELL’s products boast exceptional quality and have obtained multiple international certifications, which are crucial for their global market recognition. These certifications include ISO9001, ISO14001, ISO45001, BSCI, CE, UL/ETL, FCC, CCC, RoHS, EMC, and LVD. For industrial purchasers, product compliance and reliability are paramount. LONGWELL’s comprehensive certification system, such as ISO, CE, UL/ETL, and RoHS, strongly demonstrates its strict adherence to quality assurance and international standards. This significantly reduces risk perception for procurement managers and engineers, establishing LONGWELL as a trustworthy and authoritative supplier in the global industrial fan market. These certifications indicate that LONGWELL’s products meet rigorous safety, environmental, and performance benchmarks—non-negotiable requirements in B2B transactions.

Technical Innovation and R&D Capabilities

LONGWELL places high importance on advanced EC motor technology, with its products achieving energy efficiency rates of up to 90%. Many EC external rotor motors even exceed IE4 energy efficiency ratings. These motors utilize maintenance-free sealed ball bearings, boasting a theoretical rated lifespan of at least 40,000 hours. Furthermore, LONGWELL’s fans integrate smart control functions, such as 0-10V signal, PWM, and RS485 (optional) speed regulation, and are equipped with comprehensive electronic protection measures, including current limiting, over-temperature, over-current, locked-rotor protection, and soft start functions.

The continuous prominence of EC motor technology and comprehensive electronic protection measures across LONGWELL’s product line reflects the company’s strategic focus on energy efficiency, product longevity, and operational reliability. In industrial applications, energy savings directly translate into reduced operating costs, a key driver for B2B procurement. Simultaneously, built-in protection features ensure equipment uptime and reduce maintenance needs, directly impacting the total cost of ownership. This demonstrates LONGWELL’s commitment to delivering high-value, durable, and cost-effective solutions, positioning it as a forward-thinking and trustworthy partner.

Customer Service and Global Support

LONGWELL provides comprehensive customer support, including 24/7 online assistance, response to inquiries within 3 hours, and fast delivery times (1-3 days for samples, 15-30 days for bulk orders). The company offers a 12-month warranty, taking responsibility for any product issues, and maintains offices in Europe, North America, and Dubai to provide global technical support. Additionally, LONGWELL offers OEM/ODM services to meet customized needs and provide complete solutions, earning the trust of numerous top brands and Fortune 500 companies.

The combination of global business presence, rapid response times, and OEM/ODM capabilities indicates that LONGWELL adopts a highly customer-centric and flexible business model, which is crucial for building long-term B2B partnerships. Beyond product specifications, the strength of a B2B supplier is also reflected in its service and flexibility. 24/7 support, quick handling of inquiries, and global offices demonstrate the company’s commitment to minimizing customer downtime and providing convenient assistance. More importantly, offering OEM/ODM services and customized solutions shows that LONGWELL understands the diverse and often unique needs of industrial clients. This positions them not just as a supplier but as a strategic partner capable of co-creating solutions, fostering deeper customer relationships, and winning larger, more complex projects.

In-depth Analysis of LONGWELL DC Industrial Fan Series

To help industrial purchasers quickly understand the main functions and application scope of LONGWELL’s DC fan series, the following table provides an overview of each fan type:

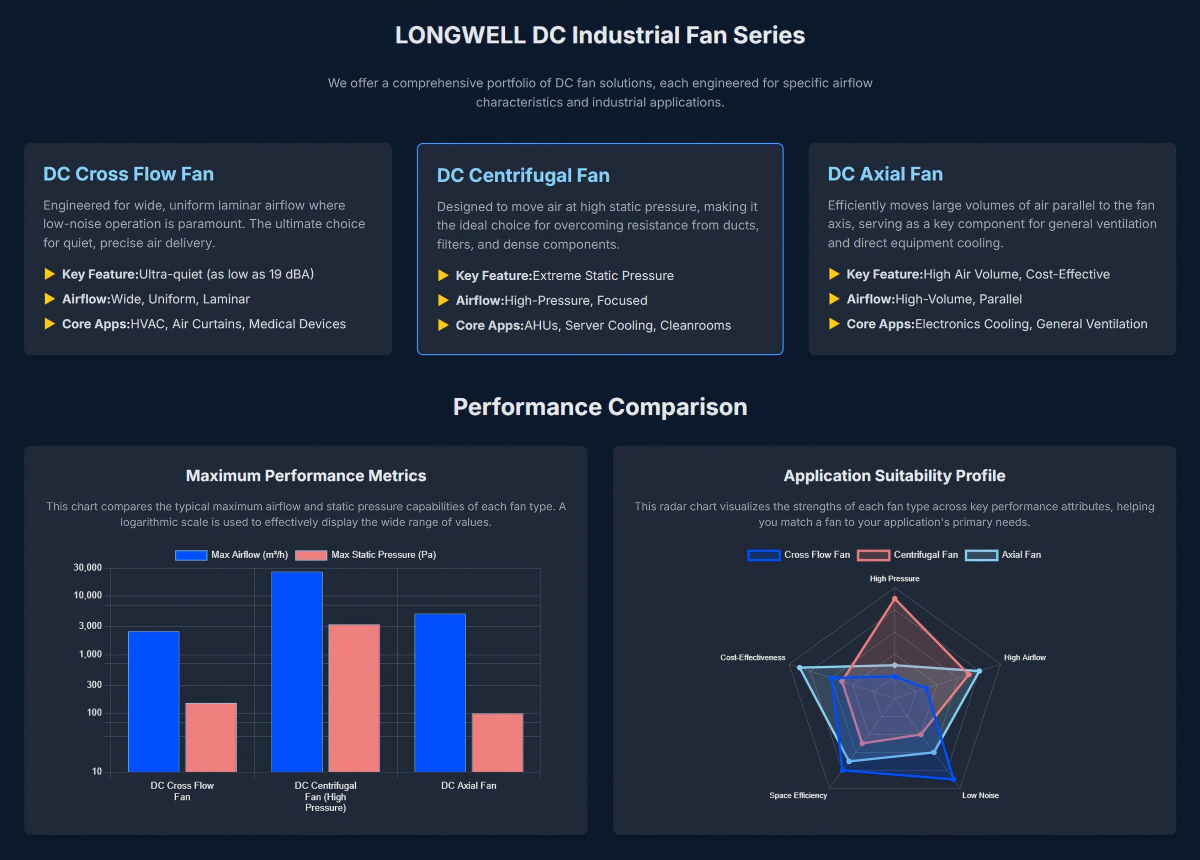

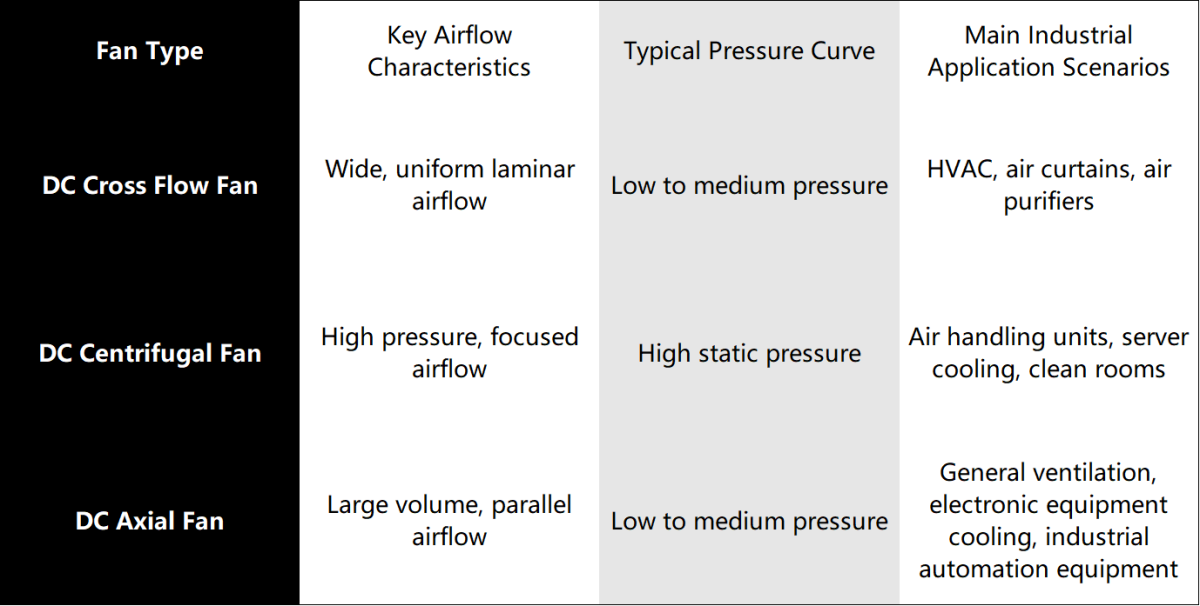

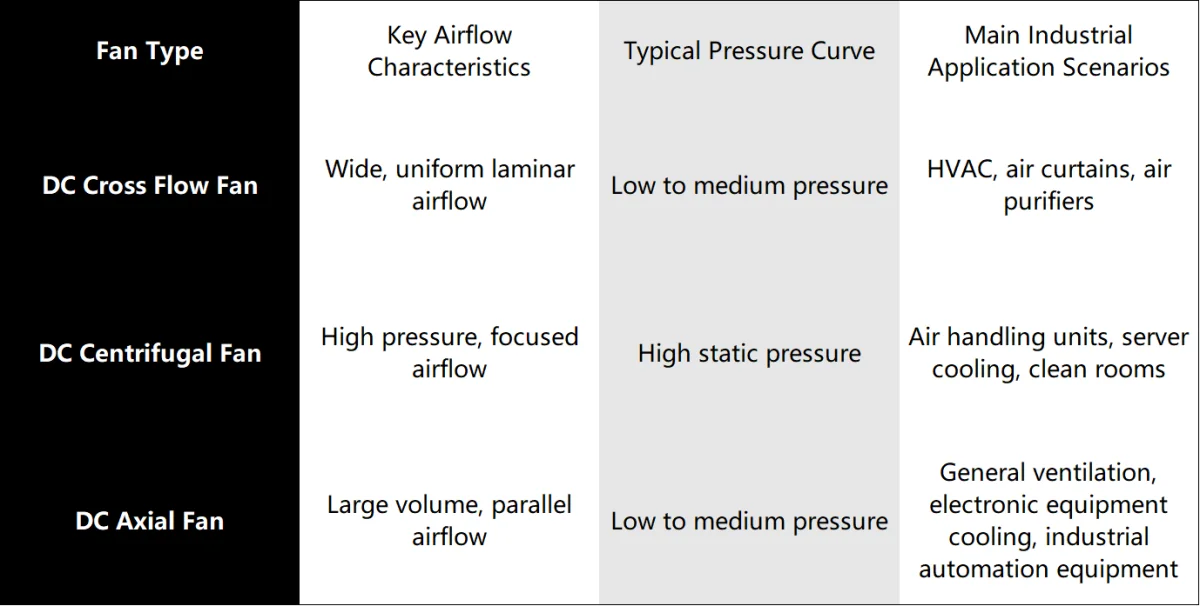

Table 1: Overview of LONGWELL DC Industrial Fan Series

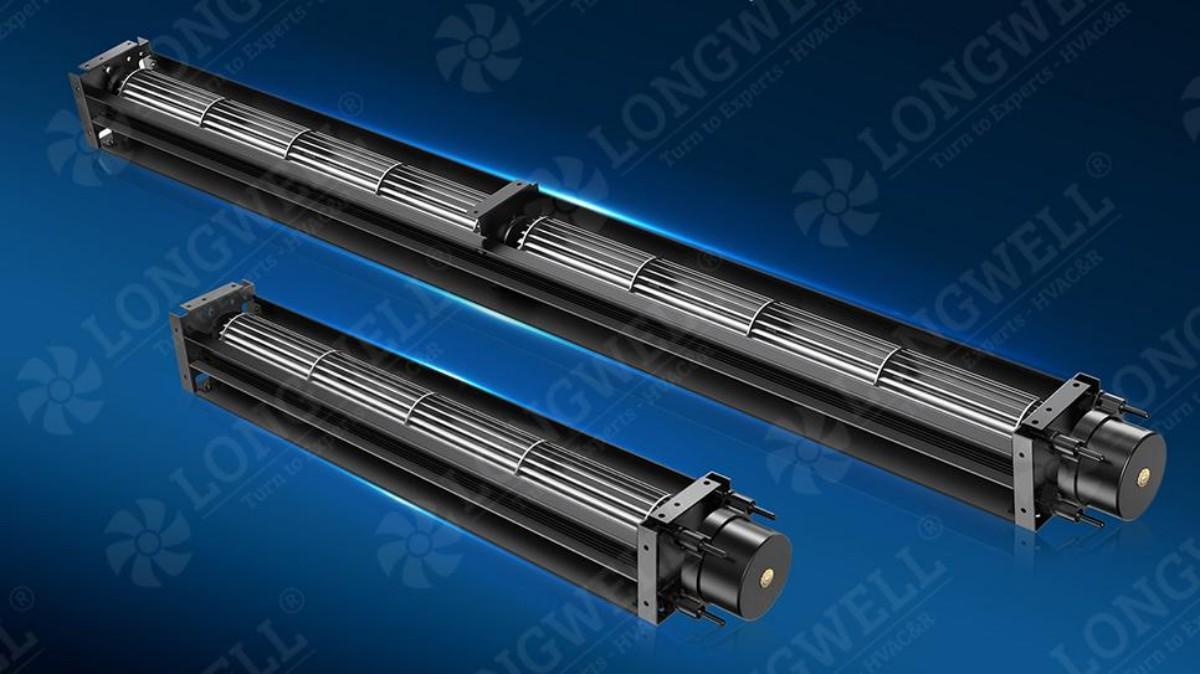

1. LONGWELL DC Cross Flow Fans: Silent Airflow, Precise Delivery

LONGWELL DC Cross Flow Fans (also known as tangential fans) are specifically designed for applications requiring wide, uniform laminar airflow and strict noise level control. They are specially optimized for extremely quiet operation.

Technical Parameters:

· Voltage Range: 12V, 24V, 48VDC (AC/EC options also available).

· Diameter Range: Impeller diameters from 20mm to 200mm (common sizes include 30mm, 40mm, 45mm, 60mm, 90mm).

· Length Range: Up to 1300mm.

· Speed Control: 0-10V signal, PWM, or RS485 (optional) for stepless speed regulation.

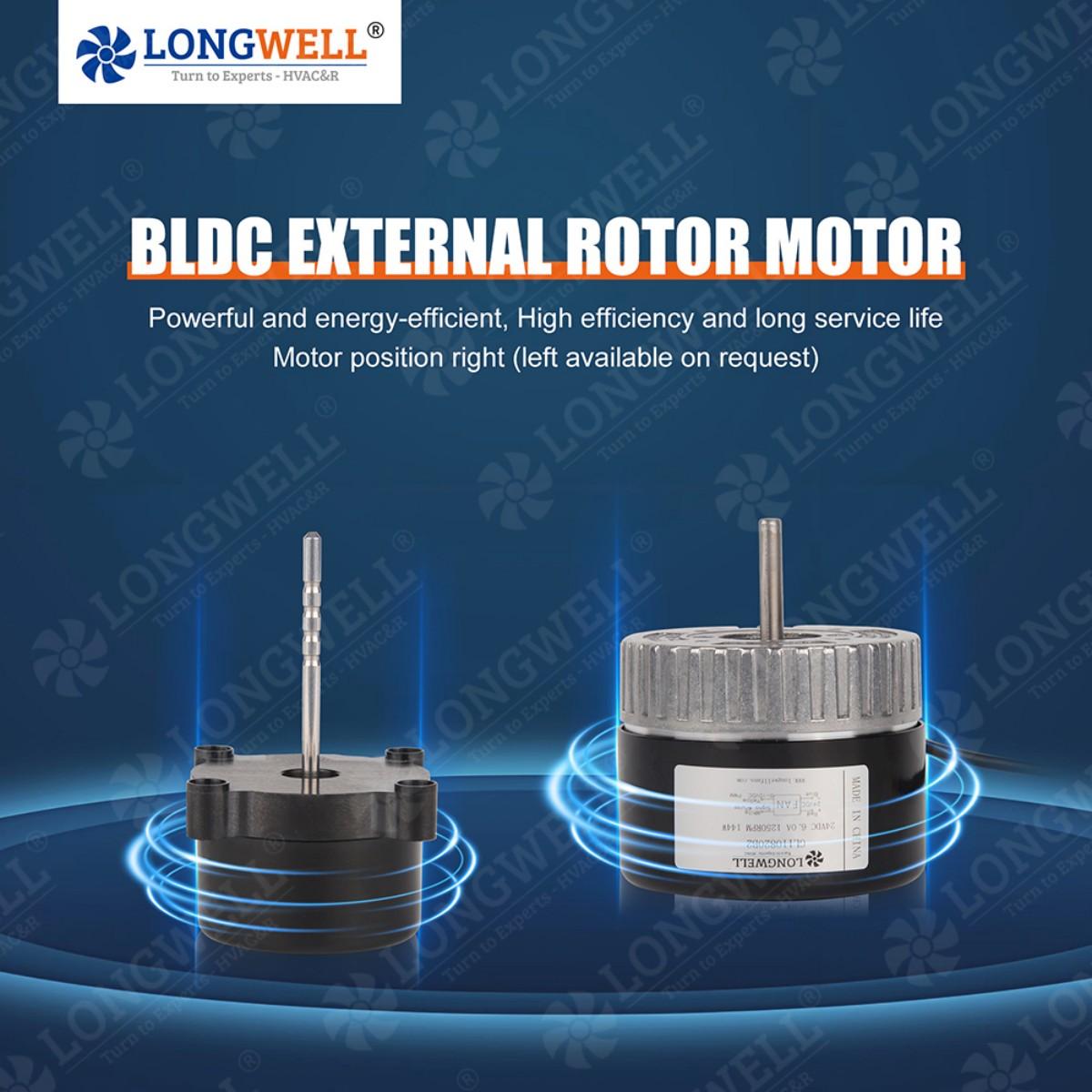

· Motor Type: BLDC external rotor motor (60mm models use three-phase low-noise BLDC motors).

· Noise Level: Designed for low noise, some models (e.g., 40mm) as low as 19 dBA.

· Protection Class: IP44, IP54, IP55.

· Electronic Protection: Current limiting, over-temperature, over-current, locked-rotor protection, soft start.

· Bearings: NMB or NSK ball bearings, providing long-term lubrication, theoretical rated lifespan of at least 40,000 hours.

· Operating Temperature: -25℃ to +60℃.

· Materials: Aluminum alloy, galvanized metal (housing), aluminum alloy (impeller/blades).

Unique Features and Performance Advantages:

· Ultra-Quiet Operation: As a primary design focus, noise levels can be as low as 19 dBA, making them ideal for noise-sensitive environments.

· Extensive Production Range: Offers a wide range of diameters (20mm to 200mm) and lengths (up to 1300mm) to accommodate diverse space requirements.

· Heavy-Duty Design: Capable of achieving high rotational speeds (e.g., fans with diameter less than 60mm can reach 4000rpm, 150mm diameter fans can exceed 2700rpm).

· Precise Speed Control: Stepless speed regulation via 0-10V/PWM for optimal performance tuning and energy efficiency management.

Industrial Applications:

· Heating and cooling systems (heaters, convectors, floor heating systems, heat exchangers).

· Air curtains and air conditioning units.

· Fireplaces and refrigeration systems.

· Train ventilation and microwave ovens.

· Air purifiers and ventilation equipment.

The characteristic of cross flow fans being “designed exclusively for low noise purposes,” combined with specific dBA ratings, highlights LONGWELL’s differentiated market strategy. This aims to serve applications where acoustic performance is a critical design parameter, potentially opening niche markets beyond general industrial cooling. While all industrial fans move air, the explicit emphasis on “low noise” for cross flow fans and the quantification of their dBA levels (e.g., 19 dBA) indicate that LONGWELL identifies and addresses specific market needs where noise pollution is a significant concern. This might include integration into residential HVAC, medical equipment, or quiet office areas within industrial settings. This strategic emphasis allows LONGWELL to capture a market segment that prioritizes acoustic comfort in addition to performance, setting it apart from competitors who may focus solely on airflow or pressure.

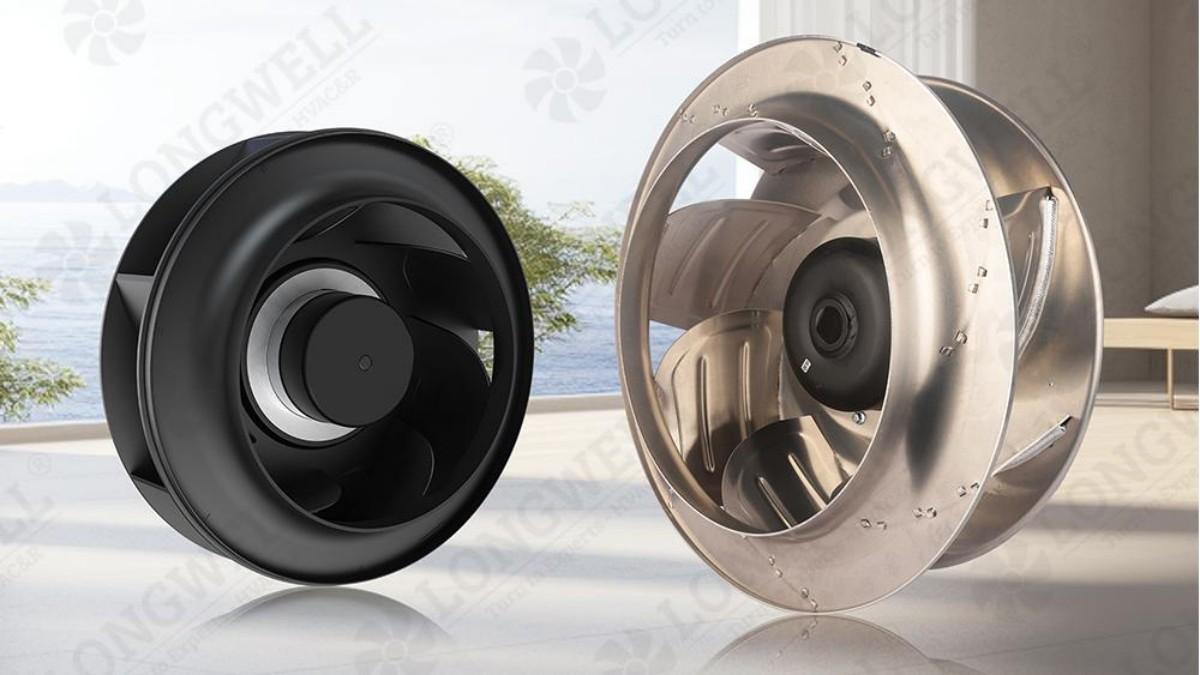

2. LONGWELL DC Centrifugal Fans: High Pressure, High Efficiency, for Demanding Environments

LONGWELL DC Centrifugal Fans are designed to move air at high static pressure, making them ideal for applications requiring concentrated airflow through ducts, filters, or heat exchangers. They are highly customizable and equipped with high-quality EC external rotor motors.

Technical Parameters:

· Voltage Range: 12V, 2阿4V, 48VDC (110V/230V/380V/400V AC/EC options also available).

· Diameter Range: Impeller diameters from 133mm to 630mm (e.g., 310mm, 400mm, 630mm).

· Air Performance: Airflow up to 26,000 m³/h, static pressure up to 3300 Pa.

· Speed Control: 0-10V signal, PWM, or RS485 (Modbus protocol) for precise control.

· Motor Type: BLEC external rotor motor, three-phase brushless DC motor.

· Blade Material: Aluminum alloy (forward-curved and backward-curved blades optional).

· Protection Class: IP44, IP54, IP55.

· Electronic Protection: Current limiting, over-temperature, over-current, locked-rotor protection, soft start.

· Operating Temperature: -25℃ to +60℃.

· Noise Level: Some models (e.g., 133mm) are approximately 35-39dB.

Unique Features and Performance Advantages:

· High Pressure, Large Air Volume: Capable of generating significant static pressure (up to 3300 Pa) and large volumes of air (up to 26,000 m³/h), crucial for demanding ventilation systems.

· Patented Impeller Design: CFD (Computational Fluid Dynamics) optimized for high-pressure airflow.

· Superior EC Motor Efficiency: EC fans outperform AC fans in efficiency, operating at lower temperatures and with longer lifespans.

Advanced Control Options: Comprehensive speed control via 0-10V, PWM, and RS485 Modbus for seamless integration with complex systems.

Highly Customizable: Offers OEM and custom impeller designs for perfect integration into specific ventilation equipment.

The combination of high pressure/flow capabilities, patented impeller design, and advanced control protocols (Modbus RS485) positions LONGWELL’s DC centrifugal fans as solutions for complex, integrated industrial systems, rather than just standalone components. The ability to achieve high static pressure and airflow, coupled with a patented impeller design, indicates a focus on performance in ducted systems with high resistance. Furthermore, the inclusion of RS485 Modbus control is a key feature for industrial automation and smart building systems, enabling seamless integration and remote management. This suggests that LONGWELL targets sophisticated HVAC, cleanroom, and data center applications where precise control and system-wide efficiency are paramount, elevating the product from basic airflow movement to intelligent air management.

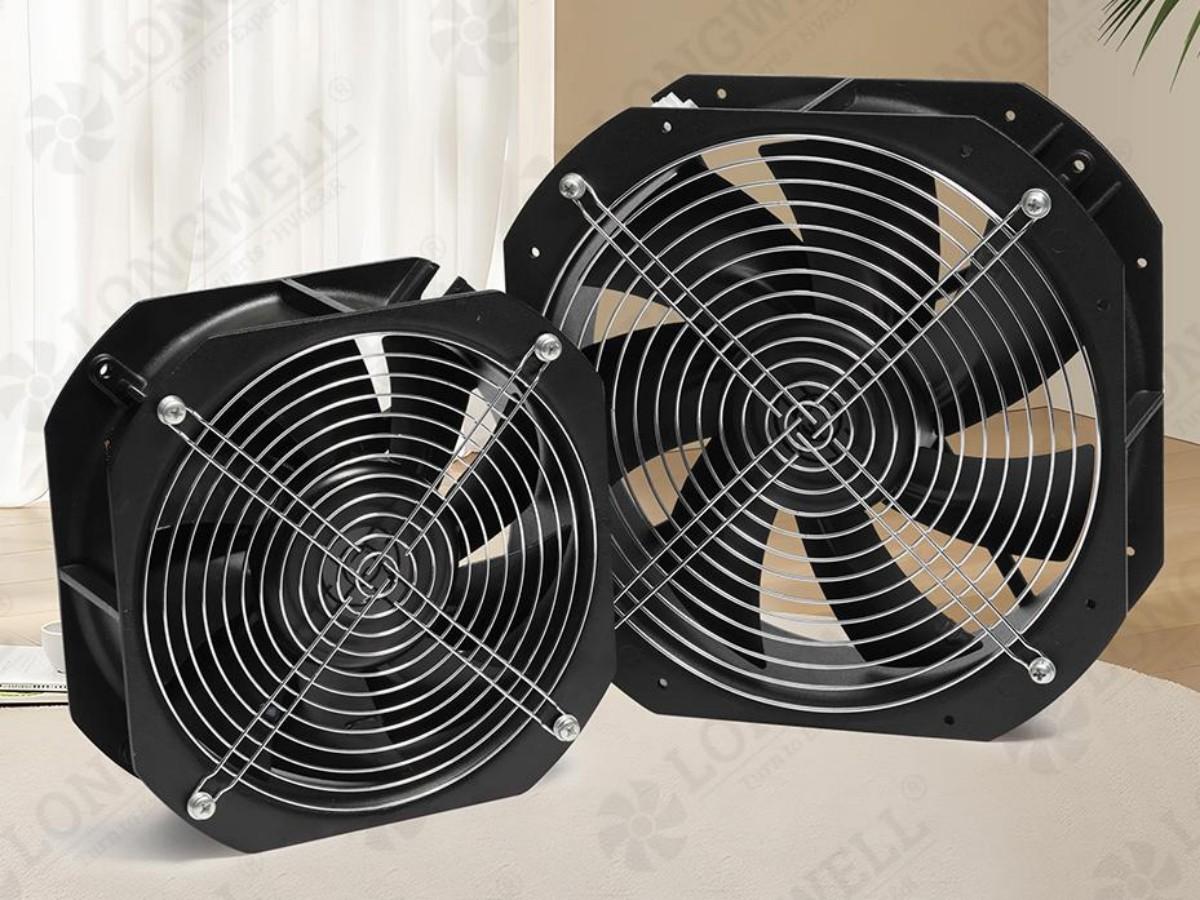

3. LONGWELL DC Axial Fans: Powerful Airflow, Key for Cooling and Ventilation

LONGWELL offers a range of DC axial fans specifically designed to efficiently move air parallel to the fan’s axis. These fans are essential for general ventilation and direct equipment cooling in various industrial environments.

It should be noted that while LONGWELL lists DC axial fans in its product catalog and emphasizes their general advantages, existing documentation does not provide detailed technical parameters for specific LONGWELL DC axial fan models (e.g., precise voltage ranges, airflow, static pressure, or detailed dimensions), unlike the detailed data for cross flow and centrifugal fans. Some of the available information related to axial fan technical specifications comes from other manufacturers (NMB, Delta-Fan, AFLmotor) and is often generic in nature.

General Characteristics of Industrial DC Axial Fans (applicable to LONGWELL products):

· Efficient Airflow: Designed to move large volumes of air at moderate pressure, making them efficient for general ventilation and cooling.

· Variable Speed: Often feature speed control capabilities, allowing users to adjust airflow based on specific cooling needs, contributing to energy efficiency.

· Durable Construction: Manufactured with reinforced frames and high-quality materials (e.g., plastic, aluminum alloy, steel) to withstand heavy-duty use in various industrial environments.

· Long Lifespan: Typically use ball or sleeve bearings, offering extended operational life (e.g., up to 50,000 hours).

· Compact Design: DC axial fans are known for their compact and lightweight design, facilitating installation in various electronic devices and confined spaces.

· Quiet Operation: Many DC axial fans are designed for quiet operation, suitable for environments where noise levels need to be minimized.

· Protection Features: Often include electronic protections such as current limiting, over-temperature, and locked-rotor protection, enhancing reliability (inferred from other LONGWELL DC fan types).

Industrial Applications of DC Axial Fans (areas where LONGWELL products can be applied):

· HVAC Systems: Circulating air within buildings, regulating temperature, and maintaining indoor air quality.

· Industrial Ventilation: General ventilation in factories and warehouses to remove fumes, smoke, or other airborne contaminants from the work environment.

· Electronic Equipment Cooling: Dissipating heat from computers, servers, electronic cabinets, and other industrial automation equipment (e.g., laser cutting machines, 3D printers, CNC machines, control cabinets, robots, data centers).

· Agricultural Applications: Ventilation in livestock barns, greenhouses, and storage facilities to control humidity, temperature, and air quality.

· Refrigeration Systems: Circulating air through evaporator coils in various refrigeration units.

· Power Generation: Used for cooling purposes in power plants, such as steam turbine condensers.

· Mining and Tunnel Ventilation: Providing fresh air and removing dust/gases to ensure worker safety.

· Exhaust Fans: Used in various applications where air needs to be expelled.

· Spot Cooling: Providing directed cooling for specific machinery or systems.

Given the limited detailed data for specific LONGWELL DC axial fan models in the existing documentation, it suggests that precise specifications may need to be obtained through direct consultation or specific product data sheets. This presentation of information also implies that LONGWELL could optimize its online product details in the future to provide more comprehensive axial fan information, thereby better meeting the needs of potential customers.

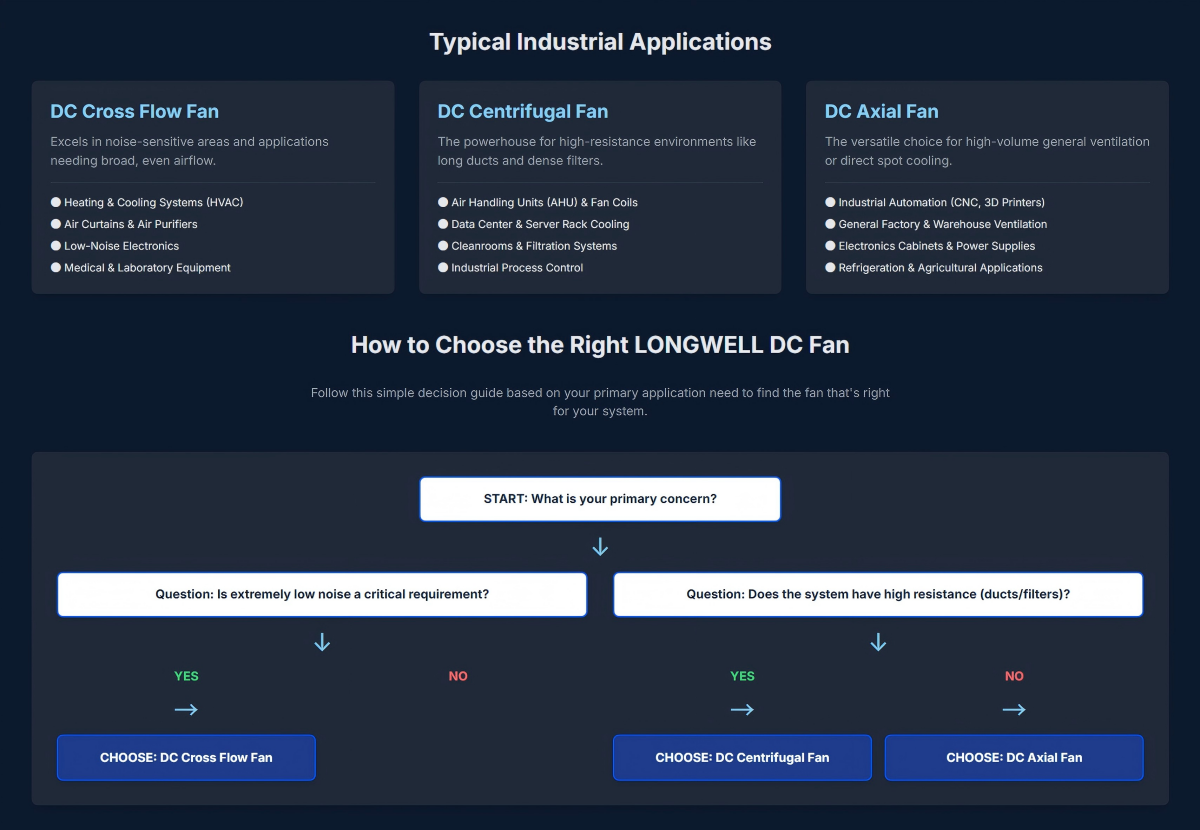

Choosing the Right LONGWELL DC Fan for Your Industrial Needs

Selecting the optimal DC fan is crucial for maximizing the efficiency, reliability, and cost-effectiveness of your industrial application. LONGWELL offers a diverse product range, each tailored to specific performance requirements.

Factors to Consider for Selection:

· Airflow Requirements: Do you need a large volume of air movement (axial), wide, laminar airflow (cross flow), or high-pressure air delivery through restrictive systems (centrifugal)?

· Static Pressure: For applications with significant resistance (e.g., through filters, ducts), centrifugal fans are ideal. For environments with less resistance, axial or cross flow fans may suffice.

· Space Constraints: Cross flow fans excel in thin, elongated spaces, while axial fans are compact and suitable for direct cooling. Centrifugal fans, especially backward-curved types, can be more compact for the same pressure output.

· Noise Sensitivity: If the application is noise-sensitive (e.g., residential HVAC, medical equipment, quiet workspaces), LONGWELL’s low-noise DC cross flow fans are a standout choice.

· Control and Integration: All LONGWELL DC fans offer advanced speed control options (0-10V, PWM, RS485), ensuring seamless integration with modern industrial control systems.

· Environmental Conditions: Consider the operating temperature range and required IP protection class (IP44, IP54, IP55) to ensure durability in harsh environments.

To assist you in making an informed decision, the following table provides a comparison of key technical parameters for LONGWELL’s three DC fan types:

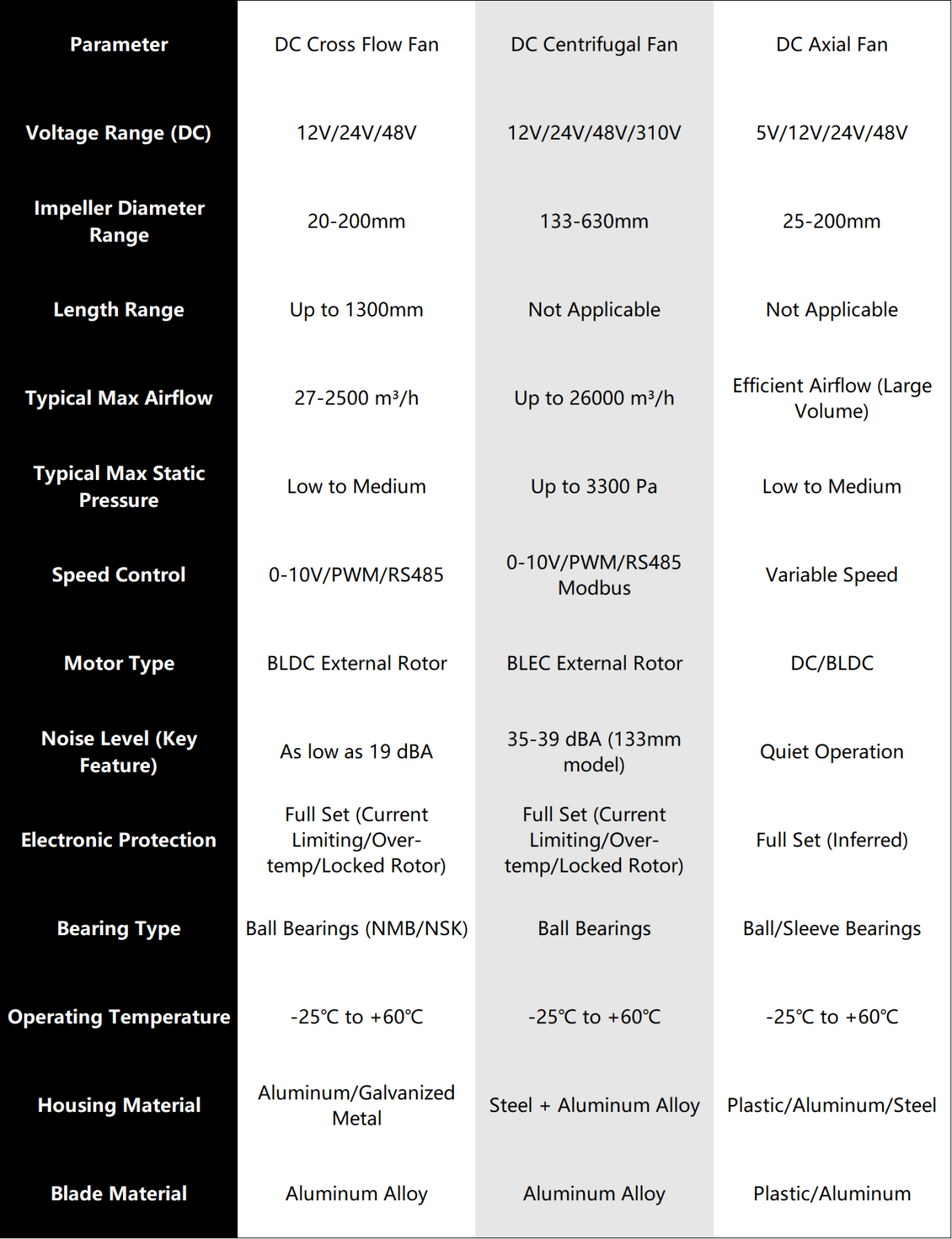

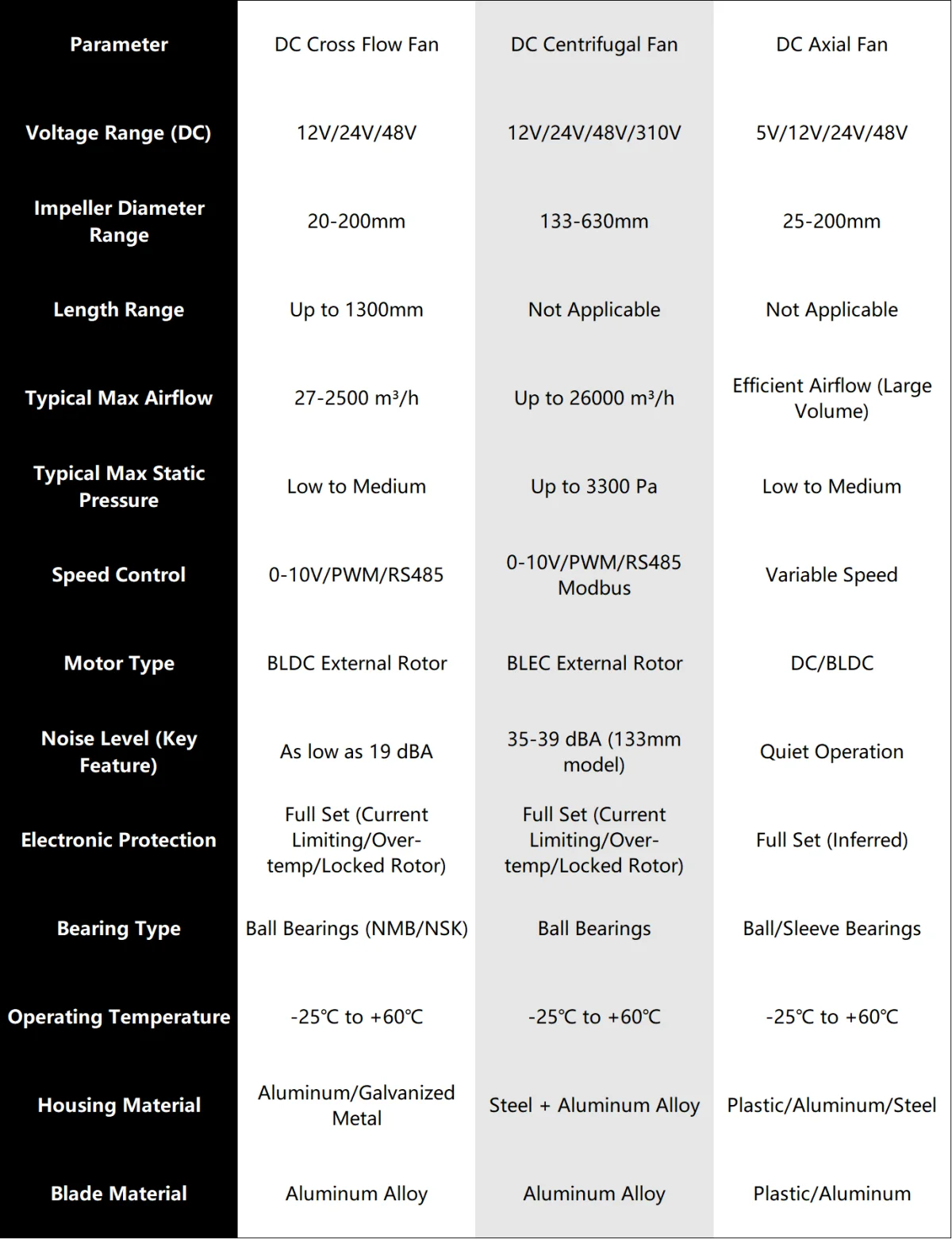

Table 2: Comparison of Key Parameters for LONGWELL DC Fans

Note: For DC axial fan data, as existing documentation does not provide detailed parameters for specific LONGWELL models, the data in this column represents typical characteristics of industrial DC axial fans. LONGWELL’s products are expected to possess these characteristics, consistent with its market positioning and overall product line.

Conclusion: Partner with LONGWELL for Superior Industrial Ventilation

Ningbo Longwell Electric Technology Co., Ltd. sets an industry standard with its innovative spirit, exceptional quality, and customer-centric solutions in the industrial fan market. LONGWELL’s comprehensive DC fan series—including precision-engineered DC Cross Flow Fans, high-performance DC Centrifugal Fans, and robust DC Axial Fans—provides reliable, energy-efficient, and customizable ventilation solutions for the most demanding industrial applications.

From advanced EC motor technology and intelligent controls to extensive quality certifications and global support, LONGWELL ensures that every DC fan delivers optimal performance, superior durability, and a lower total cost of ownership.

Explore how LONGWELL’s DC fan solutions can enhance the efficiency, safety, and lifespan of your industrial systems. Contact LONGWELL today for expert consultation, customized solutions, or to learn more about its complete product range. LONGWELL’s team is ready to provide the professional ventilation technology your business needs.
