Industrial Axial Fan Solutions for Manufacturing Plants: Case Studies and Efficiency Analysis

In the daily operation of modern manufacturing plants, maintaining stable environmental conditions is a foundational engineering requirement. From the general ventilation of large assembly areas to the localized heat dissipation of precision machinery, HVACR (Heating, Ventilation, Air Conditioning, and Refrigeration) systems play a critical role in ensuring continuous production. However, traditional ventilation equipment often accounts for a significant portion of a facility’s total energy consumption.

Faced with increasingly strict energy efficiency standards and the need for operational cost control, Ningbo Longwell Electric Technology Co., Ltd. (LONGWELL) provides manufacturing facilities with practical solutions based on EC (Electronically Commutated) axial fan technology. This article will explore specific industrial applications to objectively analyze how LONGWELL EC axial fans assist plants in optimizing their ventilation and thermal management systems.

The Technical Evolution of Plant Ventilation: The Value of EC Motors

For decades, traditional Alternating Current (AC) axial fans have been widely deployed in industrial manufacturing. However, as facilities demand higher energy efficiency and more precise control, the limitations of traditional equipment have become apparent. LONGWELL addresses these industrial challenges by integrating electronic commutation technology into its axial fan designs.

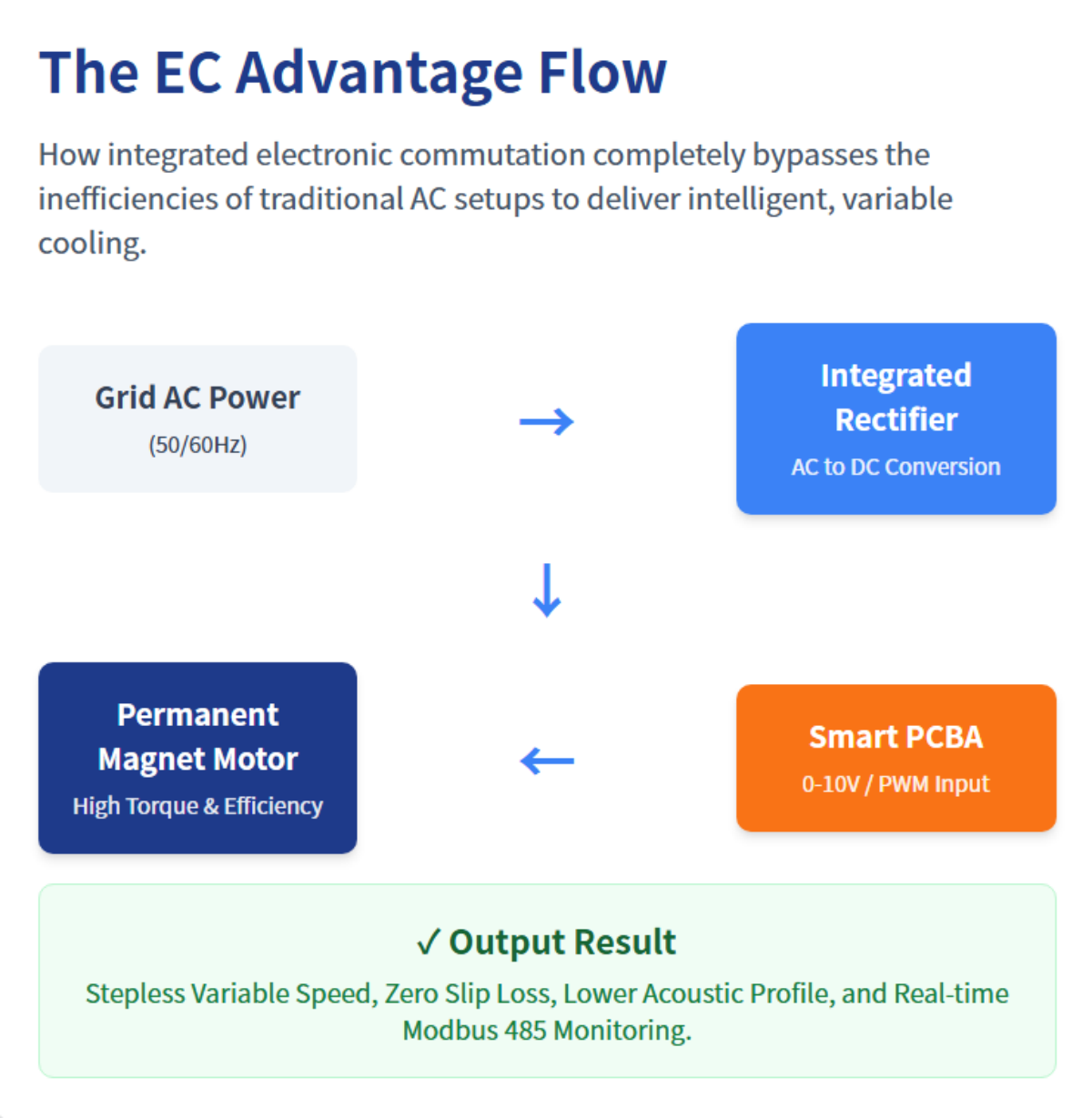

The LONGWELL EC motor is a permanent magnet synchronous motor featuring an external rotor structure. Its core component is the integrated electronic rectifier, which smoothly converts input AC voltage into Direct Current (DC) voltage and precisely controls the motor’s operation based on the rotor’s position. In the complex environments of manufacturing plants, this design presents several objective advantages:

· Substantial Energy Reduction

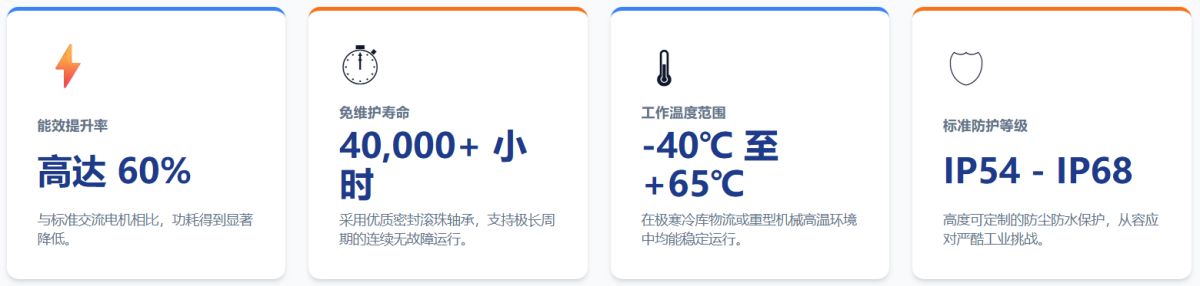

Operating data indicates that LONGWELL fans utilizing ECM technology achieve an efficiency rate 30% to 60% higher than traditional AC motors. In environments requiring 24/7 continuous operation, this efficiency directly translates into a reduction in daily electricity expenditures, helping enterprises lower their Total Cost of Ownership (TCO).

· Precise Stepless Speed Control

The cooling and heating loads of a manufacturing workshop fluctuate based on production shifts, seasonal changes, and equipment status. LONGWELL fans feature built-in PCBA control boards that enable smooth, stepless speed regulation. Factory automation systems can utilize 0-10V DC, PWM signals, or 4-20mA current inputs to accurately adjust airflow based on real-time sensor data, thereby preventing unnecessary energy waste.

· Industrial-Grade Reliability and Monitoring

Factory environments often involve dust, humidity, and grid fluctuations. LONGWELL fans support real-time communication via the Modbus RS485 protocol. Facility managers can remotely monitor operational status and receive error code outputs, facilitating predictive maintenance. Furthermore, the equipment utilizes maintenance-free ball bearings with a designed lifespan exceeding 40,000 hours, significantly reducing maintenance frequency and the risk of unplanned downtime.

Industrial Manufacturing Case Studies

Relying on stable performance, compact design, and versatile interfaces, LONGWELL EC axial fans are suitable for a variety of industrial manufacturing environments. The following case studies analyze their specific applications across three core areas within manufacturing plants:

Case Study 1: Localized Heat Dissipation in Precision Machining

· Manufacturing Scenario: CNC machining centers, laser cutting equipment, and associated oil cooling systems.

· Industrial Challenge: During precision manufacturing, machine spindles and hydraulic systems generate considerable heat. If this heat is not dissipated efficiently, thermal expansion can directly compromise machining accuracy. However, the internal structure of modern machine tools is highly compact, leaving limited installation space for cooling fans. Additionally, these machines have strict limits on operational vibration.

· The LONGWELL Solution: To address confined spaces, LONGWELL provides EC compact axial fans with a reduced installation depth. These units deliver sufficient cooling airflow within restricted areas and can directly replace older, bulkier models, optimizing the internal layout of the machine tool. Regarding operational stability, the fans incorporate sine wave and three-phase technology, effectively mitigating electromagnetic noise and mechanical stutter. This stable operation ensures that the cooling system, even at full capacity, does not transfer unwanted vibrations to precision machining components.

Case Study 2: Efficiency Optimization in Industrial Chillers and Cold Storage

· Manufacturing Scenario: Large-scale industrial chillers, cooling units, and cold storage facilities used for raw material preservation.

· Industrial Challenge: Refrigeration systems are primary power consumers in a plant. When traditional fans operate for extended periods, the motors themselves generate significant heat. This waste heat adds an extra cooling load to the cold storage or chiller unit, causing a decline in overall refrigeration efficiency.

· The LONGWELL Solution: Implementing LONGWELL EC axial fans effectively mitigates this issue. The high electrical conversion rate of the EC motor keeps its own heat generation at an exceptionally low level. This characteristic not only reduces the fan’s power consumption but also lightens the workload on the refrigeration compressor, objectively improving the entire system’s COP (Coefficient of Performance). Furthermore, LONGWELL fans are designed to operate in ambient temperatures ranging from -40℃ to +65℃, ensuring reliable startup and continuous operation even in the harsh, freezing environments of industrial cold storage.

Case Study 3: Large-Area Plant Exhaust and Ventilation Networks

· Manufacturing Scenario: Exhaust ventilation systems and large-scale fan walls in general assembly and welding workshops.

· Industrial Challenge: Large-area manufacturing plants require high-frequency, high-volume air circulation to expel production exhaust and residual heat. Traditional exhaust systems usually consist of multiple fixed-speed fans. These consume substantial power and, in the event of a failure (such as foreign object entanglement), are difficult for the central control room to detect promptly, creating safety risks.

· The LONGWELL Solution: Large-scale LONGWELL EC axial fans (such as models with a 900mm blade diameter delivering up to 32,903 m³/h of airflow) are ideal for constructing intelligent exhaust fan walls. Utilizing integrated group control functions and the Modbus 485 interface, the plant’s central control system can manage and seamlessly adjust the speed of dozens of fans simultaneously. Equally important is the built-in safety protection matrix, which includes current limitation, soft start, locked-rotor protection, phase-loss protection, and over-temperature protection. When anomalies occur, the system prevents motor damage and outputs error codes, helping maintenance teams quickly locate the source of the problem.

Expanding Capabilities: LONGWELL’s OEM and ODM Customization

In the procurement of industrial ventilation systems, standard models cannot always meet the specific dimensional, electrical, or environmental requirements of complex manufacturing equipment. Ningbo Longwell Electric Technology Co., Ltd. places a strong emphasis on providing deep OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services to bridge this gap.

· Flexible Electrical Customization

Different industrial sites have varying power supply standards. LONGWELL’s EC controllers can be customized for specific grid environments, supporting extended voltage inputs such as 1200V-277V single-phase and 3380V-400V three-phase.

· Dimensional and Material Adaptability

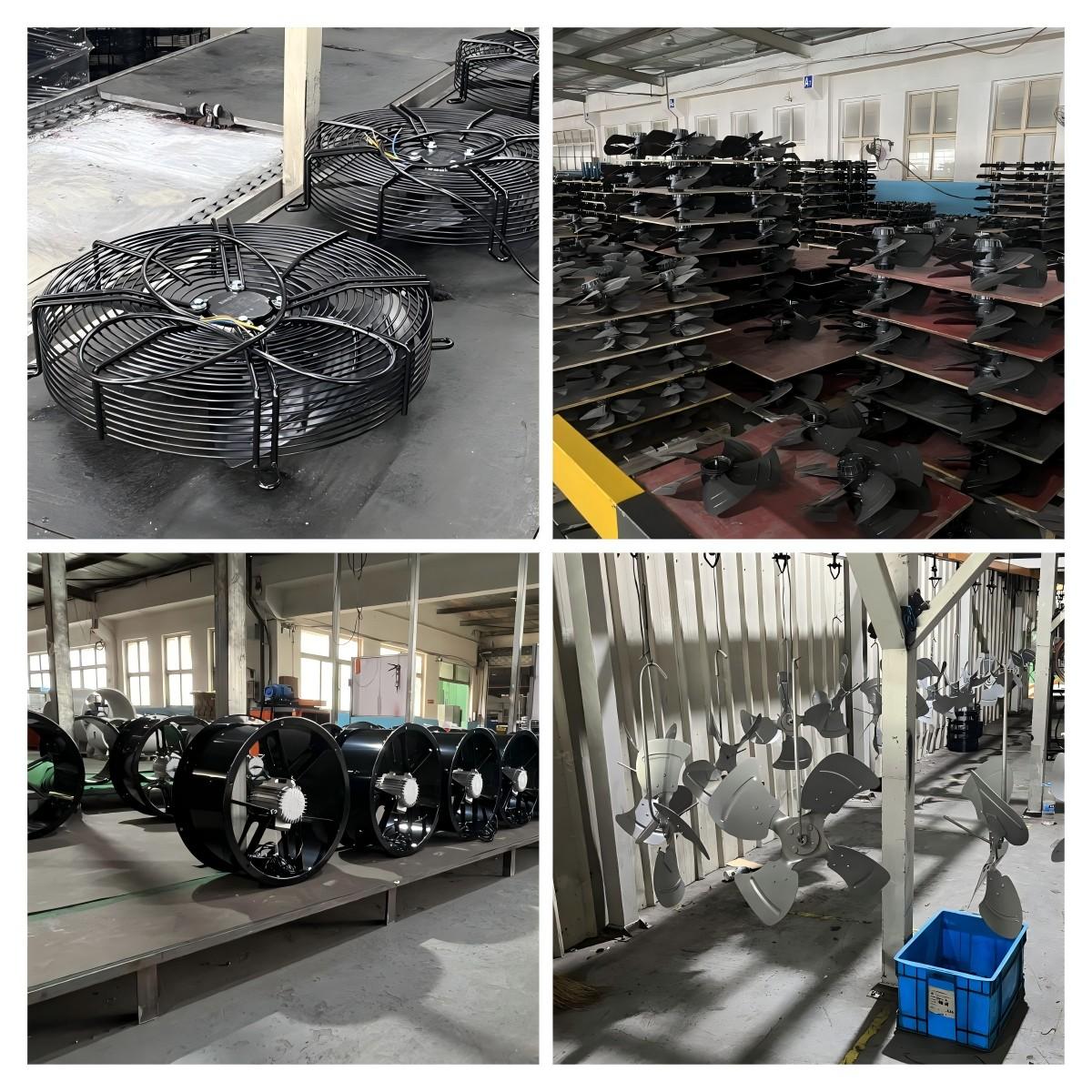

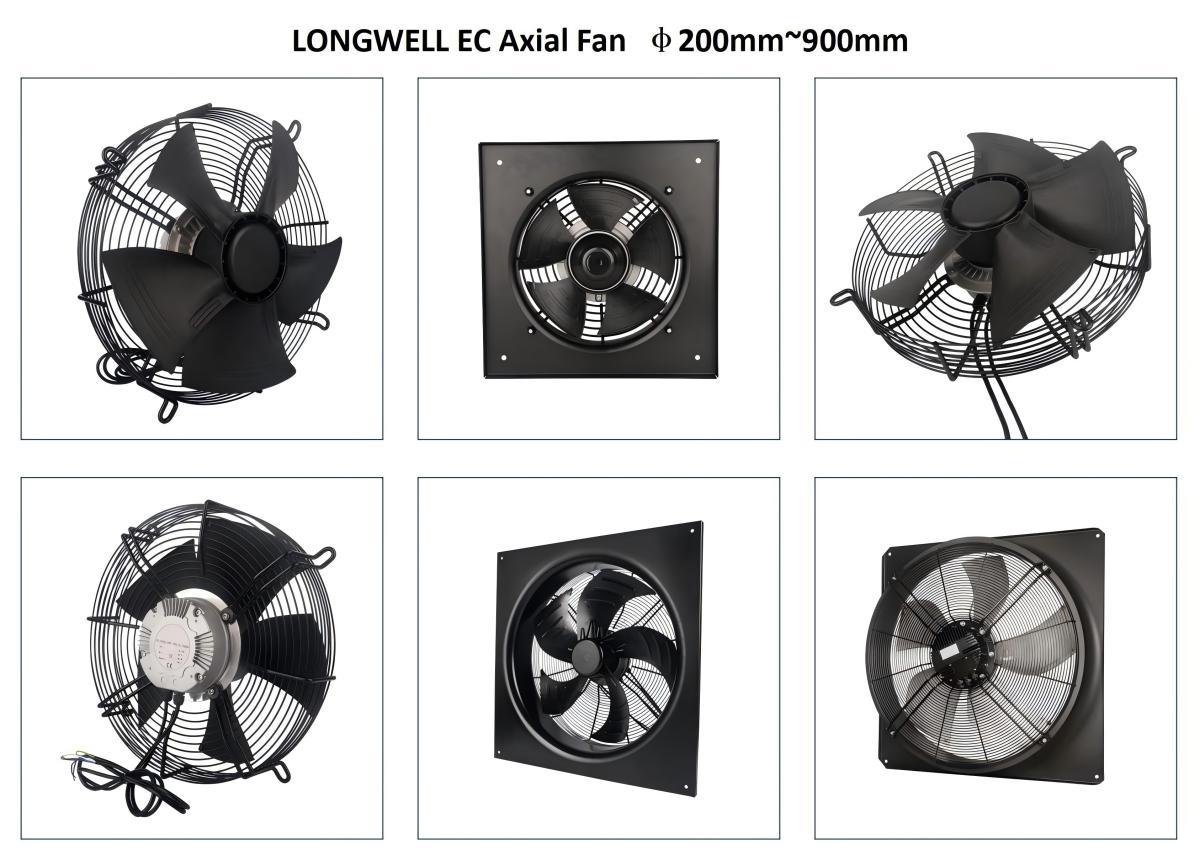

Leveraging our specialized mold factory, we offer rotating diameters ranging from 200mm to 910mm. To meet varying strength and corrosion resistance requirements, fan impellers and blades can be specified in materials including ABS+GF (plastic), aluminum alloy, or cast iron.

· Enhanced Environmental Protection

For equipment operating in highly humid, dusty, or corrosive environments (such as outdoor cooling towers or agricultural ventilation), LONGWELL can customize the IP protection rating—offering IP44, 45, 55, and up to IP68—ensuring long-term reliability where standard fans would fail.

Conclusion

As the manufacturing industry continues to focus on lean production and energy optimization, upgrading ventilation and thermal management systems is an essential step. As demonstrated by the case studies above, LONGWELL EC axial fans provide more than just reliable airflow; they offer measurable value to manufacturing plants through enhanced energy management, intelligent control, and operational stability.

To evaluate the ventilation parameters of your current plant equipment, review detailed specification data, or discuss customized OEM/ODM axial fan solutions, please visit our official website at www.longwellfans.com.
