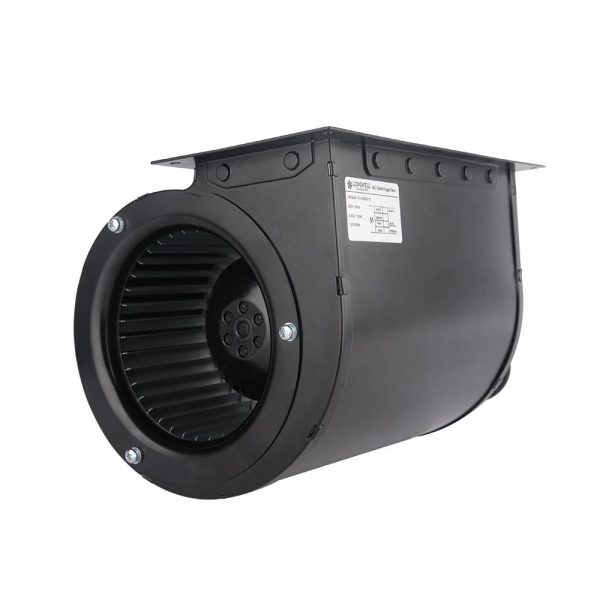

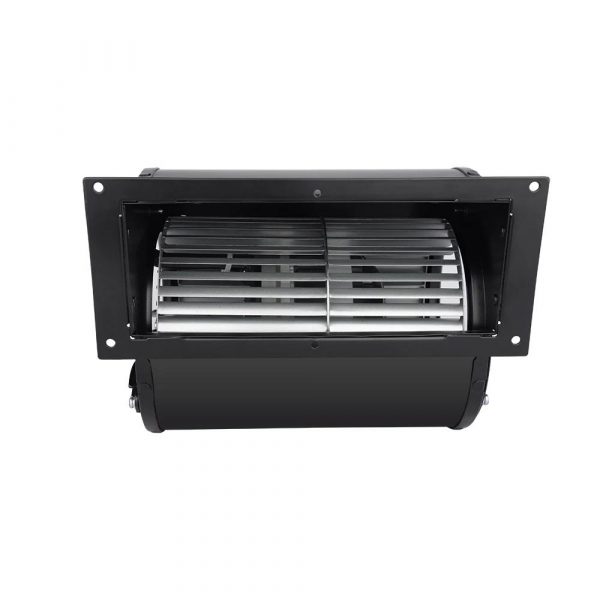

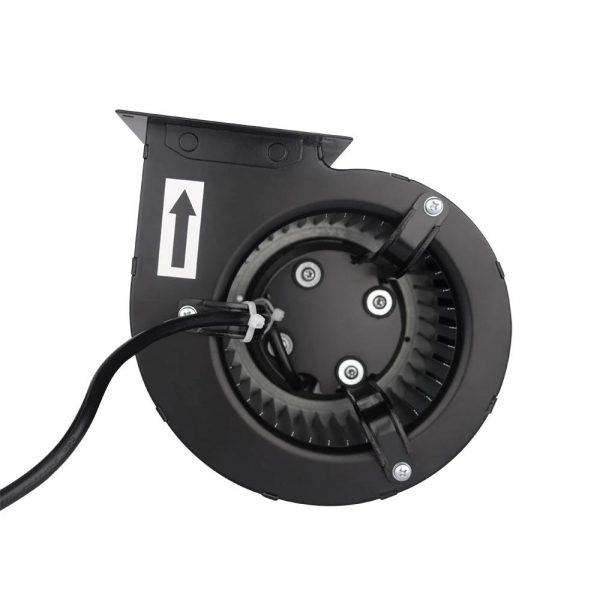

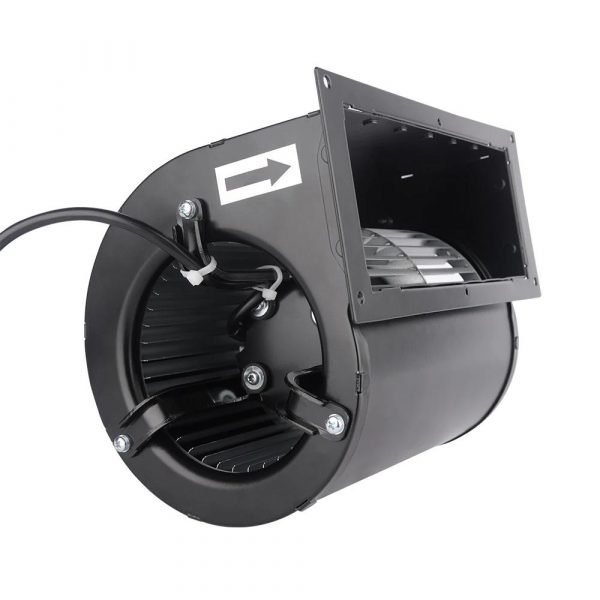

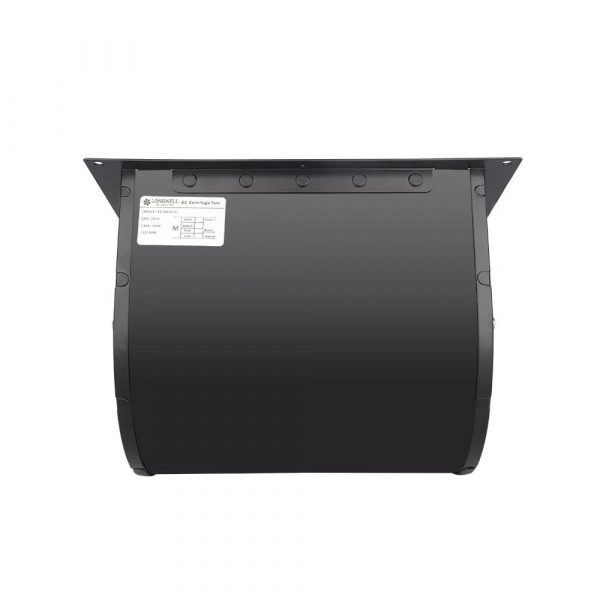

LONGWELL 133mm High Pressure Forward Centrifugal Blower Fan Impeller for AHU ,Air Handling Units

$ 40

Description

LONGWELL 133mm high pressure forward centrifugal blower fan impeller for AHU ,Air handling units

Norminal Sizes Ranges :

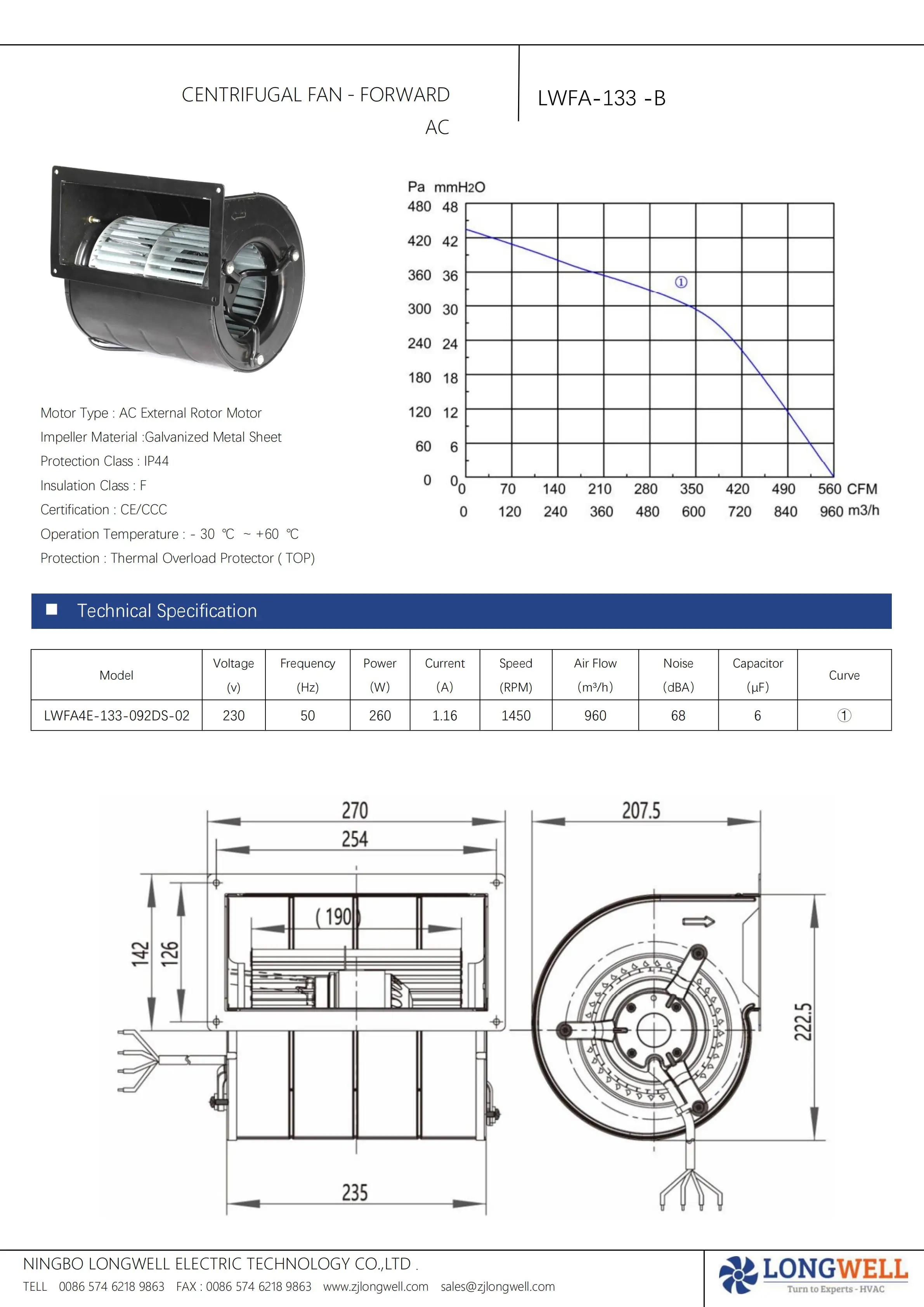

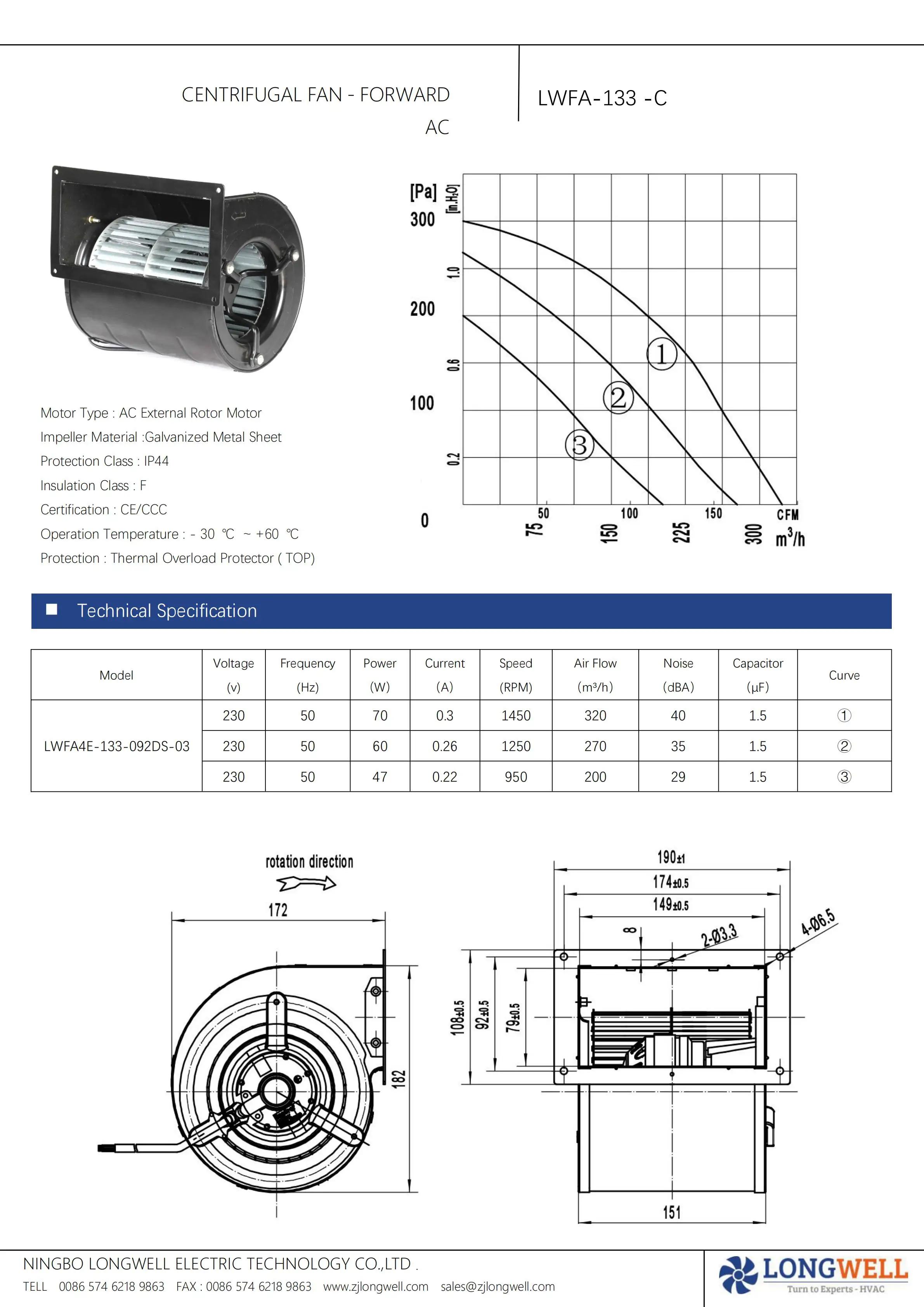

LWFA4E-133-092DS-01 Forward centrifugal blower
Norminal Voltage :

AC Motor – AC Input: 115v,220v,230v,380v,400v
BLDC Motor – DC Input: 12v,24v,48v,310v
ECM Motor – AC Input: 210v,220v,230v,380V
Power Input Ranges:
260W / 70w ( 3 SPEEDS)
Air Flow Ranges :
960 m³/h  / 320 m³/h
Speed Ranges
1450 RPM  / 950-1250-1450
Protection Class :
IP44
Insulation Class :
B
Min. amb. temperature :
-25℃
Max. amb. temperature :
+60 ℃
Speed control options
1 speed , 2 speeds ,or 1-3 speeds adjustable
Mainly Applications :

· Electronic cabinet cooling
· Clean room modules
· Heat exchangers
· Air filtration systems
· Military HRAC
· Pharmaceutical/biological control systems
· Computer room air conditioning (CRAC) systems
· Air-handling units
