Description
Technical Description
| Material | Metal |
| Technical Feature | 1.Explosion-proof type 2.Used in chemical, oil refining, shipbuilding, and other plants for ventilation and air exchange purposes |
Nominal data
| Diameter of Blades | 355mm |
| Nominal Voltage | 220V/380V |
| Frequency | / |
| Power Input | 0.37KW |
| Speed | 1450r/min |
| Static Pressure(Max) | 93Pa |
| Air Flow(Max) | 3265m³/h |
| Noise | / |
Curves

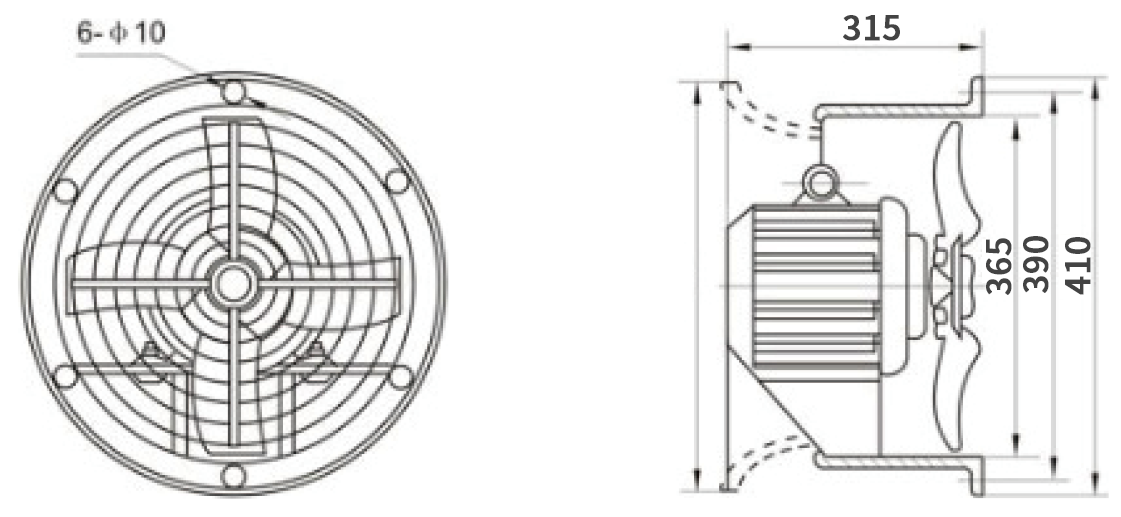

Drawing
M-159E-drawing.png)
Download
