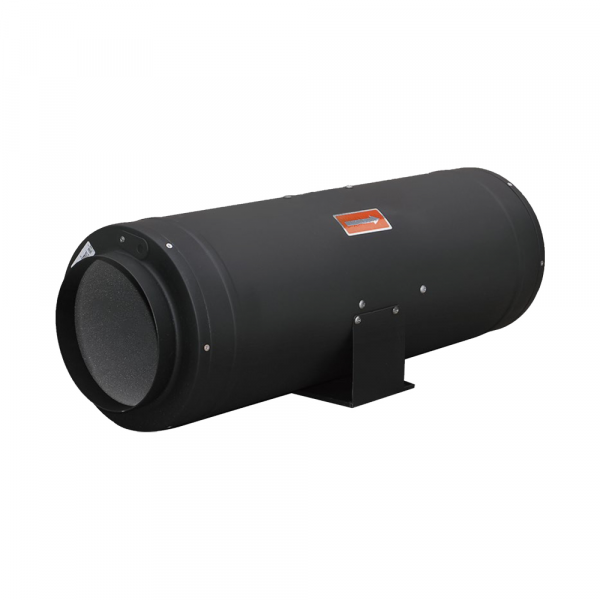

LONGWELL LWDE-150 (6″)U-MWN-03 Ultra Silent duct fans

$ 10

Description

Technical Description

Material Metal
Fan Type Super silent type
Type of Protection IP54
Mode of Operation S1
Speed Control Type PWM Control Type 0-5V

Nominal data

Type of Voltage EC
Diameter of Inlet 150mm
Nominal Voltage 110-120V
Frequency 60Hz
Power Input 35W
Speed 3400RPM
Flow Value(Max) 437CFM
Noise 53dB(A)
Working Temp 60℃

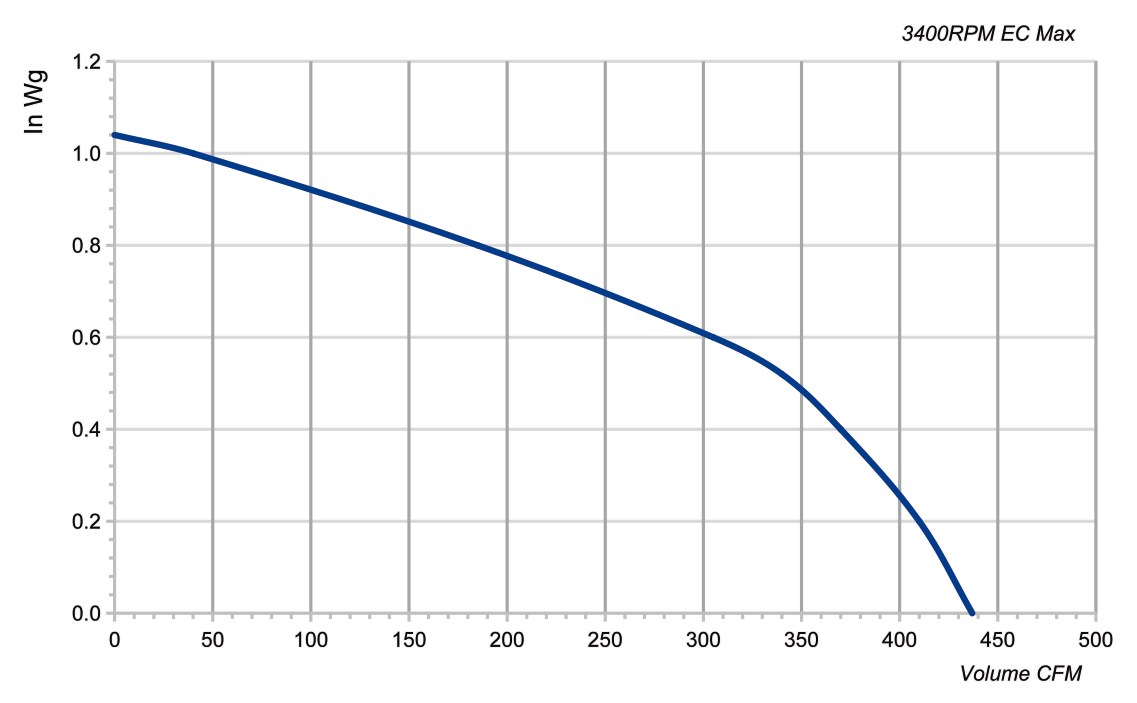

Curves

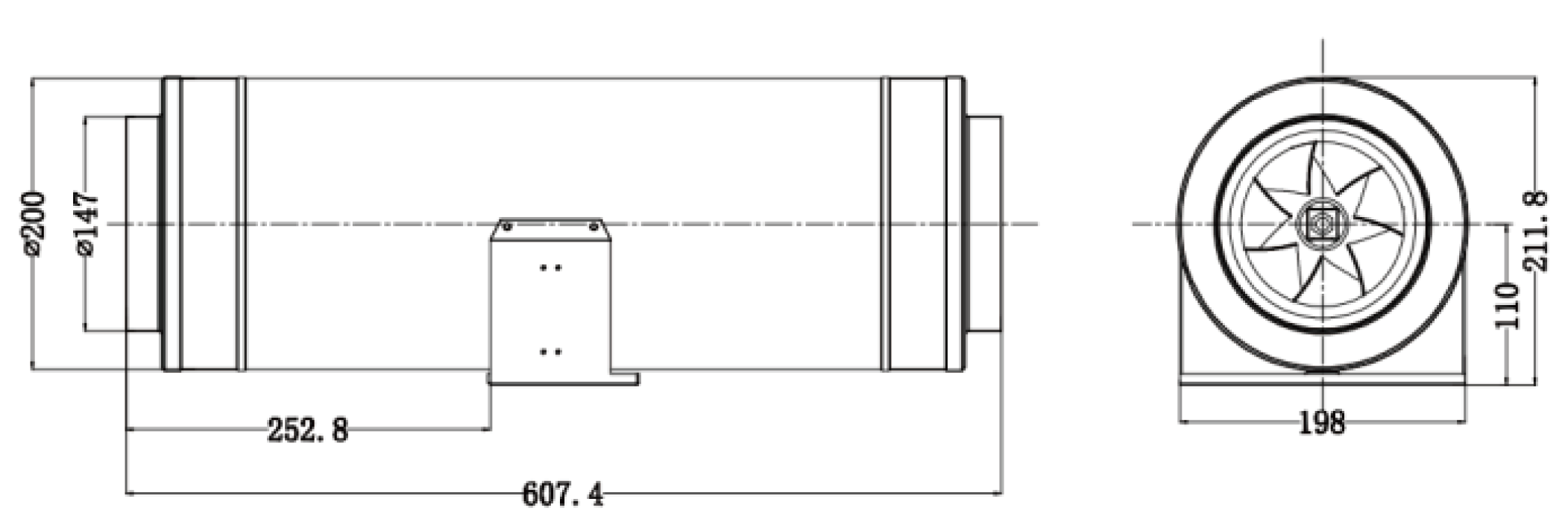

Drawing

Download

The Company Longwell Leading Fan and Motor Innovator Worldwide

As a leading supplier of ventilation and drive technology, LONGWELL is a highly respected engineering partner in many industries. With over than 20,000 different products, we provide the right solution for every need. And we have always worked according to the highest economic and ecological standards.

As part of the logical next step in the development of our high-efficiency BLEC MOTOR technology, we believe that industrial digitalization offers the best prospects for our customers in the future. LONGWELL already offers intelligently interconnected complete solutions that are second to none worldwide and ensure that our customers always remain that decisive step ahead.

LONGWELL Product Line

LONGWELL product line

LONGWELL Certificate

LONGWELL Certificate

Trusted by top Brands

LONGWELL Trusted by top Brands

Additional information

airflow

437CFM

ac dc ec

EC

Fan Type

Super silent type

Material

Metal

type

EC

Working Temp

60℃

speed

3400.0

voltage

110-120

frequency

60.0

Protection Class

IP54

Speed Control Type

PWM Control Type 0-5V

sound power

35.0

Mode of Operation

S1

noise

53.0

dimensions

150.0

sound pressure

/
