Description
Technical Description
| Impeller Material | Plastic |
| Protection Class | IP54 |
| Insulation Class | B |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
| Protection | Blocked rotation,Thermal protection,High and low pressure protection |
| Technical Features | 0-10VDC/PWM Speed control,Tach output |
Nominal data
| Type of Voltage | EC |
| Diameter of Inlet | 125mm |
| Nominal Voltage | 230V |
| Frequency | 50/60Hz |
| Current | 0.65A |
| Power Input | 85W |
| Speed | 3400RPM |
| Static Pressure(Max) | 839Pa |
| Air Flow(Max) | 386m³/h |
| Noise | 69dB(A) |
| Min.ambient Temp | -25℃ |
| Max.ambient Temp | 60℃ |

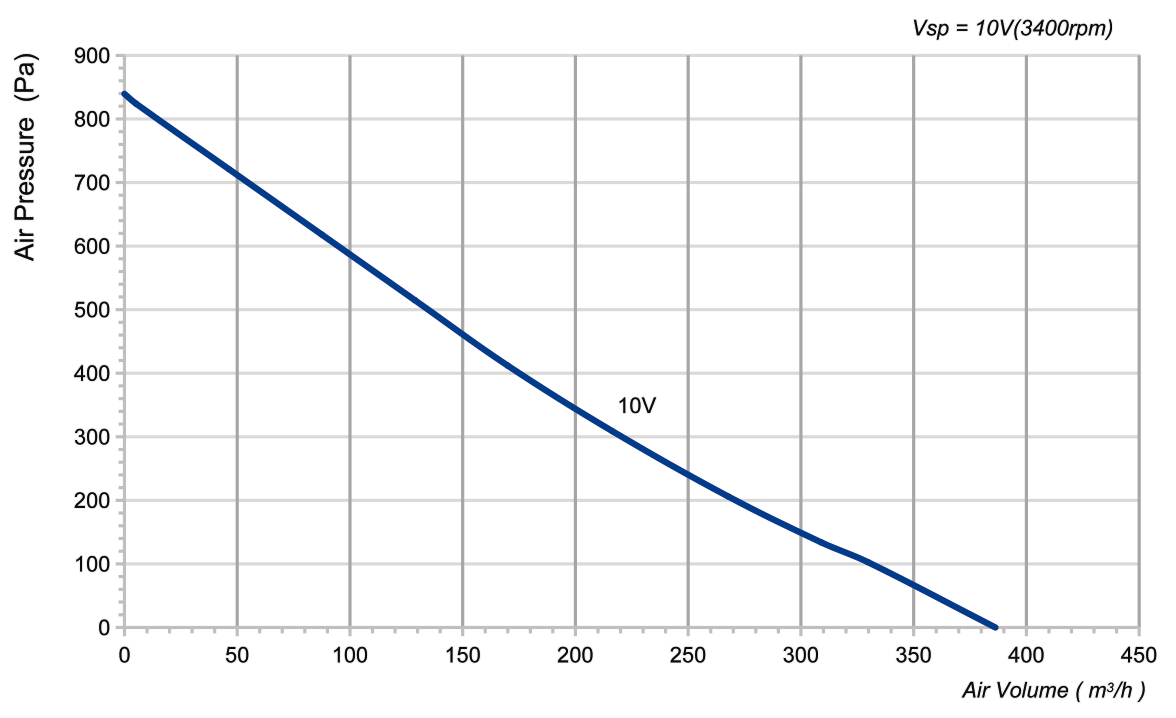

Curves

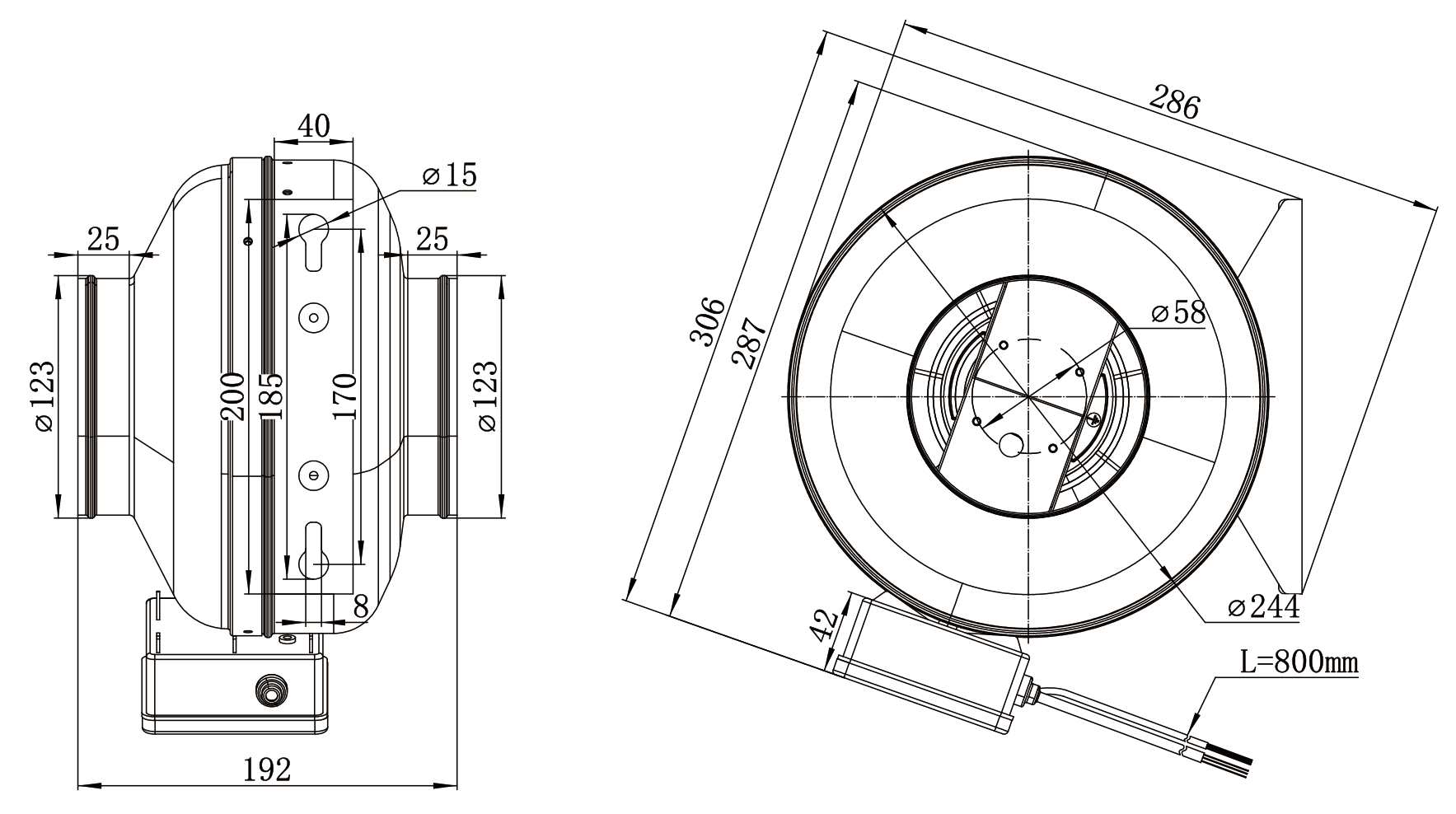

Drawing
