Description
Technical Description
| Material | Metal |
| Fan Type | Super silent type |
| Type of Protection | IP54 |
| Mode of Operation | S1 |
| Speed Control Type | Constant Speed |
Nominal data
| Type of Voltage | AC |
| Diameter of Inlet | 355mm |
| Nominal Voltage | 110-120V |
| Frequency | 60Hz |
| Power Input | 260W |
| Speed | 1720RPM |
| Flow Value(Max) | 2130CFM |
| Noise | 63dB(A) |
| Working Temp | 80℃ |

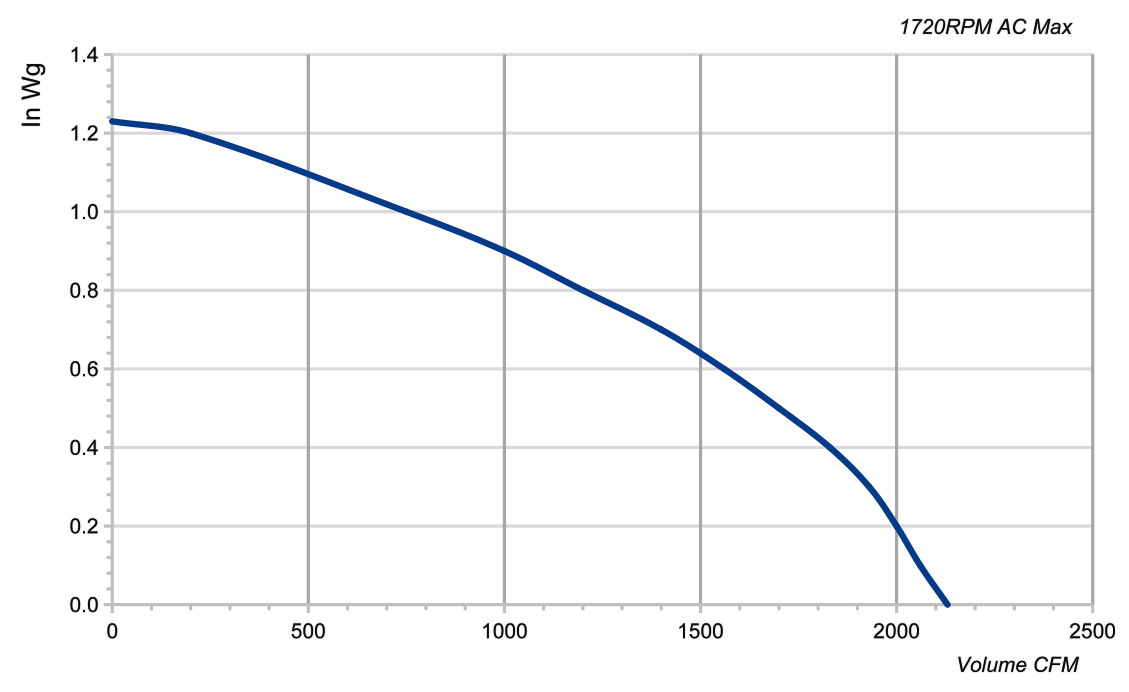

Curves
U-MWN-03-curves.png)

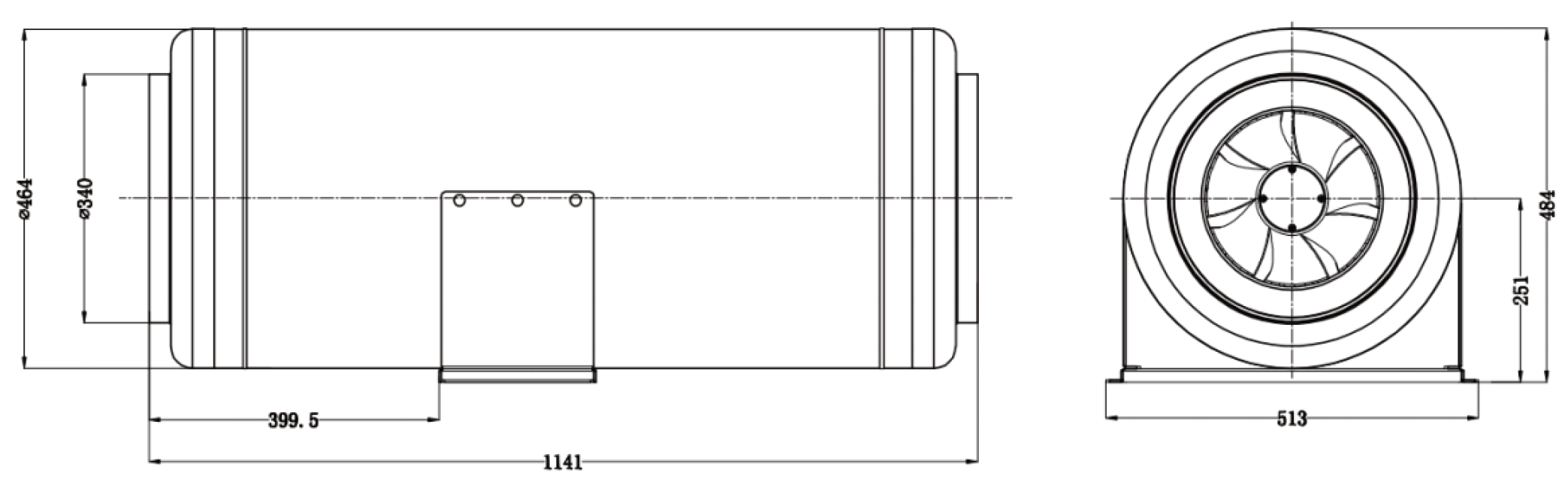

Drawing
U-MWN-03-drawing.png)
