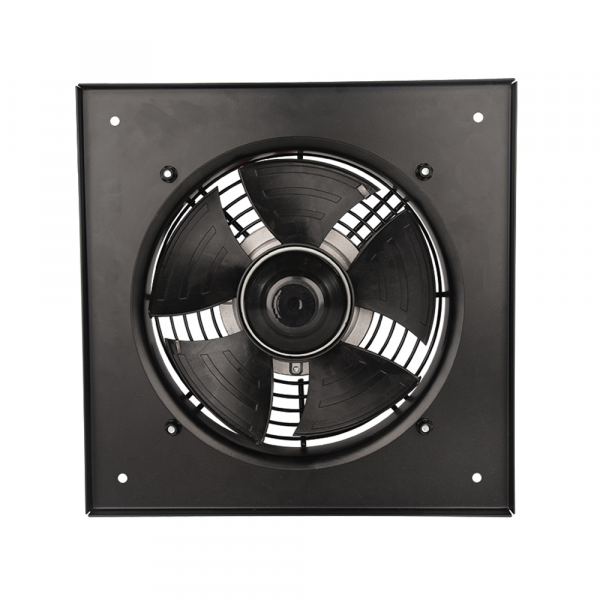

LONGWELL LWAE3G200SS-7MGW-11 EC axial fan

$ 10

Control input 0-10VDC/PWM,Tach output,Locked-Rotor protection,Reverse Polarity,Over-voltage Protection,Soft Start Protection

Category:

Description

Technical Description

Impeller Material Sheet steel
Number of Blades 7
Air Direction Suction
Type of Protection IP54
Insulation Class B
Mode of Operation S1
Bearing Maintenance-free ball bearings
Technical Feature Control input 0-10VDC/PWM,Tach output,Locked-Rotor protection,Reverse Polarity,Over-voltage Protection,Soft Start Protection

Nominal data

Type of Voltage EC
Impeller Diameter 200mm
Nominal Voltage 220V
Frequency 50/60Hz
Current 0.4A
Power Input 55W
Speed 3300RPM
Air Flow(Max) 958m³/h
Noise 60dB(A)
Min.ambient Temp -25℃
Max.ambient Temp 60℃

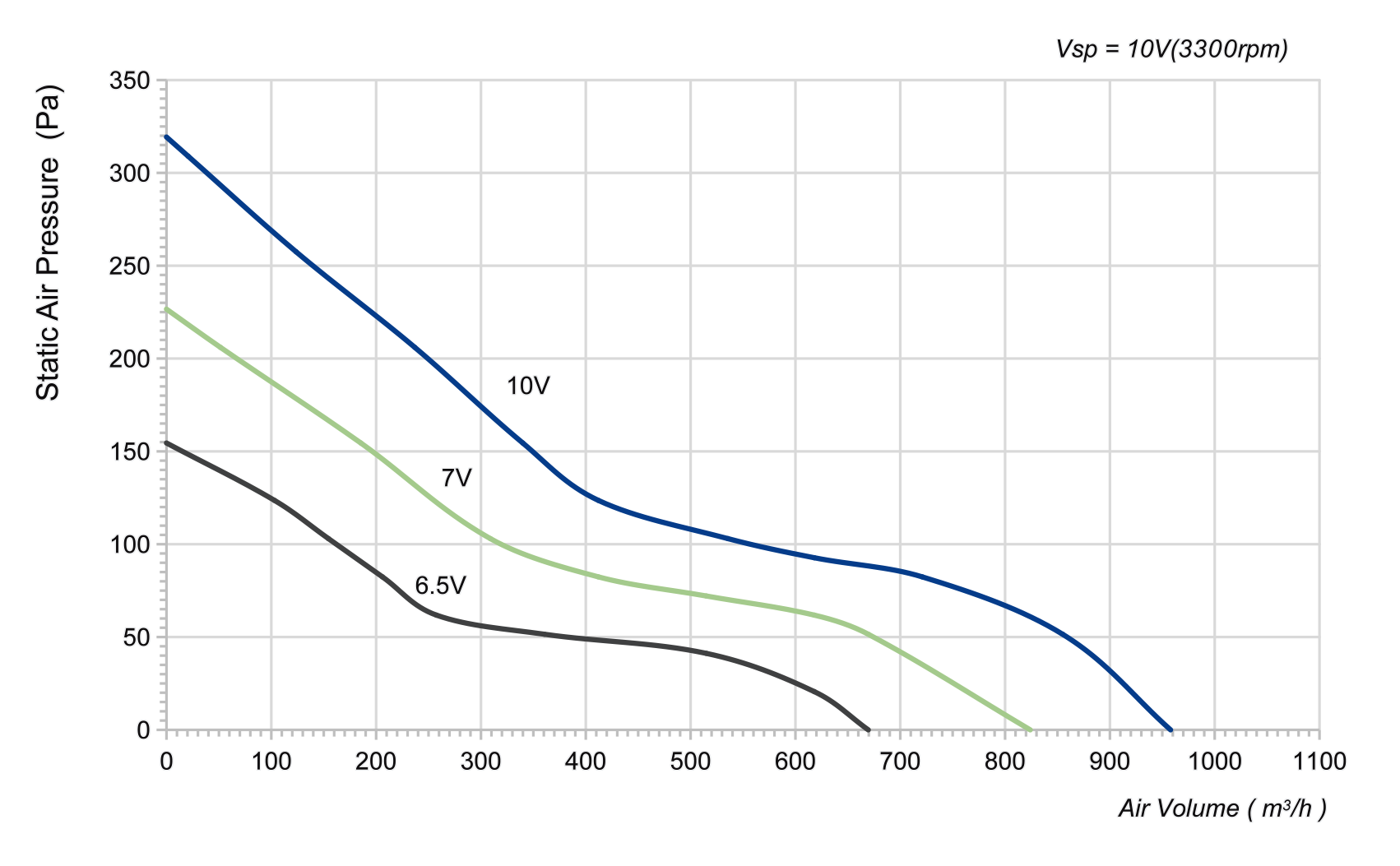

Curves

Drawing

Download

The Company Longwell Leading Fan and Motor Innovator Worldwide

As a leading supplier of ventilation and drive technology, LONGWELL is a highly respected engineering partner in many industries. With over than 20,000 different products, we provide the right solution for every need. And we have always worked according to the highest economic and ecological standards.

As part of the logical next step in the development of our high-efficiency BLEC MOTOR technology, we believe that industrial digitalization offers the best prospects for our customers in the future. LONGWELL already offers intelligently interconnected complete solutions that are second to none worldwide and ensure that our customers always remain that decisive step ahead.

LONGWELL Product Line

LONGWELL product line

LONGWELL Certificate

LONGWELL Certificate

Trusted by top Brands

LONGWELL Trusted by top Brands

Additional information

Insulation Class

B

type

EC

speed

3300.0

Bearing

Maintenance-free ball bearings

frequency

50/60

Air Direction

Suction

current

0.4

sound power

55.0

noise

60.0

Min.ambient Temp Max.ambient Temp

-25℃~+60℃

sound pressure

/

airflow

958.0

ac dc ec

EC

Impeller Material

Sheet steel

voltage

220.0

Protection Class

IP54

Mode of Operation

S1

Number of Blades

7

dimensions

200
