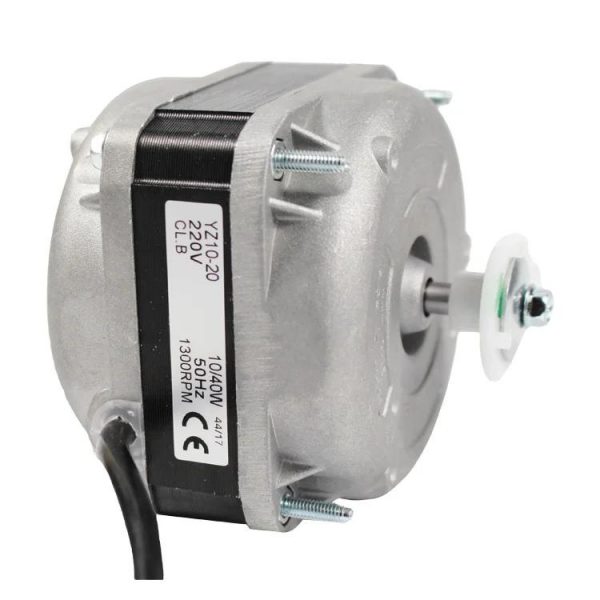

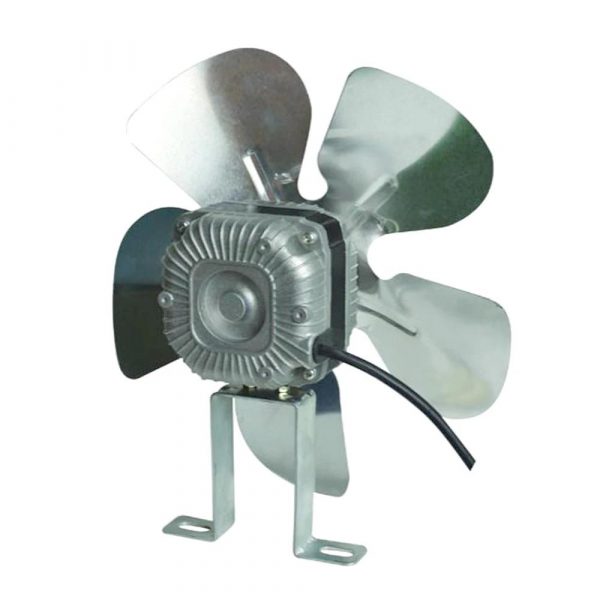

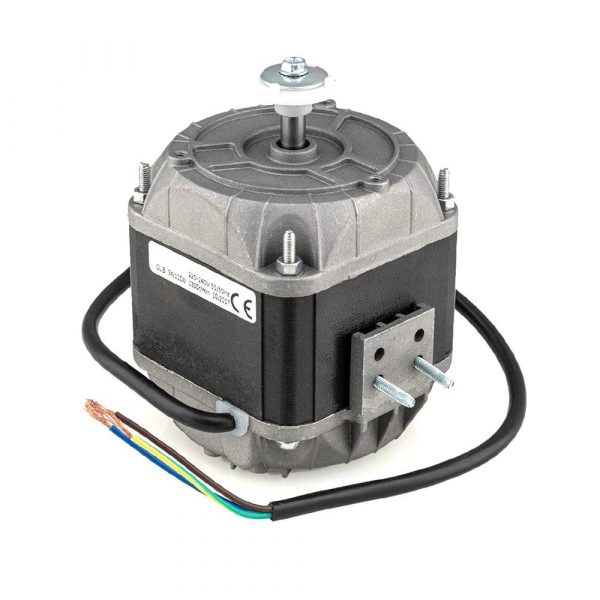

YJ19 Evaporator fan motor AC Motor brushless Shaded pole gear motor
Product Description
| Model Number : | YJ19 Evaporator fan motor AC Motor brushless Shaded pole gear motor | ||

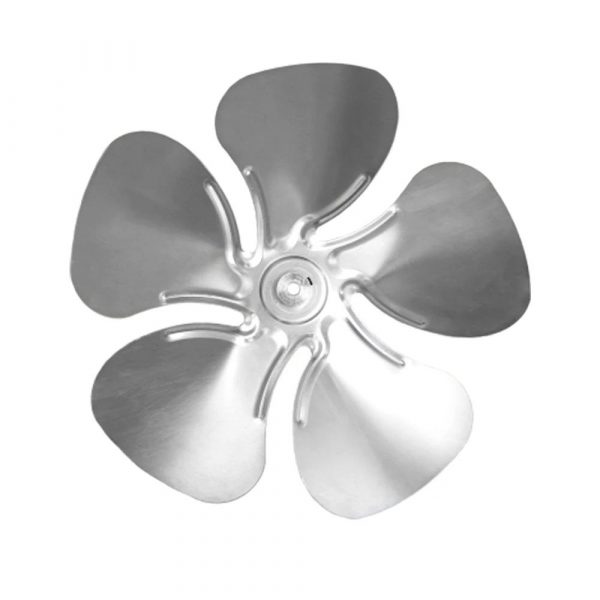

| Power : | 33W ~ 120W | Blade Material : | Plastic |
| Speed control: | PWM / 0~10V | Insulation Class: | B/F |
| Operation Temperature : | -30℃ ~ +60 ℃ | ||

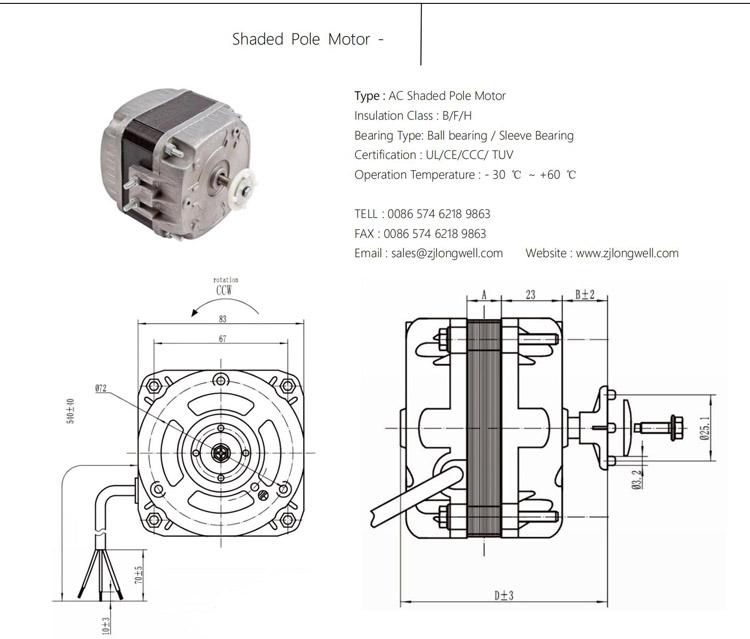

- YZF series motors are Shaded Pole Air Pump Motors with single phase,4 shaded poles and running at rated voltage of 220~240V,50/60Hz or 110~120V,60Hz .They are widely used in the radiator,evaporator and other refrigeration equipment.
- All material conform to RoHS.

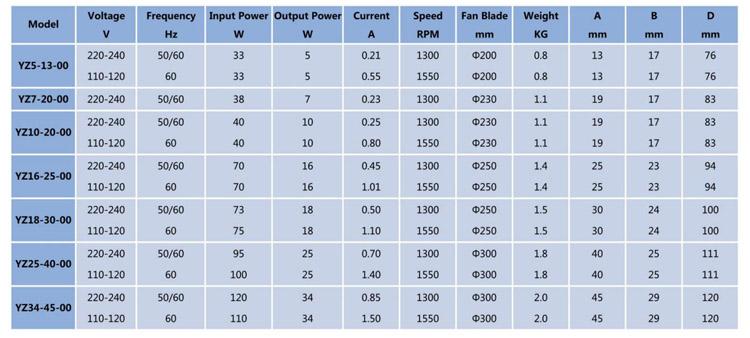

- The output power is from 2W to34W,which is relative to the stack length and coil parameters.
- The insulation class of motors is B,and the protection class of that is IP42.On request IP44 is avaliable
- The motor,which output power less than 10W are impedance protection and the motors,which output is bigger than 10W,are thermal protection.The thermal protetor’s is 125℃±5℃,135℃±5℃ or 150℃±5℃.
- The average service life of motoer is over 20000 hours.
Custom Service
Product Application
Certifications
Company Information
Contact information
Buying Guides

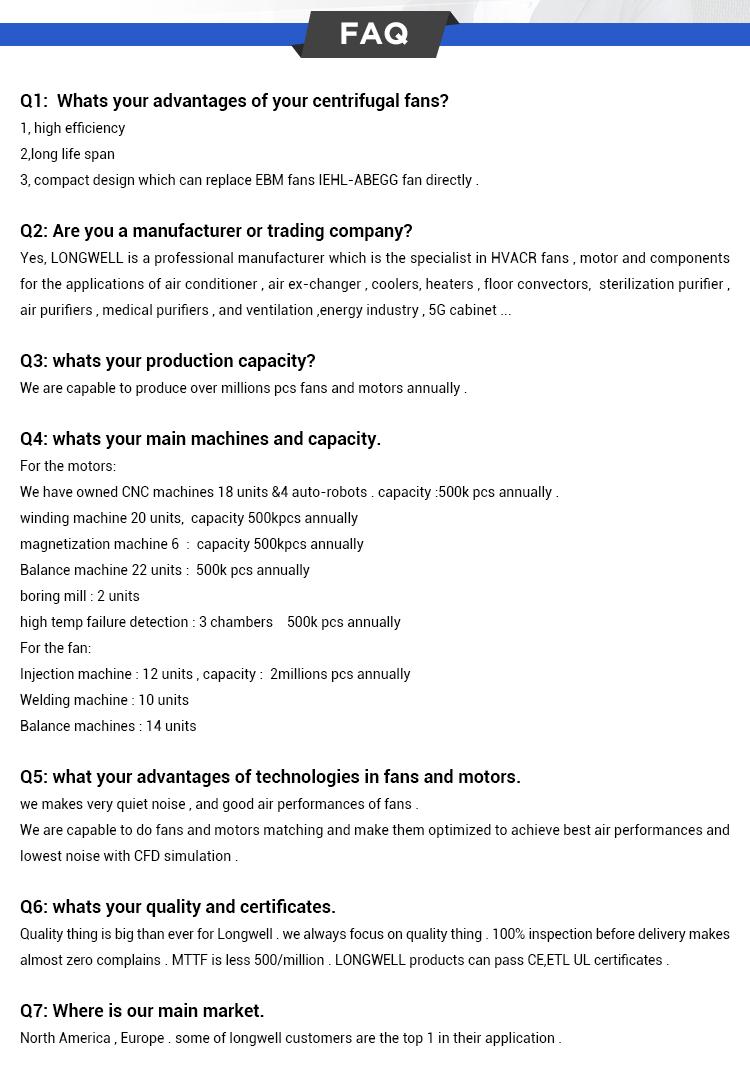

FAQ
