Description
|

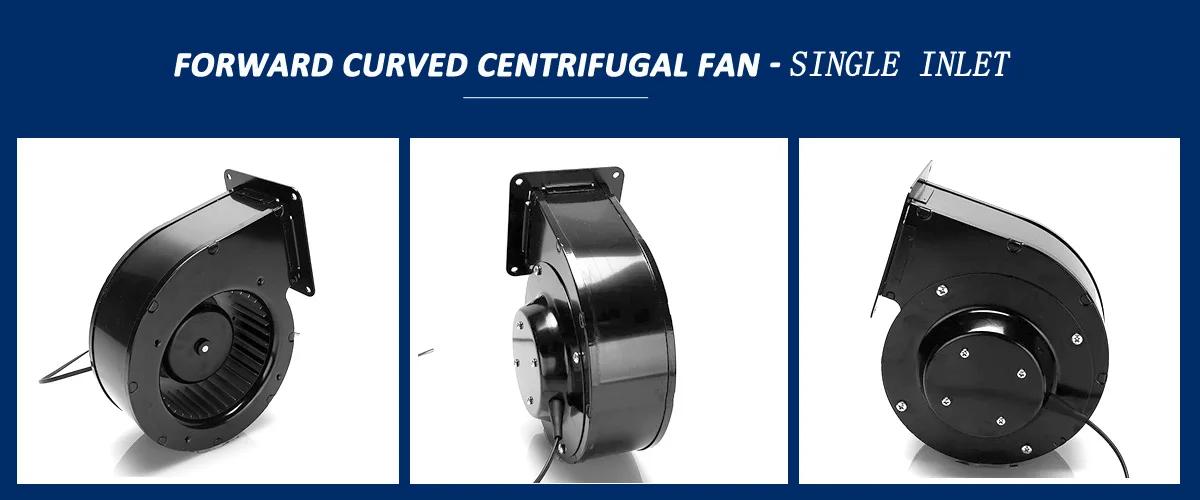

Diameter of impeller:
|
108,120,133,146,160,180,200,225,250,315,355mm
|
||||||
|
Material :
|
Housing – Galvanized Metal Impeller – Galvanized Metal
|
||||||
|
Motor Type :
|
AC Capacitor Motor , DC/EC brushless external rotor motor
|
||||||
|
Voltage ：
|
AC 115V/230V / 380V , DC 24V/48V/310V, EC 115V/230V
|
||||||
|
Air Flow :
|
Up to 5000 m³/h
|
||||||
|
Air Pressure :
|
Up to 675Pa
|
||||||
|
Input Power :
|
26W – 4.5 kw
|
||||||
|
Diameter of impeller:
|
108,120,133,146,160,180,200,225,250,315,355mm
|
||||||
|
Material :
|
Housing – Galvanized Metal Impeller – Galvanized Metal
|
||||||
|
Voltage ：
|
AC 115V/230V / 380V , DC 24V/48V/310V, EC 115V/230V
|
||||||
|

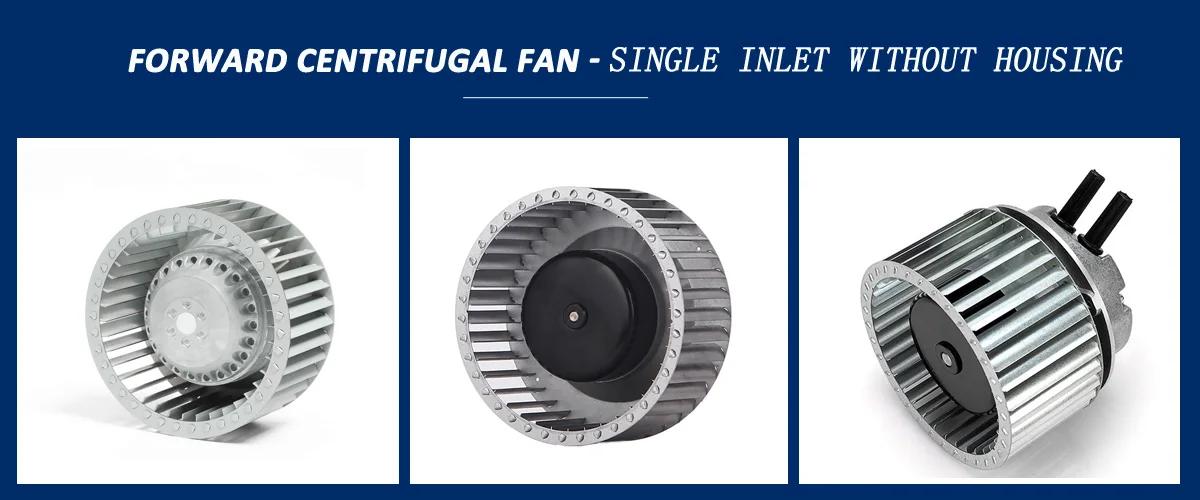

Diameter of impeller:
|
120mm,133mm,146mm,160mm,180mm,225mm,280mm,355mm
|
||||||
|
Material :
|
Housing – Galvanized Metal Impeller – Galvanized Metal
|
||||||
|
Motor Type :
|
AC Capacitor Motor , DC/EC brushless external rotor motor
|
||||||
|
Voltage ：
|
AC 115V/230V / 380V , DC 24V/48V/310V, EC 115V/230V
|
||||||
|
Air Flow :
|
Up to 2000 m³/h
|
||||||
|
Input Power :
|
70W – 1.8kw
|
||||||
|

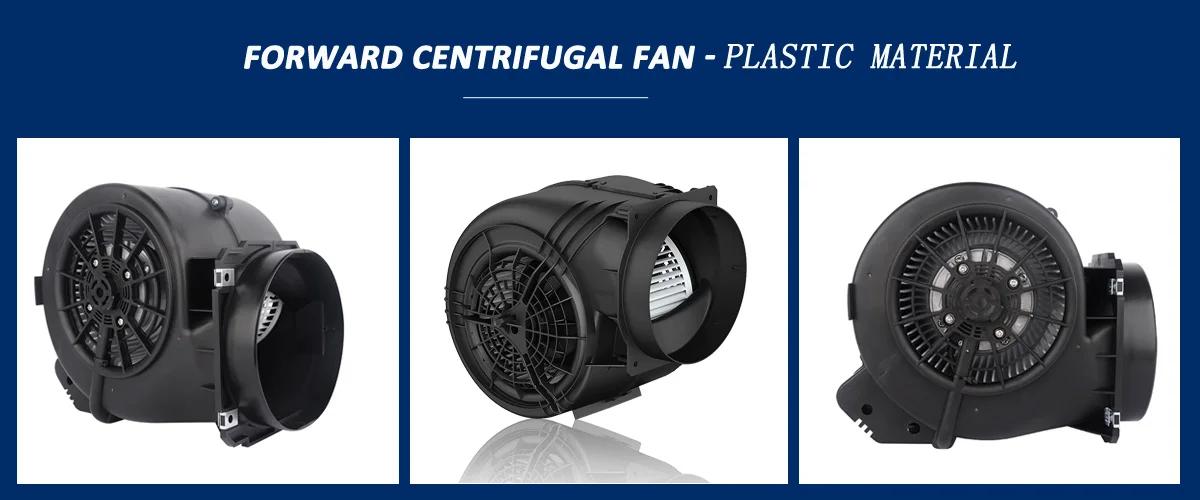

Diameter of impeller:
|
133mm,146mm
|
||||||
|
Material :
|
Plastic
|
||||||
|
Voltage ：
|
AC 115V/230V
|
||||||
|
Air Flow :
|
Up to 730 m³/h
|
||||||
|
Air Pressure :
|
Up to 580Pa
|
||||||
|
Input Power :
|
79 – 298 W
|
||||||
FAQ
* A centrifugal fan is a device that uses a spinning impeller to generate a pressure difference and move air or gas radially outwards from the fan’s axis.
2. How do centrifugal fans differ from axial fans?
* Centrifugal fans move air radially, while axial fans move air parallel to the fan’s axis. Centrifugal fans generally provide higher pressure and are more suitable for applications requiring higher resistance.
3. What are the key factors to consider when choosing a centrifugal fan?
* Key factors include the required airflow, static pressure, motor power, fan size, and the specific application environment.
4. Can centrifugal fans be used in high-temperature environments?
* Specialized high-temperature centrifugal fans can be used in such environments, but standard fans may not be
5. How are centrifugal fans typically controlled?

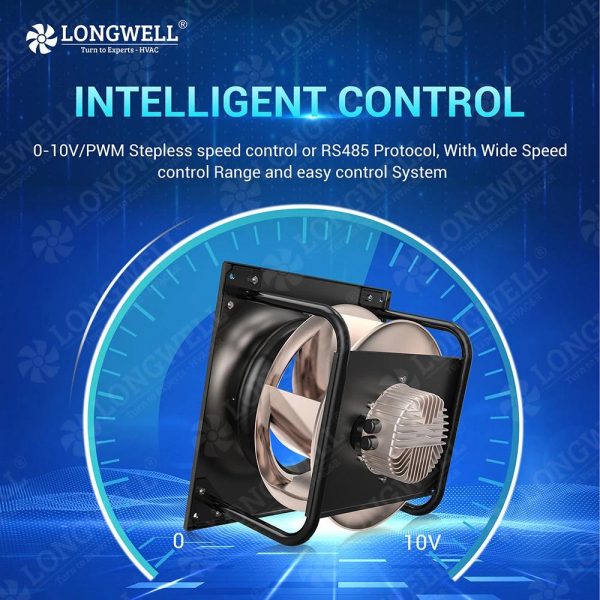

* Centrifugal fans can be controlled by adjusting the fan speed, using dampers to regulate airflow, or through variable frequency drives (VFDs).
6. What are the common maintenance practices for centrifugal fans?
* Regular maintenance should include cleaning the fan and housing, inspecting the impeller for damage, checking the motor and bearings, and ensuring tightness of all connections.
7. How can I reduce noise from a centrifugal fan?
* Noise can be reduced by using sound enclosures, selecting fans with lower noise ratings, or implementing proper installation techniques.
8. What is the typical lifespan of a centrifugal fan?
* The lifespan of a centrifugal fan depends on usage, maintenance, and build quality, but it can range from several years to over a decade.
9. Are there any energy-saving options for centrifugal fans?

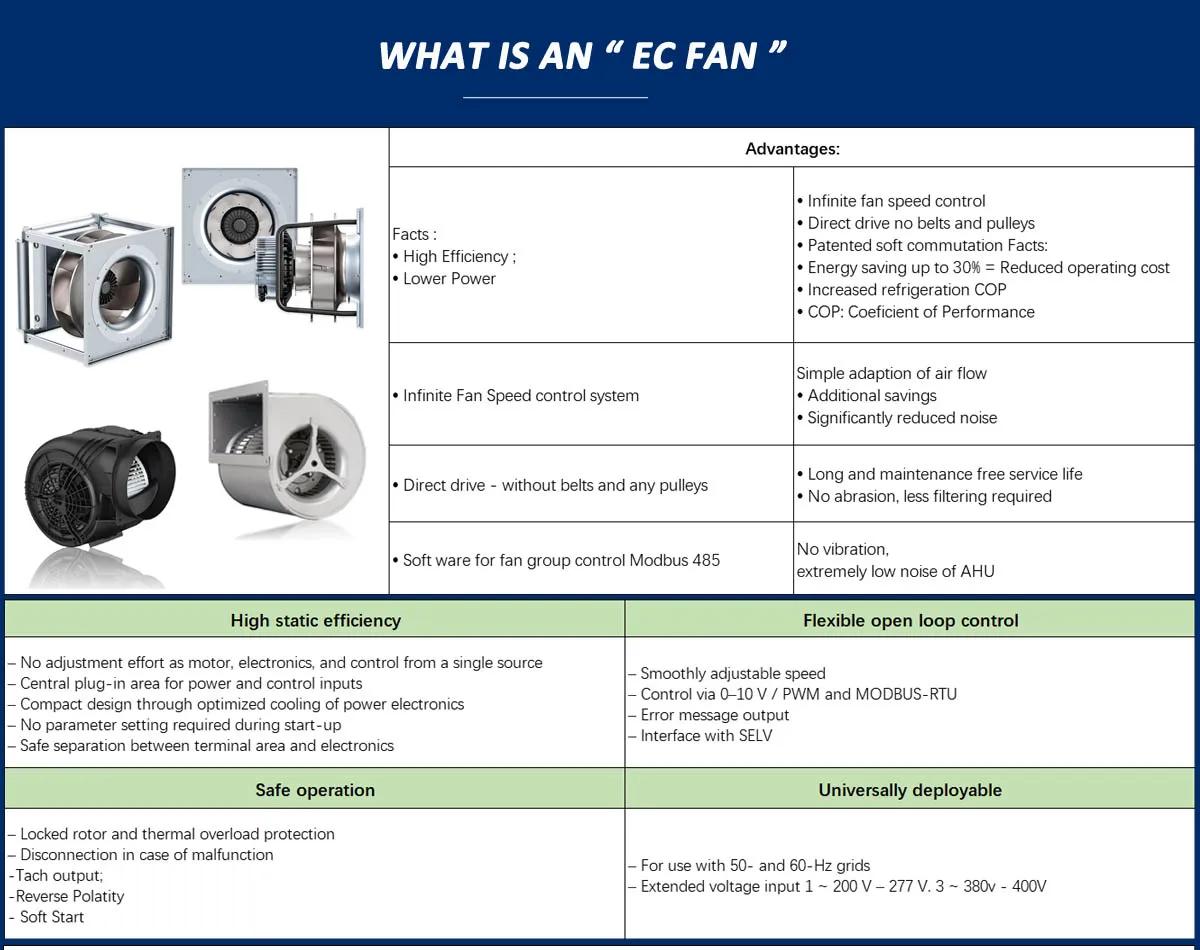

* Yes, energy-efficient models with EC motors or those equipped with VFDs for speed control can significantly reduce energy consumption.
10. How can I ensure the safety of my centrifugal fan during operation?
* Ensure the fan is installed correctly, avoid overloading, and regularly inspect the fan for any signs of wear or damage.Follow the manufacturer’s guidelines for safe operation.
