Description

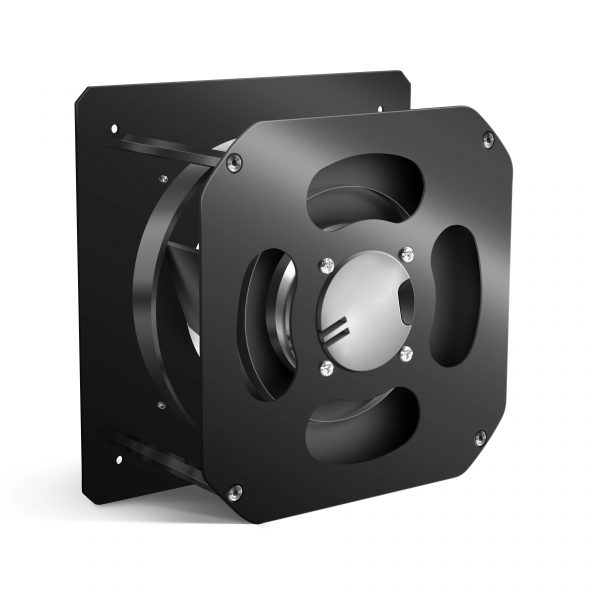

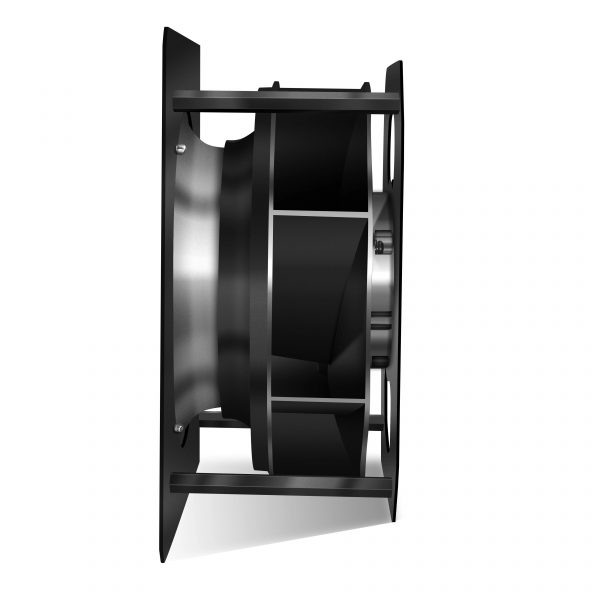

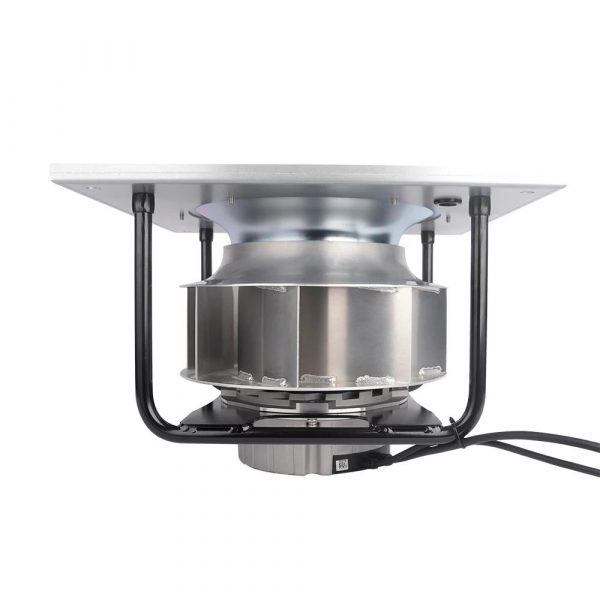

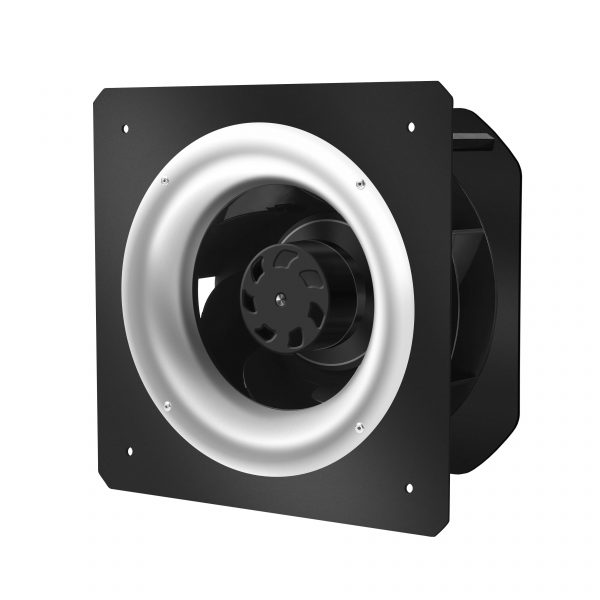

115V 230V 380V Backward/forward centrifugal fan inline duct ventilation exhaust fan
|
Nominal Voltage :
|
115V /220V /380V( EC)
|
||||||
|
Frequency :
|
50/60Hz
|
||||||
|
IP Level :
|
IP 55 ,IP 54
|
||||||
|

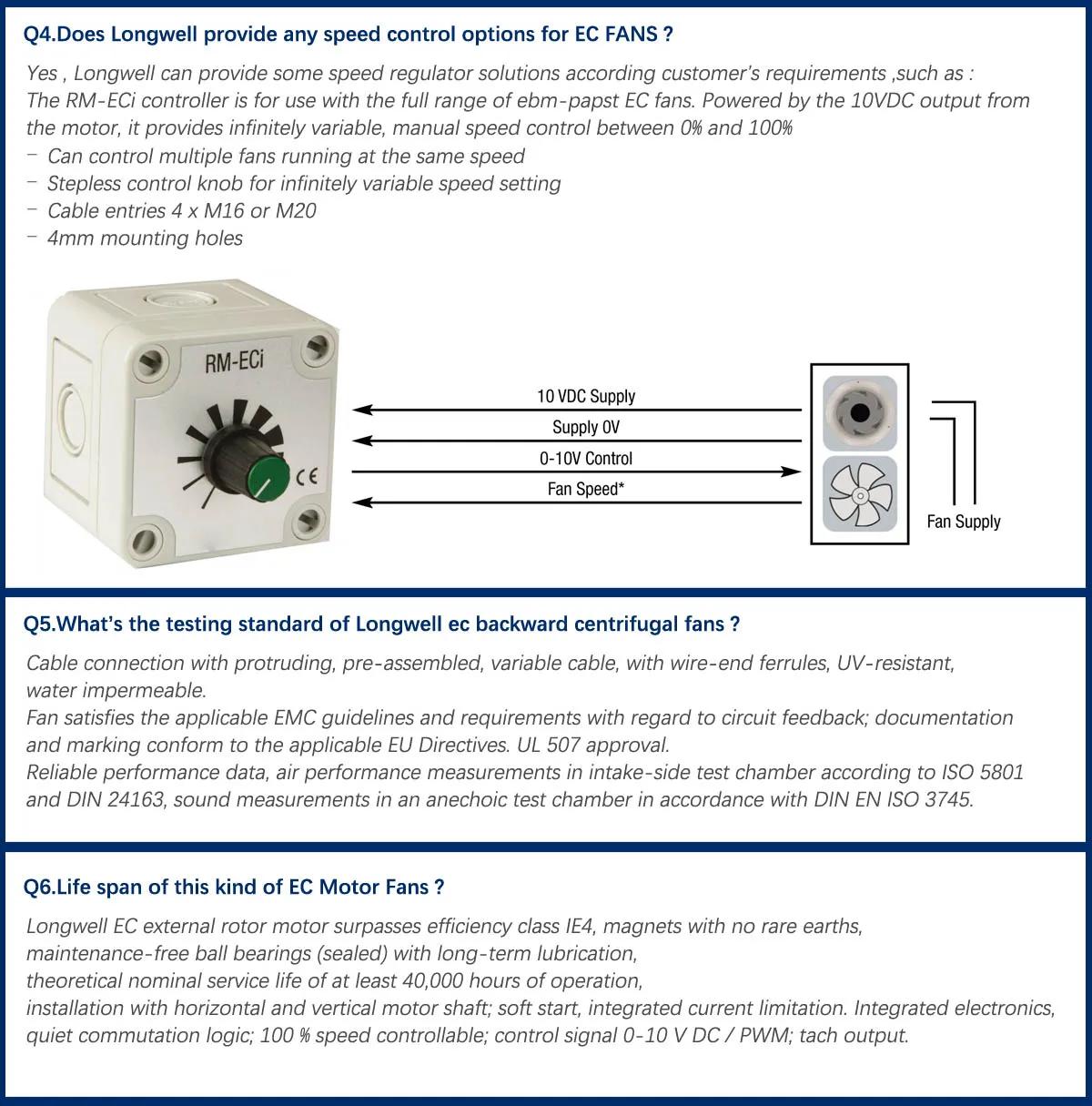

Speed Control :
|
Control Input 0-10VDC / PWM ,RS485 MODBUS
|
||||||
|
Life Expectance
|
50,000Hours(L10)，At 40℃ room, humidity 15%~65%RH.
|
||||||
|
Electronic Protection :
|
Locked-rotor Protection ; Locked-Rotor Protection ; Over- Current Protection ;
Over- Voltage Protection ; Soft Start ;Reverse Polarity Protection
|
||||||
|
Ambient Temp Rangs
|
-25 ℃ – +60 ℃
|
||||||
|
Diameter of impeller:
|
108,120,133,146,160,180,200,225,250,315,355mm
|
||||||
|
Material :
|
Housing – Galvanized Metal Impeller – Galvanized Metal
|
||||||
|

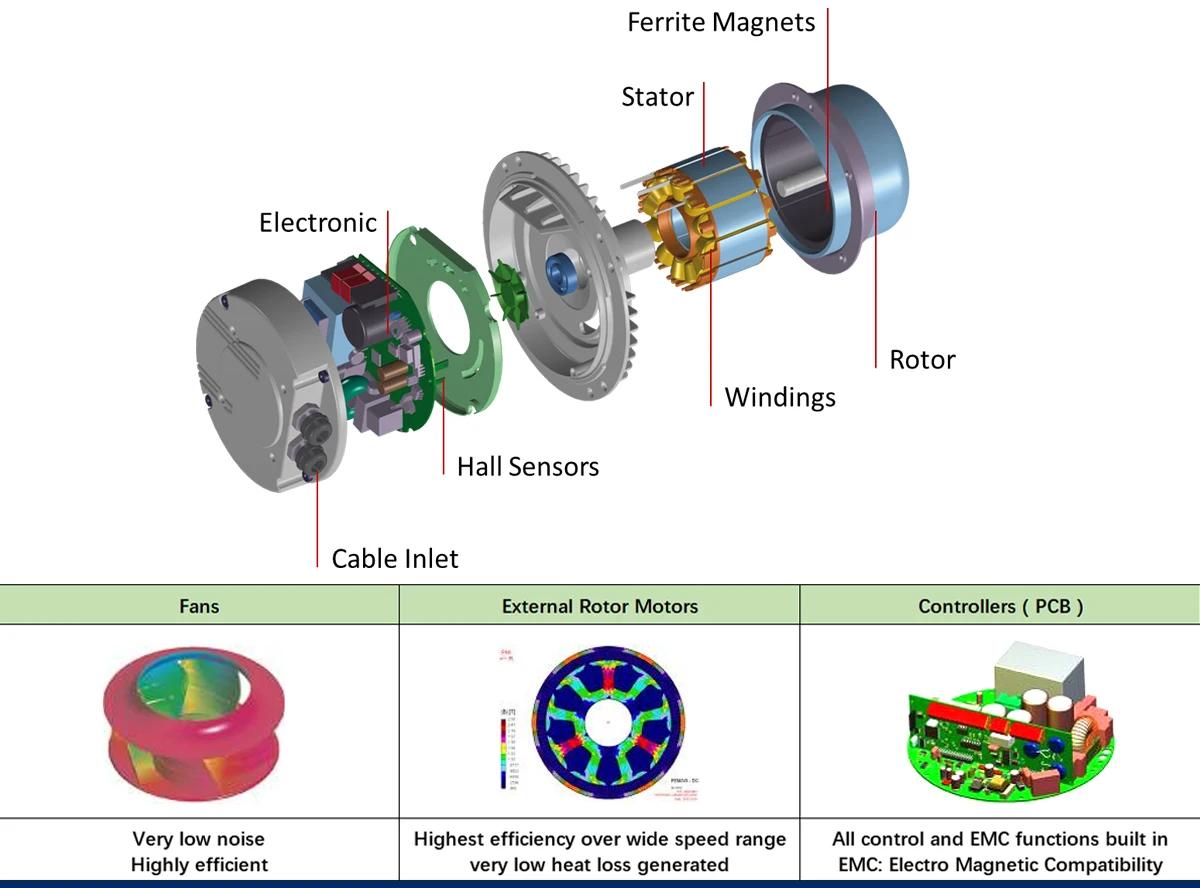

Motor Type :
|
AC Capacitor Motor , DC/EC brushless external rotor motor
|
||||||
|
Voltage ：
|
AC 115V/230V / 380V , DC 24V/48V/310V, EC 115V/230V
|
||||||
|
Air Flow :
|
Up to 5000 m³/h
|
||||||
|
Air Pressure :
|
Up to 675Pa
|
||||||
|
Input Power :
|
26W – 4.5 kw
|
||||||
|
Diameter of impeller:
|
108,120,133,146,160,180,200,225,250,315,355mm
|
||||||
|
Material :
|
Housing – Galvanized Metal Impeller – Galvanized Metal
|
||||||
|
Voltage ：
|
AC 115V/230V / 380V , DC 24V/48V/310V, EC 115V/230V
|
||||||
|
Diameter of impeller:
|
120mm,133mm,146mm,160mm,180mm,225mm,280mm,355mm
|
||||||
|
Material :
|
Housing – Galvanized Metal Impeller – Galvanized Metal
|
||||||
|
Motor Type :
|
AC Capacitor Motor , DC/EC brushless external rotor motor
|
||||||
|
Voltage ：
|
AC 115V/230V / 380V , DC 24V/48V/310V, EC 115V/230V
|
||||||
|
Air Flow :
|
Up to 2000 m³/h
|
||||||
|
Input Power :
|
70W – 1.8kw
|
||||||
|

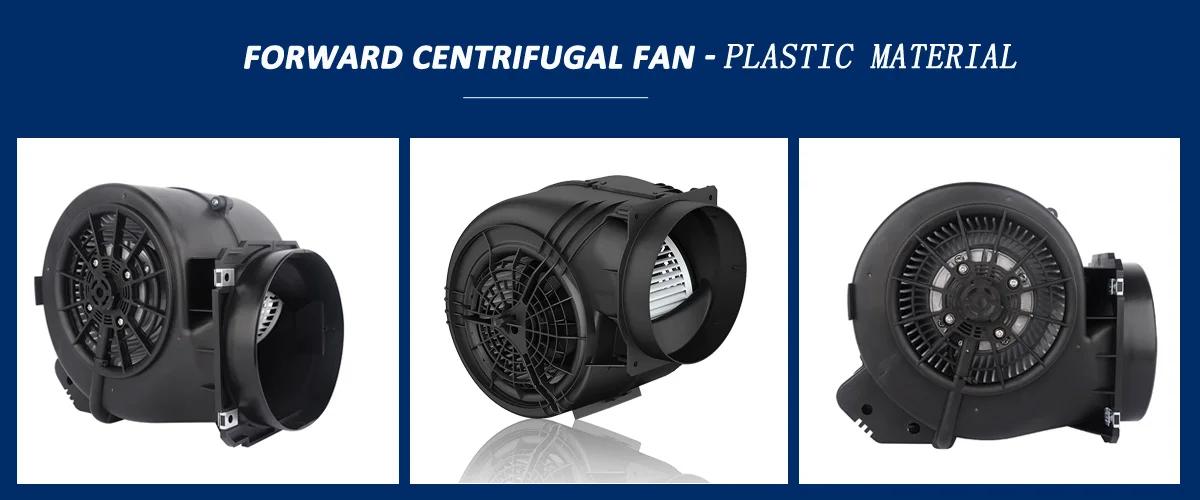

Diameter of impeller:
|
133mm,146mm
|
||||||
|
Material :
|
Plastic
|
||||||
|
Voltage ：
|
AC 115V/230V
|
||||||
|
Air Flow :
|
Up to 730 m³/h
|
||||||
|
Air Pressure :
|
Up to 580Pa
|
||||||
|
Input Power :
|
79 – 298 W
|
||||||
